LKAS Camera-Control Unit Connector for Inputs and Outputs

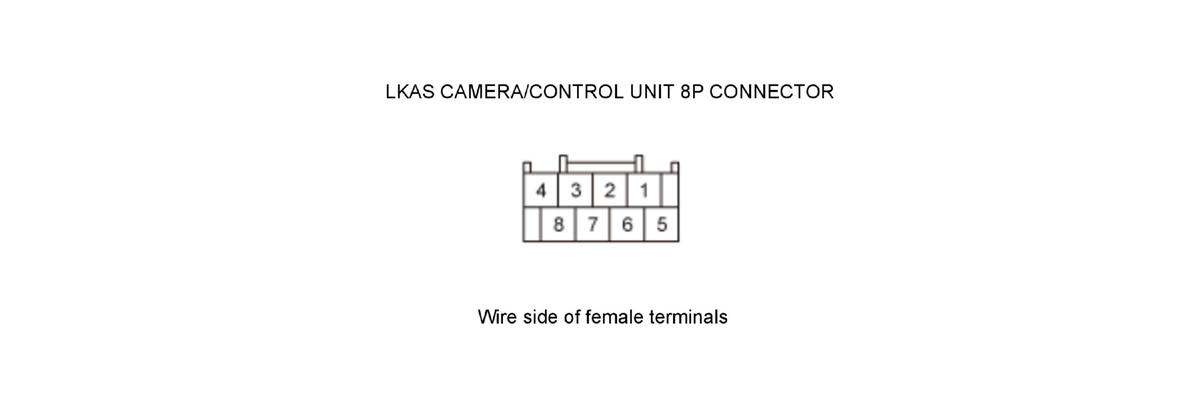

LKAS Camera/Control Unit 8P connector for Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | WHT | IG1 DR2 | Power supply for the LKAS camera/control unit | Vehicle in ON mode: Battery voltage Vehicle in OFF (LOCK) mode: About 0 V |
| 2 | Not used | Not used | --- | --- |
| 3 | PUR | F-CAN C_H | F-CAN C communication (high) circuit | --- |
| 4 | Not used | Not used | --- | --- |
| 5 | LT BLU | K LINE | Communicates with HDS | --- |
| 6 | Not used | Not used | --- | --- |
| 7 | PNK | F-CAN C_L | F-CAN C communication (low) circuit | --- |
| 8 | BRN | GND | Ground circuit for the LKAS camera/control unit | Less than 0.2 V at all times |
