ADAS / Cruise Control System - Testing & Troubleshooting (Except Hybrid)
>>
Component Location Index
>>

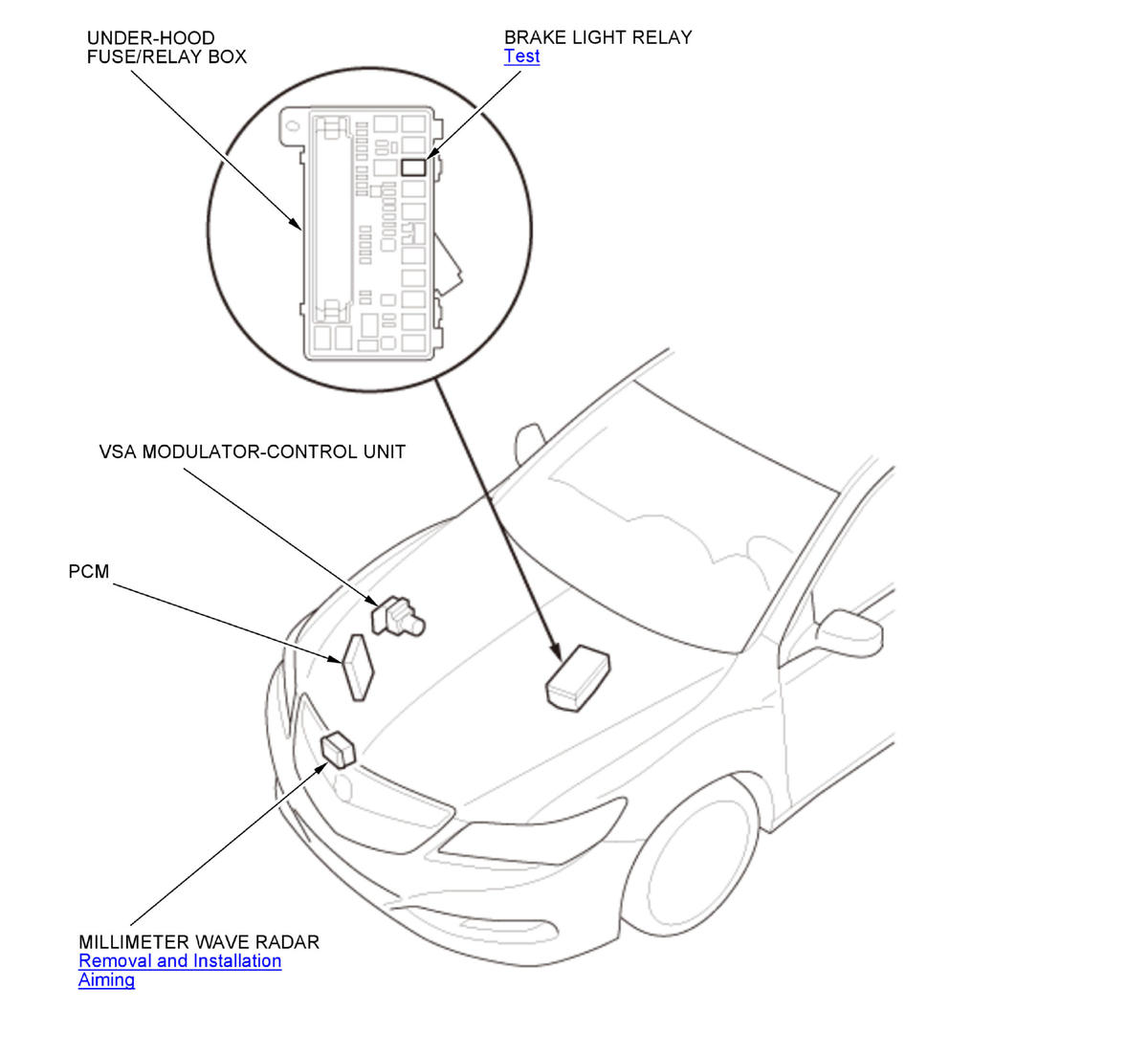

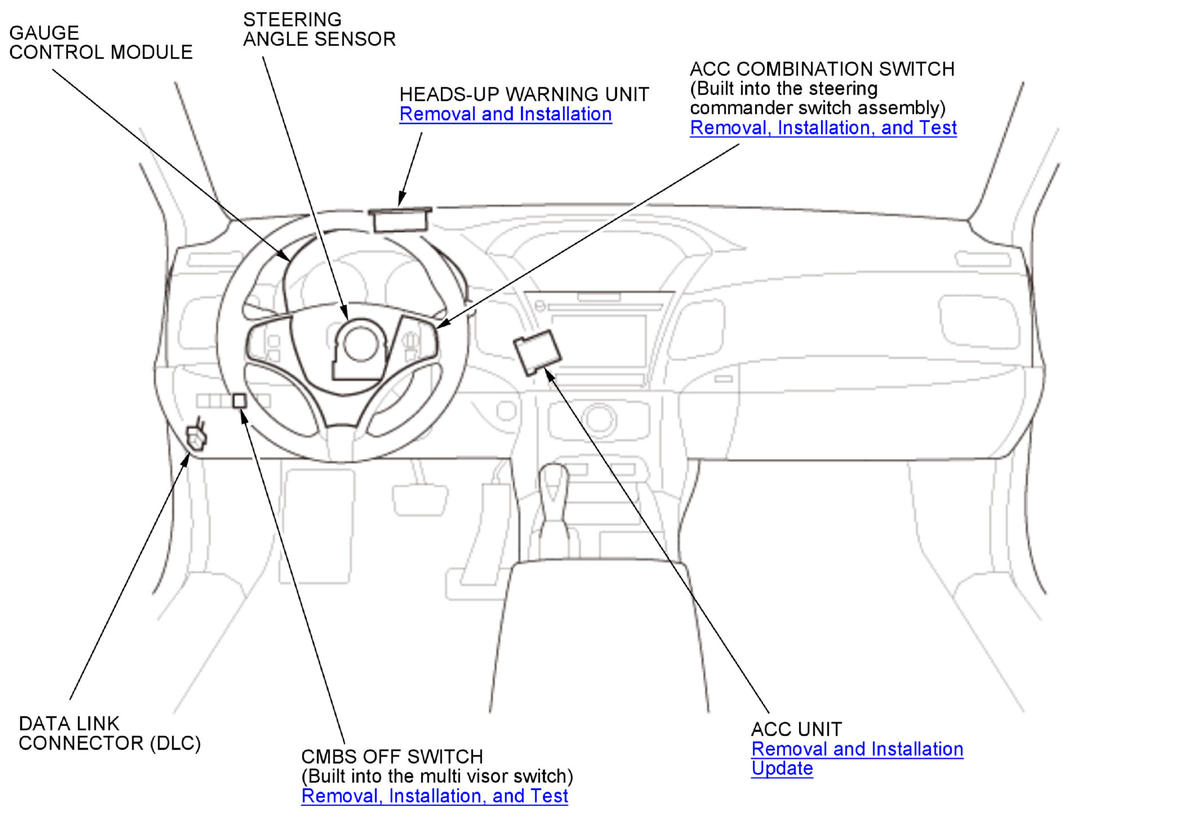

Collision Mitigation Braking System (CMBS) Component Location Index (2014 2015 2016 2017)
Collision Mitigation Braking System (CMBS) Component Location Index (2014 2015 2016 2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
