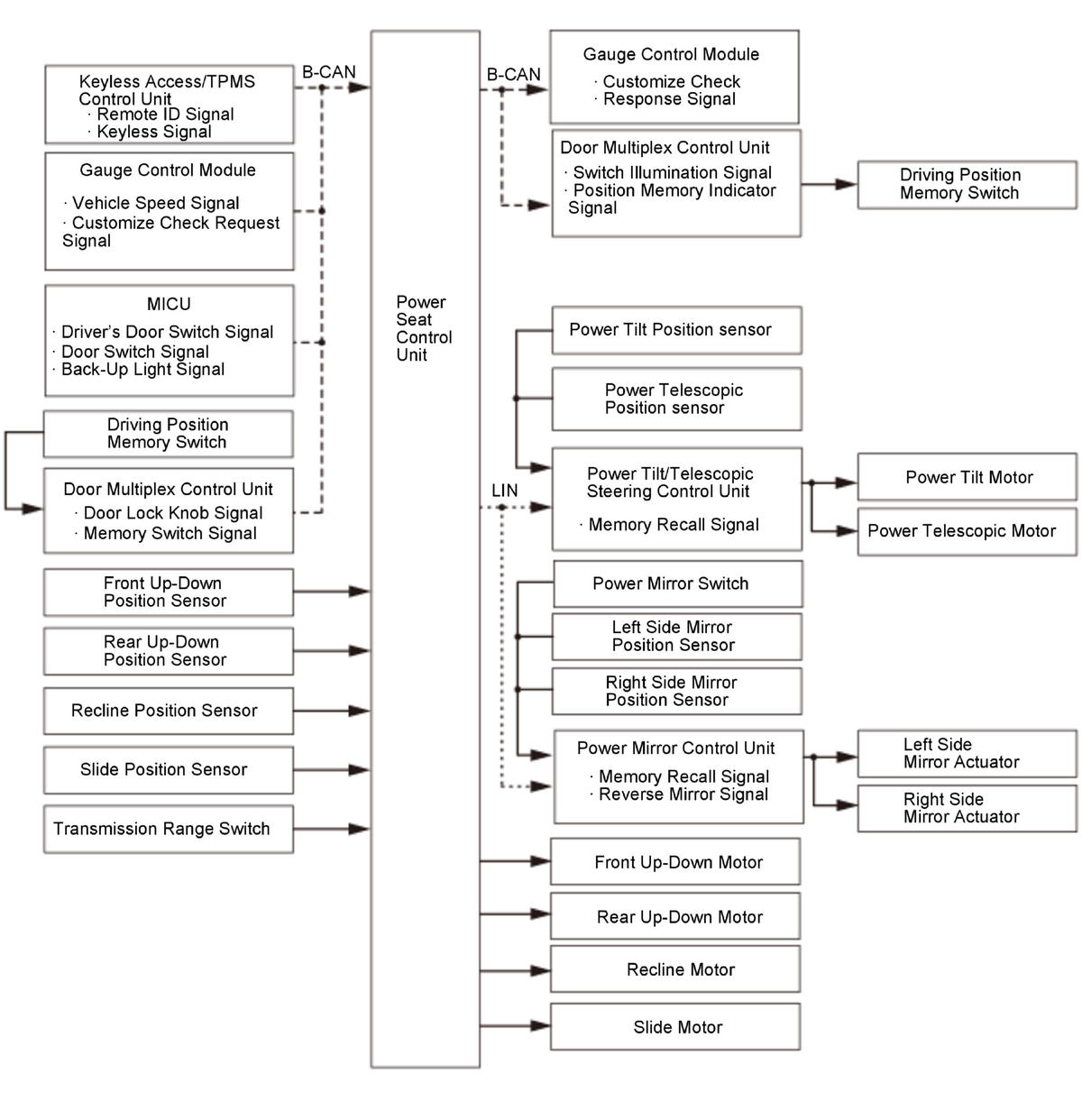

Driving Position Memory System Description - System Diagram(KA/KC model) (2016 2017)

GHH348240Courtesy of HONDA, U.S.A., INC.
