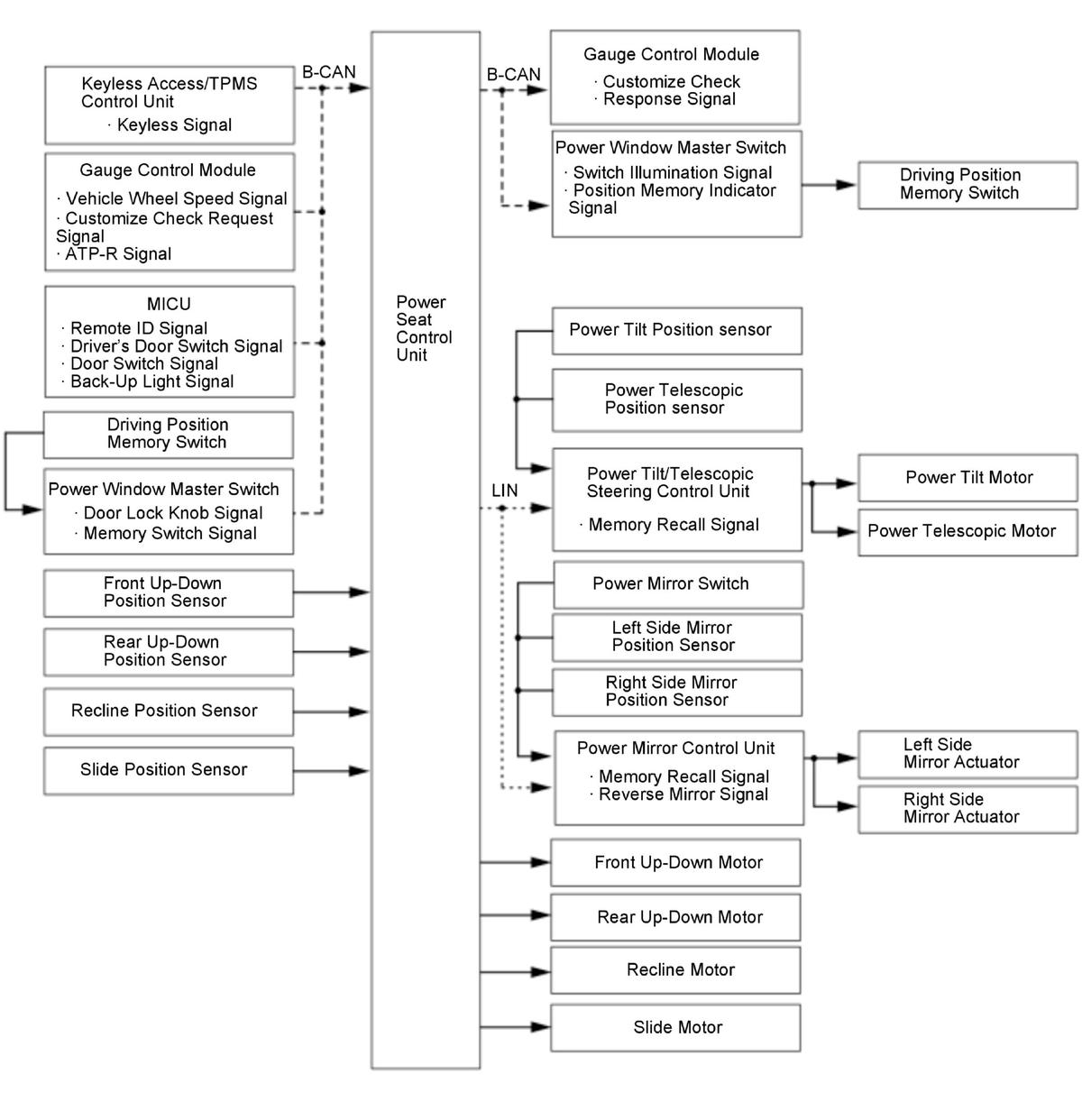

Driving Position Memory System Description - System Diagram (2018 2019 2020)
Driving Position Memory System Description - System Diagram (2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
