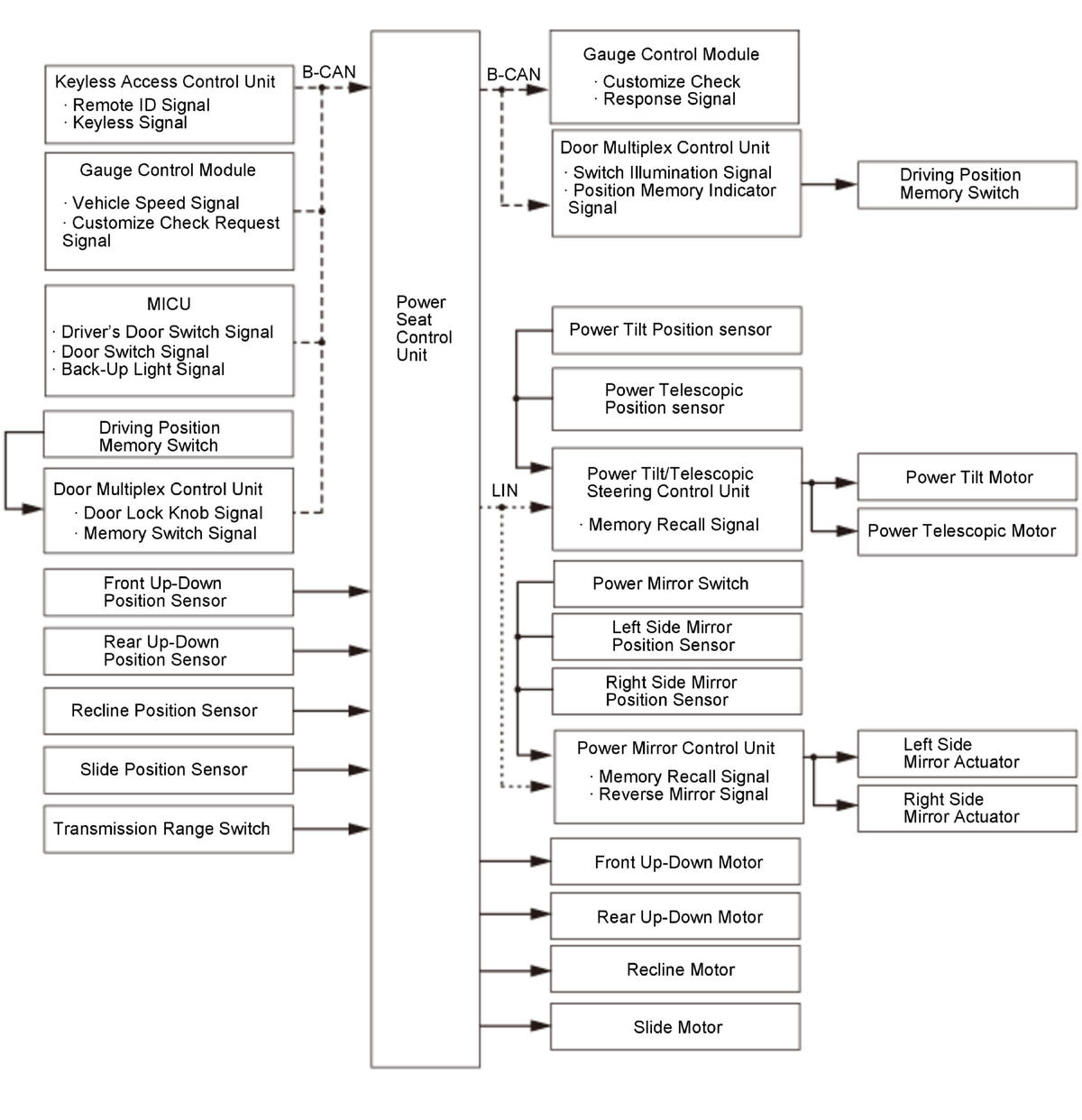

Driving Position Memory System Description - System Diagram (2014 2015 2016 2017)

GHH348239

Courtesy of HONDA, U.S.A., INC.
