Driving Position Memory System Description - Overview (2016 2017)

The driving position memory system (DPMS) can automatically move the driver's seat, power mirrors, and power tilt/telescopic steering positions to one of two memorized presets. Driver's can activate the system using the driving position memory switch or the remote.

Along with the seat, the power door lock settings will also be memorized based on which remote (Driver 1 or Driver 2) is used.

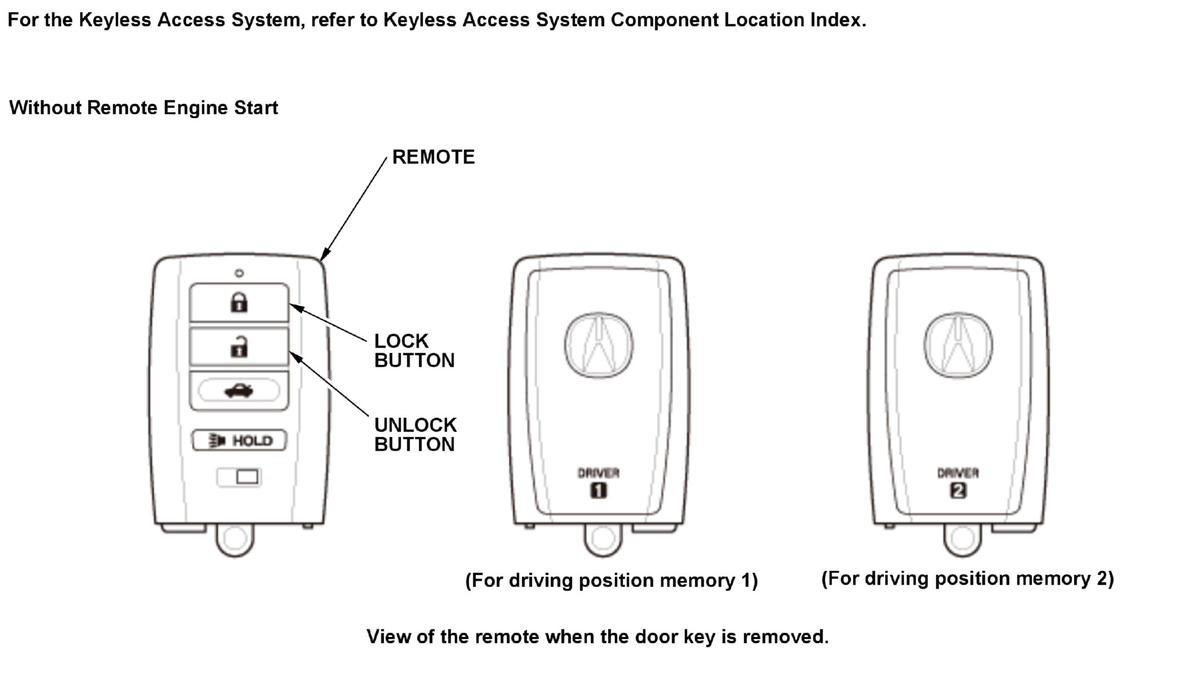

GHH348228Courtesy of HONDA, U.S.A., INC.

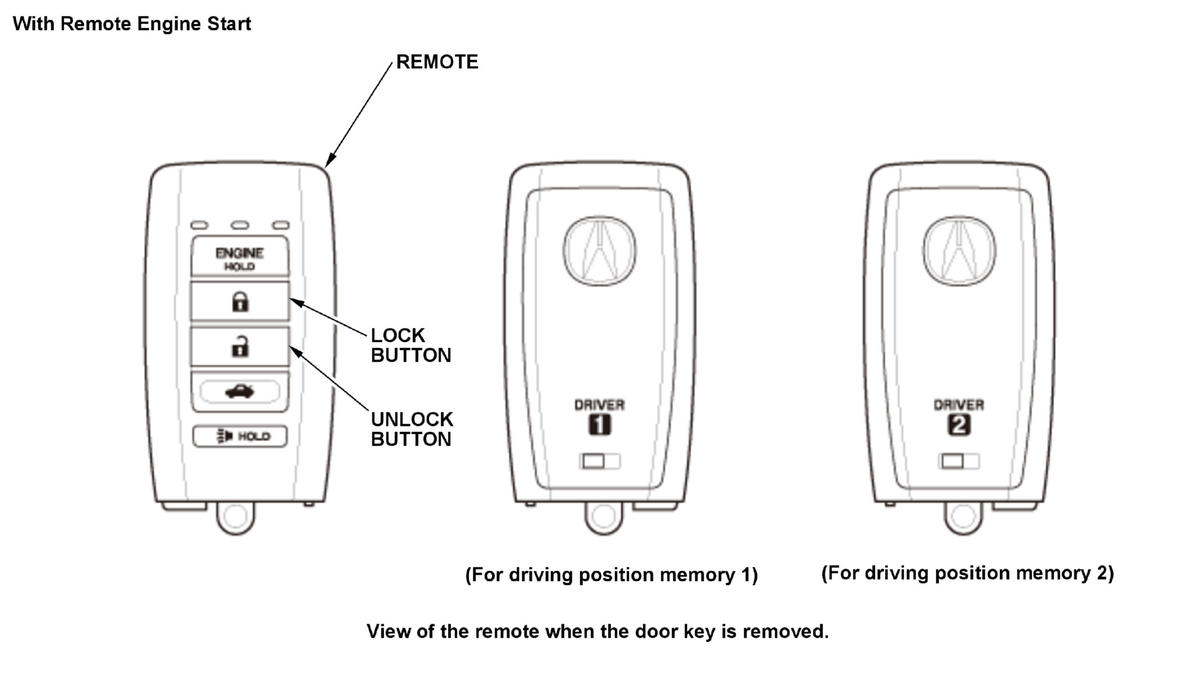

GHH348229Courtesy of HONDA, U.S.A., INC.

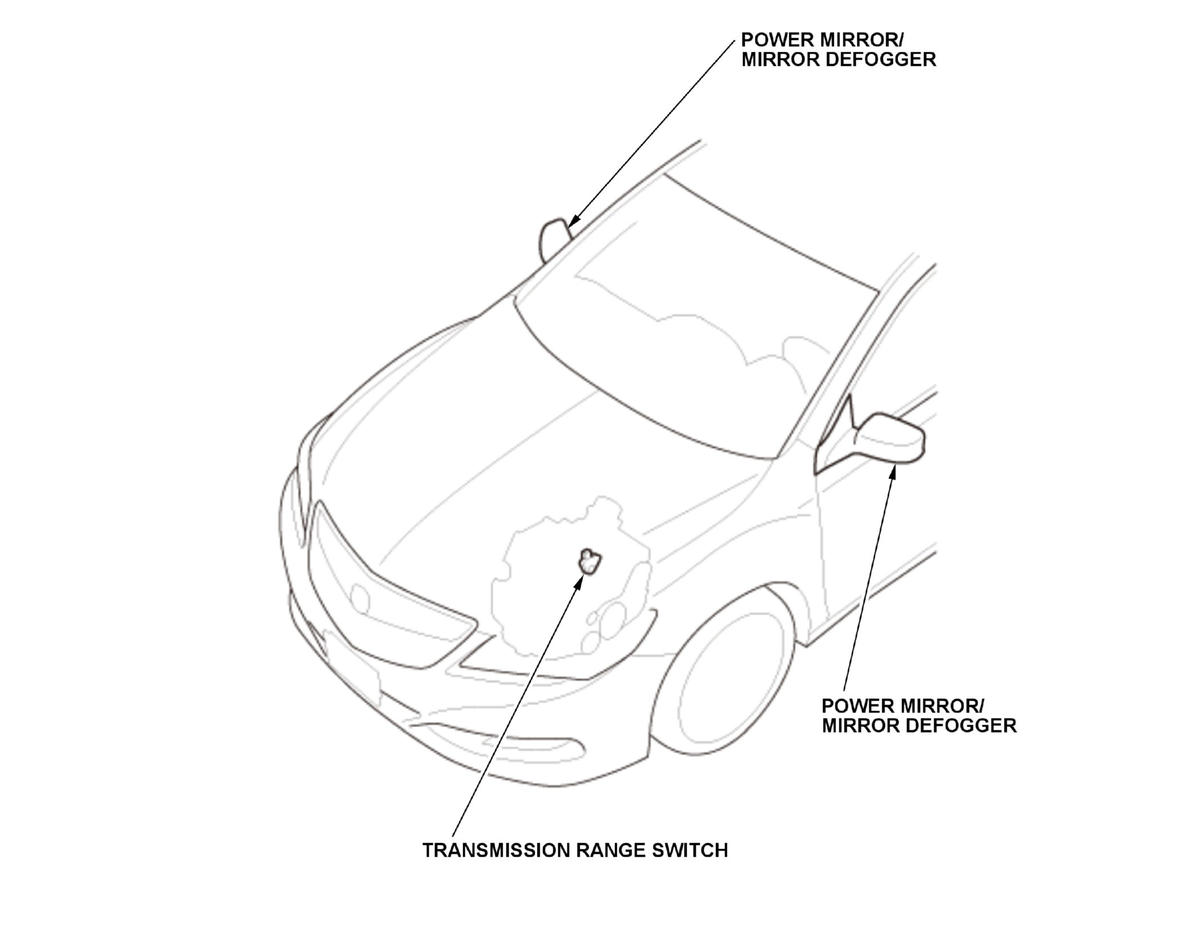

GHH348230Courtesy of HONDA, U.S.A., INC.

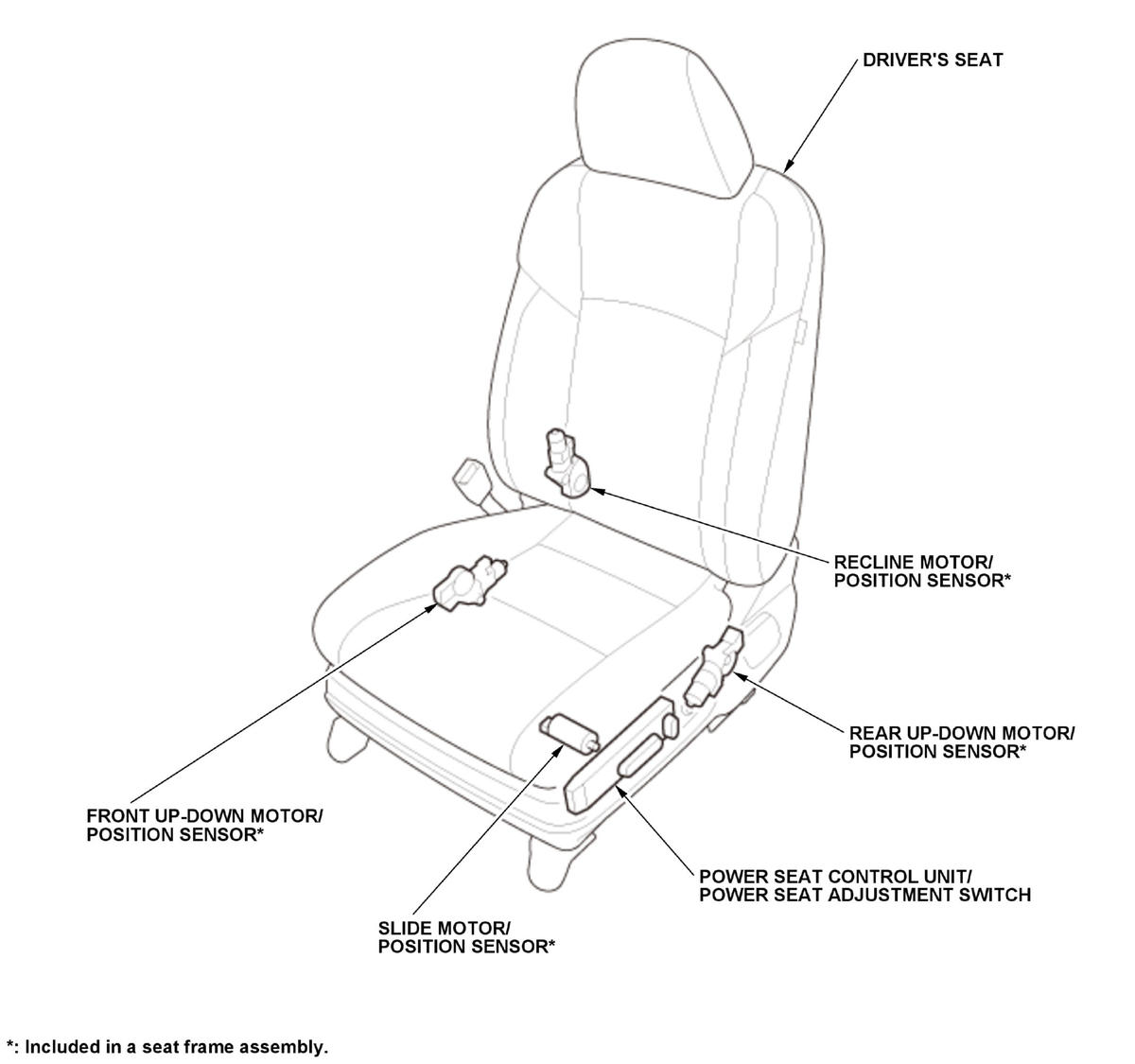

GHH348231Courtesy of HONDA, U.S.A., INC.

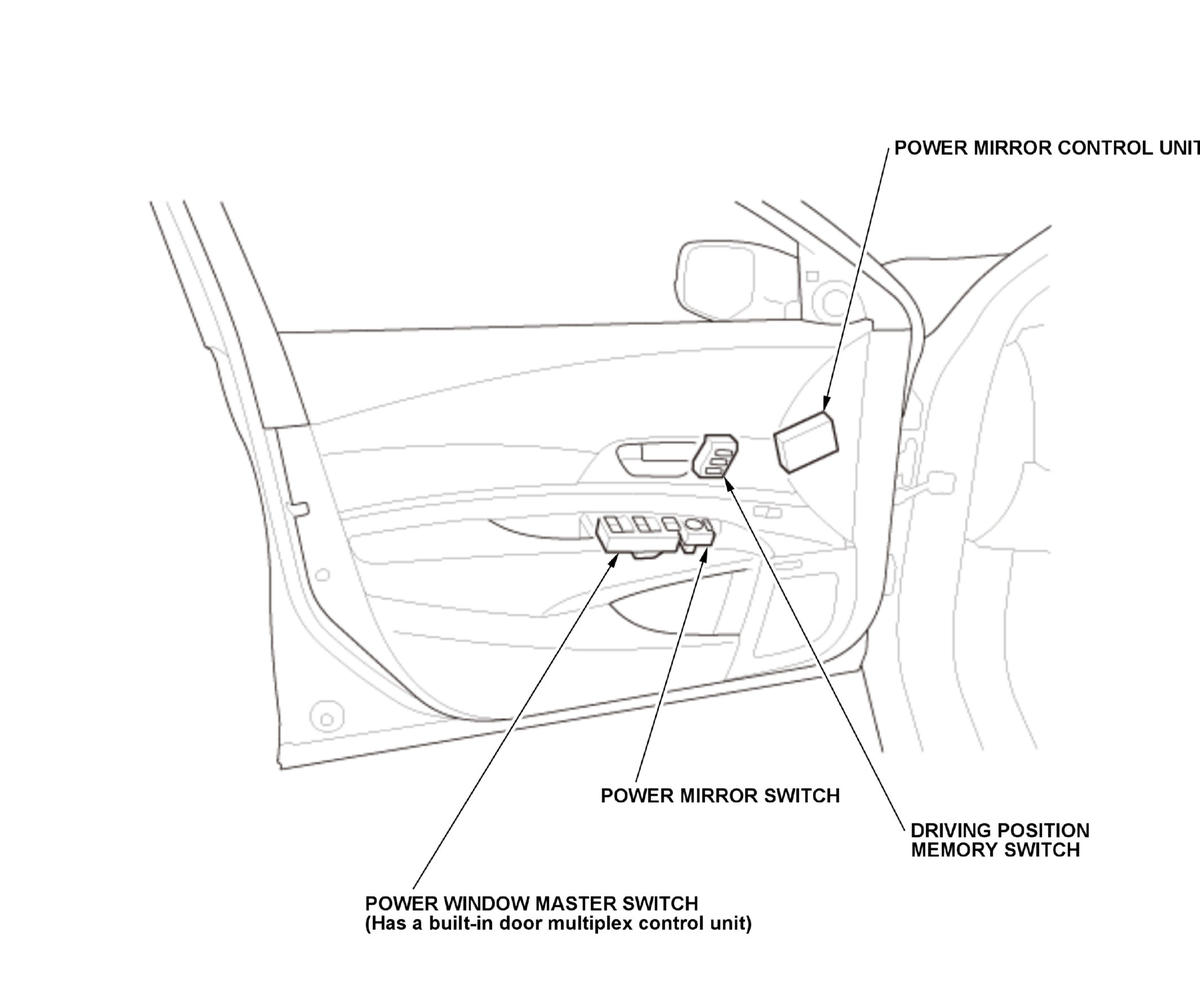

GHH348232Courtesy of HONDA, U.S.A., INC.

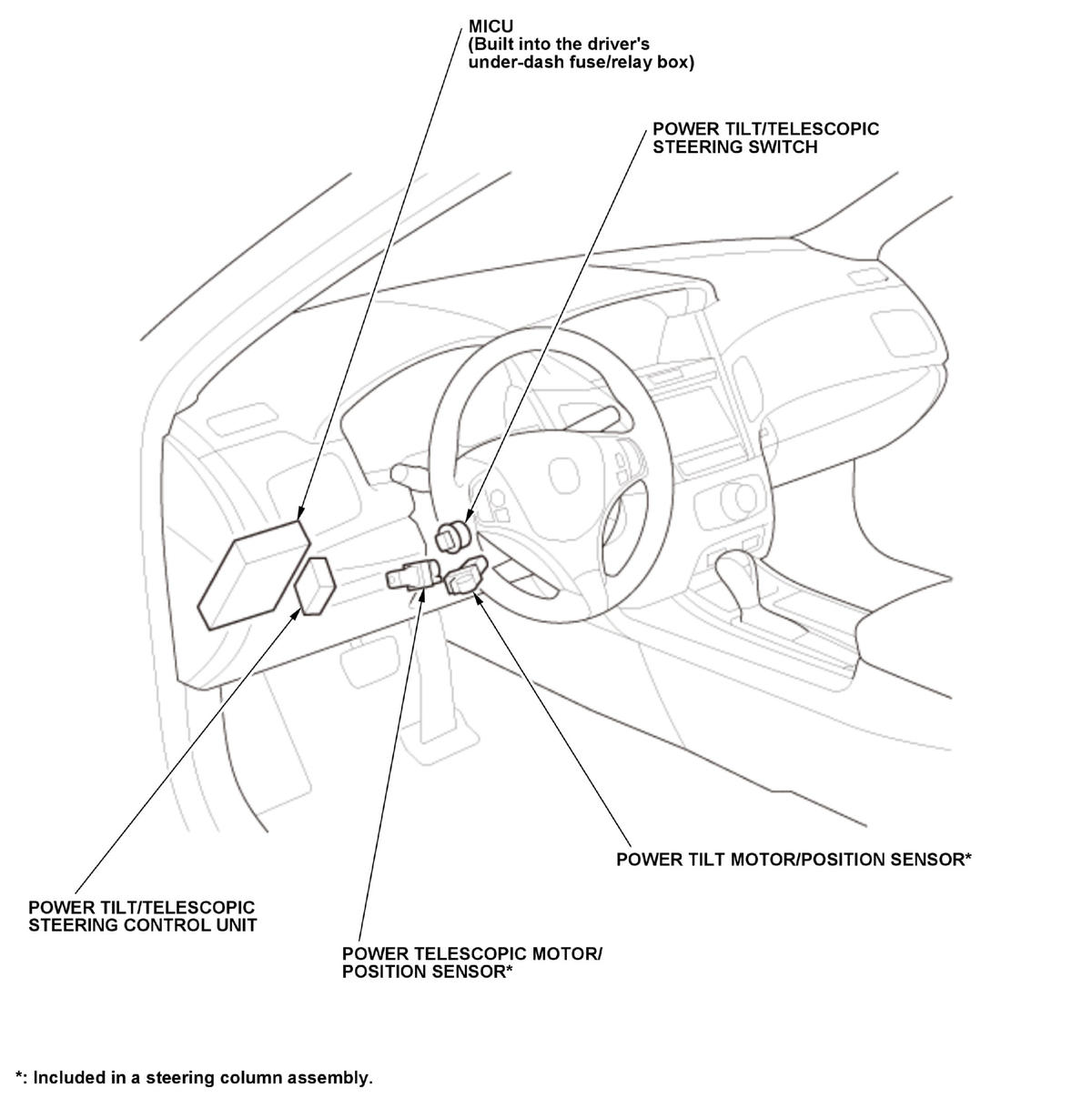

GHH348233Courtesy of HONDA, U.S.A., INC.
