Multiplex Integrated Control System Component Location Index (2014 2015)

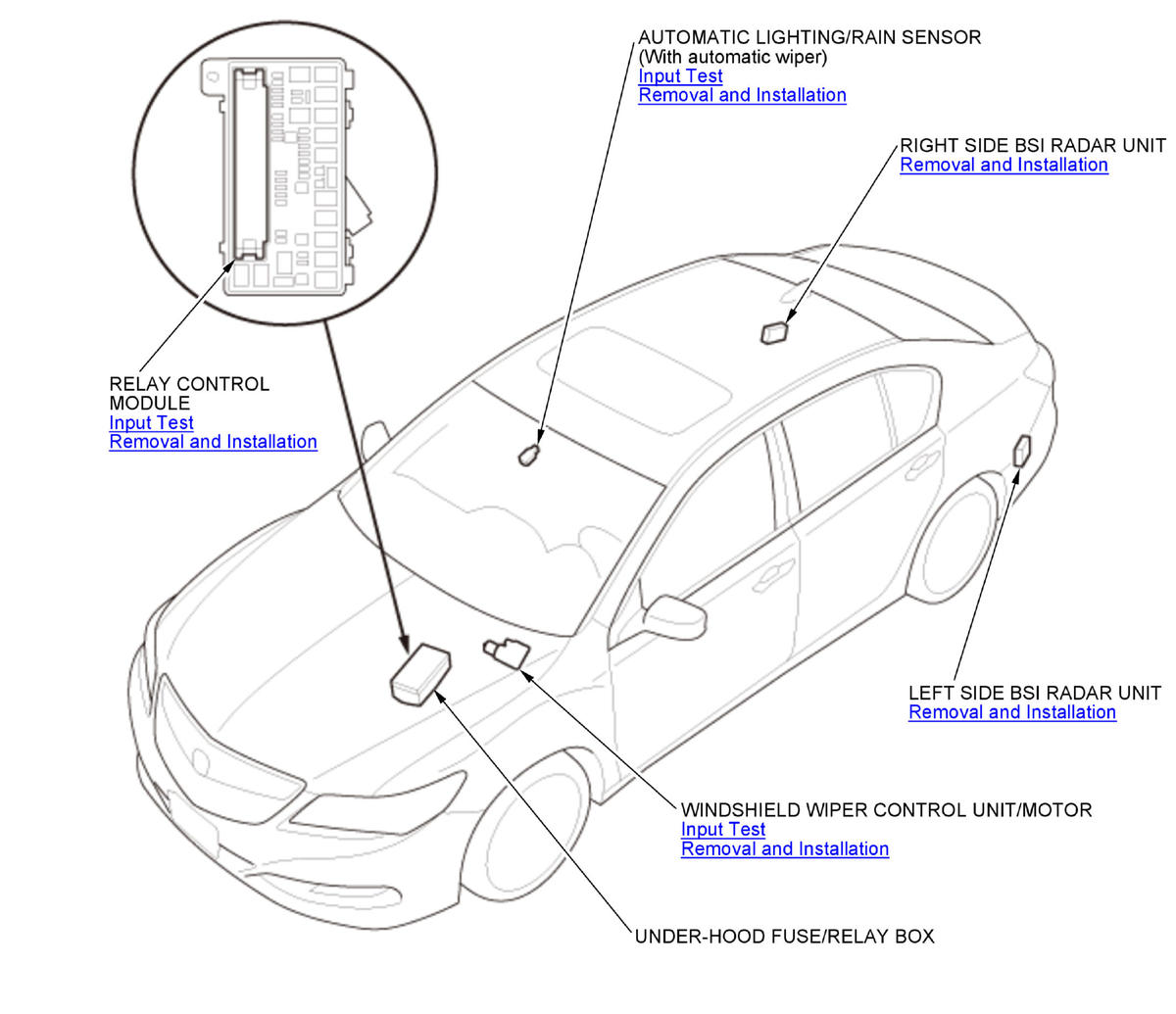

GHH348213Courtesy of HONDA, U.S.A., INC.

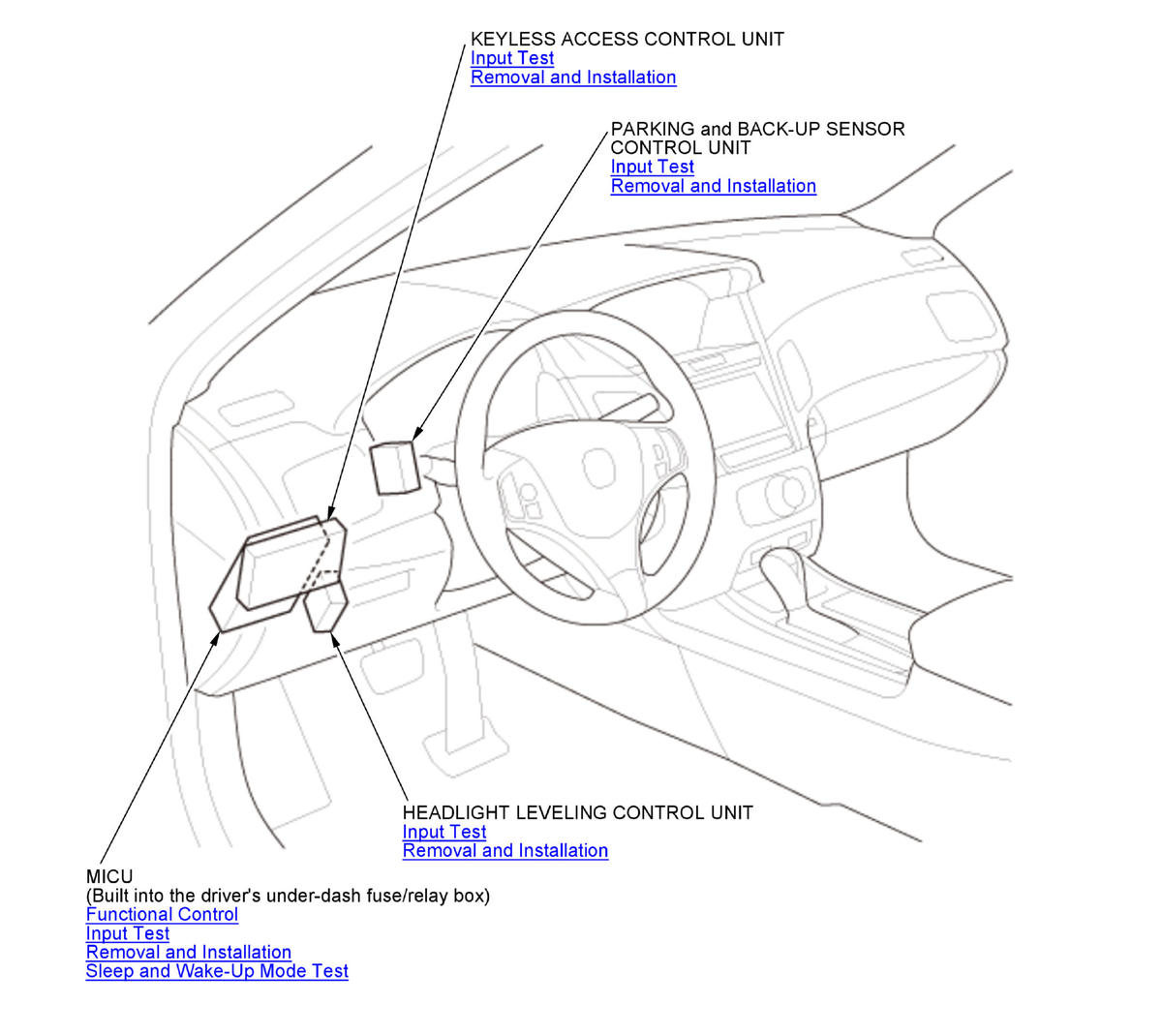

GHH348214Courtesy of HONDA, U.S.A., INC.

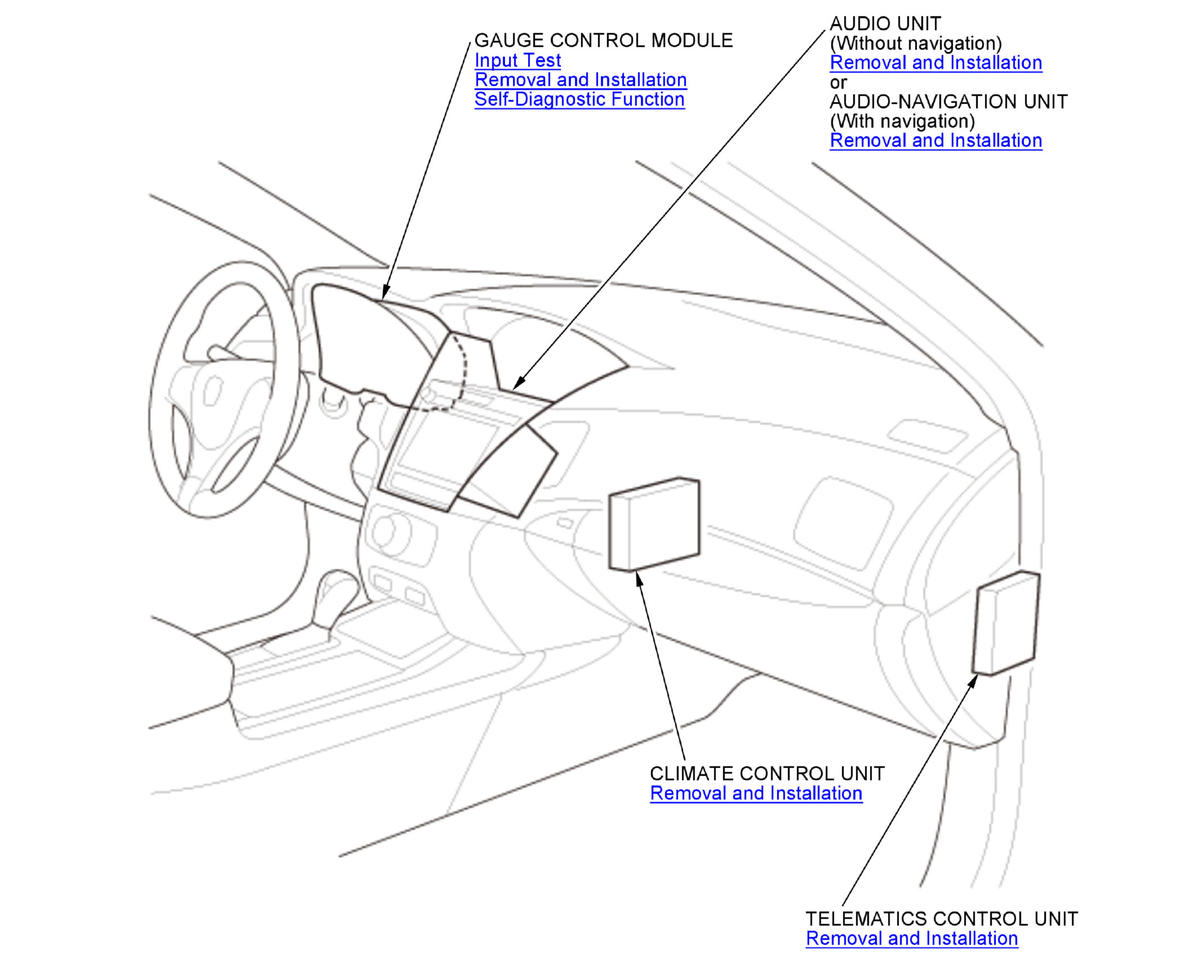

GHH348215Courtesy of HONDA, U.S.A., INC.

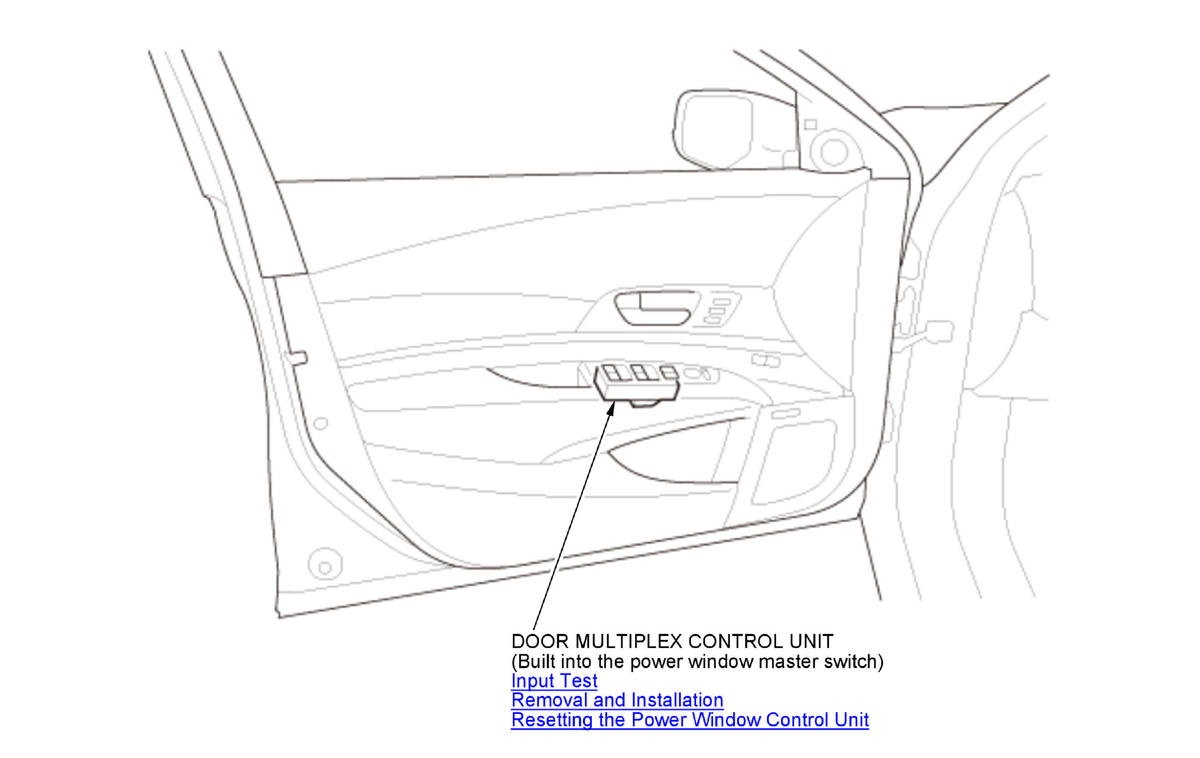

GHH348216Courtesy of HONDA, U.S.A., INC.

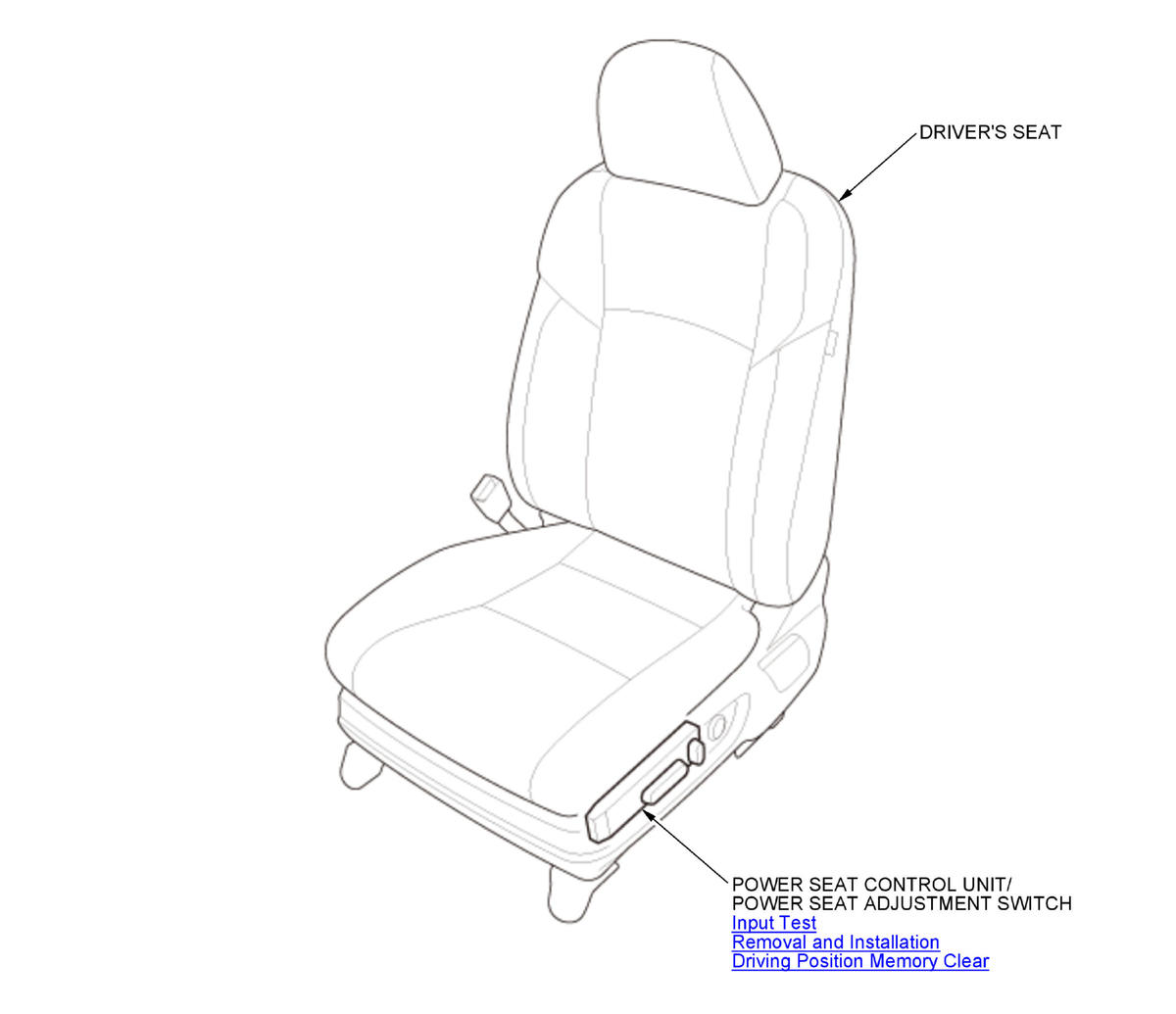

GHH348217Courtesy of HONDA, U.S.A., INC.
