Driving Position Memory System (DPMS) Component Location Index

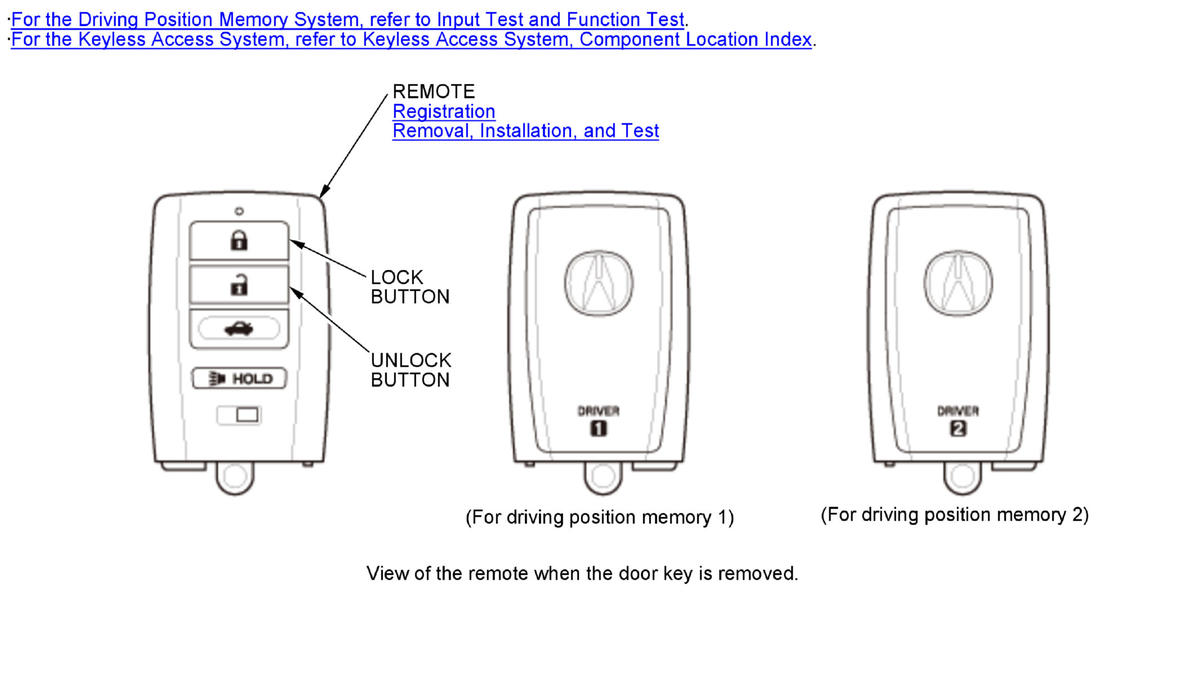

GHH348197Courtesy of HONDA, U.S.A., INC.

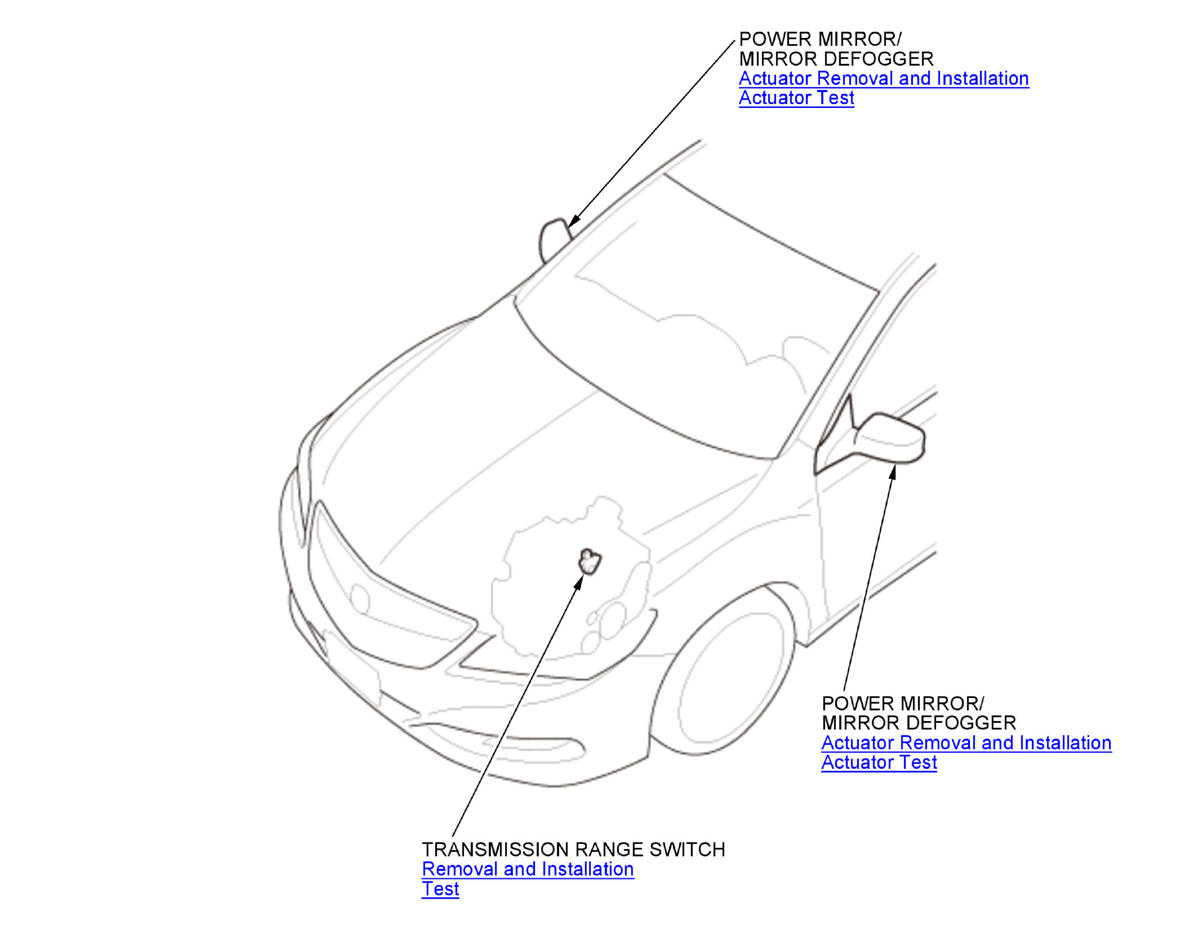

GHH348198Courtesy of HONDA, U.S.A., INC.

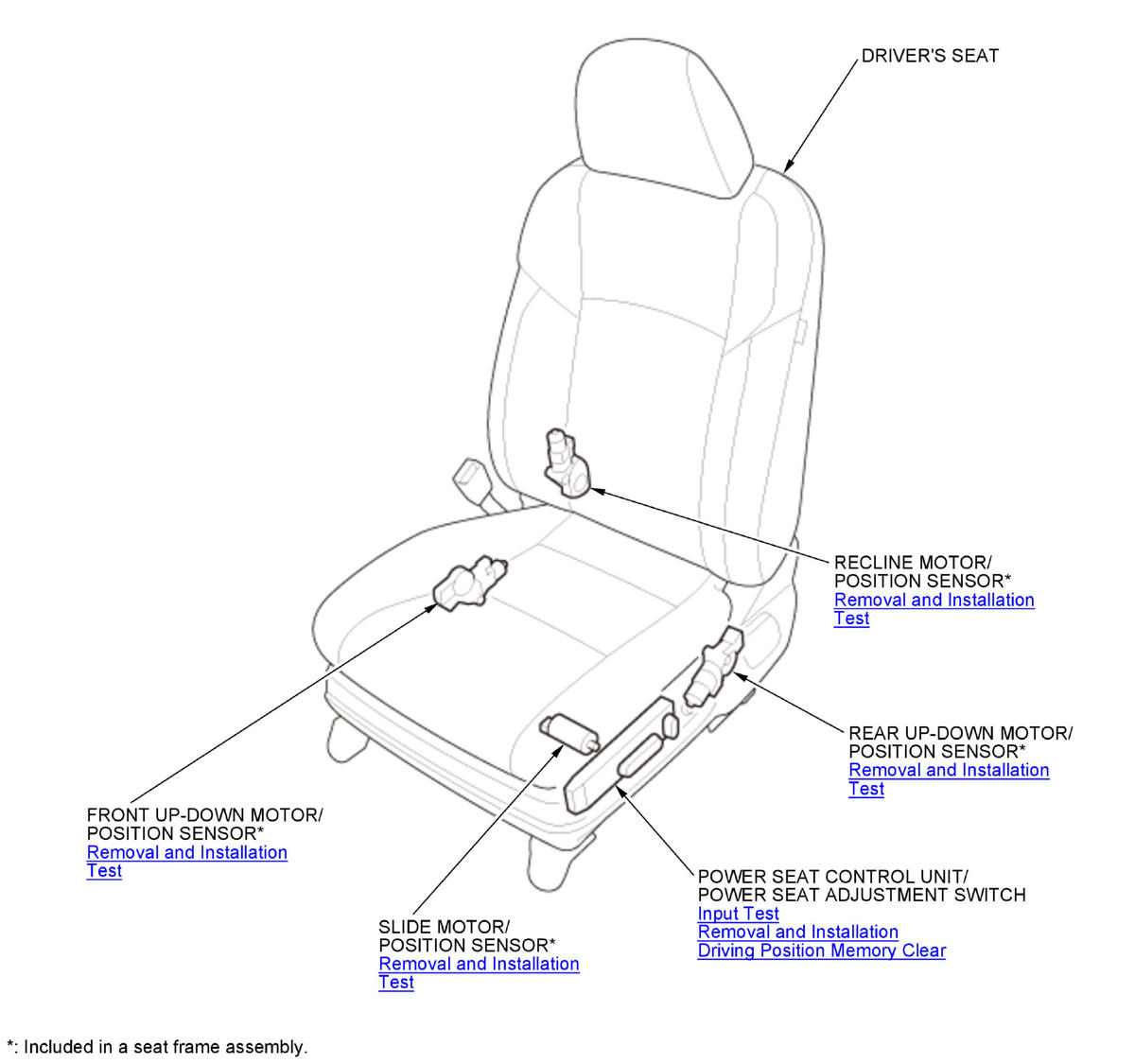

GHH348199Courtesy of HONDA, U.S.A., INC.

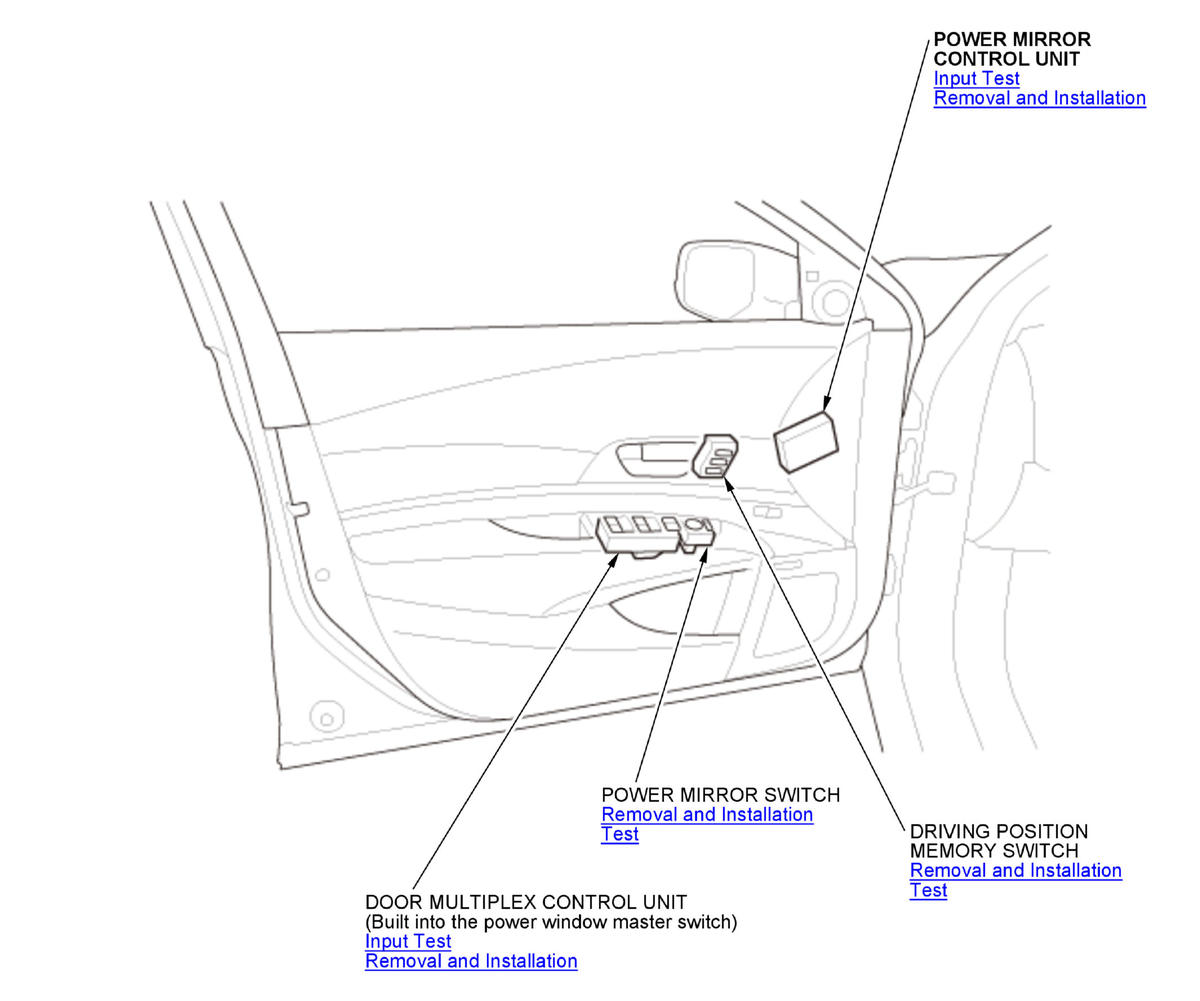

GHH348200Courtesy of HONDA, U.S.A., INC.

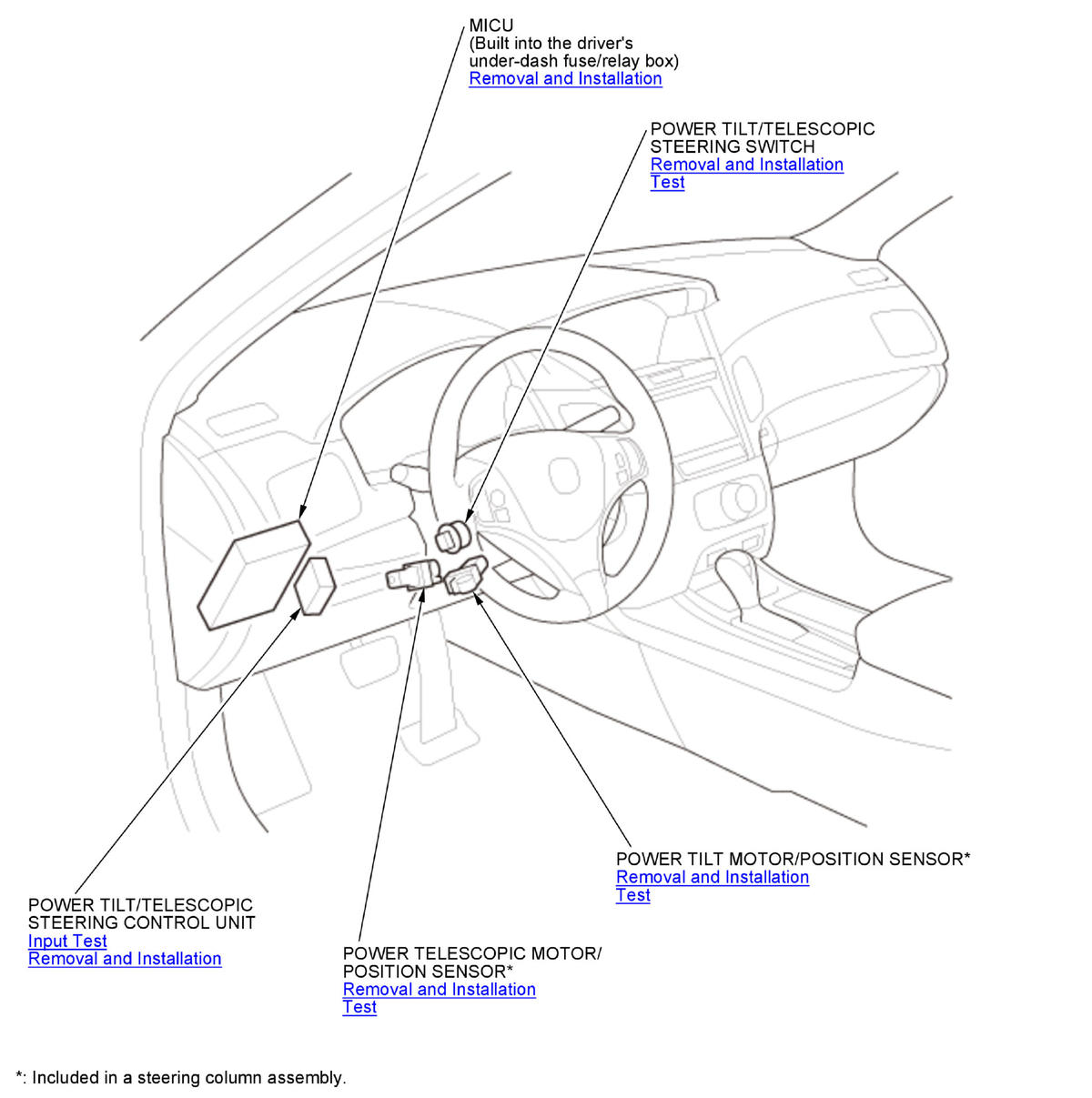

GHH348201Courtesy of HONDA, U.S.A., INC.
