Multiplex Integrated Control System Circuit Diagram (2014 2015)

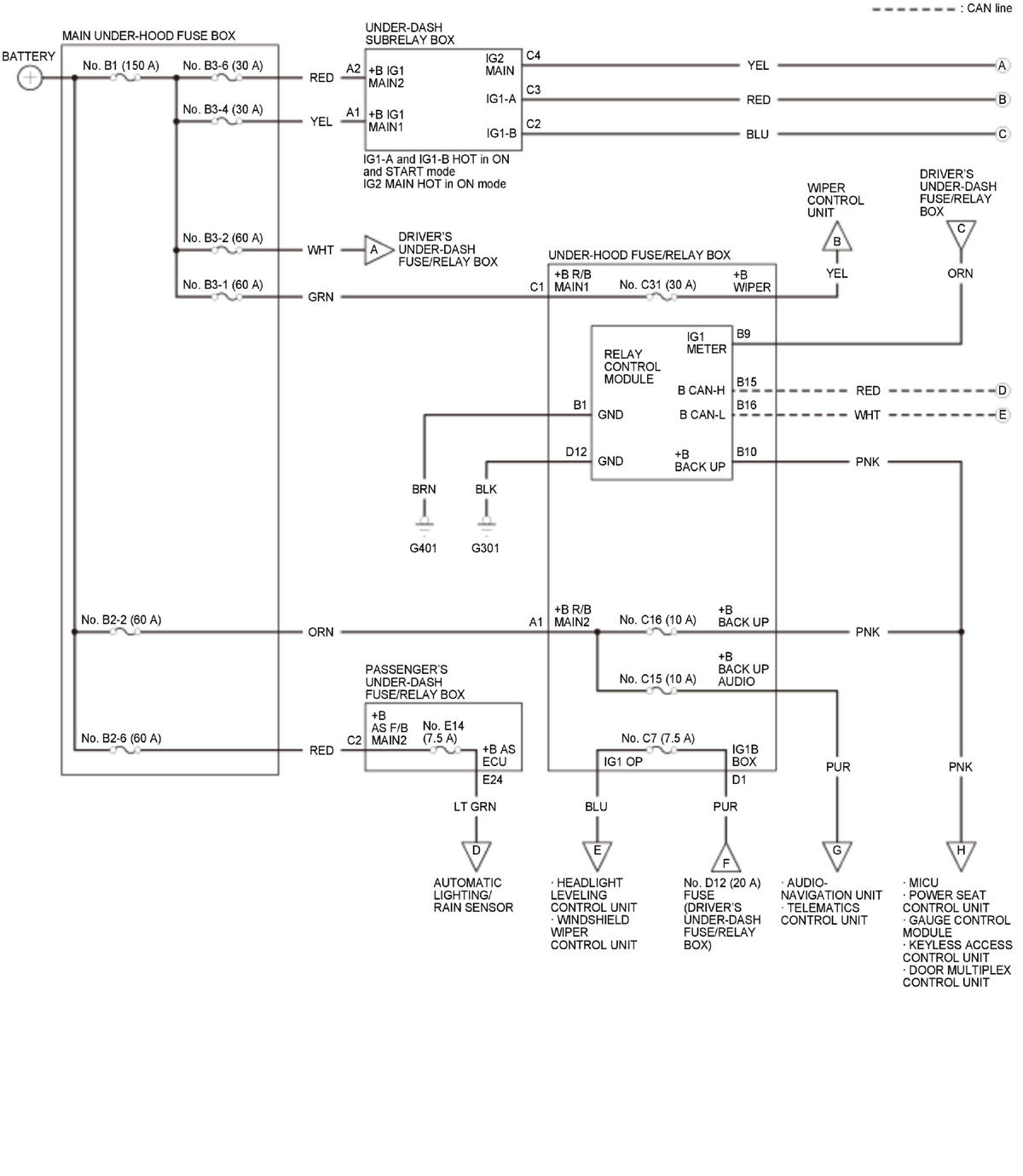

GHH348182Courtesy of HONDA, U.S.A., INC.

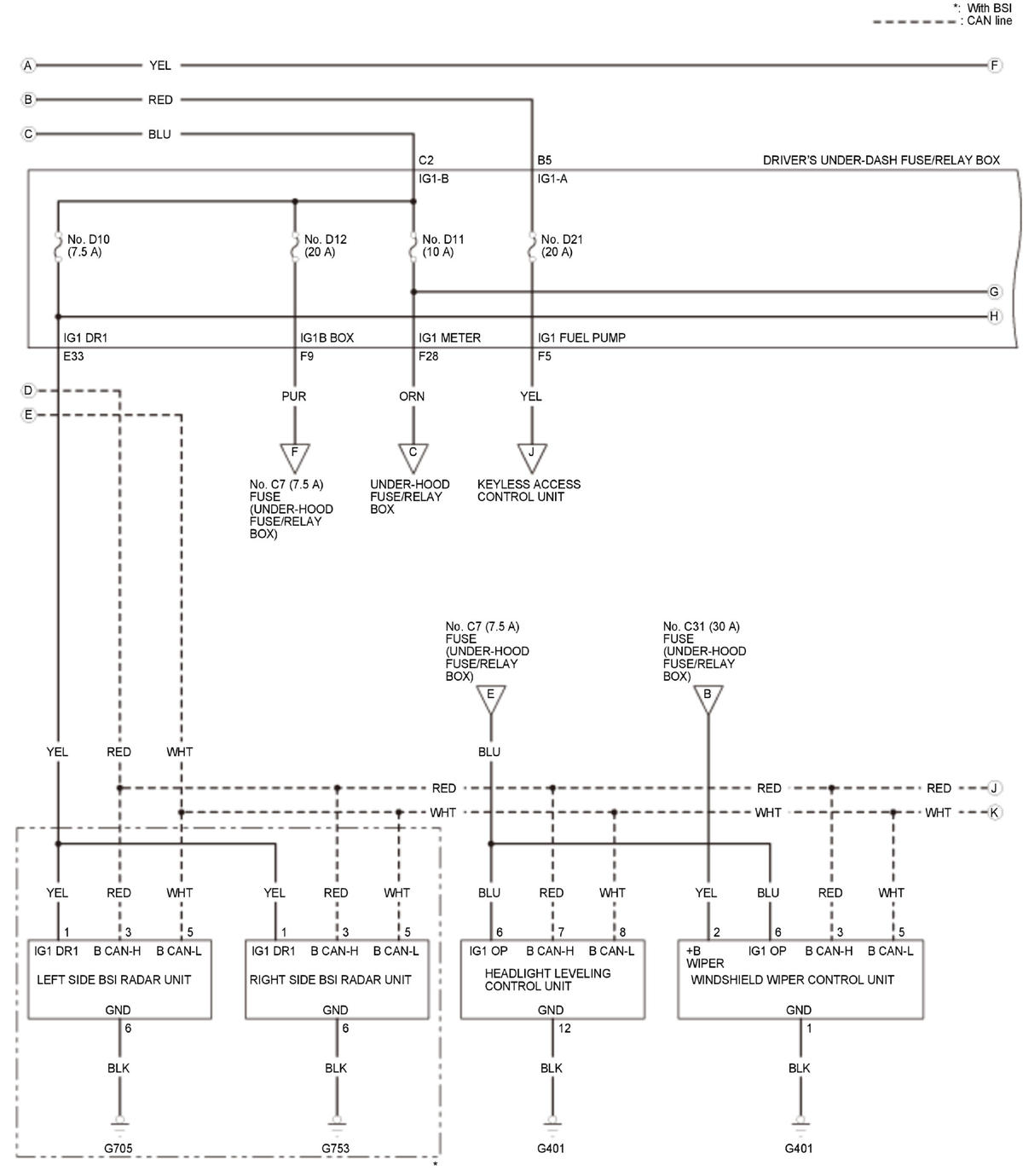

GHH348183Courtesy of HONDA, U.S.A., INC.

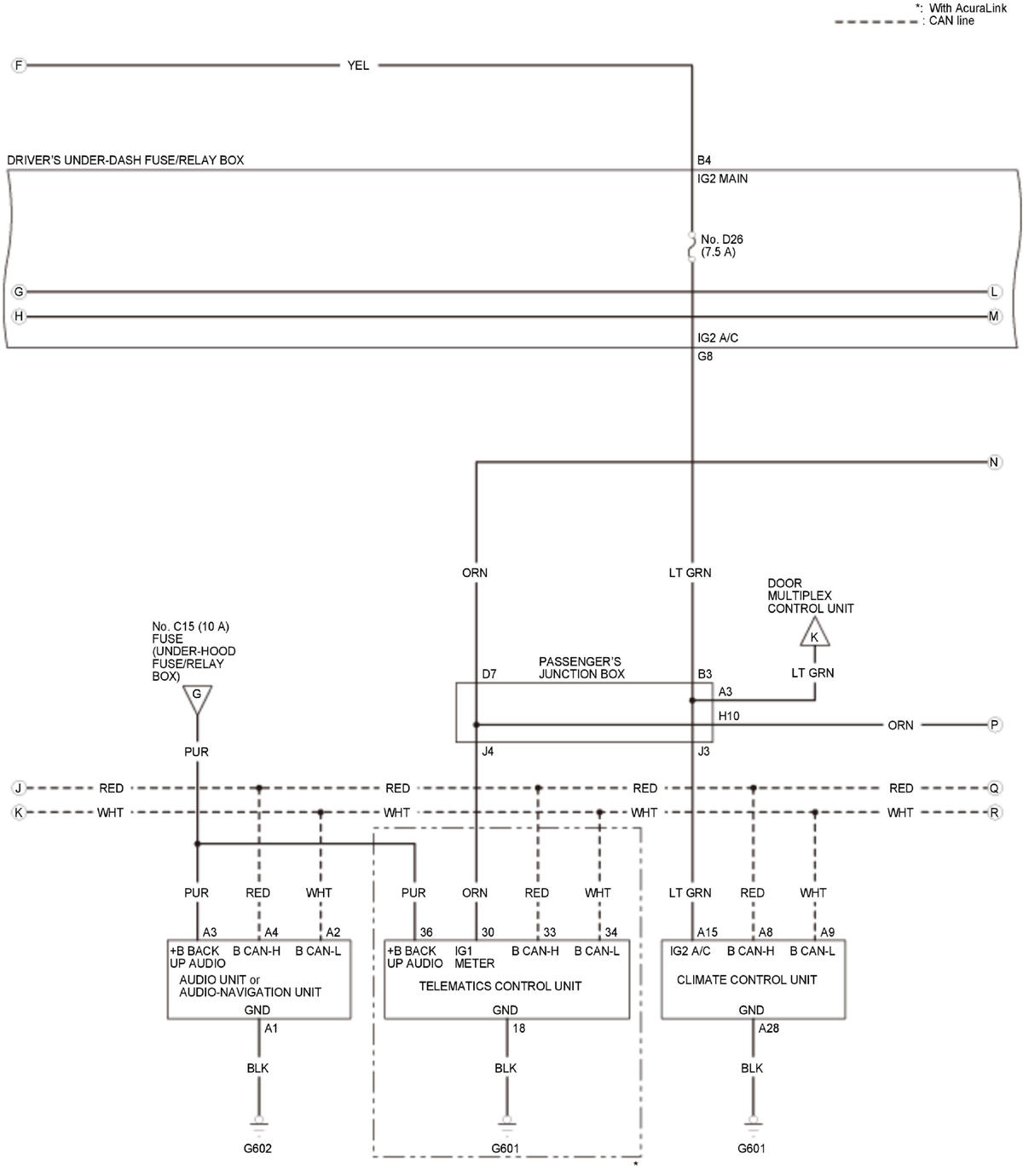

GHH348184Courtesy of HONDA, U.S.A., INC.

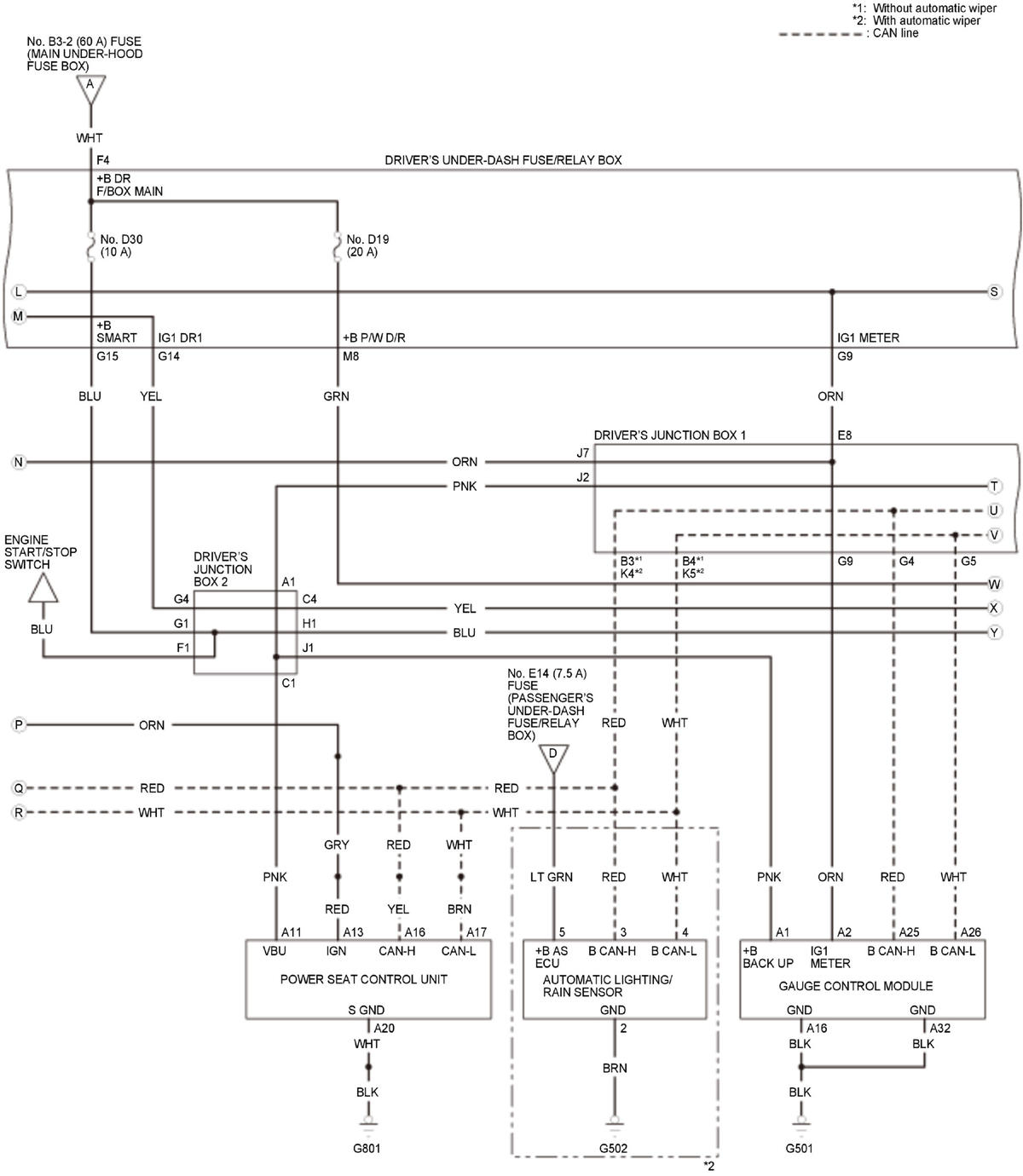

GHH348185Courtesy of HONDA, U.S.A., INC.

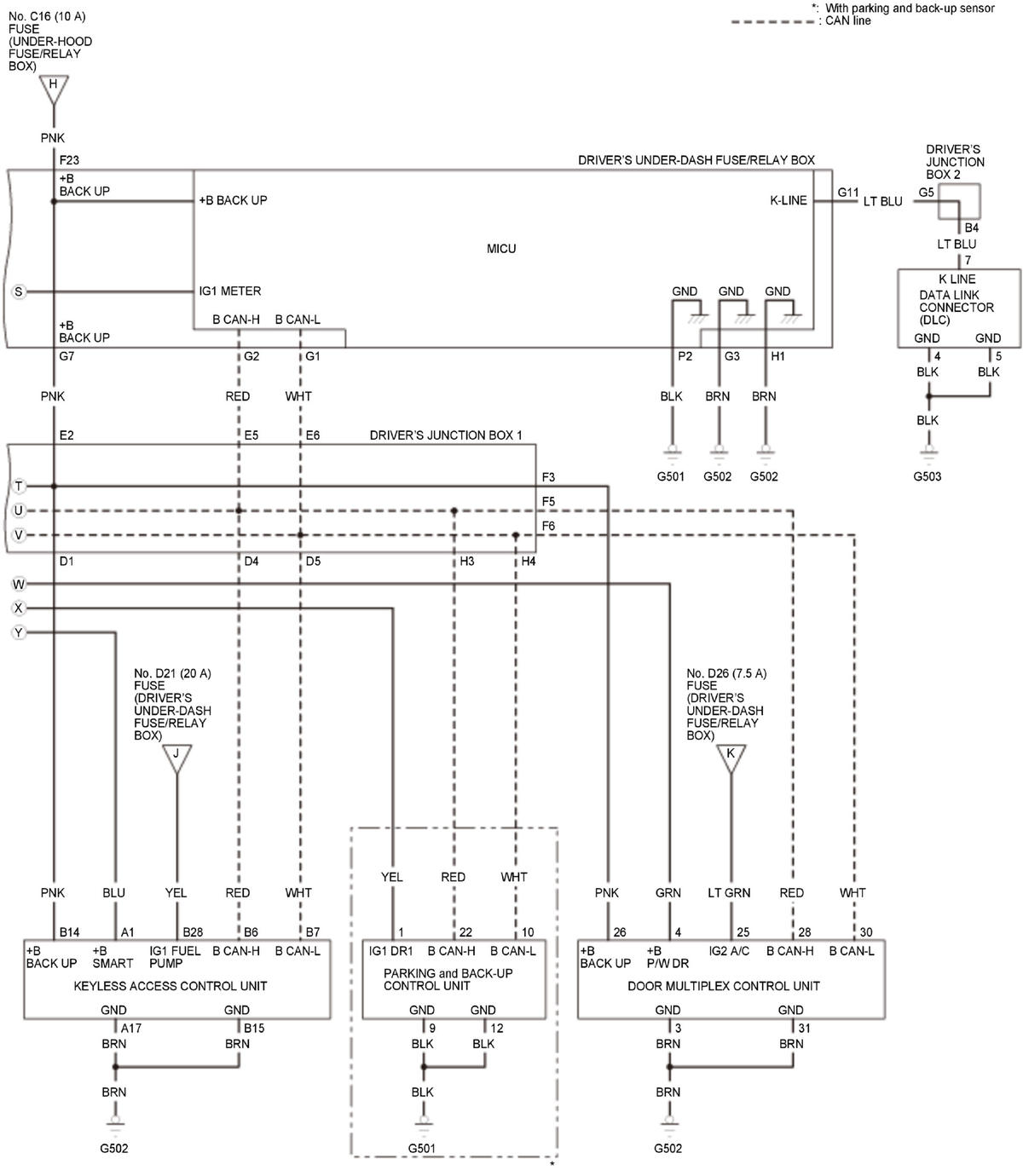

GHH348186Courtesy of HONDA, U.S.A., INC.
