Keyless/Power Door Locks/Security System Circuit Diagram (2018 2019 2020)

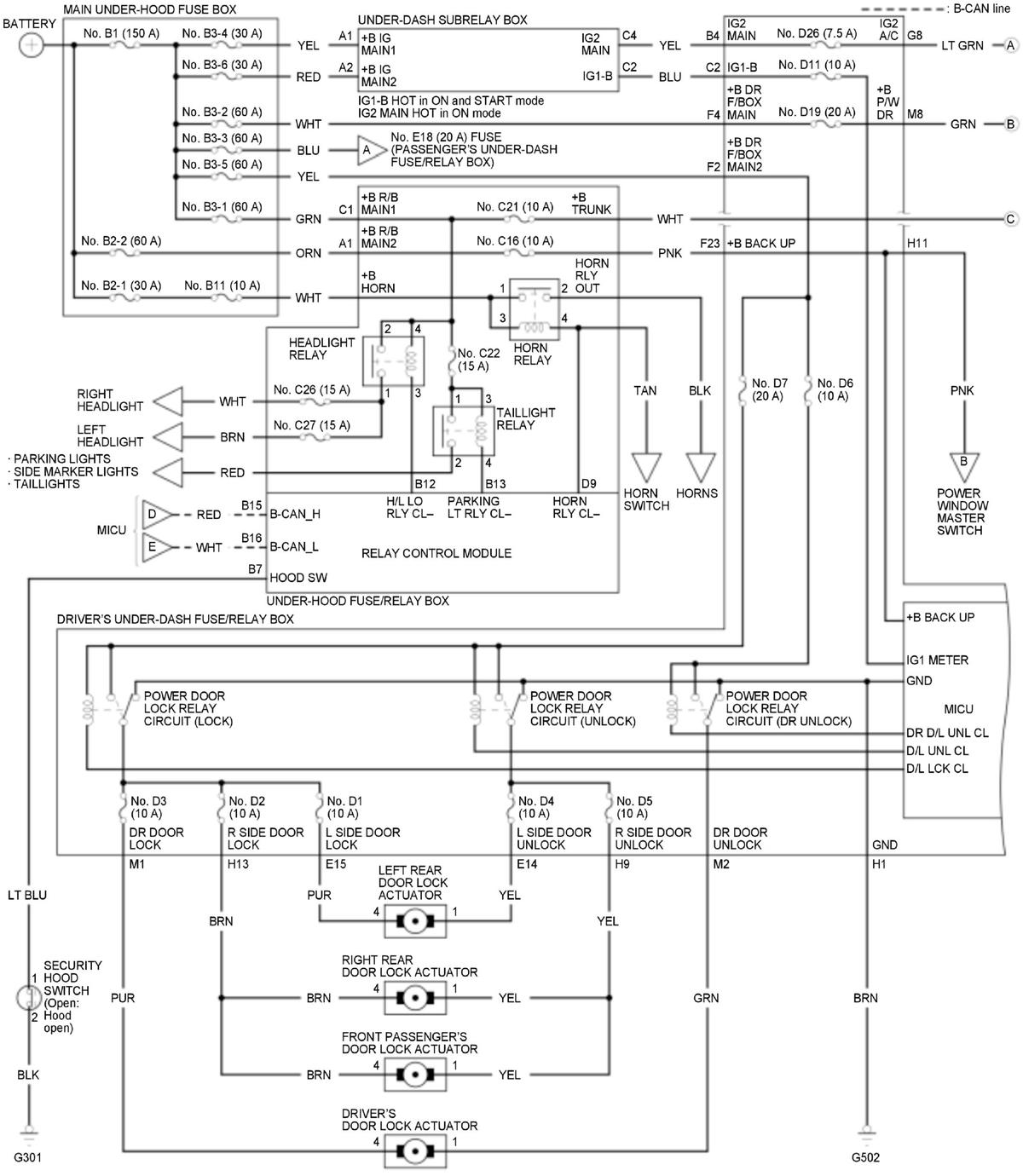

GHH350953

Courtesy of HONDA, U.S.A., INC.

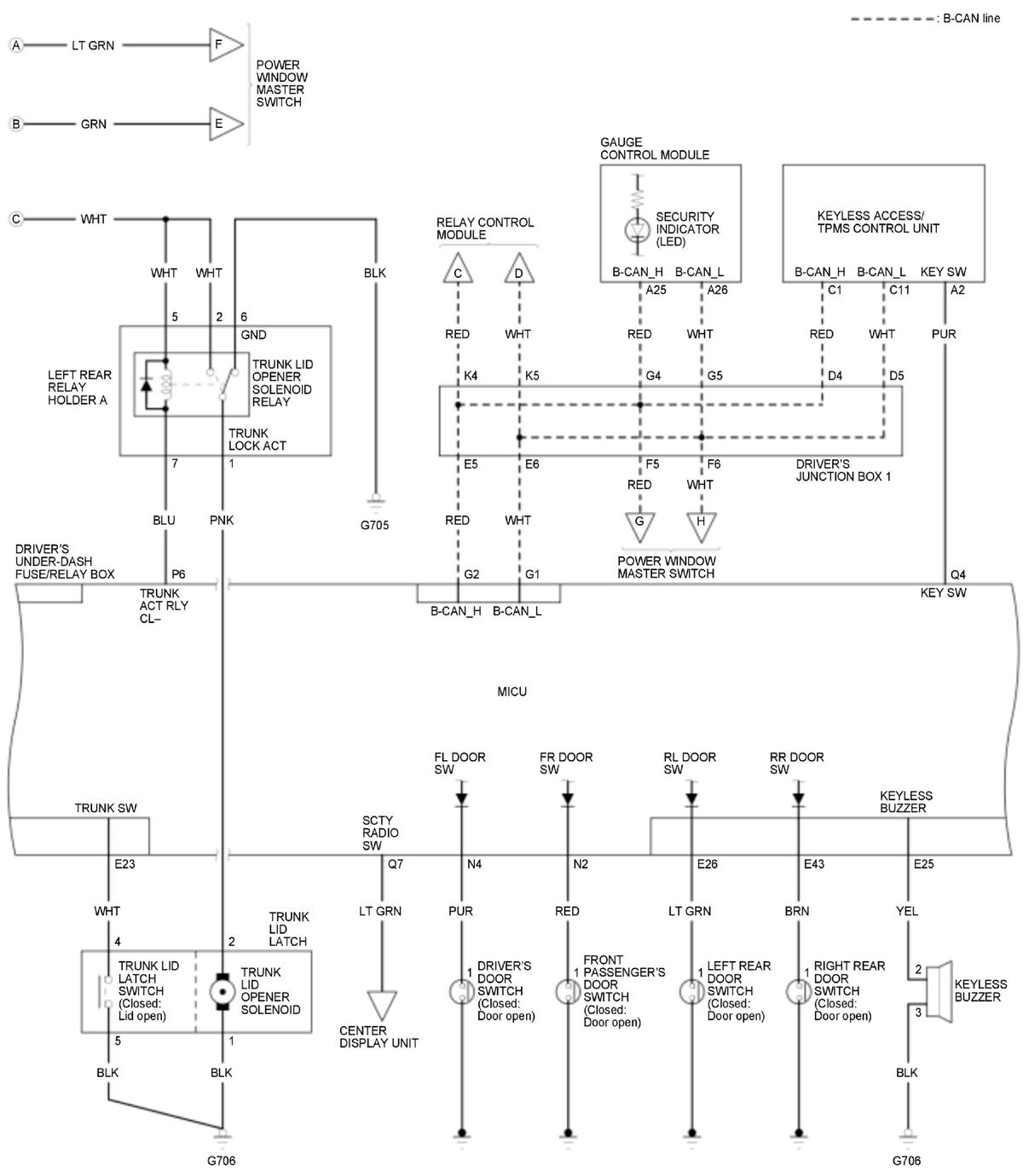

GHH350954

Courtesy of HONDA, U.S.A., INC.

GHH350955

Courtesy of HONDA, U.S.A., INC.

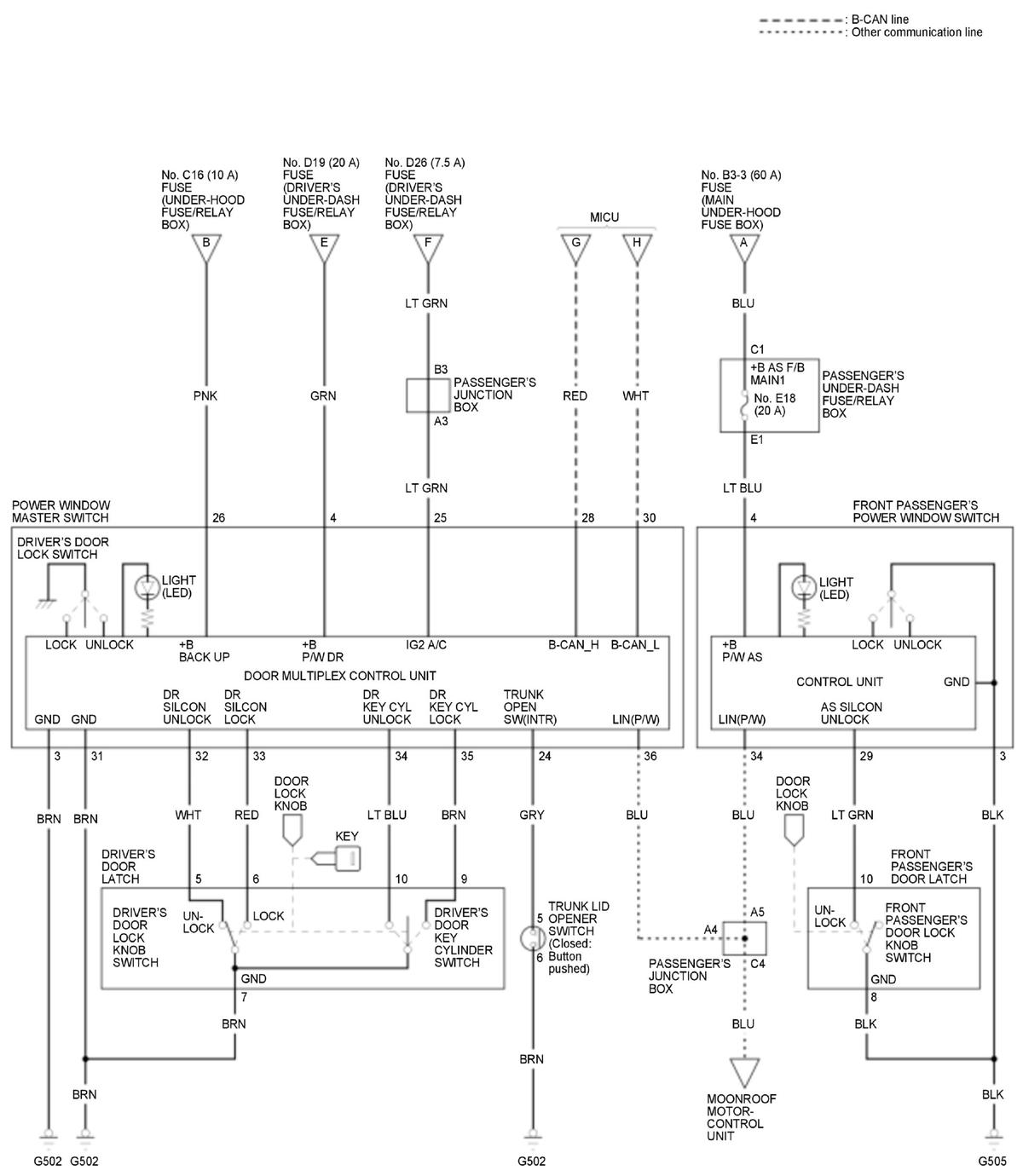

GHH350956

Courtesy of HONDA, U.S.A., INC.
