Keyless Access System Circuit Diagram (KA/KC model) (2016 2017)

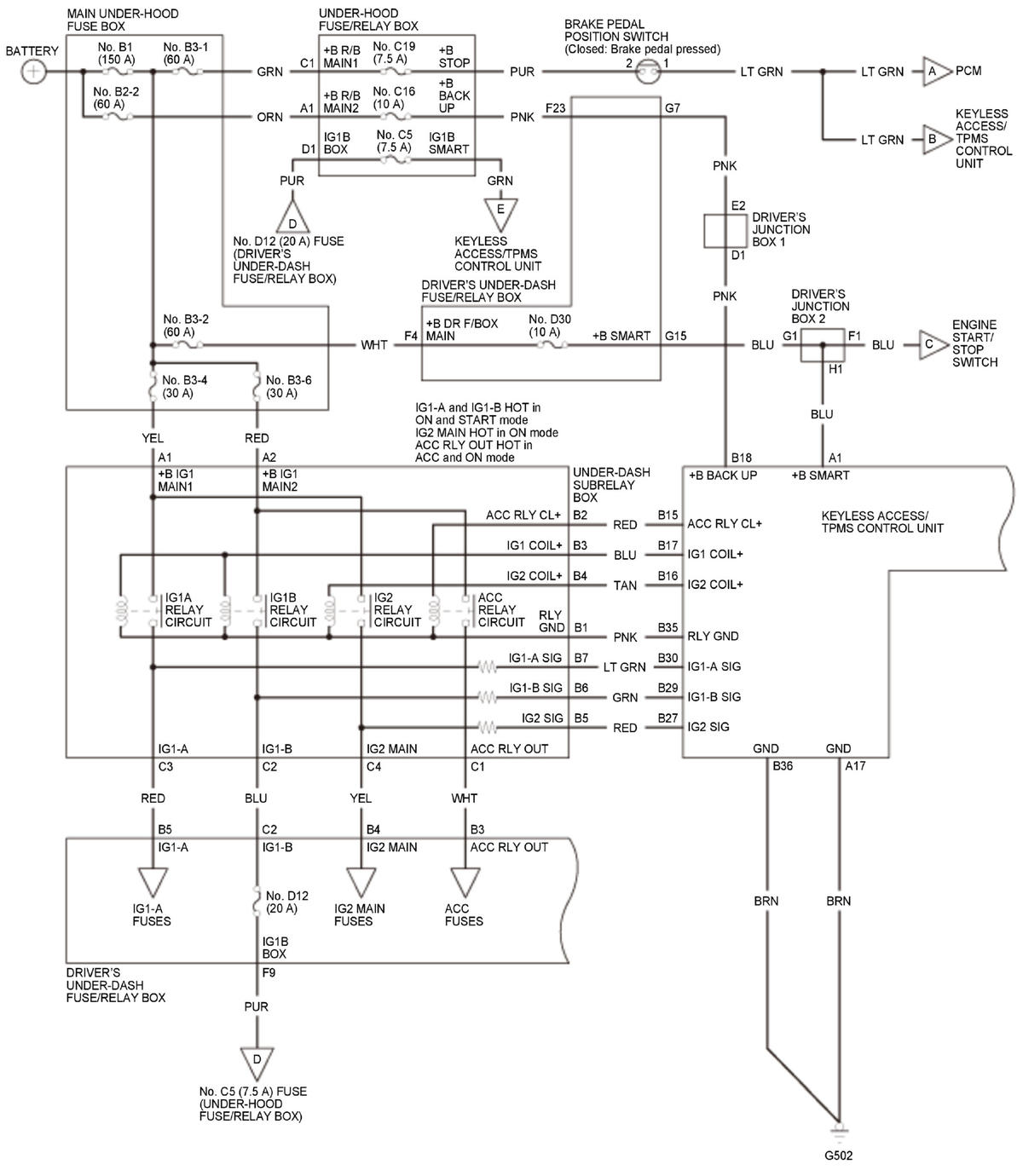

GHH350933Courtesy of HONDA, U.S.A., INC.

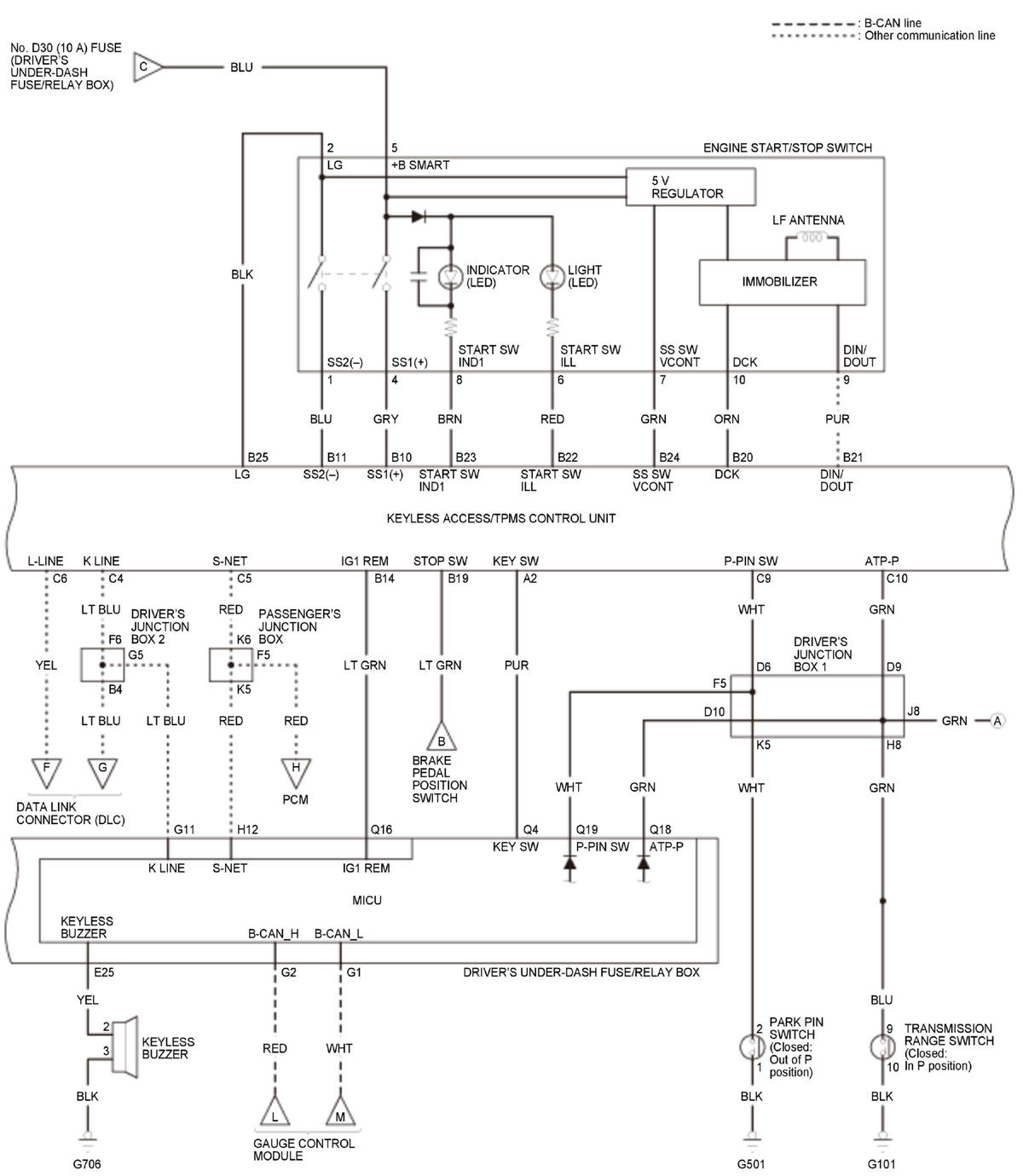

GHH350934Courtesy of HONDA, U.S.A., INC.
GHH350935Courtesy of HONDA, U.S.A., INC.

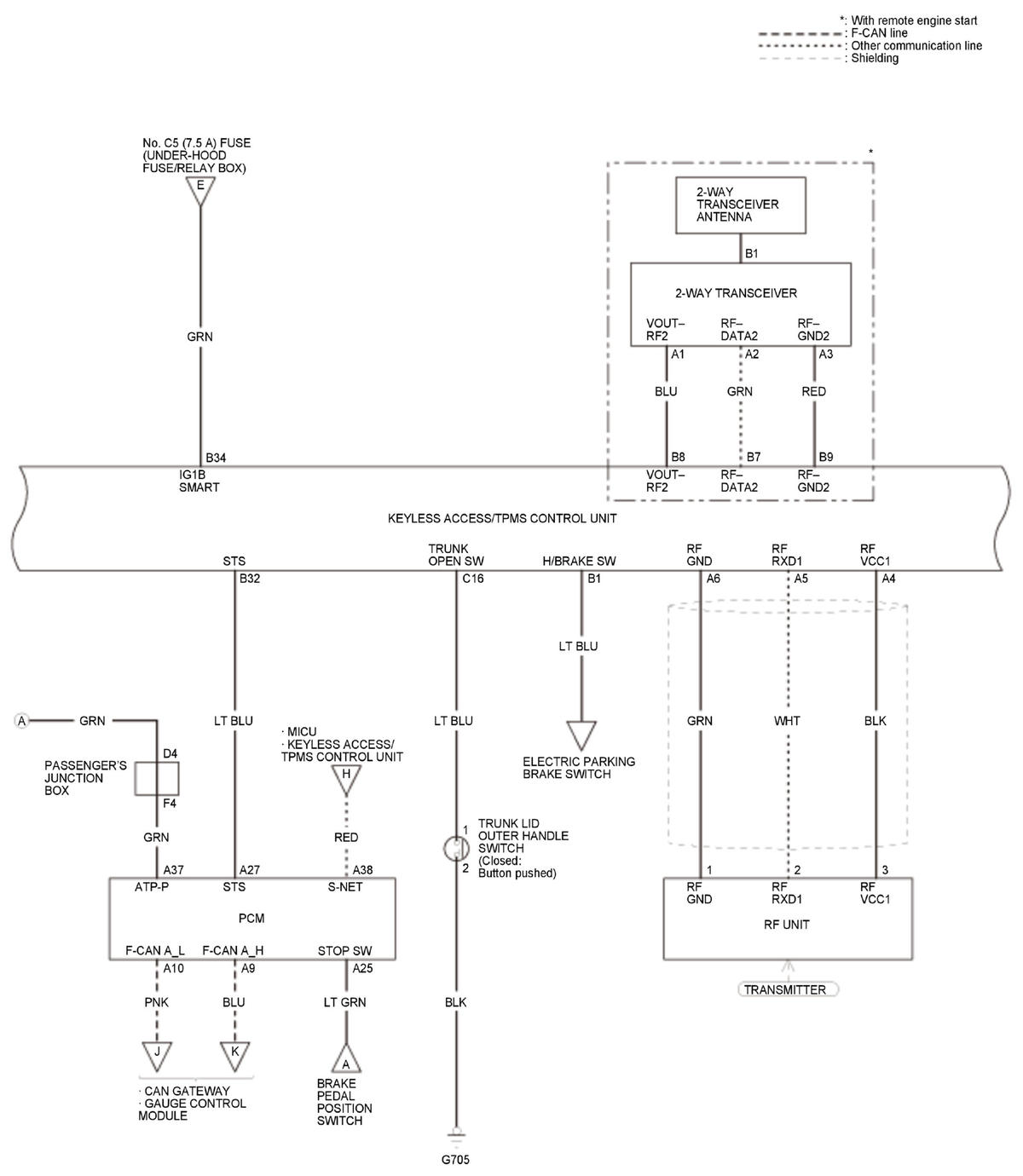

GHH350936Courtesy of HONDA, U.S.A., INC.

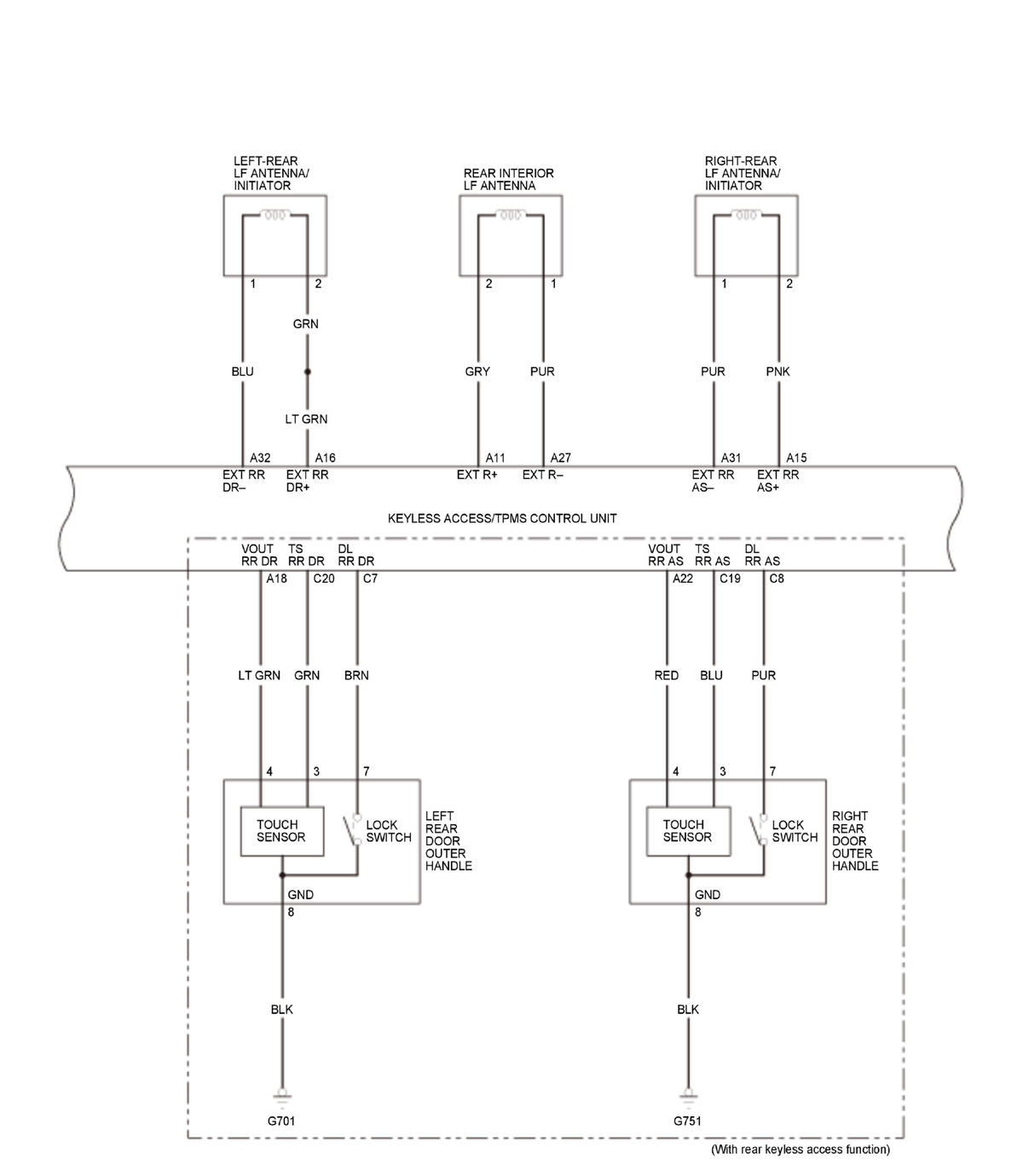

GHH350937Courtesy of HONDA, U.S.A., INC.

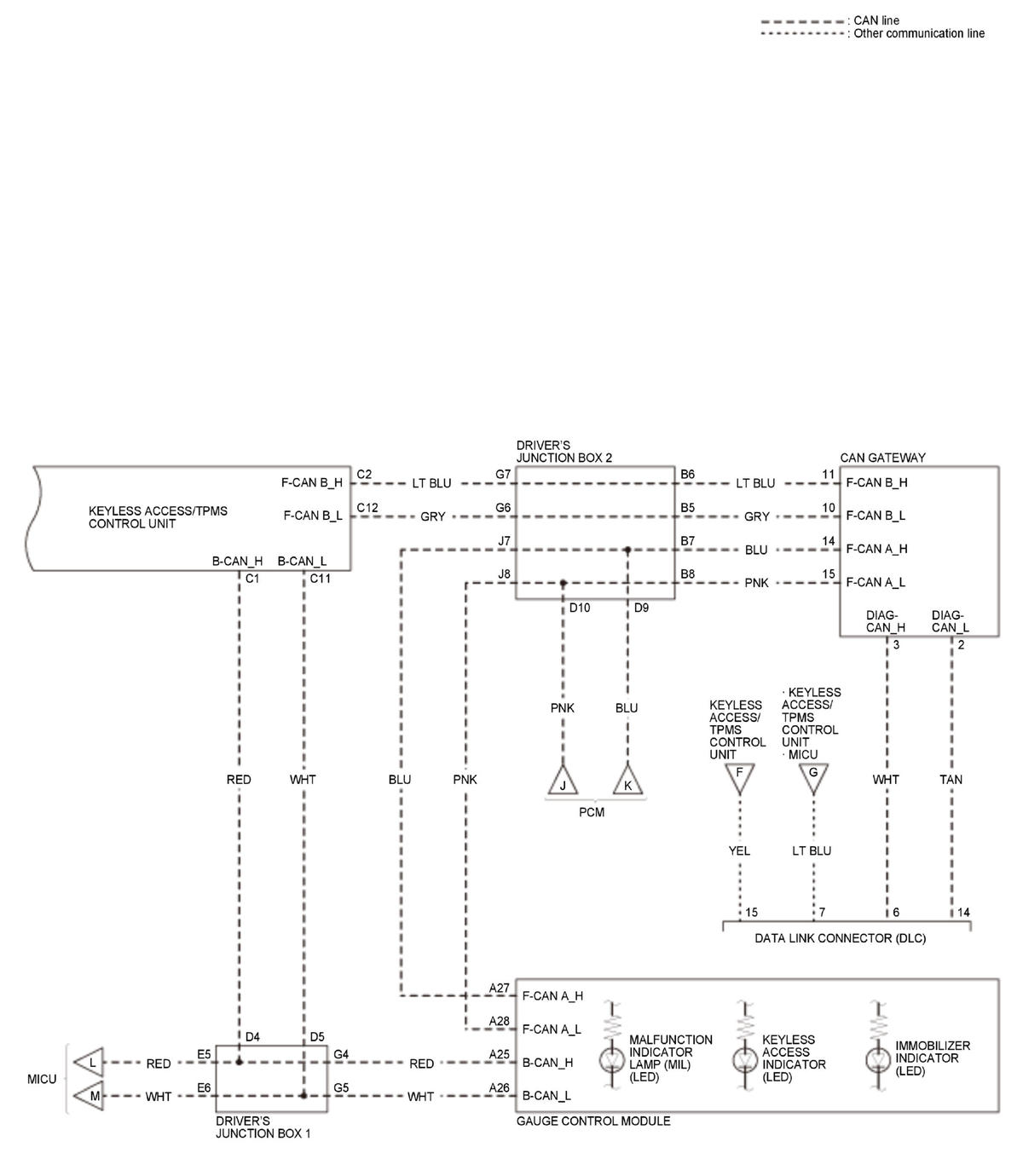

GHH350938Courtesy of HONDA, U.S.A., INC.
