AUTO DOOR UNLOCK does not work (2014 2015 2016 2017)

NOTE:

• Before testing, make sure the No. C16 (10 A) and No. C21 (10 A) fuses in the under-hood fuse/relay box are OK.
• Before testing, make sure the No. D1 (10 A), D2 (10 A), D3 (10 A), D4 (10 A), D5 (10 A), D6 (10 A), D7 (20 A), D11 (10 A), D19 (20 A), and No. D26 (7.5 A) fuses in the driver's under-dash fuse/relay box are OK.
• There are two pairs of fuses in the same circuit (No. D2 and No. D5 fuses, No. D1 and No. D4 fuses). If one fuse is blown, make sure to check the other fuse in the same circuit. If necessary, replace the blown fuse (s).

1. Abnormal circuit check 1

   -1. Connect the HDS to the data link connector (DLC) .

   -2. Select DOOR LOCKS from the BODY ELECTRICAL SYSTEM SELECT menu with the HDS, and enter FUNCTIONAL TESTS.

   BODY ELECTRICAL - DOOR LOCKS - Functional Tests - Inspection

   Select UNLOCK ALL DOORS with the HDS.

   Do the door lock actuators work normally?

   YES

   Go to step 22.

   NO

   Driver's door lock circuit: go to step 2.

   NO

   Front passenger's door lock circuit: go to step 7.

   NO

   Left rear door lock circuit: go to step 12.

   NO

   Right rear door lock circuit: go to step 17.

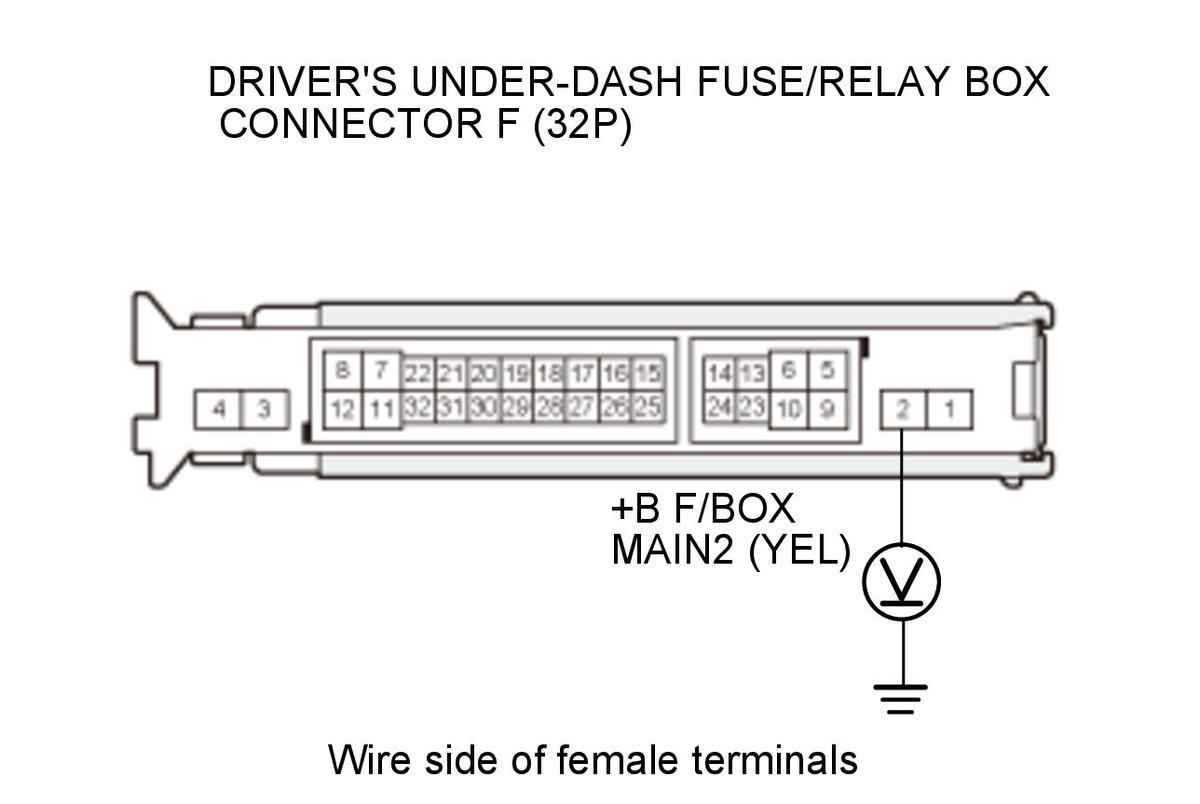

2. Open wire check (+B F/BOX MAIN2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   Test circuit	+B F/BOX MAIN2
   Test point 1	Driver's under-dash fuse/relay box connector F (32P) No. 2 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B F/BOX MAIN2 wire is OK. Go to step 3.

   NO

   Repair an open or high resistance in the wire.

3. Open wire check (GND line)

   -1. Disconnect the following connector.

   Driver's under-dash fuse/relay box connector H (13P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected
   Test circuit	GND
   Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 1 (BRN)

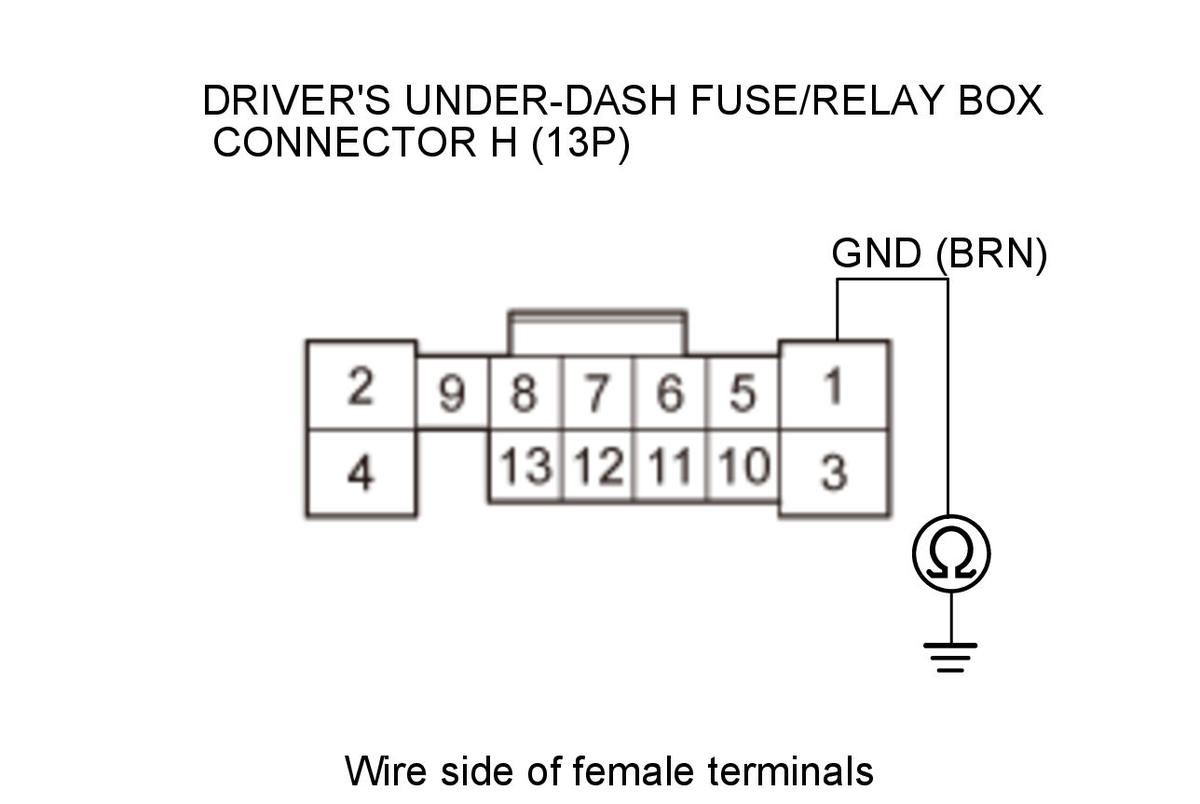

   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Go to step 4.

   NO

   Repair an open or high resistance in the ground wire or poor ground (G502).

4. Determine possible failure area (driver's door latch, others)

   -1. Disconnect the following connector.

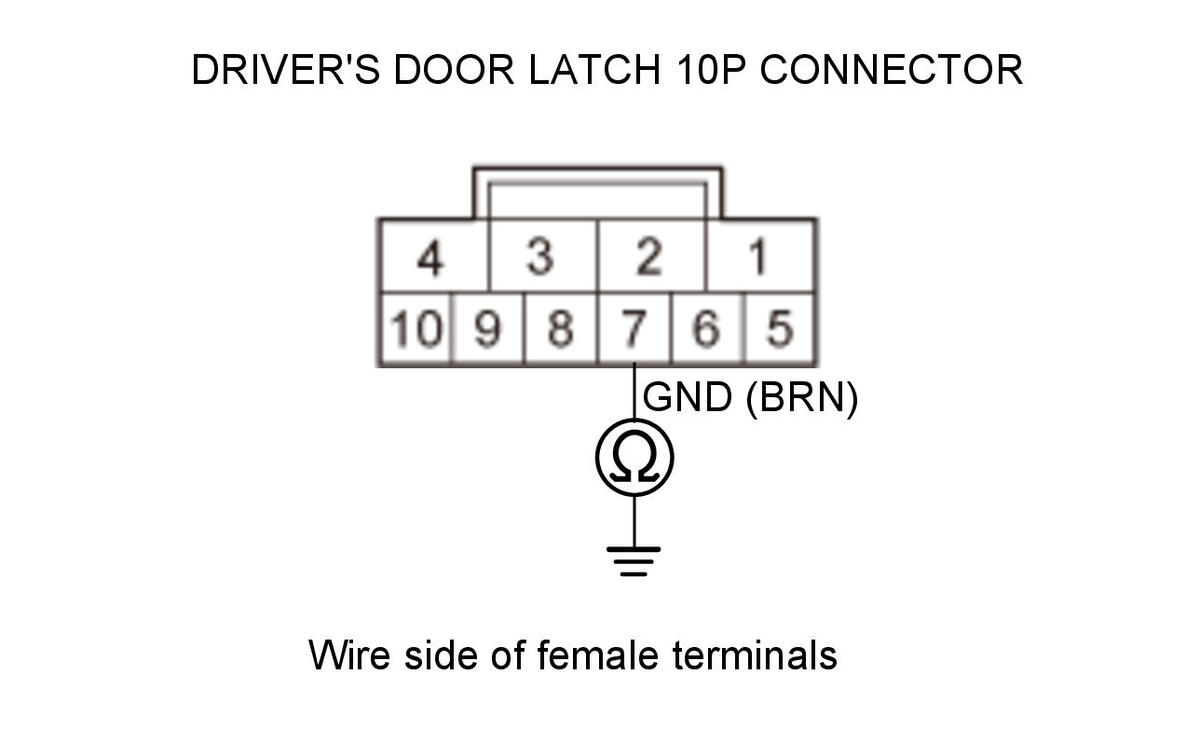

   Driver's door latch 10P connector

   -2. Test the door lock actuator .

   Is the door lock actuator OK?

   YES

   Go to step 5.

   NO

   Faulty door lock actuator; replace the driver's door latch .

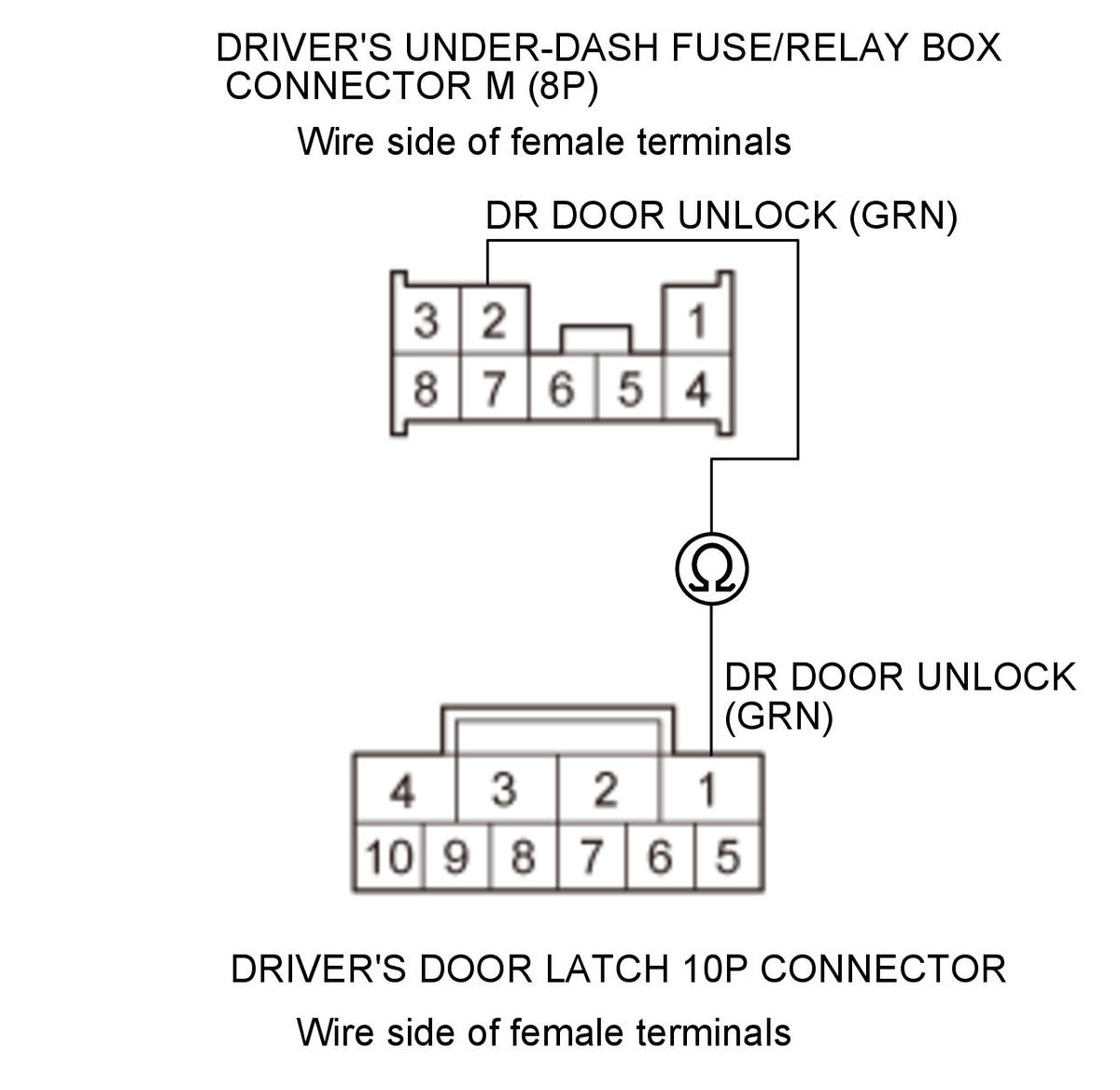

5. Open wire check (DR DOOR UNLOCK line)

   -1. Disconnect the following connector.

   Driver's under-dash fuse/relay box connector M (8P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Driver's door latch 10P connector: disconnected Driver's under-dash fuse/relay box connector M (8P): disconnected
   Test circuit	DR DOOR UNLOCK
   Test point 1	Driver's under-dash fuse/relay box connector M (8P) No. 2 (GRN)
   Test point 2	Driver's door latch 10P connector No. 1 (GRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The DR DOOR UNLOCK wire is OK. Go to step 6.

   NO

   Repair an open or high resistance in the wire.

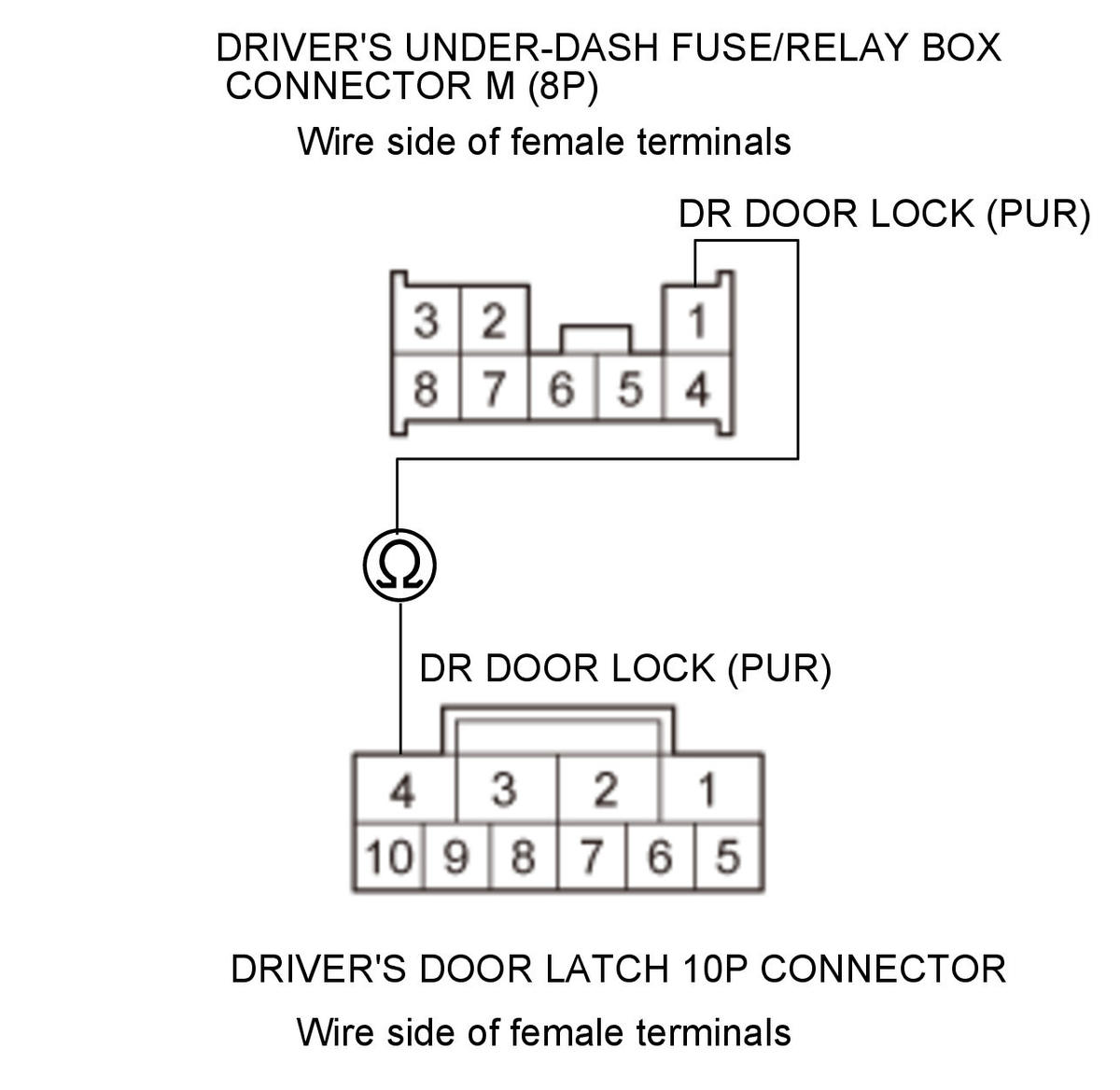

6. Open wire check (DR DOOR LOCK line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Driver's door latch 10P connector: disconnected Driver's under-dash fuse/relay box connector M (8P): disconnected
   Test circuit	DR DOOR LOCK
   Test point 1	Driver's under-dash fuse/relay box connector M (8P) No. 1 (PUR)
   Test point 2	Driver's door latch 10P connector No. 4 (PUR)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The DR DOOR LOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

   NO

   Repair an open or high resistance in the wire.

7. Open wire check (+B F/BOX MAIN2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   Test circuit	+B F/BOX MAIN2
   Test point 1	Driver's under-dash fuse/relay box connector F (32P) No. 2 (YEL)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B F/BOX MAIN2 wire is OK. Go to step 8.

   NO

   Repair an open or high resistance in the wire.

8. Open wire check (GND line)

   -1. Disconnect the following connector.

   Driver's under-dash fuse/relay box connector H (13P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected
   Test circuit	GND
   Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 1 (BRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Go to step 9.

   NO

   Repair an open or high resistance in the ground wire or poor ground (G502).

9. Determine possible failure area (Front passenger's door latch, others)

   -1. Disconnect the following connector.

   Front passenger's door latch 10P connector

   -2. Test the door lock actuator .

   Is the door lock actuator OK?

   YES

   Go to step 10.

   NO

   Faulty door lock actuator; replace the front passenger's door latch .

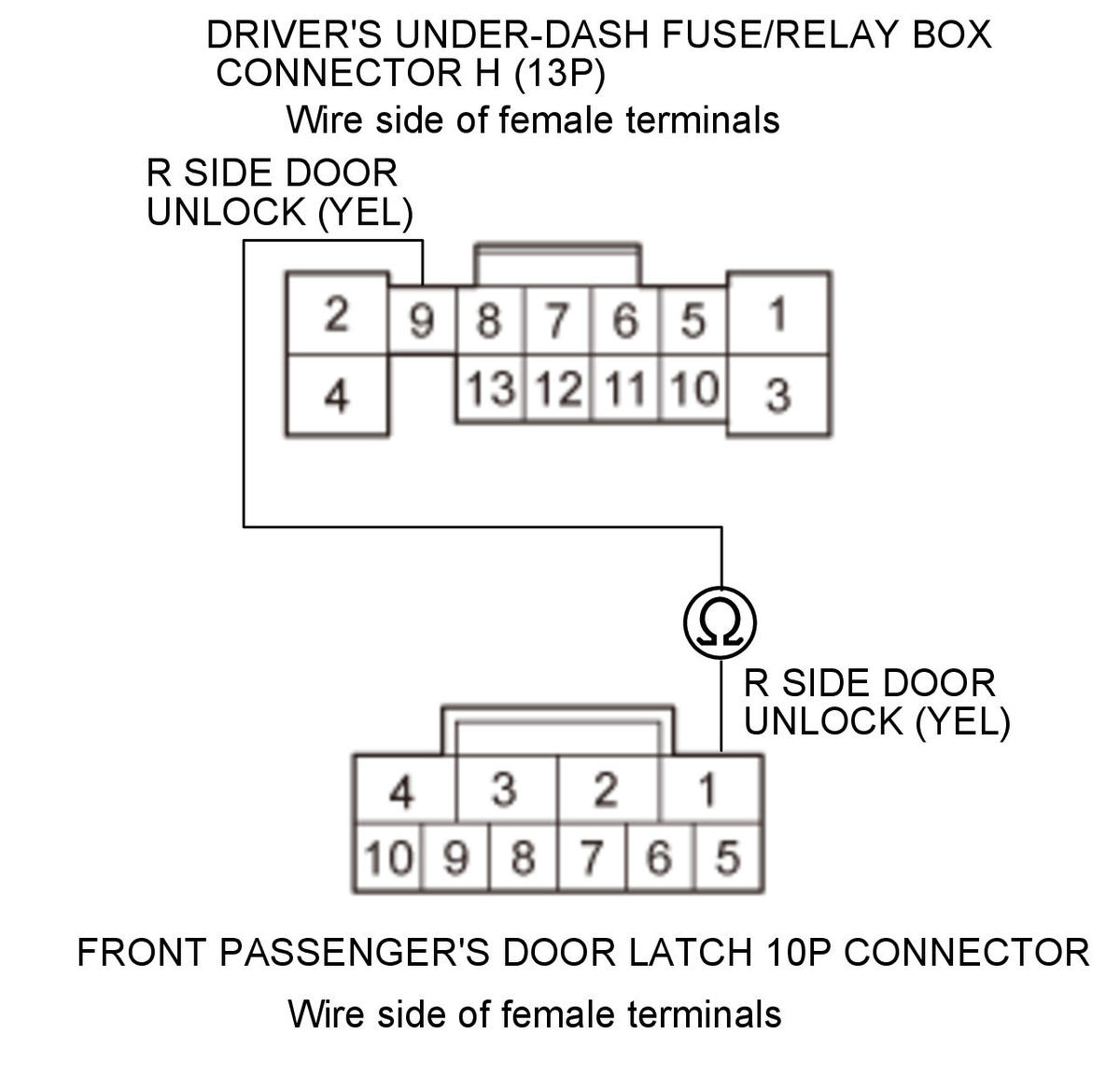

10. Open wire check (R SIDE DOOR UNLOCK line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Front passenger's door latch 10P connector: disconnected
    Test circuit	R SIDE DOOR UNLOCK
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 9 (YEL)
    Test point 2	Front passenger's door latch 10P connector No. 1 (YEL)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The R SIDE DOOR UNLOCK wire is OK. Go to step 11.

    NO

    Repair an open or high resistance in the wire.

11. Open wire check (R SIDE DOOR LOCK line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Front passenger's door latch 10P connector: disconnected
    Test circuit	R SIDE DOOR LOCK
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 13 (BRN)

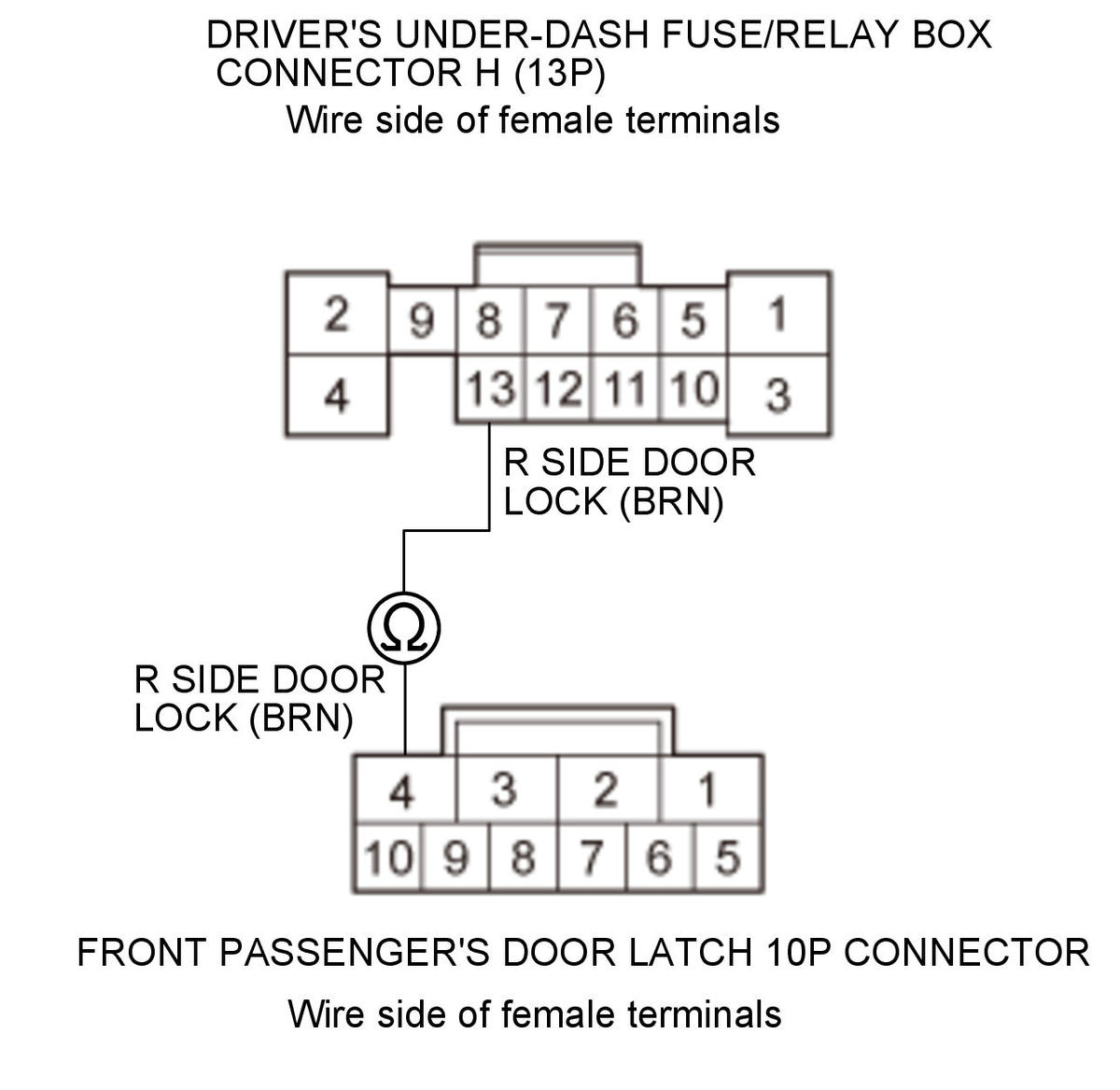

    Test point 2	Front passenger's door latch 10P connector No. 4 (BRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The R SIDE DOOR LOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

    NO

    Repair an open or high resistance in the wire.

12. Open wire check (+B F/BOX MAIN2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    Test circuit	+B F/BOX MAIN2
    Test point 1	Driver's under-dash fuse/relay box connector F (32P) No. 2 (YEL)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B F/BOX MAIN2 wire is OK. Go to step 13.

    NO

    Repair an open or high resistance in the wire.

13. Open wire check (GND line)

    -1. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector H (13P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected
    Test circuit	GND
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 1 (BRN)

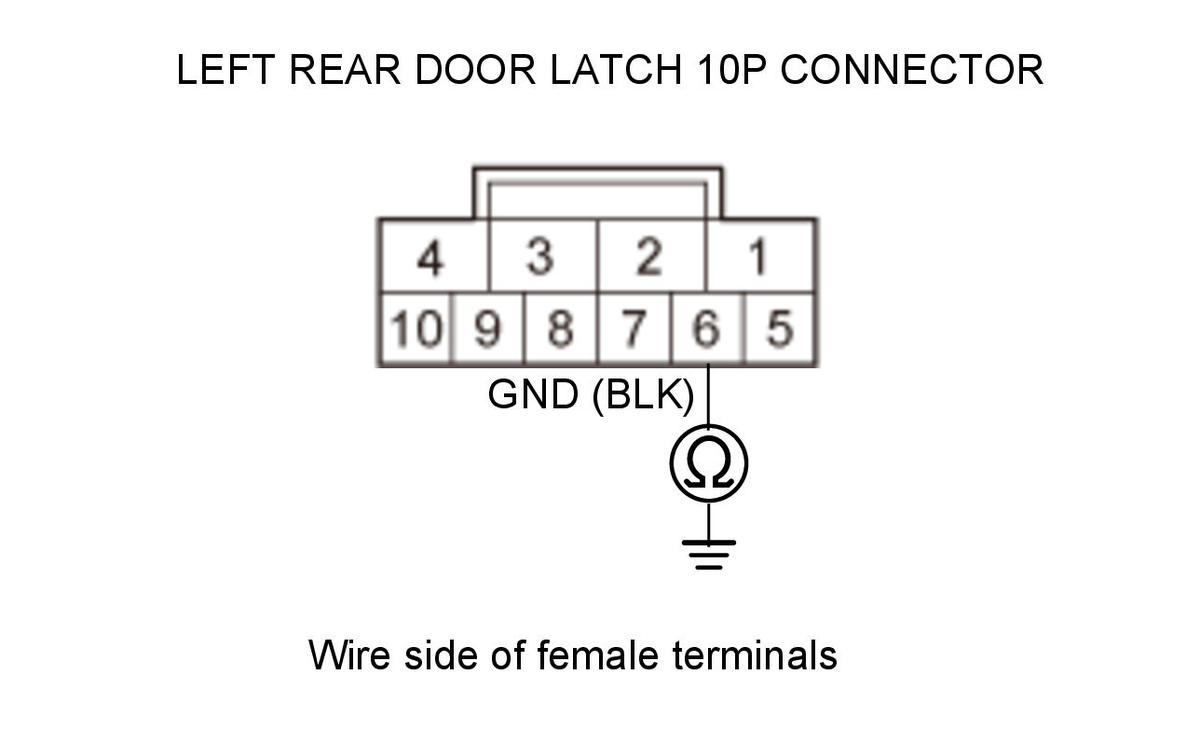

    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Go to step 14.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G502).

14. Determine possible failure area (Left rear door latch, others)

    -1. Disconnect the following connector.

    Left rear door latch 10P connector

    -2. Test the door lock actuator .

    Is the door lock actuator OK?

    YES

    Go to step 15.

    NO

    Faulty door lock actuator; replace the left rear door latch .

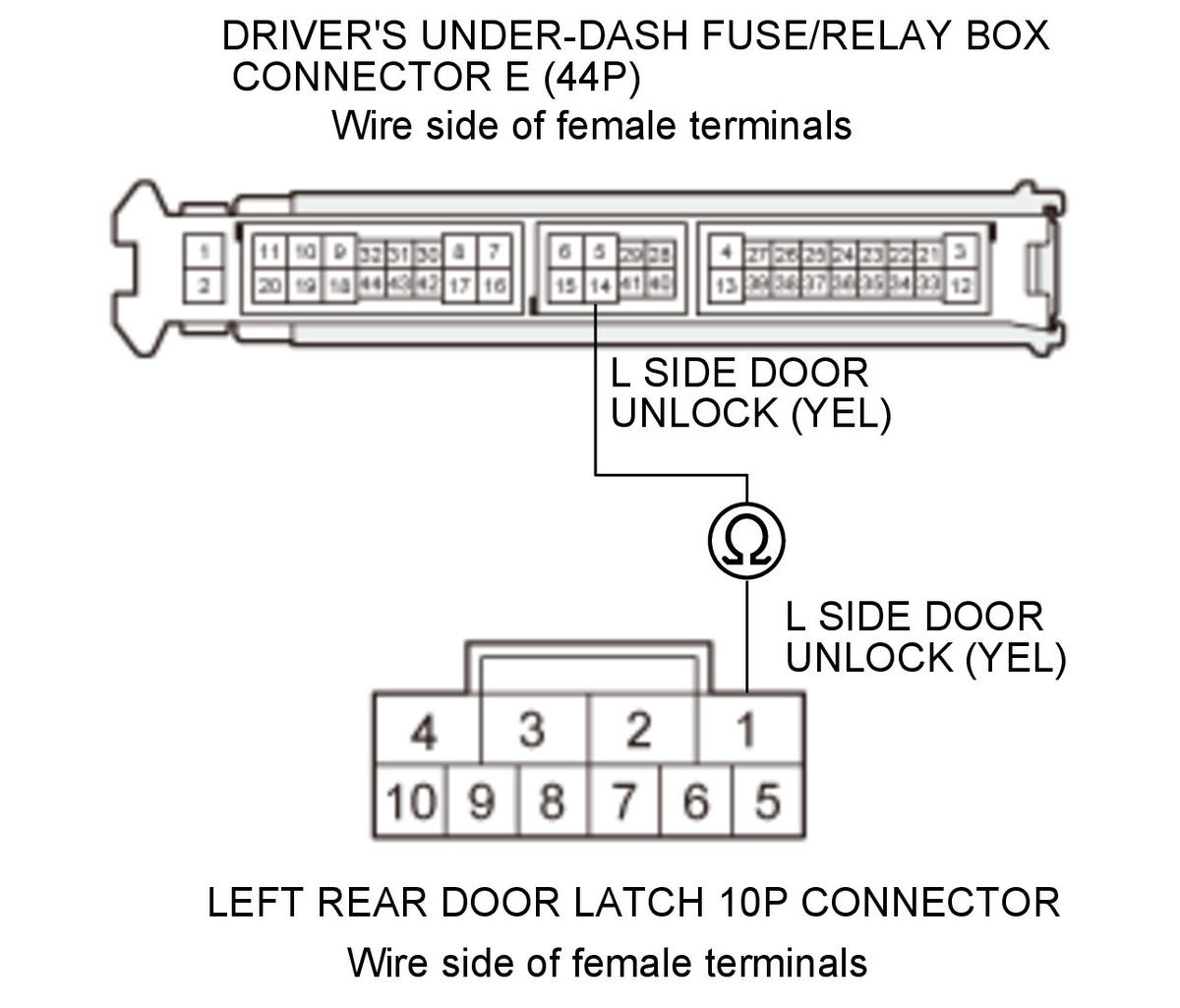

15. Open wire check (L SIDE DOOR UNLOCK line)

    -1. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector E (44P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector E (44P): disconnected Driver's under-dash fuse/relay box connector H (13P): disconnected Left rear door latch 10P connector: disconnected
    Test circuit	L SIDE DOOR UNLOCK
    Test point 1	Driver's under-dash fuse/relay box connector E (44P) No. 14 (YEL)
    Test point 2	Left rear door latch 10P connector No. 1 (YEL)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The L SIDE DOOR UNLOCK wire is OK. Go to step 16.

    NO

    Repair an open or high resistance in the wire.

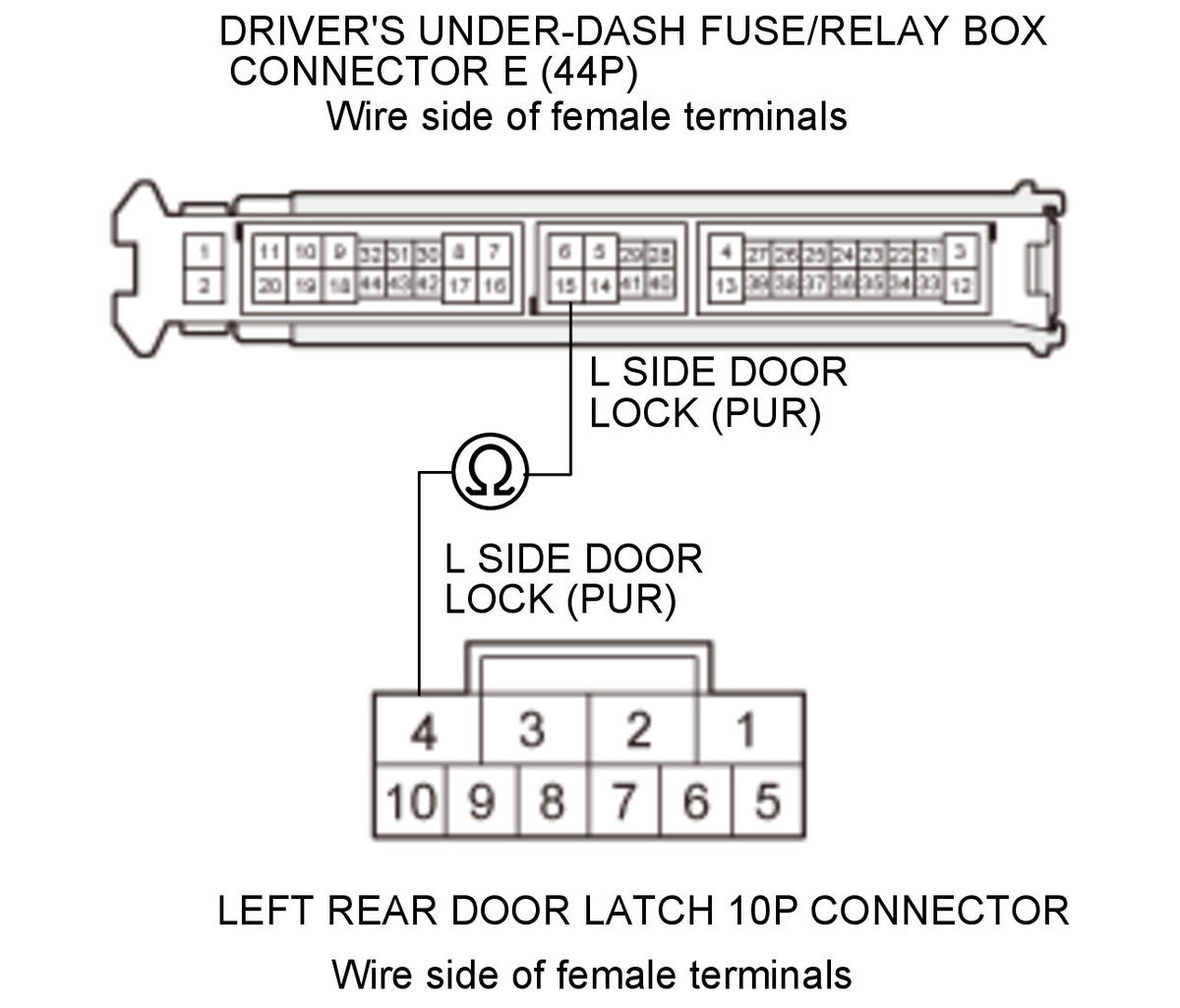

16. Open wire check (L SIDE DOOR LOCK line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector E (44P): disconnected Driver's under-dash fuse/relay box connector H (13P): disconnected Left rear door latch 10P connector: disconnected
    Test circuit	L SIDE DOOR LOCK
    Test point 1	Under-dash fuse/relay box connector E (44P) No. 15 (PUR)
    Test point 2	Left rear door latch 10P connector No. 4 (PUR)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The L SIDE DOOR LOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

    NO

    Repair an open or high resistance in the wire.

17. Open wire check (+B F/BOX MAIN2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    Test circuit	+B F/BOX MAIN2
    Test point 1	Driver's under-dash fuse/relay box connector F (32P) No. 2 (YEL)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B F/BOX MAIN2 wire is OK. Go to step 18.

    NO

    Repair an open or high resistance in the wire.

18. Open wire check (GND line)

    -1. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector H (13P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected
    Test circuit	GND
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 1 (BRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Go to step 19.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G502).

19. Determine possible failure area (right rear door latch, others)

    -1. Disconnect the following connector.

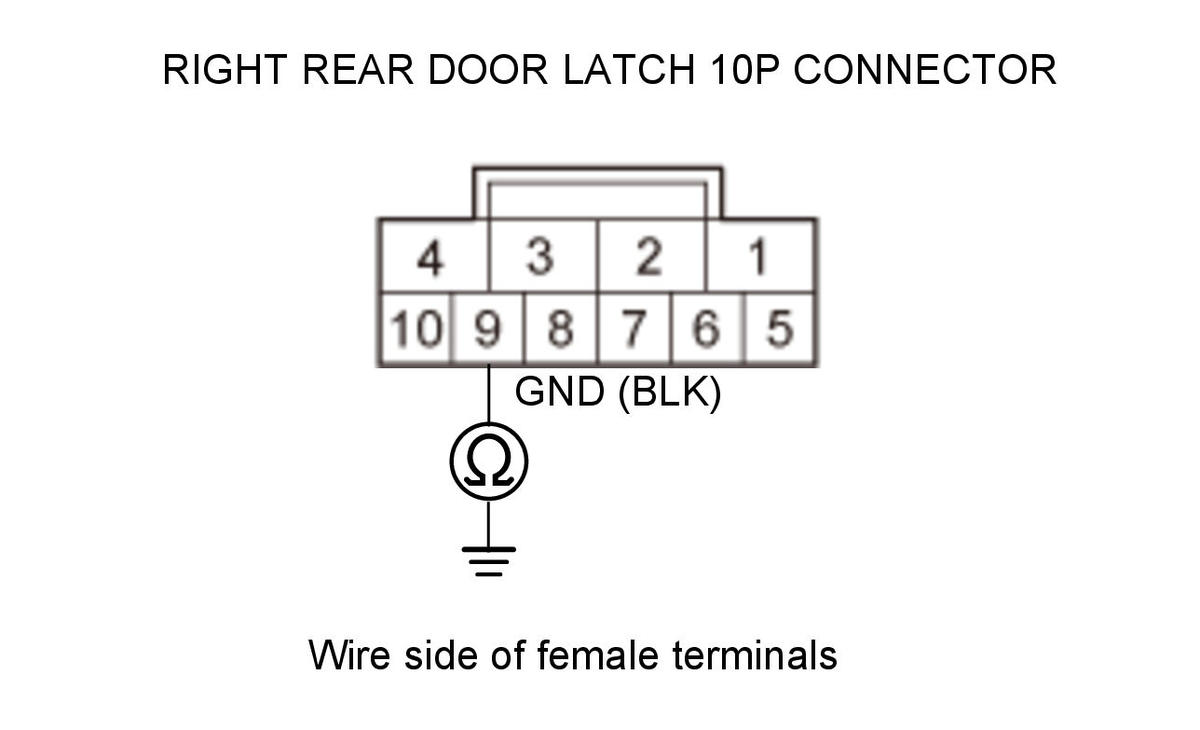

    Right rear door latch 10P connector

    -2. Test the door lock actuator .

    Is the door lock actuator OK?

    YES

    Go to step 20.

    NO

    Faulty door lock actuator; replace the right rear door latch .

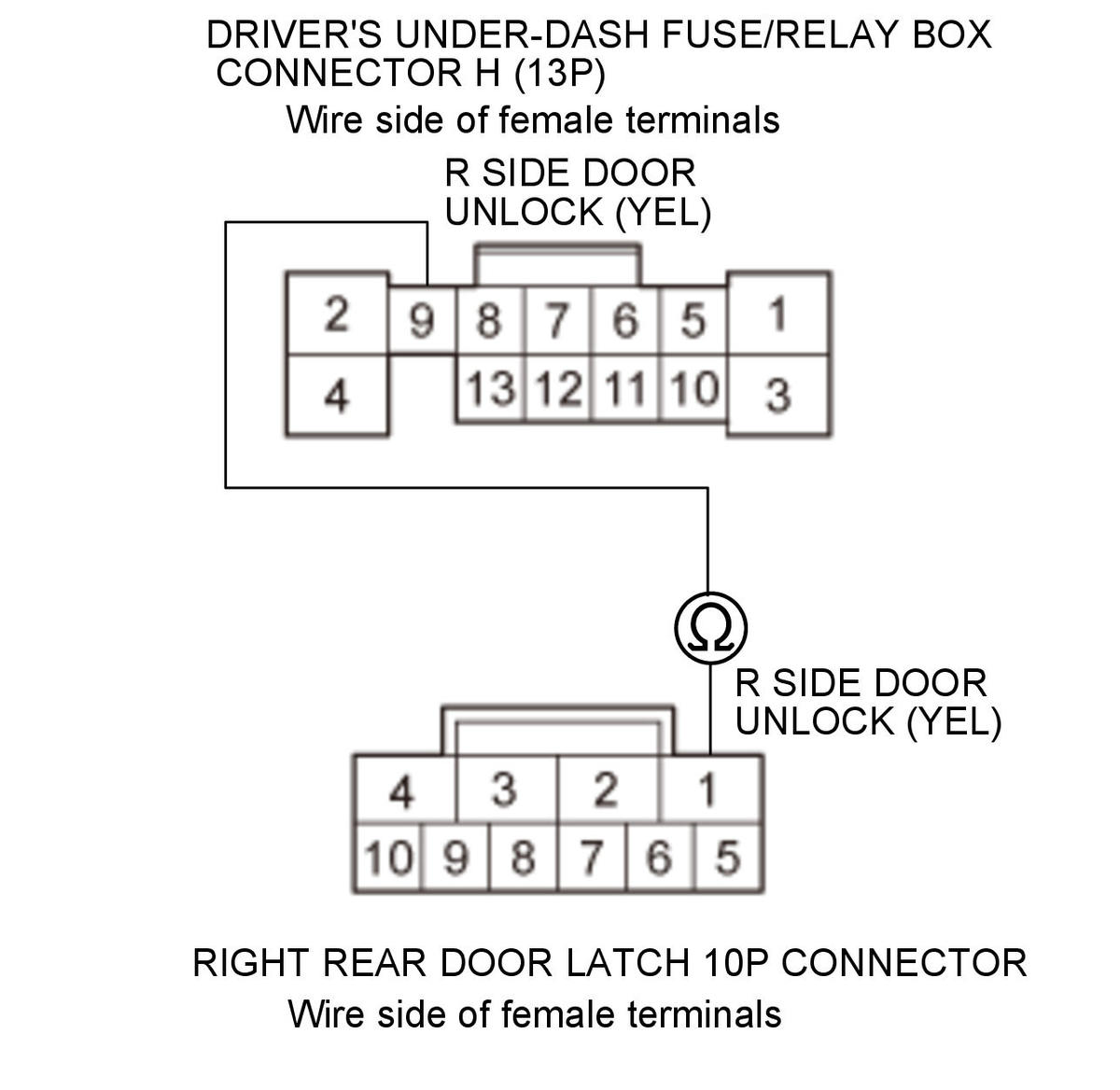

20. Open wire check (R SIDE DOOR UNLOCK line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Right rear door latch 10P connector: disconnected
    Test circuit	R SIDE DOOR UNLOCK
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 9 (YEL)
    Test point 2	Right rear door latch 10P connector No. 1 (YEL)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The R SIDE DOOR UNLOCK wire is OK. Go to step 21.

    NO

    Repair an open or high resistance in the wire.

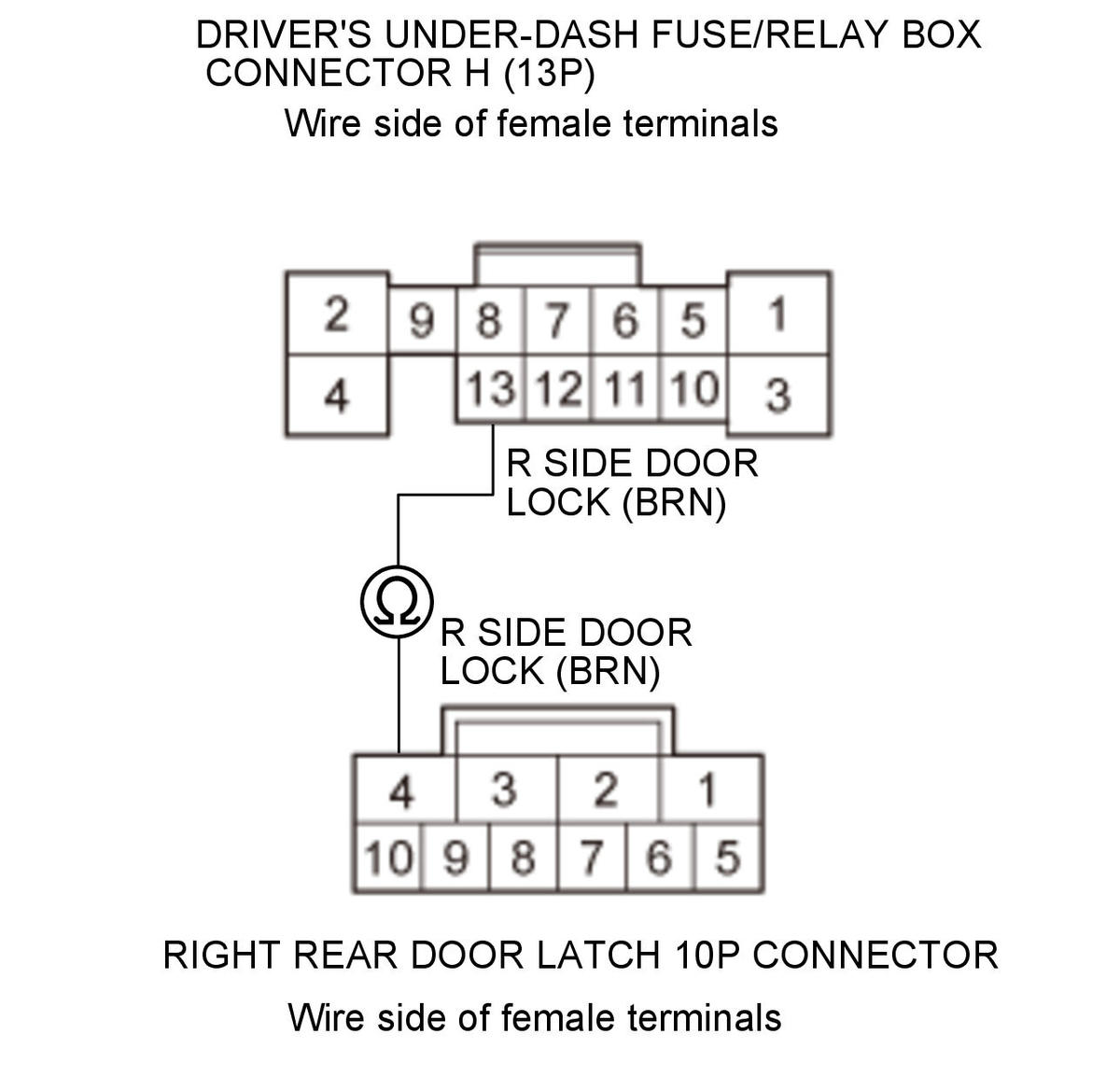

21. Open wire check (R SIDE DOOR LOCK line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's under-dash fuse/relay box connector H (13P): disconnected Right rear door latch 10P connector: disconnected
    Test circuit	R SIDE DOOR LOCK
    Test point 1	Driver's under-dash fuse/relay box connector H (13P) No. 13 (BRN)
    Test point 2	Right rear door latch 10P connector No. 4 (BRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The R SIDE DOOR LOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

    NO

    Repair an open or high resistance in the wire.

22. Abnormal circuit check 2

    -1. Check the parameter (s) below with the HDS when each switch is operating.

    Door Multiplex Control Unit

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)
    Passenger's Door Lock Knob Switch (UNLOCK)

    MICU

    Signal	Current conditions
    	Value	Unit
    A/T Gear Position Switch (P)
    Driver's Rear Door Lock Knob Switch (UNLOCK)
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is each switch information OK?

    YES

    Faulty MICU; replace the driver's under-dash fuse/relay box .

    NO

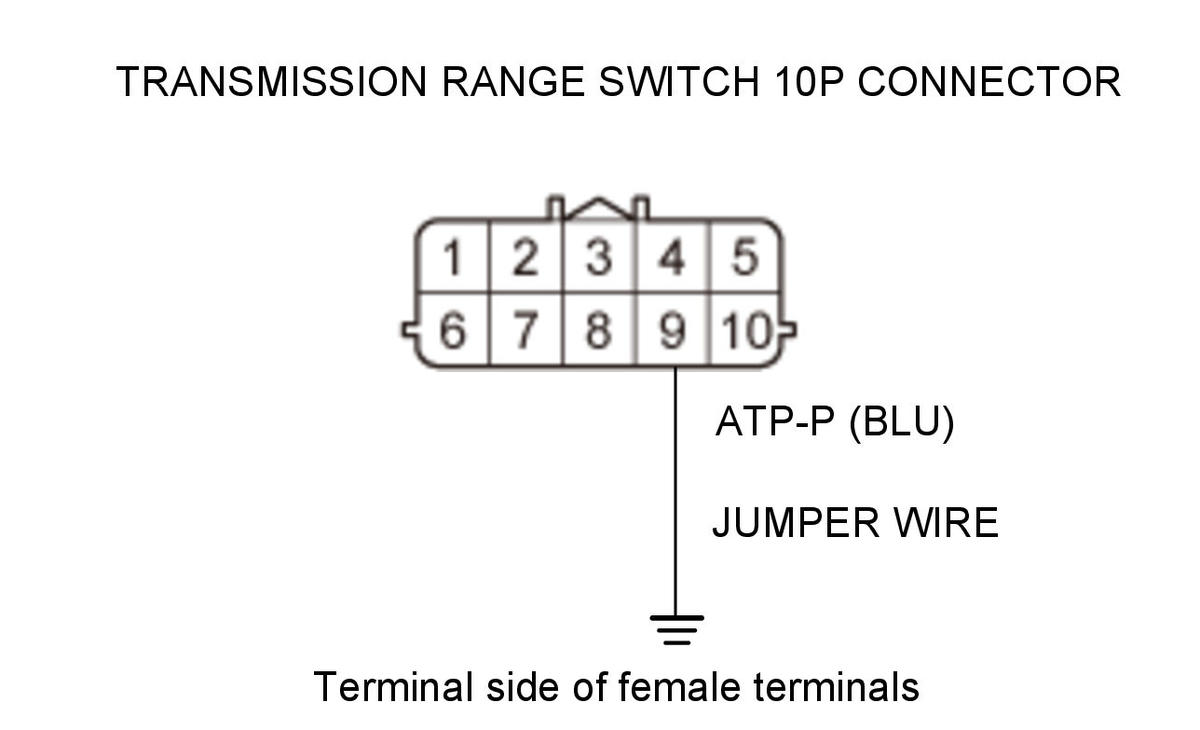

    Transmission range switch P position circuit troubleshooting: go to step 23.

    NO

    Driver's door lock knob switch circuit troubleshooting: go to step 29.

    NO

    Front passenger's door lock knob switch circuit troubleshooting: go to step 35.

    NO

    Left rear door lock knob switch circuit troubleshooting: go to step 41.

    NO

    Right rear door lock knob switch circuit troubleshooting: go to step 47.

23. Keyless/power door locks/security system check 1

    -1. With the transmission range switch in P position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    A/T Gear Position Switch (P)

    Is information value ON?

    YES

    Go to step 24.

    NO

    Go to step 26.

24. Determine possible failure area (transmission range switch, others)

    -1. Disconnect the following connector.

    Transmission range switch 10P connector

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    A/T Gear Position Switch (P)

    Is information value OFF?

    YES

    Replace the transmission range switch .

    NO

    Go to step 25.

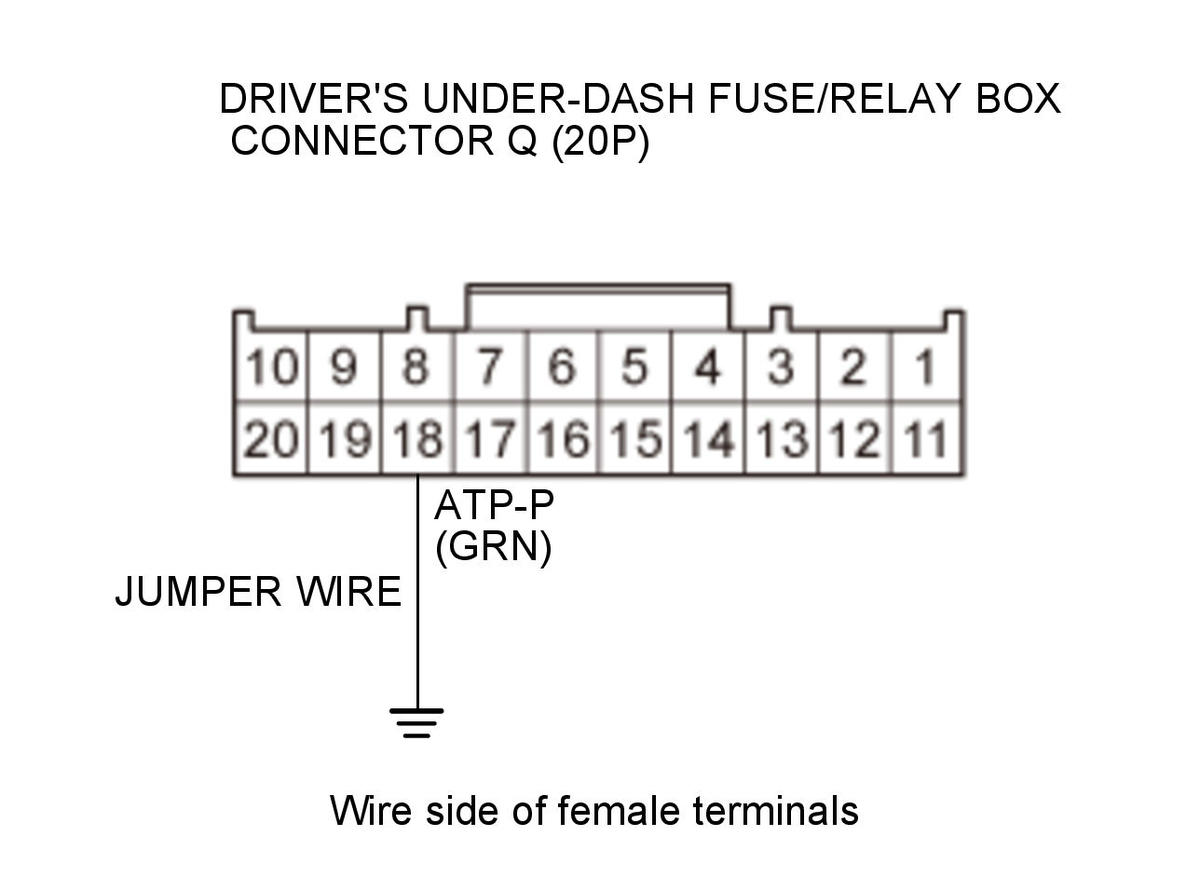

25. Shorted wire check (ATP-P line)

    -1. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector Q (20P)

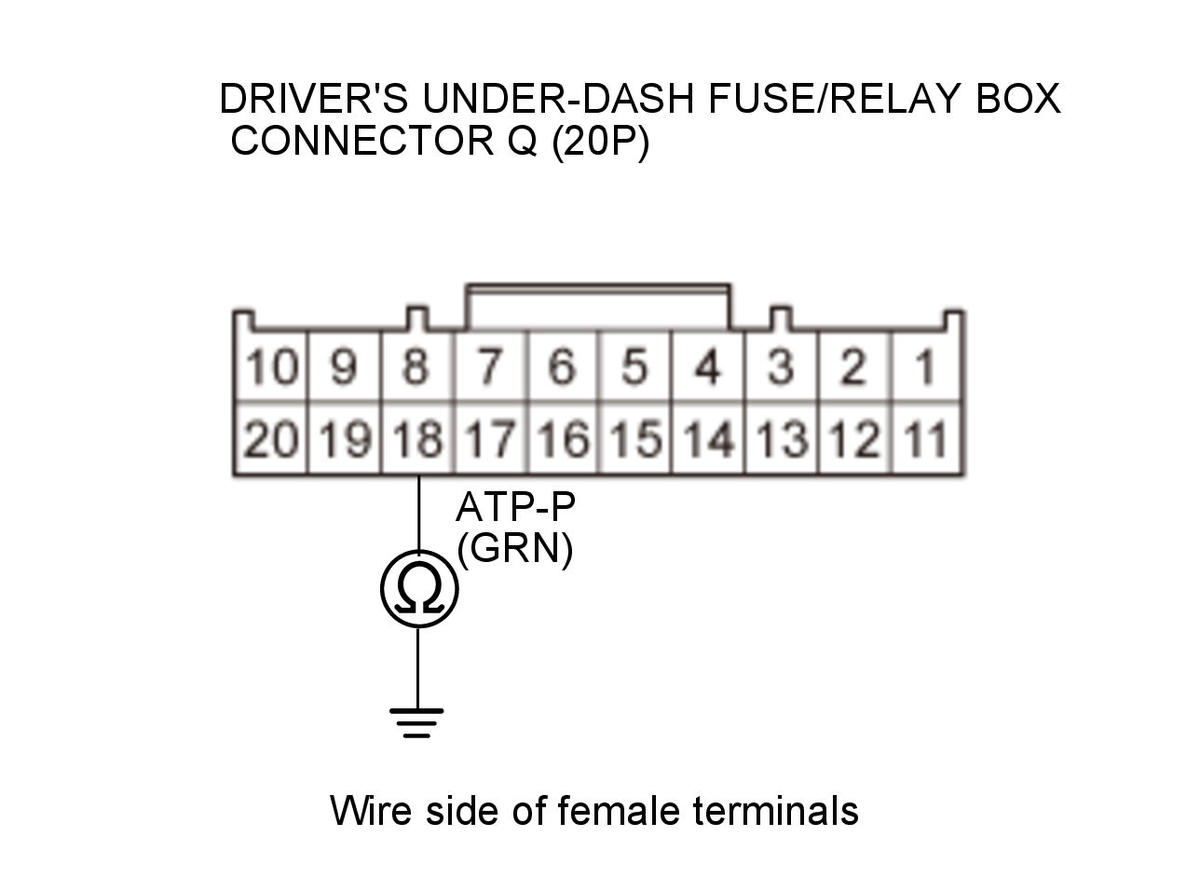

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Transmission range switch 10P connector: disconnected Driver's under-dash fuse/relay box connector Q (20P): disconnected
    Test circuit	ATP-P
    Test point 1	Driver's under-dash fuse/relay box connector Q (20P) No. 18 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The ATP-P wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

26. Keyless/power door locks/security system check 2

    -1. Disconnect the following connector.

    Transmission range switch 10P connector

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Transmission range switch 10P connector No. 9 (BLU)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    A/T Gear Position Switch (P)

    Is information value ON?

    YES

    Go to step 27.

    NO

    Go to step 28.

27. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

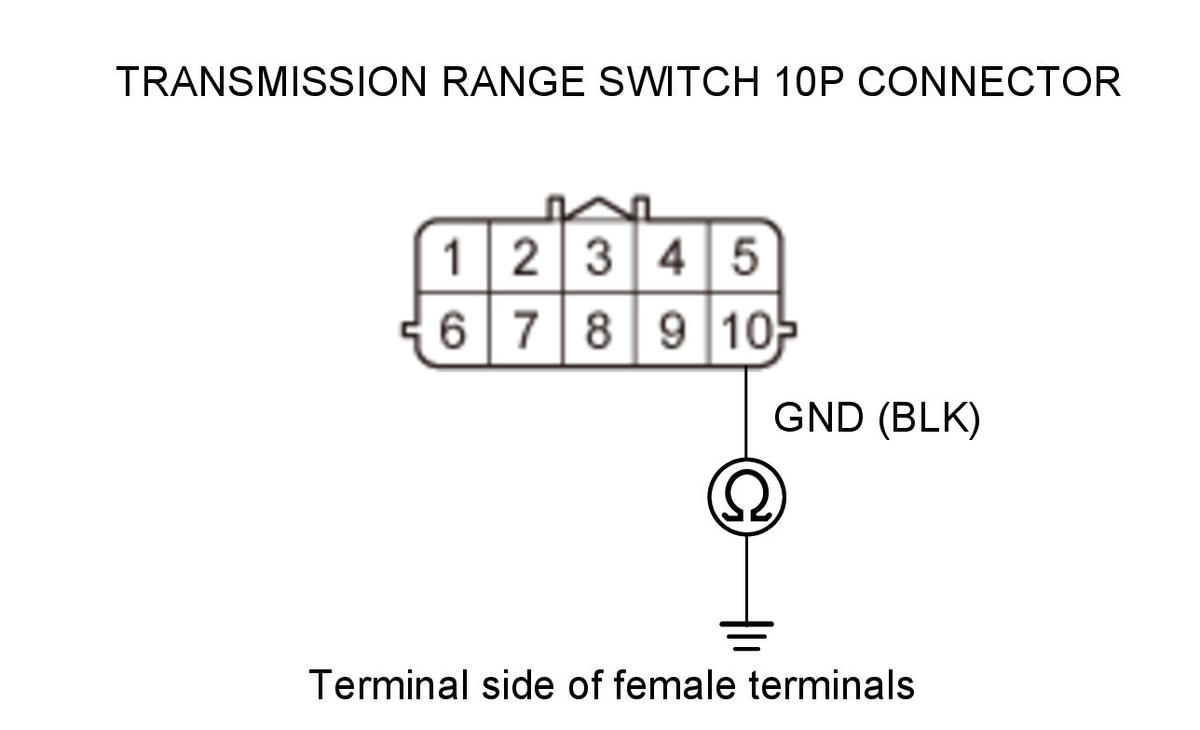

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Transmission range switch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Transmission range switch 10P connector No. 10 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Replace the transmission range switch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G101).

28. Open wire check (ATP-P line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's under-dash fuse/relay box connector Q (20P) No. 18 (GRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    A/T Gear Position Switch (P)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The ATP-P wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

29. Keyless/power door locks/security system check 1

    -1. With the driver's door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 30.

    NO

    Go to step 32.

30. Determine possible failure area (driver's door latch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Driver's door latch 10P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value OFF?

    YES

    Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Go to step 31.

31. Shorted wire check (DR SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Power window master switch 37P connector

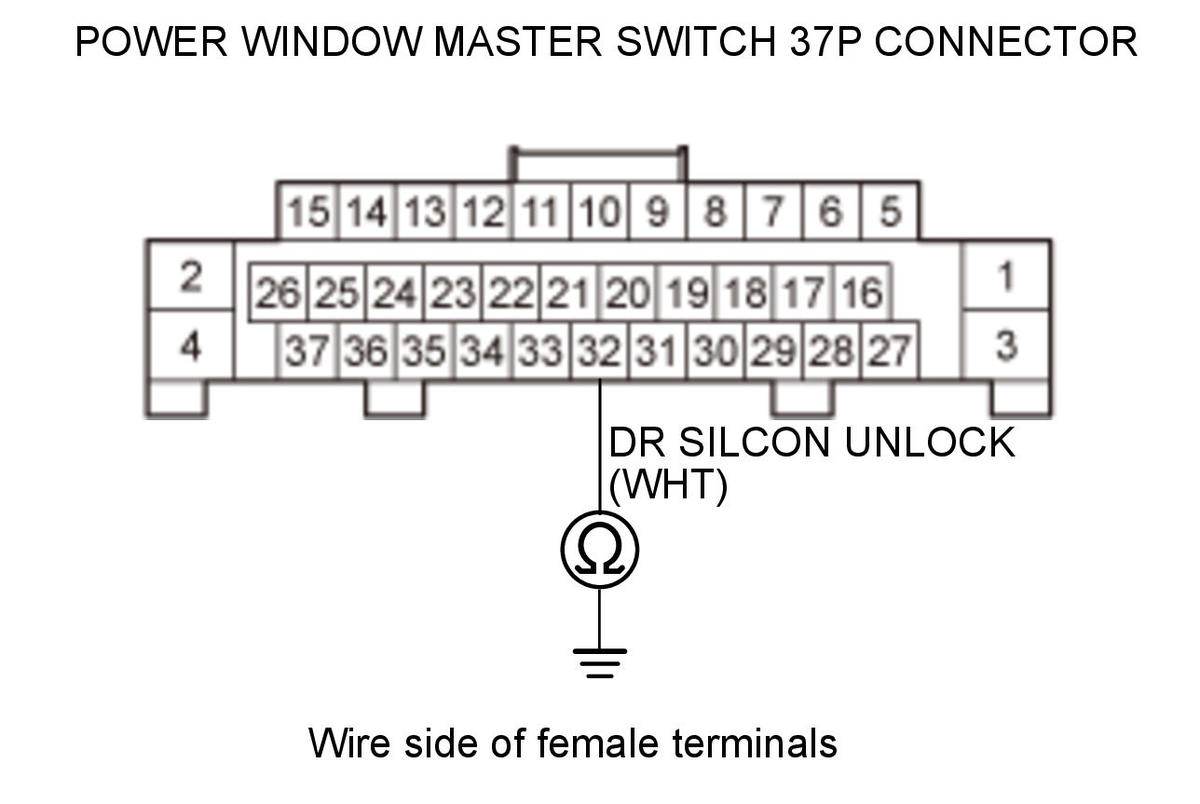

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected Power window master switch 37P connector: disconnected
    Test circuit	DR SILCON UNLOCK
    Test point 1	Power window master switch 37P connector No. 32 (WHT)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

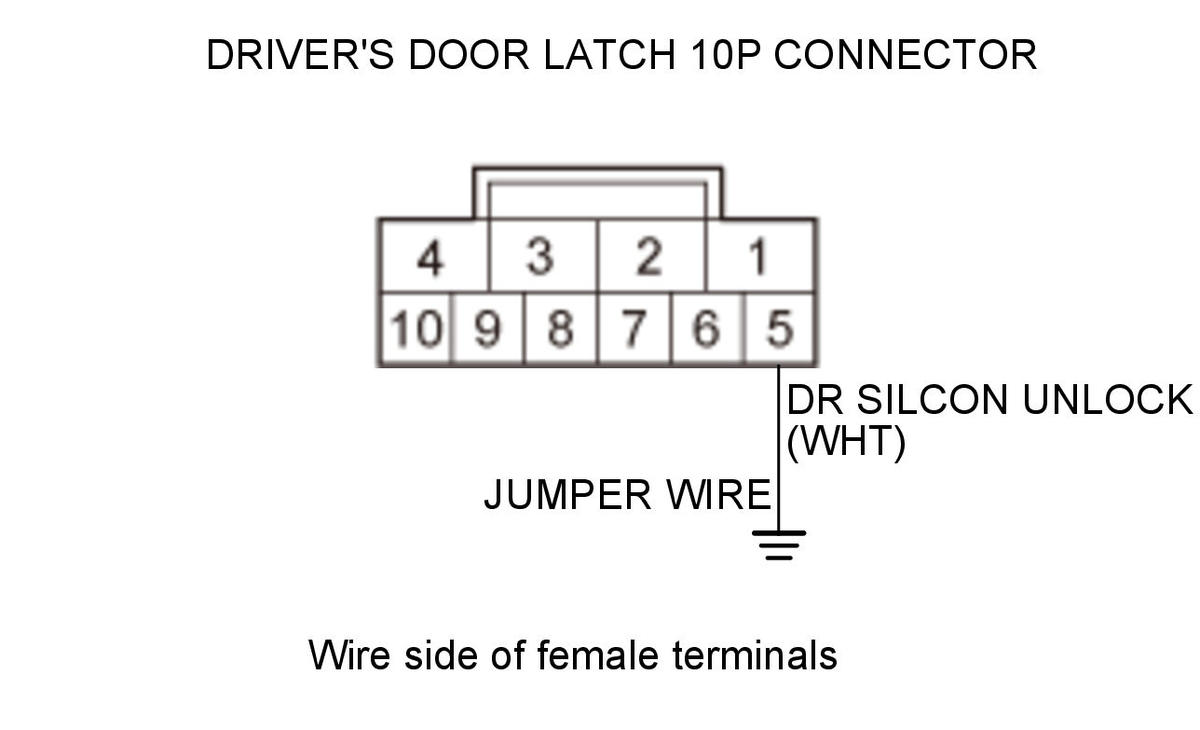

32. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Driver's door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's door latch 10P connector No. 5 (WHT)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 33.

    NO

    Go to step 34.

33. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Driver's door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Driver's door latch 10P connector No. 7 (BRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Repair an open or high resistance in the wire or poor ground (G502).

34. Open wire check (DR SILCON UNLOCK line)

    -1. Remove the jumper wire.

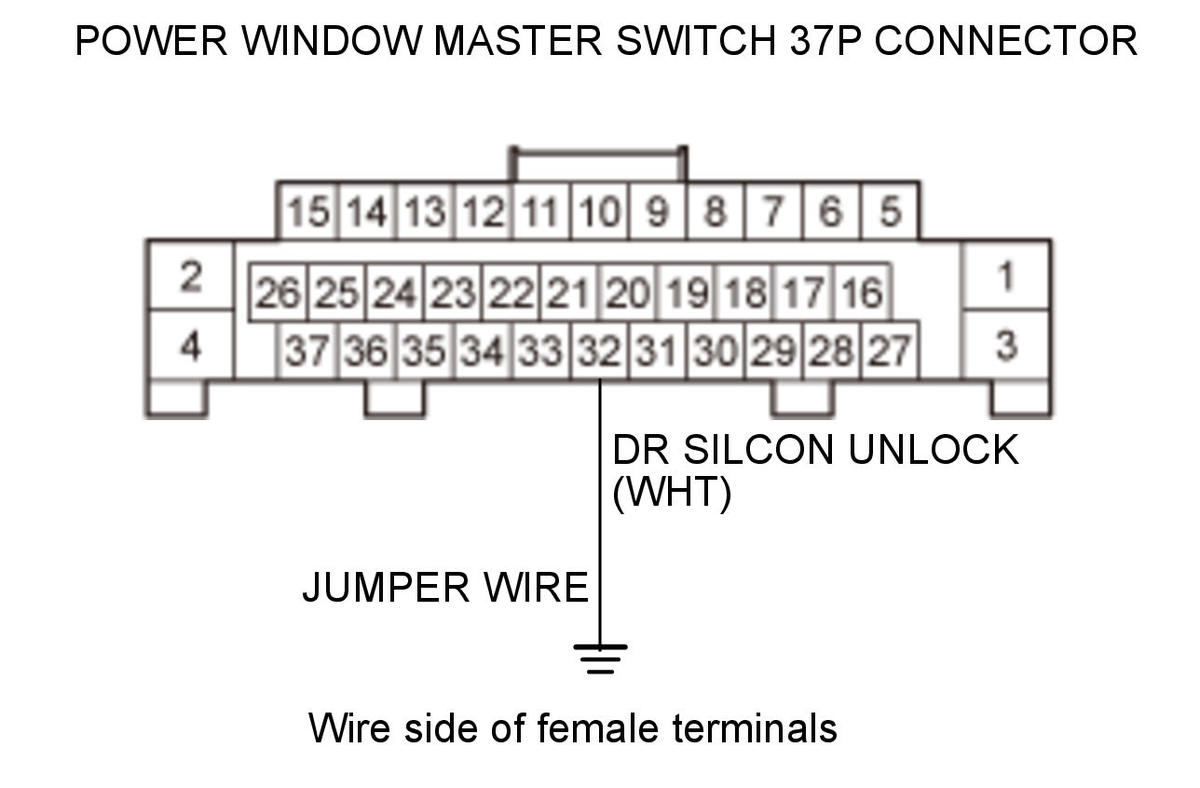

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Power window master switch 37P connector No. 32 (WHT)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

35. Keyless/power door locks/security system check 1

    -1. With the front passenger's door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 36.

    NO

    Go to step 38.

36. Determine possible failure area (front passenger's door latch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's door latch 10P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value OFF?

    YES

    Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Go to step 37.

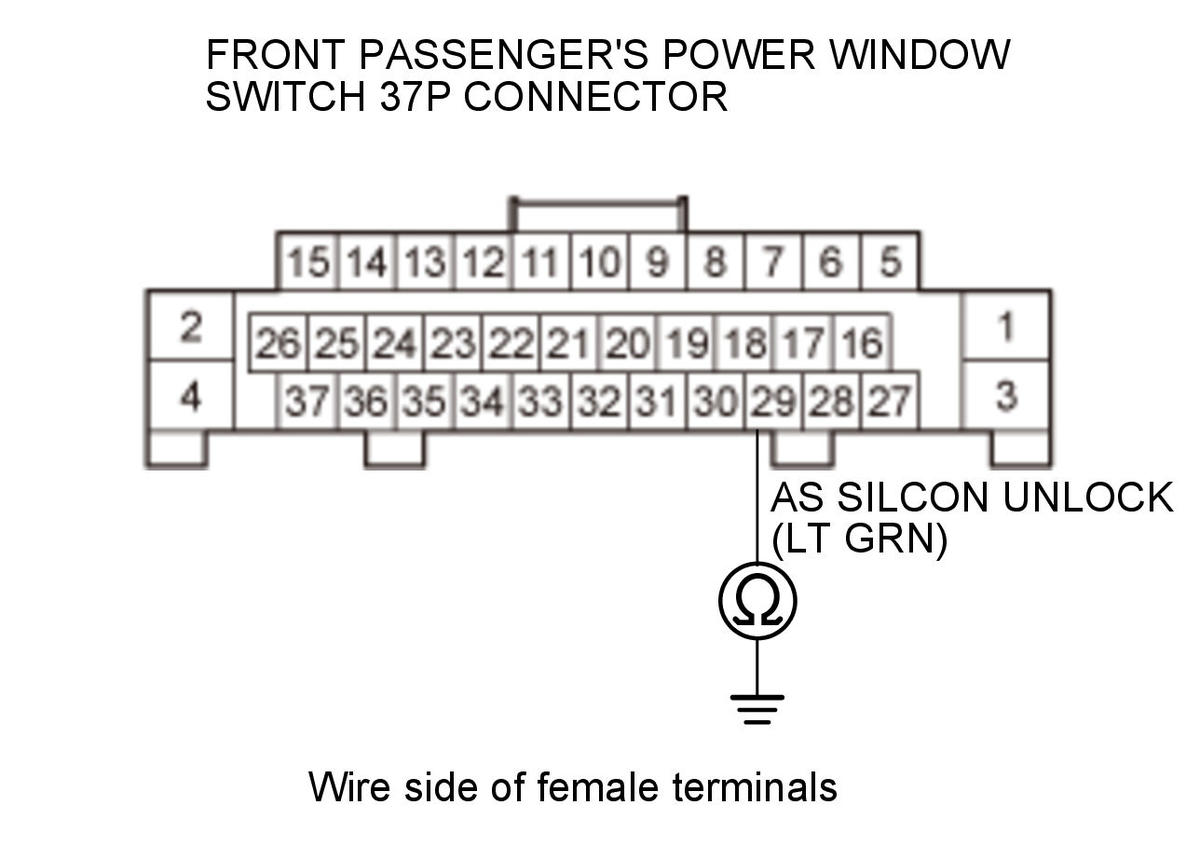

37. Shorted wire check (AS SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's power window switch 37P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected Front passenger's power window switch 37P connector: disconnected
    Test circuit	AS SILCON UNLOCK
    Test point 1	Front passenger's power window switch 37P connectorNo. 29 (LT GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch .

38. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Front passenger's door latch 10P connector

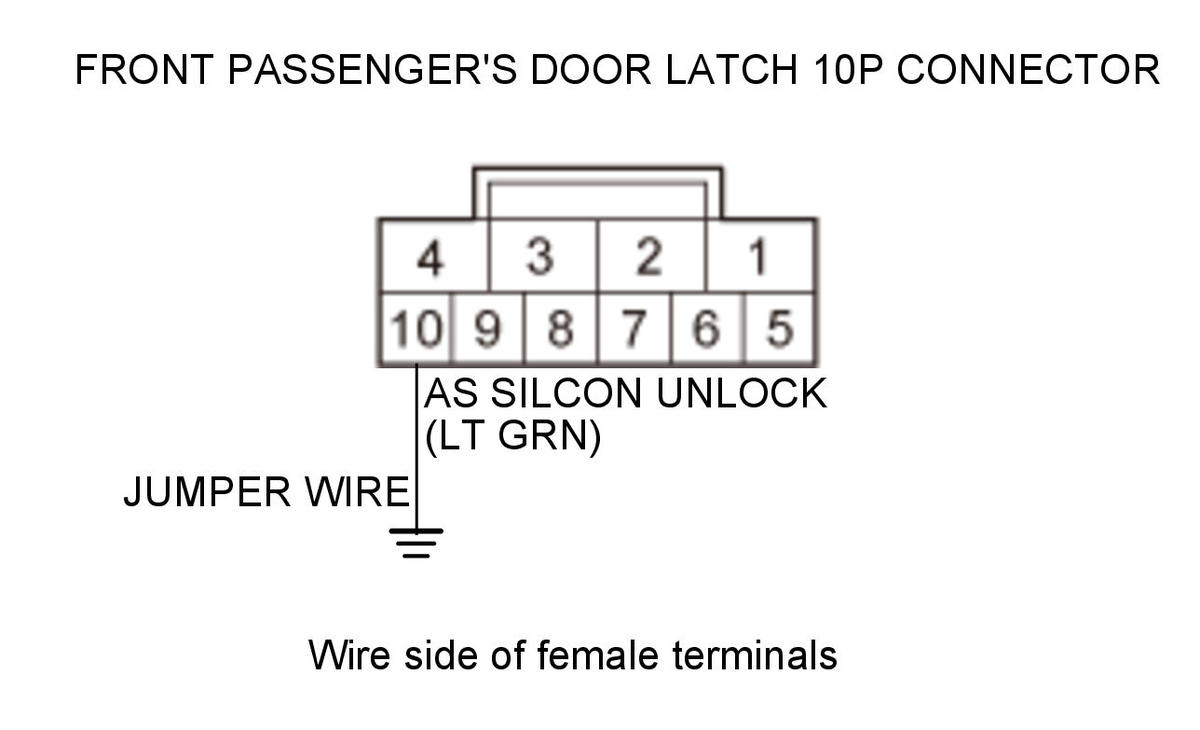

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Front passenger's door latch 10P connector No. 10 (LT GRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 39.

    NO

    Go to step 40.

39. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

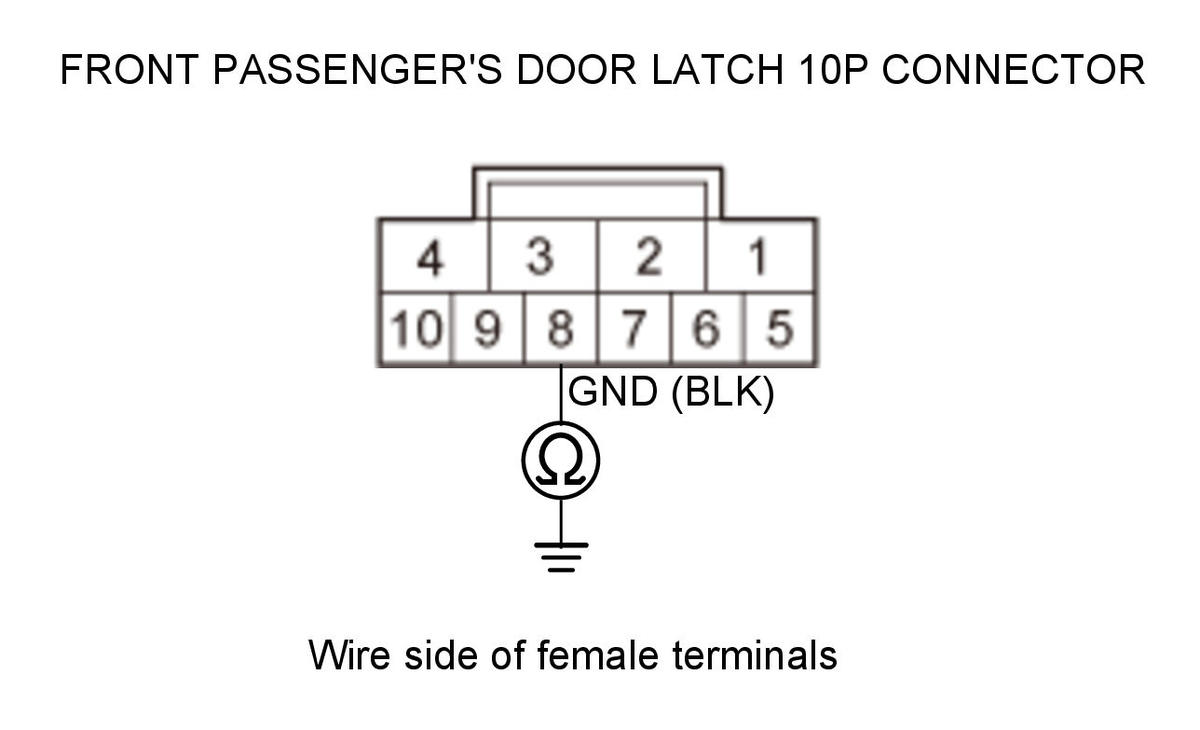

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Front passenger's door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Front passenger's door latch 10P connector No. 8 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G505).

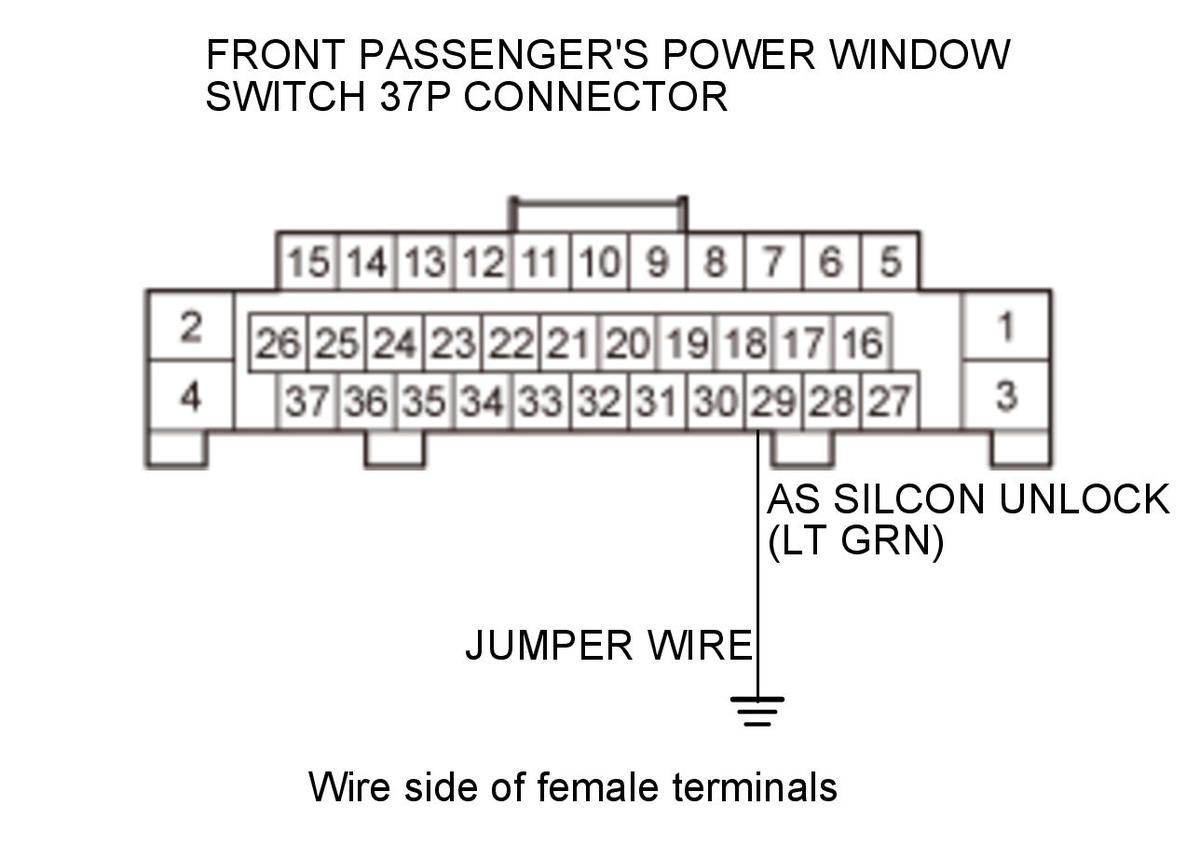

40. Open wire check (AS SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Front passenger's power window switch 37P connectorNo. 29 (LT GRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch .

41. Keyless/power door locks/security system check 1

    -1. With the left rear door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 42.

    NO

    Go to step 44.

42. Determine possible failure area (left rear door latch, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Left rear door latch 10P connector

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value OFF?

    YES

    Faulty left rear door lock knob switch; replace the left rear door latch .

    NO

    Go to step 43.

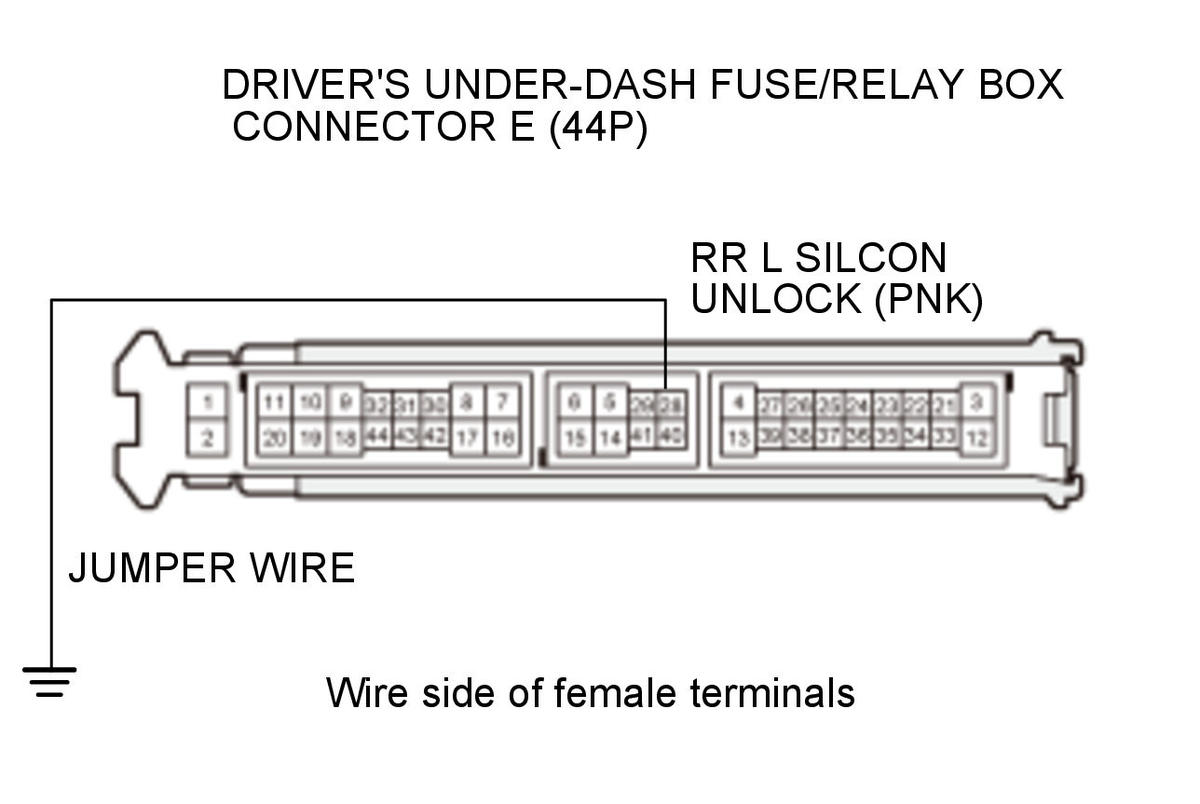

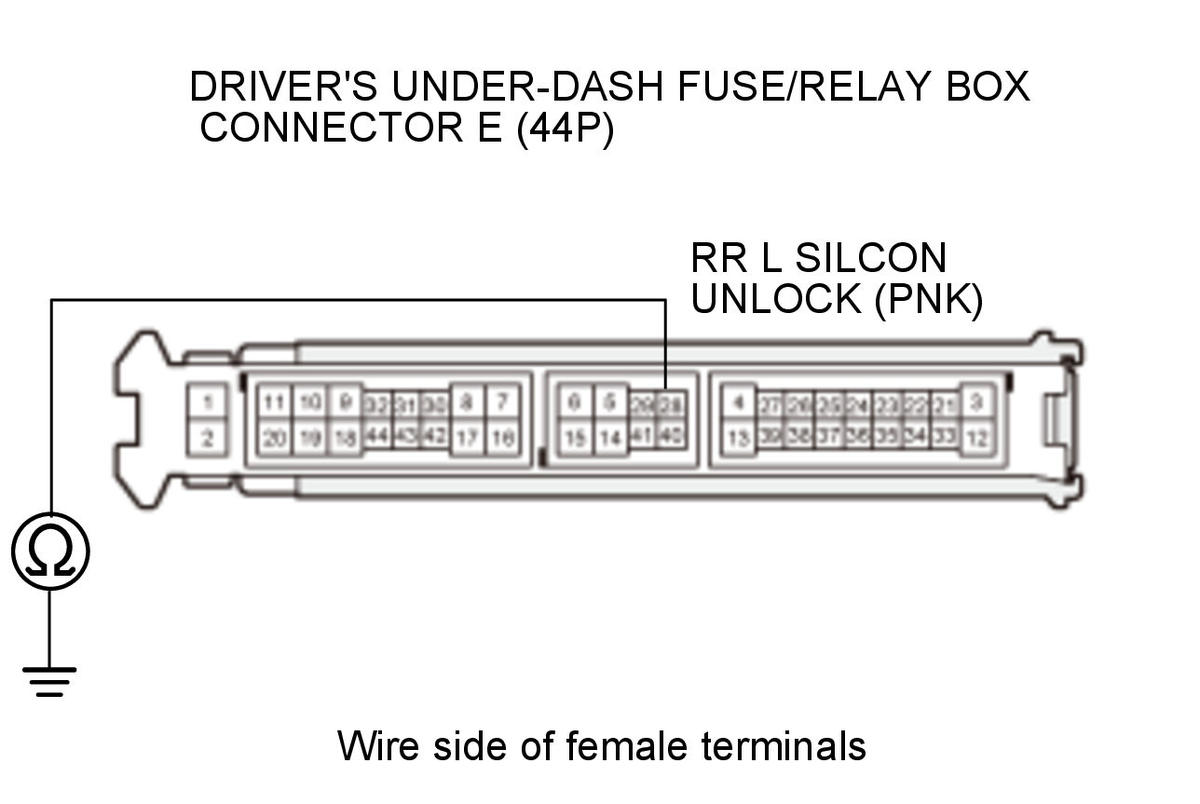

43. Shorted wire check (RR L SILCON UNLOCK line)

    -1. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector E (44P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Left rear door latch 10P connector: disconnected Driver's under-dash fuse/relay box connector E (44P): disconnected
    Test circuit	RR L SILCON UNLOCK
    Test point 1	Driver's under-dash fuse/relay box connector E (44P) No. 28 (PNK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

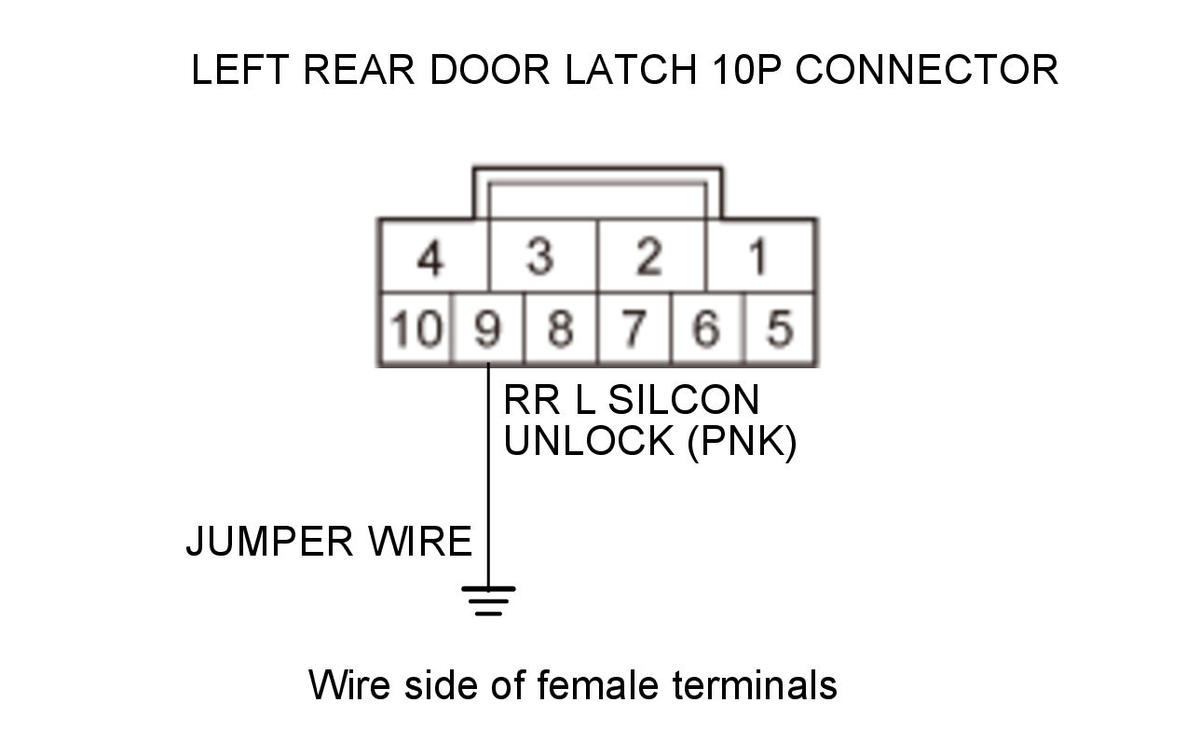

44. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Left rear door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Left rear door latch 10P connector No. 9 (PNK)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Go to step 45.

    NO

    Go to step 46.

45. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Left rear door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Left rear door latch 10P connector No. 6 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty left rear door lock knob switch; replace the left rear door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G701).

46. Open wire check (RR L SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's under-dash fuse/relay box connector E (44P) No. 28 (PNK)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

47. Keyless/power door locks/security system check 1

    -1. With the right rear door lock knob switch in LOCK position, check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Go to step 48.

    NO

    Go to step 50.

48. Determine possible failure area (right rear door latch, others)

    -1. Disconnect the following connector.

    Right rear door latch 10P connector

    -2. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value OFF?

    YES

    Faulty right rear door lock knob switch; replace the right rear door latch .

    NO

    Go to step 49.

49. Shorted wire check (RR R SILCON UNLOCK line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Driver's under-dash fuse/relay box connector E (44P)

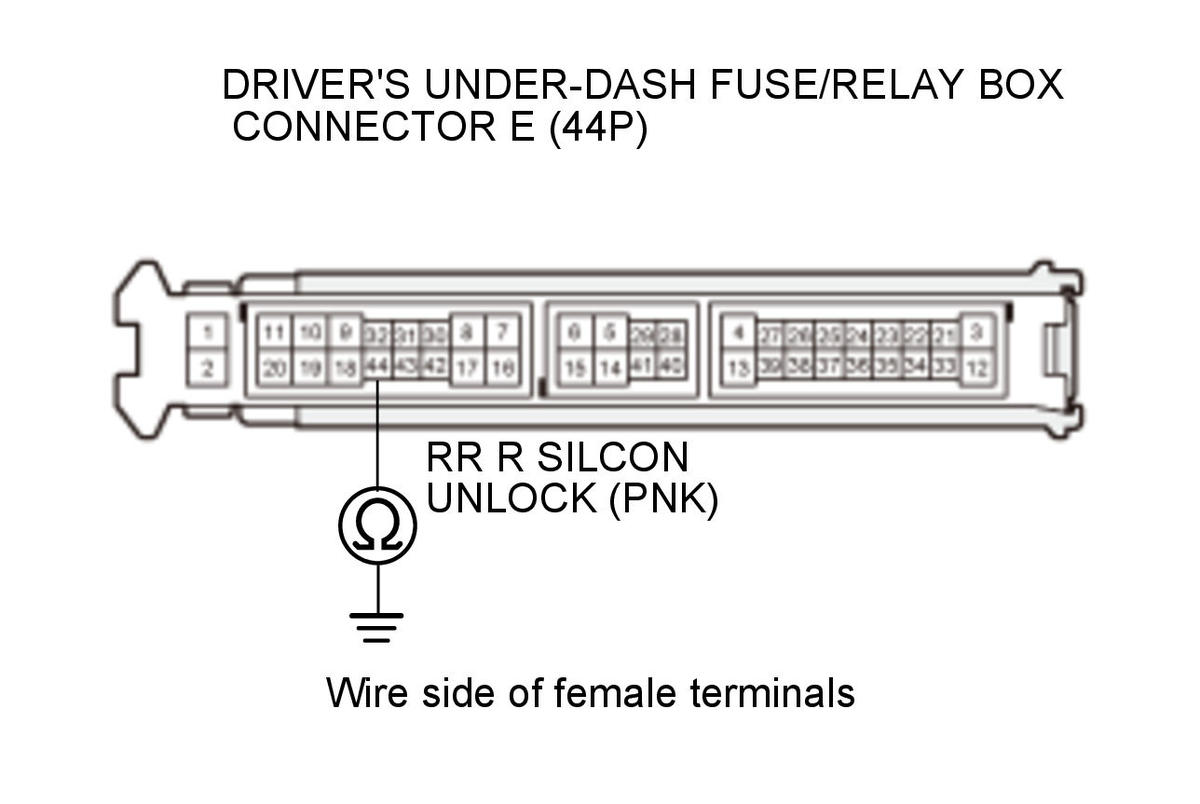

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Right rear door latch 10P connector: disconnected Driver's under-dash fuse/relay box connector E (44P): disconnected
    Test circuit	RR R SILCON UNLOCK
    Test point 1	Driver's under-dash fuse/relay box connector E (44P) No. 44 (PNK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .

50. Keyless/power door locks/security system check 2

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Right rear door latch 10P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A	Right rear door latch 10P connector No. 6 (PNK)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -4. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Go to step 51.

    NO

    Go to step 52.

51. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Right rear door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Right rear door latch 10P connector No. 9 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty right rear door lock knob switch; replace the right rear door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G751).

52. Open wire check (RR R SILCON UNLOCK line)

    -1. Remove the jumper wire.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's under-dash fuse/relay box connector E (44P) No. 44 (PNK)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    -3. Check the parameter (s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information value ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Faulty MICU; replace the driver's under-dash fuse/relay box .
