The engine starts but stalls immediately
- Keyless access system check 1
-1. Turn the vehicle to the ON mode.
-2. Check the immobilizer indicator.
Does the immobilizer indicator come on?
YES
Go to step 2.
NO
Go to step 6.
- Keyless access system check 2
-1. Check the immobilizer indicator.
Is the immobilizer indicator blinking?
YES
Go to step 3.
NO
Go to step 6.
- Keyless access system check 3
-1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter KEYLESS ACCESS SYSTEM INFORMATION.
One-Push - KEYLESS ACCESS CONTROL UNIT- Smart Information
Do the SYSTEM CHECK 1 and 2 with the HDS.
Are N-1 OK and N-2 OK indicated?
YES
Go to step 4.
NO
Troubleshoot the keyless access system according to the result of the SYSTEM CHECK 1 and 2.
- Keyless access system check 4
-1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter DATA LIST.
-2. Check the parameter (s) below with the HDS.
Signal Current conditions Value Unit Electrical Steering Lock SWITCH B Is information value correct?
YES
Go to step 7.
NO
Go to step 5.
- Open wire check (ESL SW B line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connectors.
Keyless access control unit connector C (24P)
Electric steering lock 12P connector-3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode
Keyless access control unit connector C (24P): disconnected

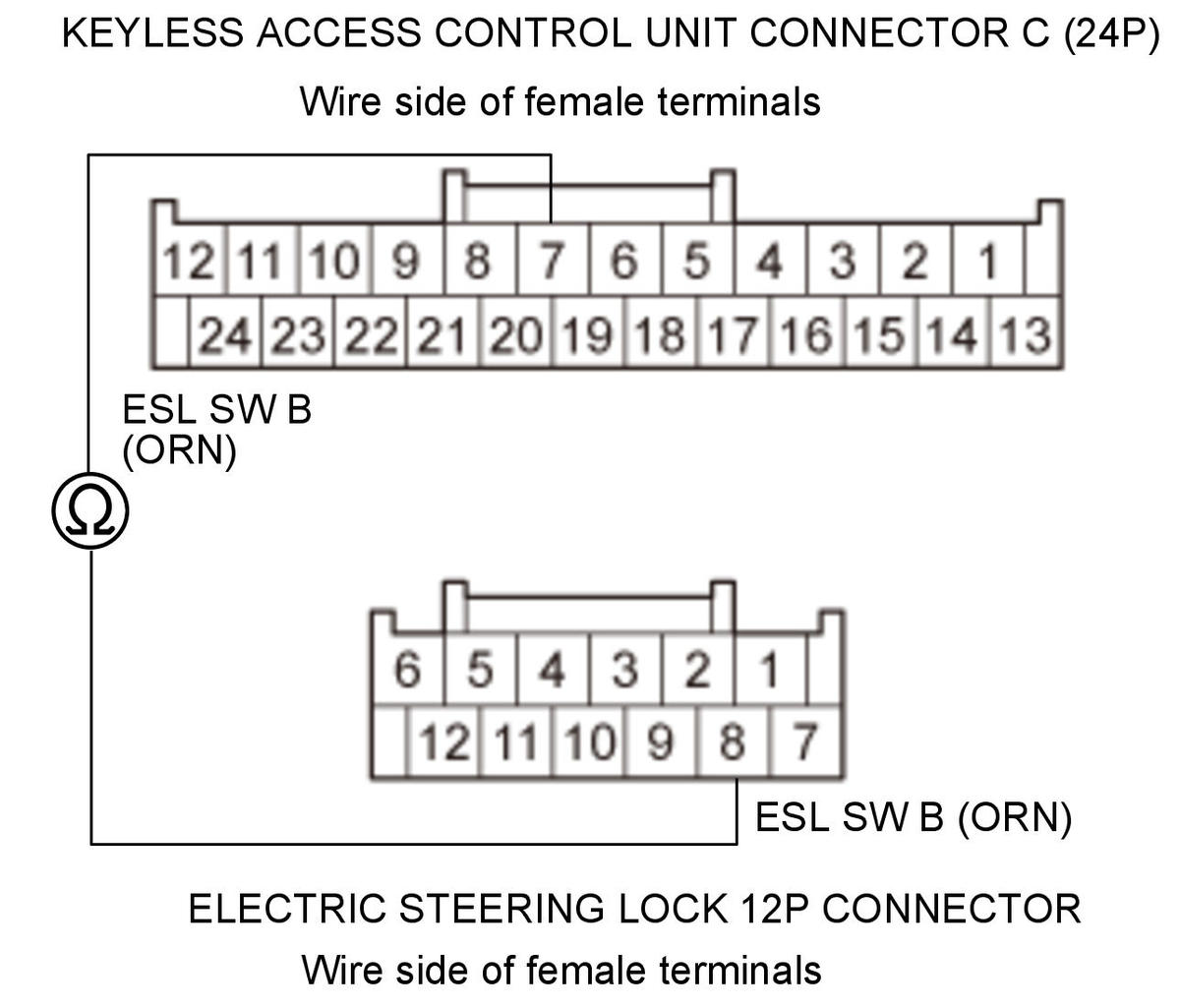

Electric steering lock 12P connector: disconnectedTest circuit ESL SW B Test point 1 Electric steering lock 12P connector No. 8 (ORN) Test point 2 Keyless access control unit connector C (24P) No. 7 (ORN) Is there continuity?
YES
The ESL SW B wire is OK. Replace the keyless access control unit .
NO
Repair an open or high resistance in the wire.
- Gauge control module check
-1. Select GAUGES from the BODY ELECTRICAL SYSTEM SELECT menu with the HDS.
Self diagnostic function
Select FUNCTIONAL TESTS from the TEST MODE menu with the HDS, and enter SELF TEST.
Does the immobilizer indicator come on?
YES
Go to the PGM-FI system troubleshooting .
NO
- Keyless access system check 5
-1. With driver's power window open and all the doors closed, turn the vehicle to the OFF (LOCK) mode.
-2. Remove all the keyless remotes from inside the vehicle. Hold them outside the open driver's window, at least 20 cm (8.0 in) away from the vehicle.
-3. Press the engine start/stop button. The MID should request the keyless remote to touch the engine start/stop button. The LED on the engine start/stop button will flash for up to 30 seconds.
-4. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you. The LED on the engine start/stop button will turn solid for 10 seconds when detected.
-5. Try to start the engine.
Does the engine start?
YES
Go to step 8.
NO
Go to step 9.
- PGM-FI DTC check
-1. Check for PGM-FI DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Are any DTCs indicated?
YES
Troubleshoot the PGM-FI DTCs.
NO
- Keyless access system check 6
-1. Select BACKUP CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SYSTEM INFORMATION.
Immobilizer - Information/Record Data/History Data - Immobilizer Information
Do the SYSTEM CHECK with the HDS.
Is N-1 OK indicated?
YES
Go to step 10.
NO
Troubleshoot the backup control unit according to the result of the SYSTEM CHECK.
- Keyless access system check 7
-1. Check the parameter (s) below with the HDS.
Signal Current conditions Value Unit Electrical Steering Lock SWITCH B Is information value correct?
YES
Troubleshoot the PGM-FI symptom troubleshooting .
NO
