Transfer Assembly Fluid Replacement (2013-18): Replacement

Engine - Warm Up

1. Start the engine. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

Transfer Assembly Fluid - Drain

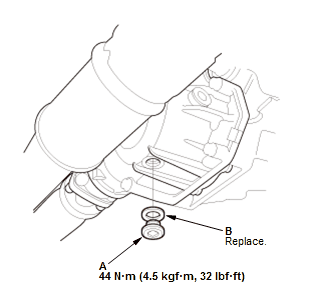

Fig 1: Transfer Assembly Fluid Drain Plug With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the drain plug (A)

2. Drain the transfer fluid

3. Reinstall the drain plug using a new sealing washer (B).

Transfer Assembly Fluid - Refill

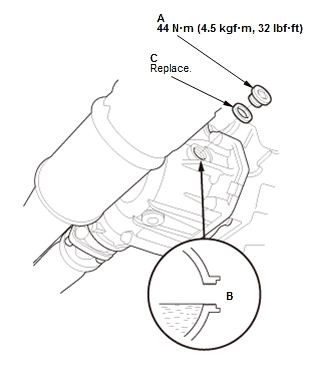

Fig 2: Transfer Assembly Fluid Filler Plug With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the filler plug (A)

2. Refill the transfer assembly with the recommended fluid through the filler hole (B) until the fluid flows out. Use an Acura HGO-1.

Transfer Assembly Fluid Capacity:
	0.41 L (0.43 US qt) at fluid change
	0.45 L (0.48 US qt) at overhaul

3. Reinstall the filler plug using a new sealing washer (C).
