Park Pin Switch Test (2013-17): Test

WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Center Console Carpet Trim - Remove
      1. Remove the left side center console carpet trim .
  2. Park Pin Switch - Test
    GHH77104GHH77105Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH77104GHH77105Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

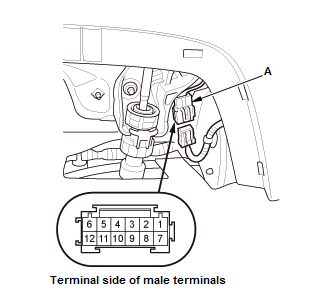

    1. Disconnect the AT gear position indicator connector.

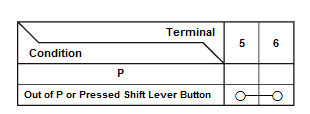

    2. Check for continuity between the terminals in each shift lever condition according to the table.
    3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, the park pin switch is faulty; replace the shift lever assembly (A).
    4. Connect the AT gear position indicator connector.
  3. Center Console Carpet Trim - Install
      1. Install the left side center console carpet trim .
