Roof Console - Remove

1. Remove the roof console - Refer to: Headliner Removal and Installation (2013-17), or Headliner Removal and Installation(With Camera Cover) (2016-17) .

HomeLink Switch - Test
NOTE:

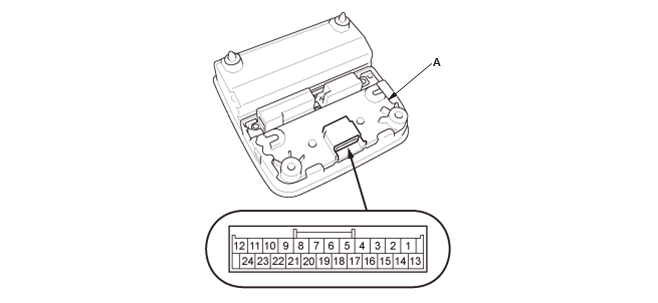

The HomeLink switch (A) is built into the roof console module.

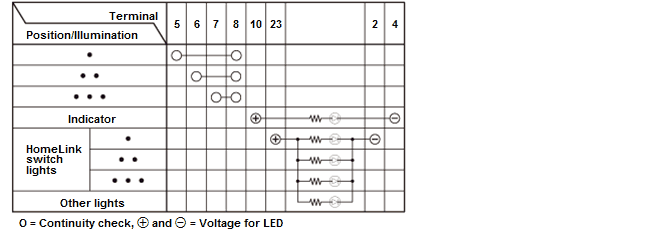

1. Check the switch for continuity and the LEDs for illumination according to the table.
NOTE:
- When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, the HomeLink switch is faulty; replace the roof console module .

Roof Console - Install

1. Install the roof console - Refer to: Headliner Removal and Installation (2013-17), or Headliner Removal and Installation(With Camera Cover) (2016-17) .
