HomeLink Remote Control System Test (2016)
WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Explain to the client that garage door remote transmitters come in two types: Fixed code and rolling code. Each type has its own programming method, and each method is covered in the Owner's Manual. If the client has concerns about the HomeLink unit, have the client contact the HomeLink assistance desk at 800-355-3515.
- If HomeLink will not open the client's garage, do the following procedures.
1. Press any of the buttons on the HomeLink unit.
- If the red indicator comes on, go to step 6.
- If the red indicator does not come on, go to step 2.
2. Do the HomeLink switch test .
- If the switch is OK, go to step 3.
- If the switch is faulty, replace the roof console module .
3. Disconnect the HomeLink unit 8P connector .

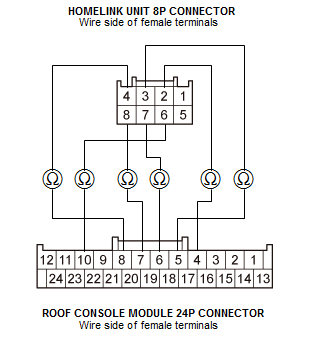

4. Check for continuity between the HomeLink unit and the HomeLink switch (built into the roof console module).
- If there is continuity, go to step 5.
- If there is no continuity, repair an open or high resistance in the wire.
| Test circuit | Test point 1:HomeLink unit8P connector | Test point 2:Roof console module24P connector |
|---|---|---|
| GARAGE SW+B | 4 (RED) | 8 (RED) |
| GARAGE SW1 | 3 (PNK) | 5 (PNK) |
| GARAGE SW2 | 7 (GRY) | 6 (GRY) |
| GARAGE SW3 | 8 (LT GRN) | 7 (LT GRN) |
| GARAGE IND+ | 6 (WHT) | 10 (WHT) |
| GARAGE IND- | 2 (TAN) | 4 (TAN) |

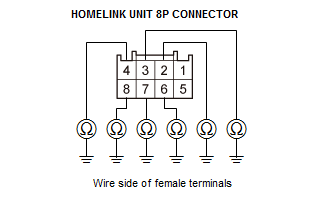

5. Check for continuity between the HomeLink control unit 8P connector terminals and body ground.
- If there is continuity, repair a short to ground in the wire.
- If there is no continuity, go to step 6.
| Connector | Test circuit | Terminal |
|---|---|---|
| HomeLink unit 8P connector | GARAGE SW+B | 4 (RED) |
| GARAGE SW1 | 3 (PNK) | |
| GARAGE SW2 | 7 (GRY) | |
| GARAGE SW3 | 8 (LT GRN) | |
| GARAGE IND+ | 6 (WHT) | |
| GARAGE IND- | 2 (TAN) |

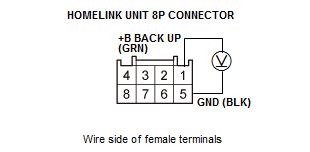

6. Measure the voltage between HomeLink control unit 8P connector terminals No. 1 (+) and No. 5 (-). There should be battery voltage.
- If the voltage is not as specified, check for these problems:
-
- Blown No. A29 (10 A) fuse in the under-hood fuse/relay box.
- Faulty under-dash fuse/relay box.
- An open or high resistance in the wire.
- Poor ground (G501).
- If the voltage is as specified, replace the HomeLink unit .
