Door Lock Knob Switch Test (2013-17): Test

WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.

Front Door

Front Door Panel - Remove

1. Remove the front door panel - Refer to: Front Door Panel Removal and Installation (2013-17), or Front Door Panel Removal and Installation(With BSI Alert Indicator) (2016-17) .

Front Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

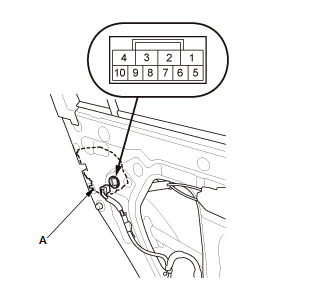

Driver's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

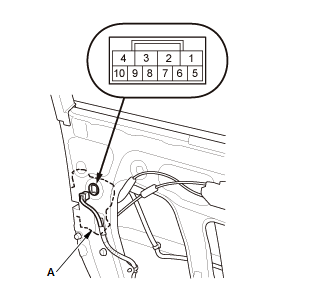

Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Disconnect the front door latch connector.

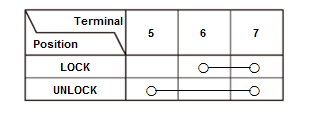

Check for continuity between the terminals in each switch position according to the table.
If the continuity is not as specified, the front door lock knob switch is faulty; replace the front door latch (A).
Connect the front door latch connector.

Front Door Panel - Install

1. Install the front door panel - Refer to: Front Door Panel Removal and Installation (2013-17), or Front Door Panel Removal and Installation(With BSI Alert Indicator) (2016-17) .

Rear Door

Rear Door Panel - Remove

1. Remove the rear door panel .

Rear Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Disconnect the rear door latch connector.
Check for continuity between the terminals in each switch position according to the table.
If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (A).
Connect the rear door latch connector.

Rear Door Panel - Install

1. Install the rear door panel .
