Door Key Cylinder Switch Test (2013-17): Test

WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Door Panel - Remove
      1. Remove the driver's door panel - Refer to: Front Door Panel Removal and Installation (2013-17), or Front Door Panel Removal and Installation(With BSI Alert Indicator) (2016-17) .
  2. Door Key Cylinder Switch - Test
    GHH77065GHH77066Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH77065GHH77066Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

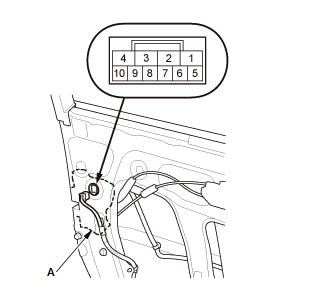

    1. Disconnect the driver's door latch connector.

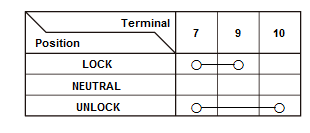

    2. Check for continuity between the terminals in each switch position according to the table.
    3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch (A).
    4. Connect the driver's door latch connector.
  3. Front Door Panel - Install
      1. Install the driver's door panel - Refer to: Front Door Panel Removal and Installation (2013-17), or Front Door Panel Removal and Installation(With BSI Alert Indicator) (2016-17) .
