Keyless/Power Door Locks/Security System Symptom Troubleshooting - Security alarm system will not arm (2016-17)

Security alarm system will not arm

1. Switch information check:

   Press the engine start/stop button to select the ON mode.

   - 2. Check the parameter(s) below with the HDS.

   Door Multiplex Control Unit

   Signal	Current conditions
   	Value	Unit
   Driver's Door Lock Knob Switch (UNLOCK)
   Passenger's Door Lock Knob Switch (UNLOCK)
   Driver's Door Key Cylinder Switch (LOCK)

   MICU

   Signal	Current conditions
   	Value	Unit
   Tailgate Switch
   Security Hood Switch
   Driver's Rear Door Lock Knob Switch (UNLOCK)
   Passenger's Rear Door Lock Knob Sw. (UNLOCK)
   Driver's Door Switch
   Front Passenger's Door Switch
   Driver's Rear Door Switch
   Passenger's Rear Door Switch

   Is each switch information OK?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   Tailgate latch switch circuit troubleshooting: go to step 2.

   NO

   Security hood switch circuit troubleshooting: go to step 8.

   NO

   Driver's door lock knob switch circuit troubleshooting: go to step 14.

   NO

   Front passenger's door lock knob switch circuit troubleshooting: go to step 20.

   NO

   Left rear door lock knob switch circuit troubleshooting: go to step 26.

   NO

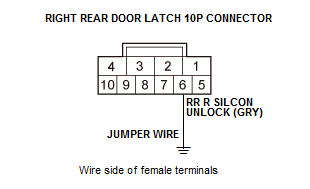

   Right rear door lock knob switch circuit troubleshooting: go to step 32.

   NO

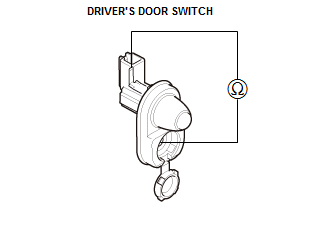

   Driver's door switch circuit troubleshooting: go to step 38.

   NO

   Front passenger's door switch circuit troubleshooting: go to step 43.

   NO

   Left rear door switch circuit troubleshooting: go to step 48.

   NO

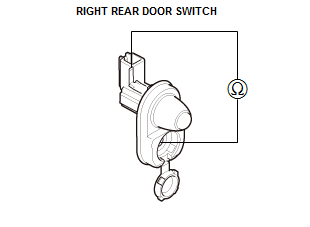

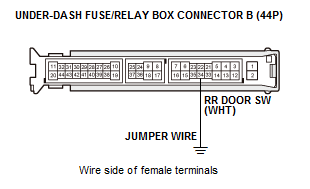

   Right rear door switch circuit troubleshooting: go to step 53.

   NO

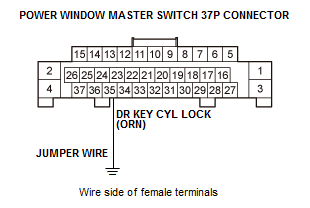

   Driver's door key cylinder switch circuit troubleshooting: go to step 58.

2. Keyless/power door locks/security system check 1:

   With the tailgate closed, check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information indicator ON?

   YES

   Go to step 3.

   NO

   Go to step 5.

3. Determine possible failure area (tailgate latch switch, others):

   Press the engine start/stop button to select the OFF mode.

   - 2. Disconnect the following connector.

   Power tailgate closer unit connector B (6P)

   - 3. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information indicator OFF?

   YES

   Faulty tailgate latch switch; replace the tailgate latch .

   NO

   Go to step 4.

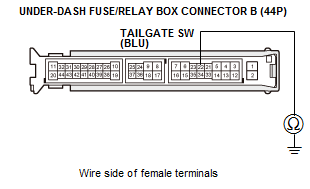

4. Shorted wire check (TAILGATE SW line):

   Press the engine start/stop button to select the OFF mode.

   - 2. Disconnect the following connector.

   Under-dash fuse/relay box connector B (44P)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	OFF modeTailgate latch switch 4P connector: disconnectedUnder-dash fuse/relay box connector B (44P): disconnected
   Test circuit	TAILGATE SW
   Test point 1	Under-dash fuse/relay box connector B (44P) No. 22 (BLU)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   The TAILGATE SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

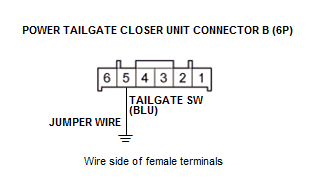

5. Keyless/power door locks/security system check 2:

   Press the engine start/stop button to select the OFF mode.

   - 2. Disconnect the following connector.

   Power tailgate closer unit connector B (6P)

   - 3. Connect terminals A and B with a jumper wire.

   Terminal A	Power tailgate closer unit connector B (6P) No. 5 (BLU)
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   - 4. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information indicator ON?

   YES

   Go to step 6.

   NO

   Go to step 7.

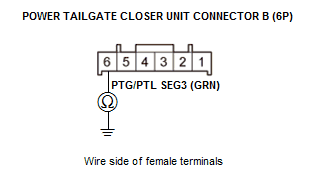

6. Open wire check (PTG/PTL SEG3 line):

   Press the engine start/stop button to select the OFF mode.

   - 2. Check for continuity between test points 1 and 2.

   Test condition	OFF modePower tailgate closer unit connector B (6P): disconnected
   Test circuit	PTG/PTL SEG3
   Test point 1	Power tailgate closer unit connector B (6P) No. 6 (GRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PTG/PTL SEG3 wire is OK. Faulty tailgate latch switch; replace the power tailgate closer unit .

   NO

   Repair an open or high resistance in the wire between the power tailgate closer unit and the power tailgate control unit.

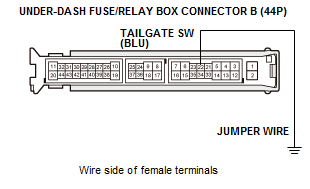

7. Open wire check (TAILGATE SW line):

   Connect terminals A and B with a jumper wire.

   Terminal A	Under-dash fuse/relay box connector B (44P) No. 22 (BLU)
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   - 2. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Trunk Lid/Tailgate Switch

   Is information indicator ON?

   YES

   Repair an open or high resistance in the wire.

   NO

   The TAILGATE SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

8. Keyless/power door locks/security system check 1:

   With the hood opened, check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Security Hood Switch

   Is information indicator OFF?

   YES

   Go to step 9.

   NO

   Go to step 11.

9. Determine possible failure area (hood latch, others):

   Press the engine start/stop button to select the OFF mode.

   - 2. Disconnect the following connector.

   Security hood switch 2P connector

   - 3. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Value	Unit
   Security Hood Switch

   Is information indicator ON?

   YES

   Faulty security hood switch; replace the hood latch .

   NO

   Go to step 10.

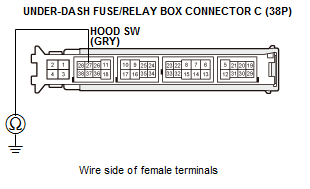

10. Shorted wire check (HOOD SW line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Under-dash fuse/relay box connector C (38P)

    - 3. Check for continuity between test points 1 and 2.

    Test condition	OFF modeSecurity hood switch 2P connector: disconnectedUnder-dash fuse/relay box connector C (38P): disconnected
    Test circuit	HOOD SW
    Test point 1	Under-dash fuse/relay box connector C (38P) No. 27 (GRY)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The HOOD SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

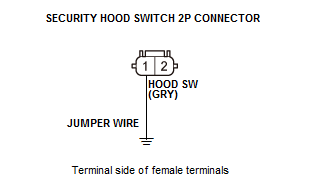

11. Keyless/power door locks/security system check 2:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Security hood switch 2P connector

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Security hood switch 2P connector No. 1 (GRY)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information indicator OFF?

    YES

    Go to step 12.

    NO

    Go to step 13.

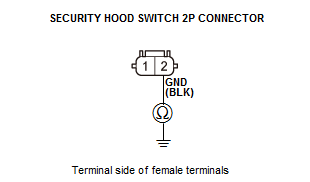

12. Open wire check (GND line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeSecurity hood switch 2P connector: disconnected
    Test circuit	GND
    Test point 1	Security hood switch 2P connector No. 2 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty security hood switch; replace the hood latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G301).

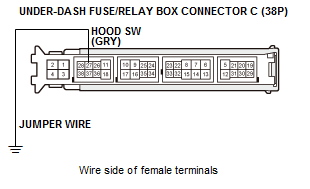

13. Open wire check (HOOD SW line):

    Connect terminals A and B with a jumper wire.

    Terminal A	Under-dash fuse/relay box connector C (38P) No. 27 (GRY)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Security Hood Switch

    Is information indicator OFF?

    YES

    Repair an open or high resistance in the wire.

    NO

    The HOOD SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

14. Keyless/power door locks/security system check 1:

    With the driver's door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 15.

    NO

    Go to step 17.

15. Determine possible failure area (driver's door latch, others):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Driver's door latch 10P connector

    - 3. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information indicator OFF?

    YES

    Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Go to step 16.

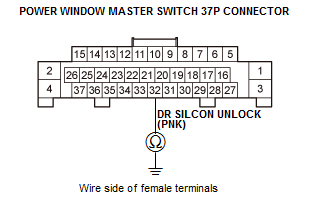

16. Shorted wire check (DR SILCON UNLOCK line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Power window master switch 37P connector

    - 3. Check for continuity between test points 1 and 2.

    Test condition	OFF modeDriver's door latch 10P connector: disconnectedPower window master switch 37P connector: disconnected
    Test circuit	DR SILCON UNLOCK
    Test point 1	Power window master switch 37P connector No. 32 (PNK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

17. Keyless/power door locks/security system check 2:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Driver's door latch 10P connector

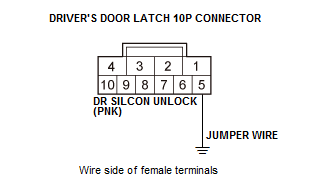

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's door latch 10P connector No. 5 (PNK)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 18.

    NO

    Go to step 19.

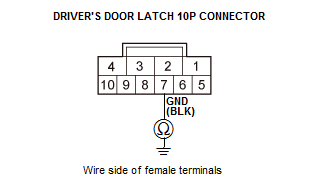

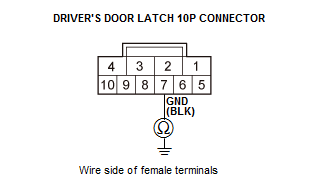

18. Open wire check (GND line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeDriver's door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Driver's door latch 10P connector No. 7 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty driver's door lock knob switch; replace the driver's door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G501).

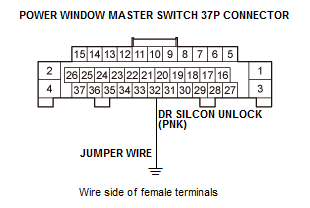

19. Open wire check (DR SILCON UNLOCK line):

    Connect terminals A and B with a jumper wire.

    Terminal A

    Power window master switch 37P connector No. 32 (PNK)

    Terminal B

    Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The DR SILCON UNLOCK wire is OK. Replace the power window master switch .

20. Keyless/power door locks/security system check 1:

    With the front passenger's door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 21.

    NO

    Go to step 23.

21. Determine possible failure area (front passenger's door latch, others):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Front passenger's door latch 10P connector

    - 3. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information indicator OFF?

    YES

    Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Go to step 22.

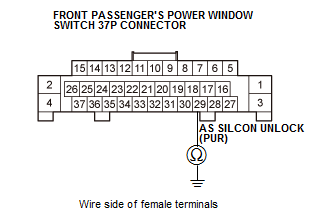

22. Shorted wire check (AS SILCON UNLOCK line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Front passenger's power window switch 37P - Refer to: Rear Power Window Switch Removal and Installation (2013-17), or Front Passenger's Power Window Switch Removal and Installation (2013-17)

    - 3. Check for continuity between test points 1 and 2.

    Test condition	OFF modeFront passenger's door latch 10P connector: disconnectedFront passenger's power window switch 37P connector: disconnected
    Test circuit	AS SILCON UNLOCK
    Test point 1	Front passenger's power window switch 37P connector No. 29 (PUR)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch - Refer to: Rear Power Window Switch Removal and Installation (2013-17), or Front Passenger's Power Window Switch Removal and Installation (2013-17) .

23. Keyless/power door locks/security system check 2:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Front passenger's door latch 10P connector

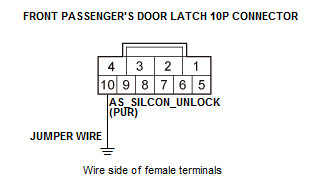

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Front passenger's door latch 10P connector No. 10 (PUR)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 24.

    NO

    Go to step 25.

24. Open wire check (GND line):

    Press the engine start/stop button to select the OFF mode.

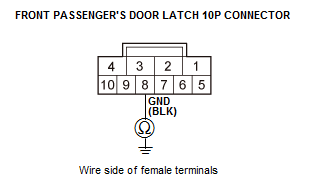

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeFront passenger's door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Front passenger's door latch 10P connector No. 8 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty front passenger's door lock knob switch; replace the front passenger's door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G506).

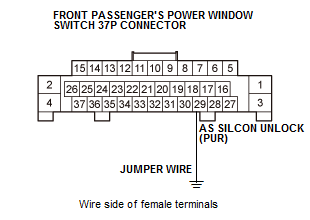

25. Open wire check (AS SILCON UNLOCK line):

    Connect terminals A and B with a jumper wire.

    Terminal A

    Front passenger's power window switch connector No. 29 (PUR)

    Terminal B

    Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The AS SILCON UNLOCK wire is OK. Replace the front passenger's power window switch - Refer to: Rear Power Window Switch Removal and Installation (2013-17), or Front Passenger's Power Window Switch Removal and Installation (2013-17) .

26. Keyless/power door locks/security system check 1:

    With the left rear door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 27.

    NO

    Go to step 29.

27. Determine possible failure area (left rear door latch, others):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Left rear door latch 10P connector

    - 3. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator OFF?

    YES

    Faulty left rear door lock knob switch; replace the left rear door latch .

    NO

    Go to step 28.

28. Shorted wire check (RR L SILCON UNLOCK line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Under-dash fuse/relay box connector W (24P)

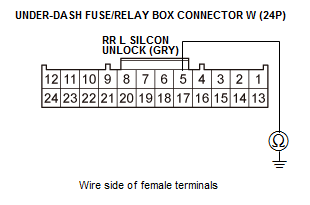

    - 3. Check for continuity between test points 1 and 2.

    Test condition	OFF modeLeft rear door latch 10P connector: disconnectedUnder-dash fuse/relay box connector W (24P): disconnected
    Test circuit	RR L SILCON UNLOCK
    Test point 1	Under-dash fuse/relay box connector W (24P) No. 5 (GRY)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

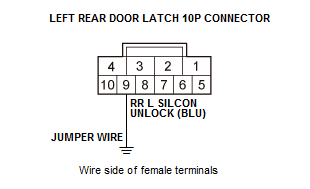

29. Keyless/power door locks/security system check 2:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Left rear door latch 10P connector

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Left rear door latch 10P connector No. 9 (BLU)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 30.

    NO

    Go to step 31.

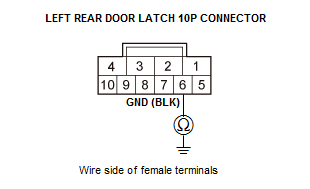

30. Open wire check (GND line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeLeft rear door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Left rear door latch 10P connector No. 6 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty left rear door lock knob switch; replace the left rear door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G601).

31. Open wire check (RR L SILCON UNLOCK line):

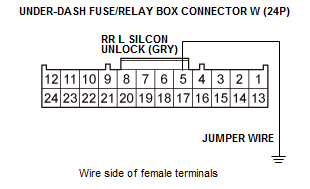

    Connect terminals A and B with a jumper wire.

    Terminal A

    Under-dash fuse/relay box connector W (24P) No. 5 (GRY)

    Terminal B

    Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Lock Knob Switch (UNLOCK)

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR L SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

32. Keyless/power door locks/security system check 1:

    With the right rear door lock knob switch in LOCK position, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 33.

    NO

    Go to step 35.

33. Determine possible failure area (right rear door latch, others):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Right rear door latch 10P connector

    - 3. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information indicator OFF?

    YES

    Faulty right rear door lock knob switch; replace the right rear door latch .

    NO

    Go to step 34.

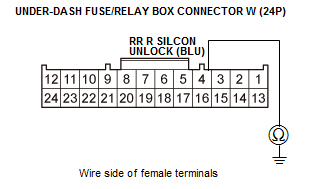

34. Shorted wire check (RR R SILCON UNLOCK line):

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Under-dash fuse/relay box connector W (24P)

    - 3. Check for continuity between test points 1 and 2.

    Test condition	OFF modeRight rear door latch 10P connector: disconnectedUnder-dash fuse/relay box connector W (24P): disconnected
    Test circuit	RR R SILCON UNLOCK
    Test point 1	Under-dash fuse/relay box connector W (24P) No. 4 (BLU)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

35. Keyless/power door locks/security system check 2:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Right rear door latch 10P connector

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Right rear door latch 10P connector No. 6 (GRY)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information indicator ON?

    YES

    Go to step 36.

    NO

    Go to step 37.

36. Open wire check (GND line):

    Press the engine start/stop button to select the OFF mode.

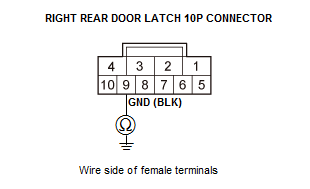

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeRight rear door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Right rear door latch 10P connector No. 9 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Faulty right rear door lock knob switch; replace the right rear door latch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G651).

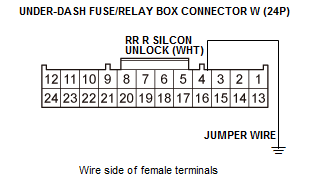

37. Open wire check (RR R SILCON UNLOCK line):

    Connect terminals A and B with a jumper wire.

    Terminal A

    Under-dash fuse/relay box connector W (24P) No. 4 (BLU)

    Terminal B

    Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Lock Knob Sw. (UNLOCK)

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR R SILCON UNLOCK wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

38. Keyless/power door locks/security system check:

    With the driver's door closed, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Switch

    Is information indicator ON?

    YES

    Go to step 39.

    NO

    Go to step 41.

39. Driver's door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the driver's door switch.

    - 3. Disconnect the following connector.

    Driver's door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Driver's door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 40.

    NO

    Replace the driver's door switch.

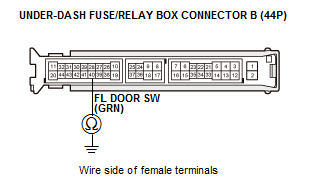

40. Shorted wire check (FL DOOR SW line):

    Disconnect the following connector.

    Under-dash fuse/relay box connector B (44P)

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeDriver's door switch 1P connector: disconnectedUnder-dash fuse/relay box connector B (44P): disconnected
    Test circuit	FL DOOR SW
    Test point 1	Under-dash fuse/relay box connector B (44P) No. 40 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The FL DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

41. Driver's door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the driver's door switch.

    - 3. Disconnect the following connector.

    Driver's door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Driver's door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 42.

    NO

    Replace the driver's door switch.

42. Open wire check (FL DOOR SW line):

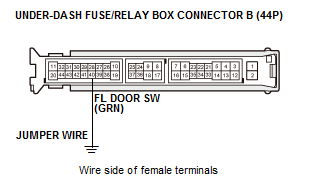

    Connect terminals A and B with a jumper wire.

    Terminal A	Under-dash fuse/relay box connector B (44P) No. 40 (GRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Switch

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The FL DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

43. Keyless/power door locks/security system check:

    With the front passenger's door closed, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Front Passenger's Door Switch

    Is information indicator ON?

    YES

    Go to step 44.

    NO

    Go to step 46.

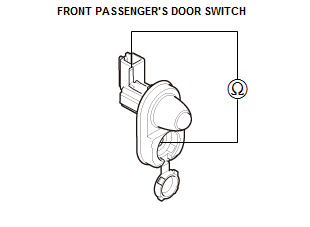

44. Front passenger's door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the front passenger's door switch.

    - 3. Disconnect the following connector.

    Front passenger's door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Front passenger's door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 45.

    NO

    Replace the front passenger's door switch.

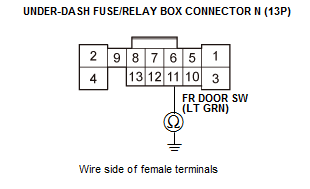

45. Shorted wire check (FR DOOR SW line):

    Disconnect the following connector.

    Under-dash fuse/relay box connector N (13P)

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeFront passenger's door switch 1P connector: disconnectedUnder-dash fuse/relay box connector N (13P): disconnected
    Test circuit	FR DOOR SW
    Test point 1	Under-dash fuse/relay box connector N (13P) No. 11 (LT GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The FR DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

46. Front passenger's door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the front passenger's door switch.

    - 3. Disconnect the following connector.

    Front passenger's door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Front passenger's door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 47.

    NO

    Replace the front passenger's door switch.

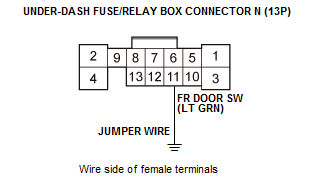

47. Open wire check (FR DOOR SW line):

    Connect terminals A and B with a jumper wire.

    Terminal A	Under-dash fuse/relay box connector N (13P) No. 11 (LT GRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Front Passenger's Door Switch

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The FR DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

48. Keyless/power door locks/security system check:

    With the left rear door closed, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Switch

    Is information indicator ON?

    YES

    Go to step 49.

    NO

    Go to step 51.

49. Left rear door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the left rear door switch.

    - 3. Disconnect the following connector.

    Left rear door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Left rear door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 50.

    NO

    Replace the left rear door switch.

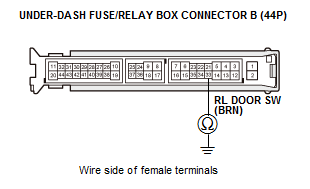

50. Shorted wire check (RL DOOR SW line):

    Disconnect the following connector.

    Under-dash fuse/relay box connector B (44P)

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeLeft rear door switch 1P connector: disconnectedUnder-dash fuse/relay box connector B (44P): disconnected
    Test circuit	RL DOOR SW
    Test point 1	Under-dash fuse/relay box connector B (44P) No. 33 (BRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RL DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

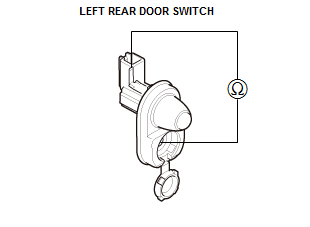

51. Left rear door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the left rear door switch.

    - 3. Disconnect the following connector.

    Left rear door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Left rear door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 52.

    NO

    Replace the left rear door switch.

52. Open wire check (RL DOOR SW line):

    Connect terminals A and B with a jumper wire.

    Terminal A	Under-dash fuse/relay box connector B (44P) No. 33 (BRN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Rear Door Switch

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RL DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

53. Keyless/power door locks/security system check:

    With the right rear door closed, check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Switch

    Is information indicator ON?

    YES

    Go to step 54.

    NO

    Go to step 56.

54. Right rear door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the right rear door switch.

    - 3. Disconnect the following connector.

    Right rear door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Right rear door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 55.

    NO

    Replace the right rear door switch.

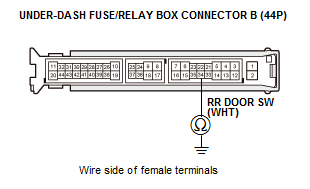

55. Shorted wire check (RR DOOR SW line):

    Disconnect the following connector.

    Under-dash fuse/relay box connector B (44P)

    - 2. Check for continuity between test points 1 and 2.

    Test condition	OFF modeRight rear door switch 1P connector: disconnectedUnder-dash fuse/relay box connector B (44P): disconnected
    Test circuit	RR DOOR SW
    Test point 1	Under-dash fuse/relay box connector B (44P) No. 34 (WHT)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The RR DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

56. Right rear door switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Remove the right rear door switch.

    - 3. Disconnect the following connector.

    Right rear door switch 1P connector

    - 4. Check for continuity between test points 1 and 2.

    Test point 1	Right rear door switch 1P connector
    Test point 2	Switch ground

    Courtesy of HONDA, U.S.A., INC.

    Is there no continuity when you push the switch and is there continuity when you release the switch?

    YES

    Go to step 57.

    NO

    Replace the right rear door switch.

57. Open wire check (RR DOOR SW line):

    Connect terminals A and B with a jumper wire.

    Terminal A	Under-dash fuse/relay box connector B (44P) No. 34 (WHT)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Passenger's Rear Door Switch

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The RR DOOR SW wire is OK. Faulty MICU; replace the under-dash fuse/relay box .

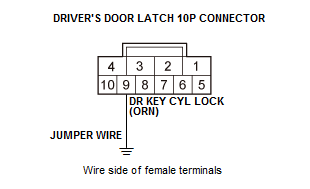

58. Keyless/power door locks/security system check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Disconnect the following connector.

    Driver's door latch 10P connector

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Driver's door latch 10P connector No. 9 (ORN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Key Cylinder Switch (LOCK)

    Is information indicator ON?

    YES

    Go to step 59.

    NO

    Go to step 61.

59. Driver's door key cylinder switch operation check:

    Press the engine start/stop button to select the OFF mode.

    - 2. Test the driver's door key cylinder switch .

    Is the switch OK?

    YES

    Go to step 60.

    NO

    Faulty driver's door key cylinder switch; replace the driver's door latch .

60. Open wire check (GND line):

    Check for continuity between test points 1 and 2.

    Test condition	OFF modeDriver's door latch 10P connector: disconnected
    Test circuit	GND
    Test point 1	Driver's door latch 10P connector No. 7 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wire is OK. Replace the power window master switch .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G501).

61. Open wire check (DR KEY CYL LOCK line):

    Connect terminals A and B with a jumper wire.

    Terminal A	Power window master switch 37P connector No. 35 (ORN)
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 2. Check the parameter(s) below with the HDS.

    Signal	Current conditions
    	Value	Unit
    Driver's Door Key Cylinder Switch (LOCK)

    Is information indicator ON?

    YES

    Repair an open or high resistance in the wire.

    NO

    The DR KEY CYL LOCK wire is OK. Replace the power window master switch .
