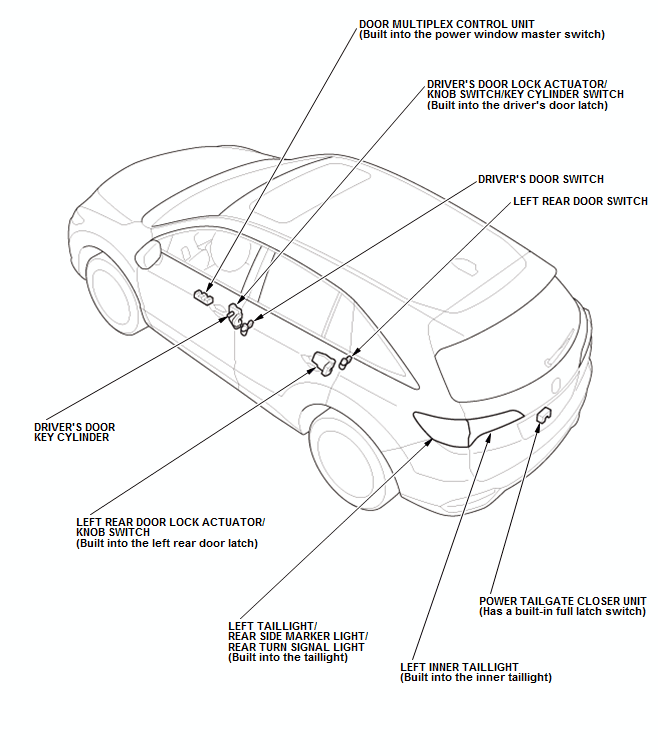

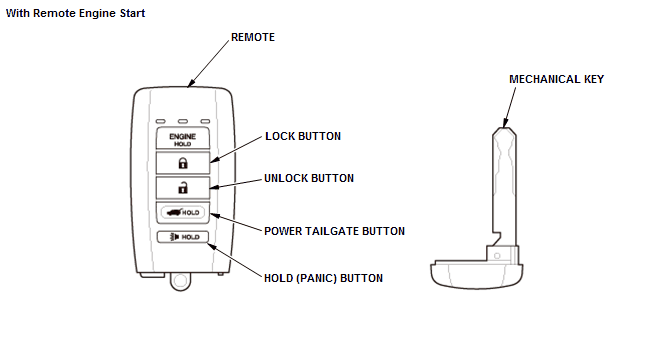

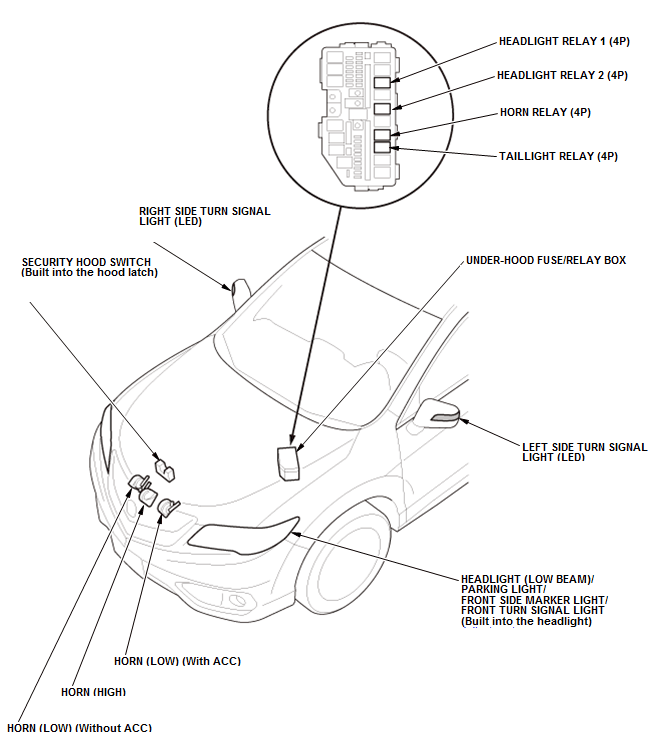

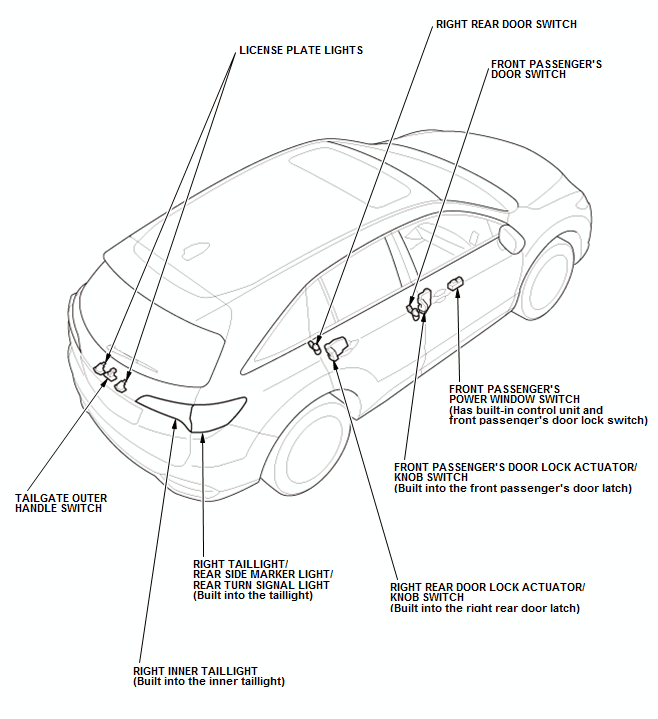

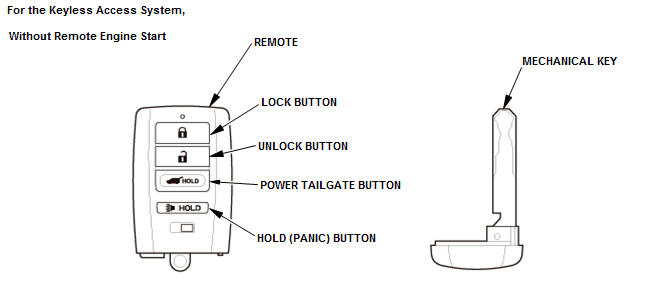

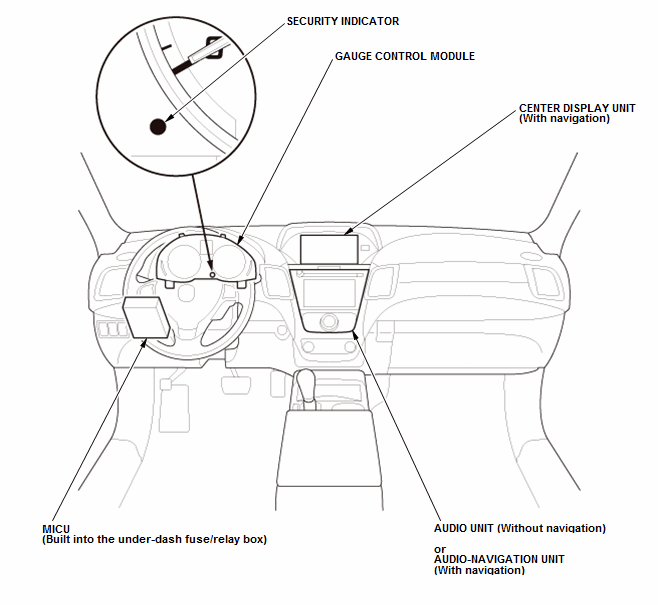

Keyless/Power Door Locks/Security System Component Location Index (2013-17)
WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.
