Keyless Access System Component Location Index (2016-17)

WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.

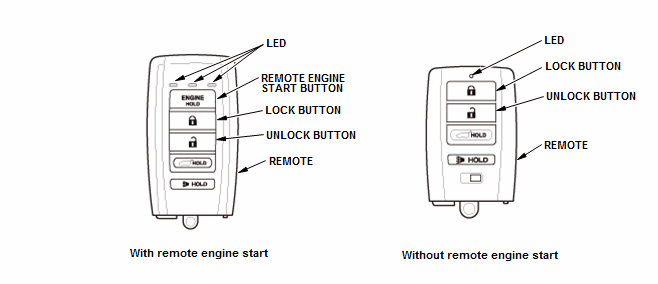

GHH77394Courtesy of HONDA, U.S.A., INC.

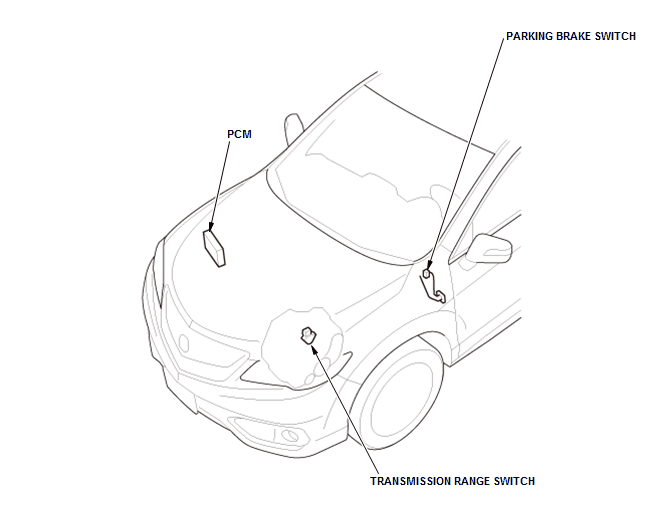

GHH77395Courtesy of HONDA, U.S.A., INC.
GHH77396Courtesy of HONDA, U.S.A., INC.

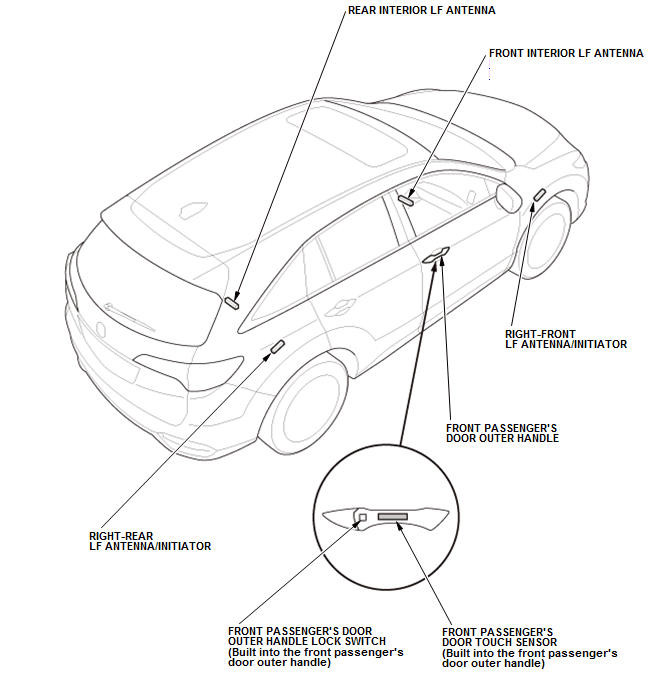

GHH77397Courtesy of HONDA, U.S.A., INC.

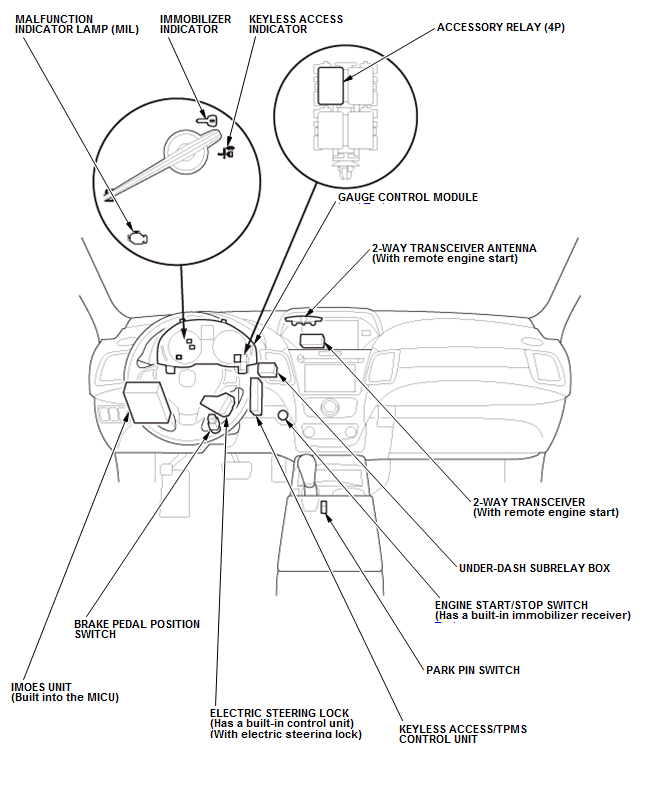

GHH77398Courtesy of HONDA, U.S.A., INC.
