Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System & Engine Mechanical - Testing & Troubleshooting
>>
Overhaul
>>
Engine Oil Pump Overhaul (2013-15)
>>
Exploded View
Exploded View
NOTE:
Do not disassemble the oil pump except for the shown parts.

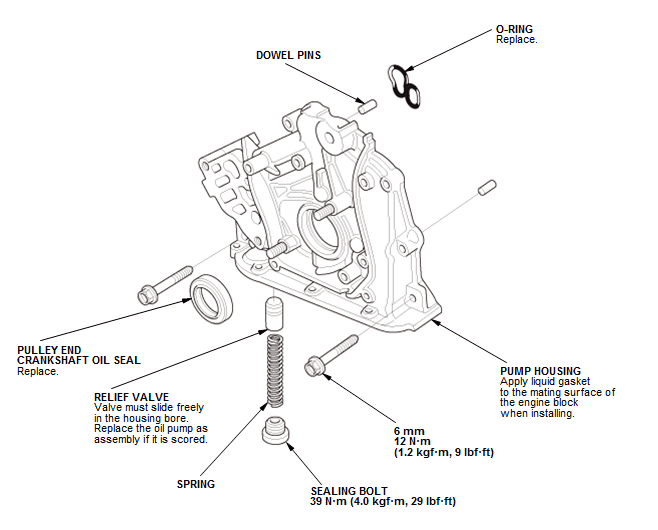

Oil Pump - Exploded View
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
