PGM-FI System Description - Injection Control (2016-18)
Fuel injection controls include fuel injection amount control, fuel cut control, and fuel pump control. Adaptive PGM-FI (programmed-fuel injection) technology enables accurate fuel controls, which contributes to increasing engine power and decreasing fuel consumption.

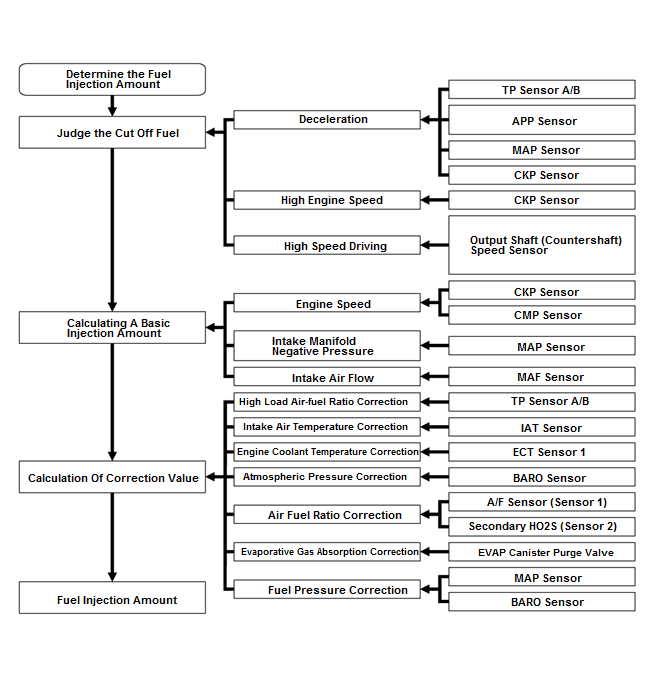

Fuel Injection
The fuel injection is determined by adding correction values to a basic injection. The powertrain control module (PCM) controls the amount of fuel injection by the length of time the injector is energized.

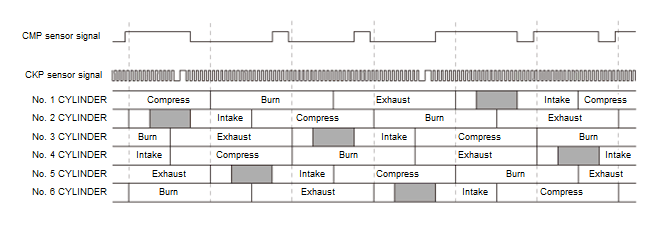

Fuel Injection Timing
The fuel injection timing is determined by the PCM, which calculates the injection time for each cylinder based on the signals sent from the crankshaft position (CKP) sensor and the camshaft position (CMP) sensor. The PCM then controls the time to energize the injector.

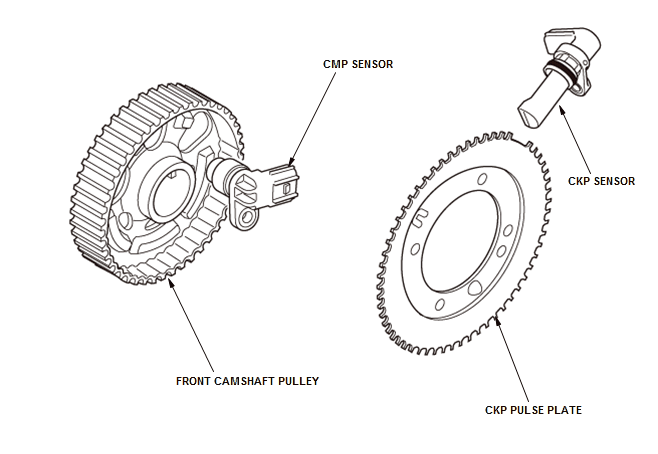

CKP Sensor
The CKP sensor is attached to the engine block. Each of the 58 teeth on the CKP pulse plate passes over the CKP sensor, which generates a pulse signal that is delivered to the PCM.
CMP Sensor
The camshaft position (CMP) sensor is attached to the back cover of the front bank. Every time one of the five protrusions of the front camshaft pulley passes over the CMP sensor, which generates a pulse signal that is delivered to the PCM.

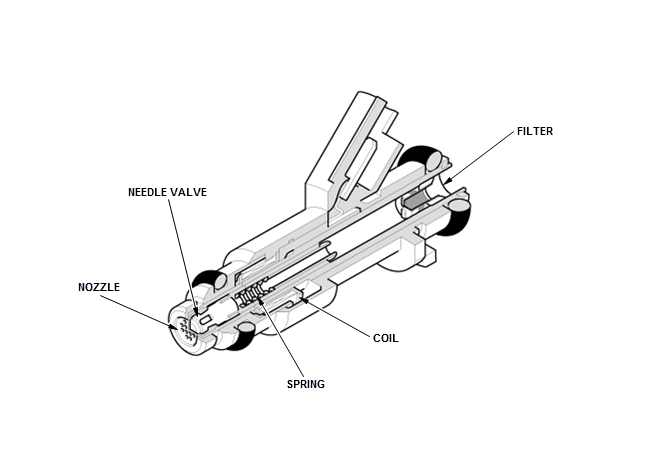

Fuel Injector
The fuel injector for a gaseous fuel supply has multiple holes. The nozzle with multiple holes increases the fuel atomization and improves the mixing with the surrounding air. When the coil in the injector is energized, the plunger is pulled in. The needle valve, which is integral with the plunger, is pulled on full. Then, the injector sprays the fuel whose pressure is controlled by the fuel pressure regulator.

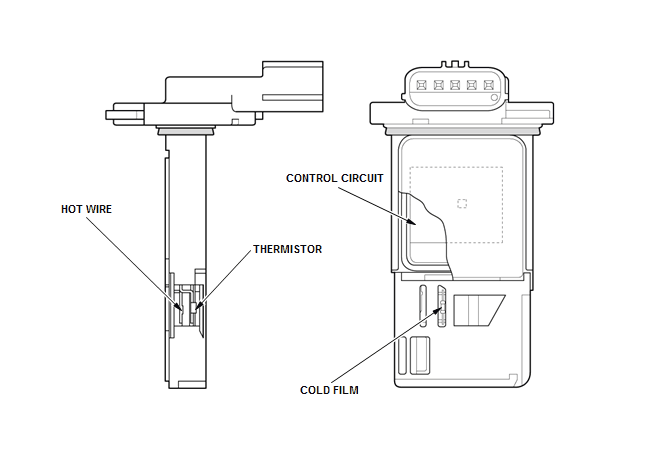

MAF Sensor/IAT Sensor
The mass air flow (MAF) sensor/intake air temperature (IAT) sensor contains a hot wire, a cold film, and a thermistor. The sensor is in the intake air passage. The resistance of the hot wire, the cold film, and the thermistor changes due to intake air temperature and air flow. The control circuit in the MAF sensor controls the current to keep the hot wire at a set temperature. The current is converted to voltage in the control circuit, then sent as an input to the PCM.
