PGM-FI System Description - Components (2013-15)

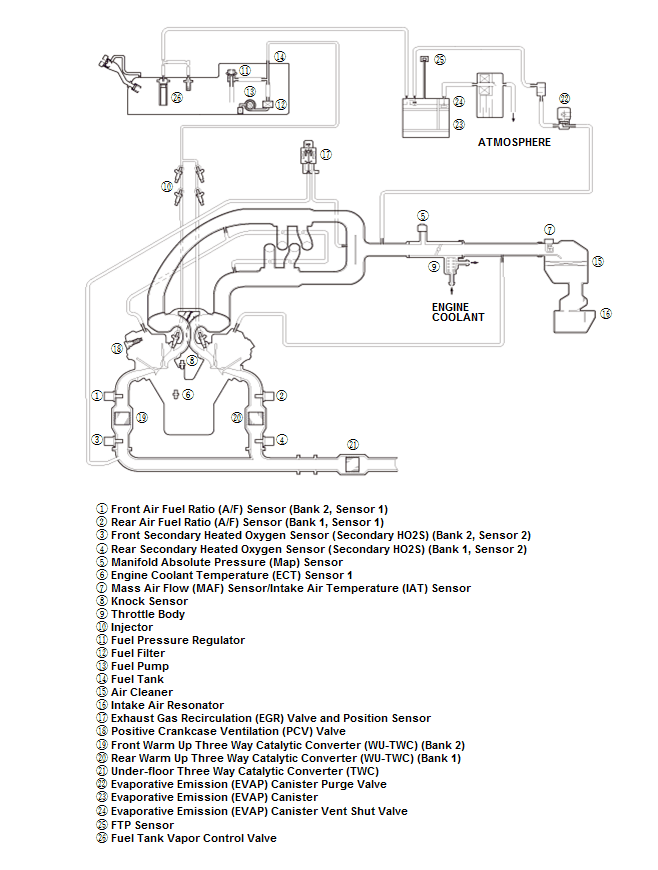

USA and Canada models

GHH72710

Courtesy of HONDA, U.S.A., INC.

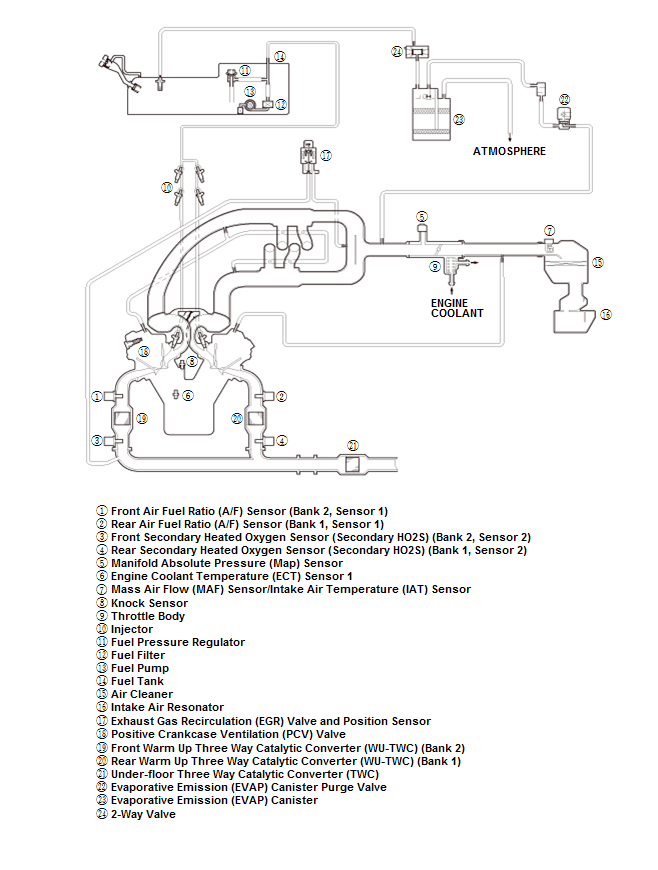

Mexico models

GHH72711

Courtesy of HONDA, U.S.A., INC.
