Component Location Index
>>

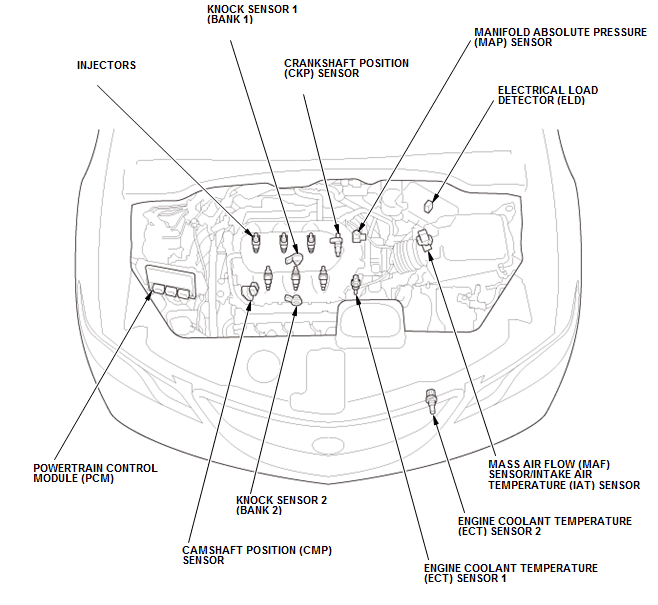

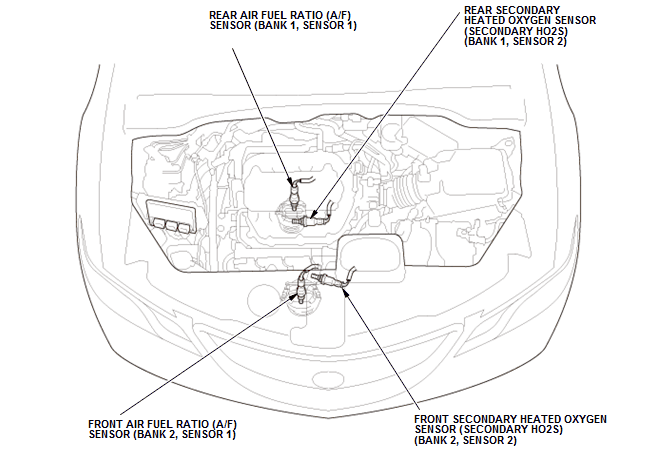

PGM-FI System Component Location Index (2016-18)
PGM-FI System Component Location Index (2016-18)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
