PGM-FI System Component Location Index (2013-15)

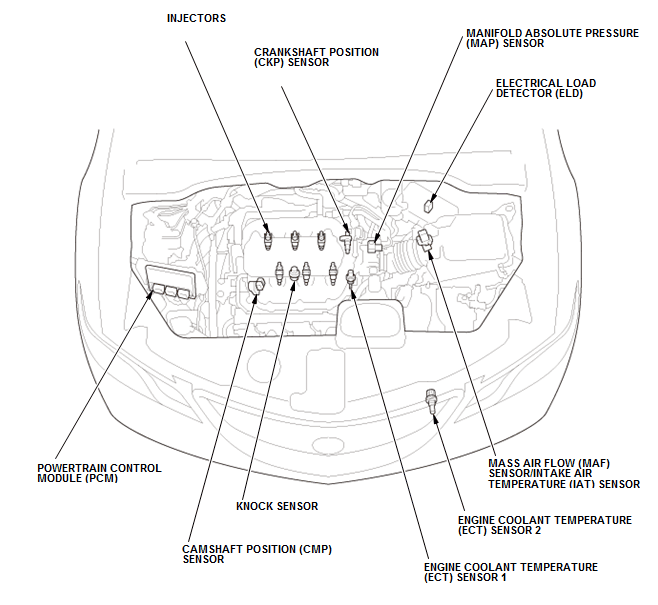

GHH72949

Courtesy of HONDA, U.S.A., INC.

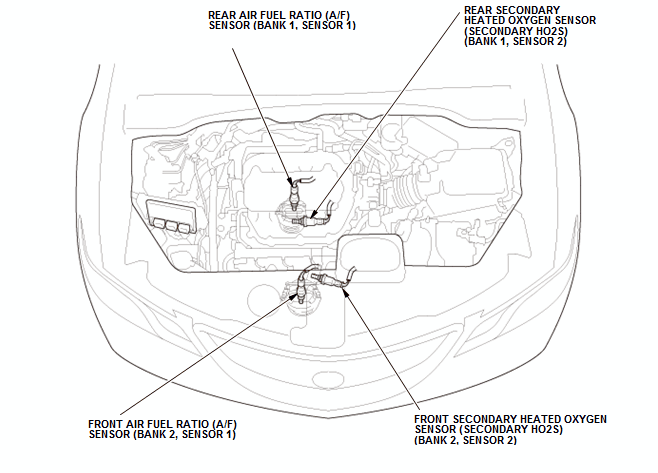

GHH72950

Courtesy of HONDA, U.S.A., INC.
