Engine Block Assembly Component Location Index (2016-18)

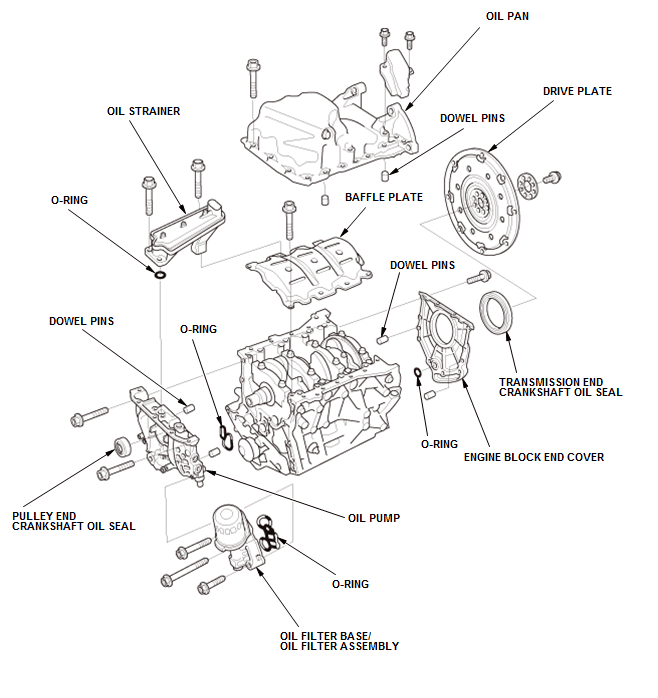

GHH72945

Courtesy of HONDA, U.S.A., INC.

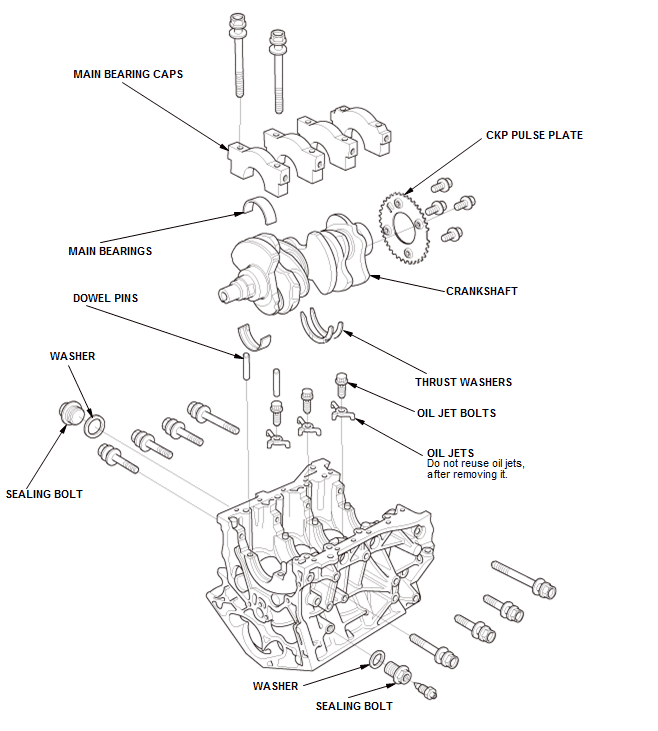

GHH72946

Courtesy of HONDA, U.S.A., INC.

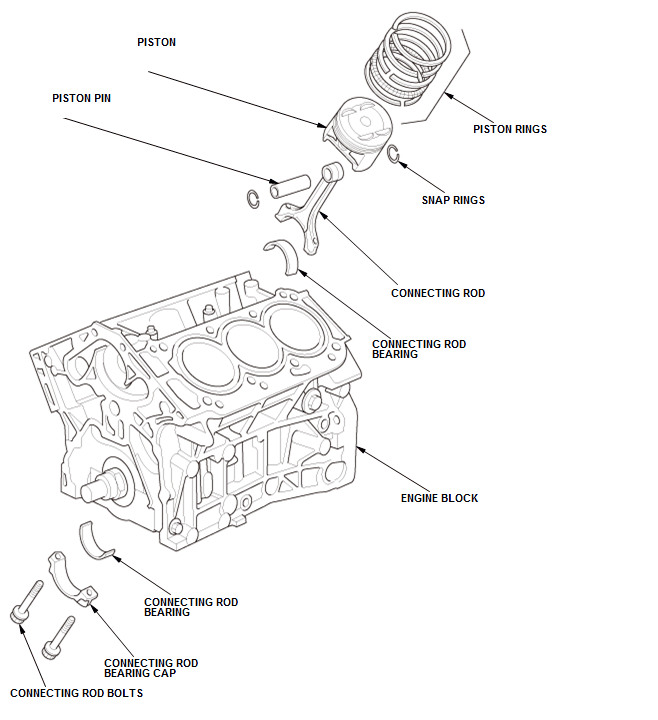

GHH72947

Courtesy of HONDA, U.S.A., INC.
