Keyless Access Control Unit Removal and Installation (2013-18): Removal

Keyless Access Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

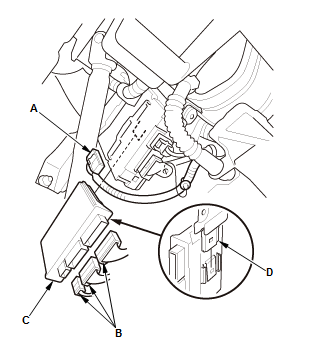

1. Disconnect the power control unit connector (A)

2. Disconnect the keyless access control unit connectors (B)

3. Remove the keyless access control unit (C) from the bracket (D) of power control unit.
