Keyless Access System Component Location Index (2014 2015 2016)

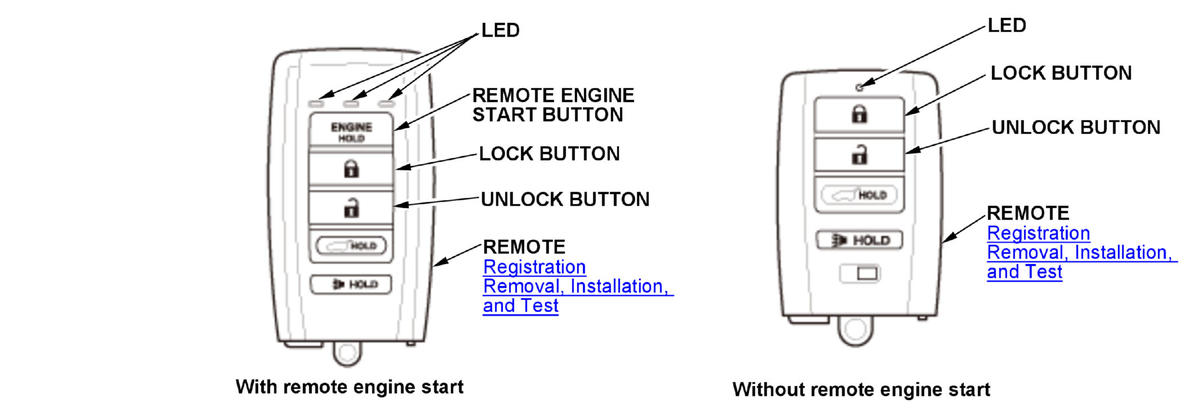

GHH326480

Courtesy of HONDA, U.S.A., INC.

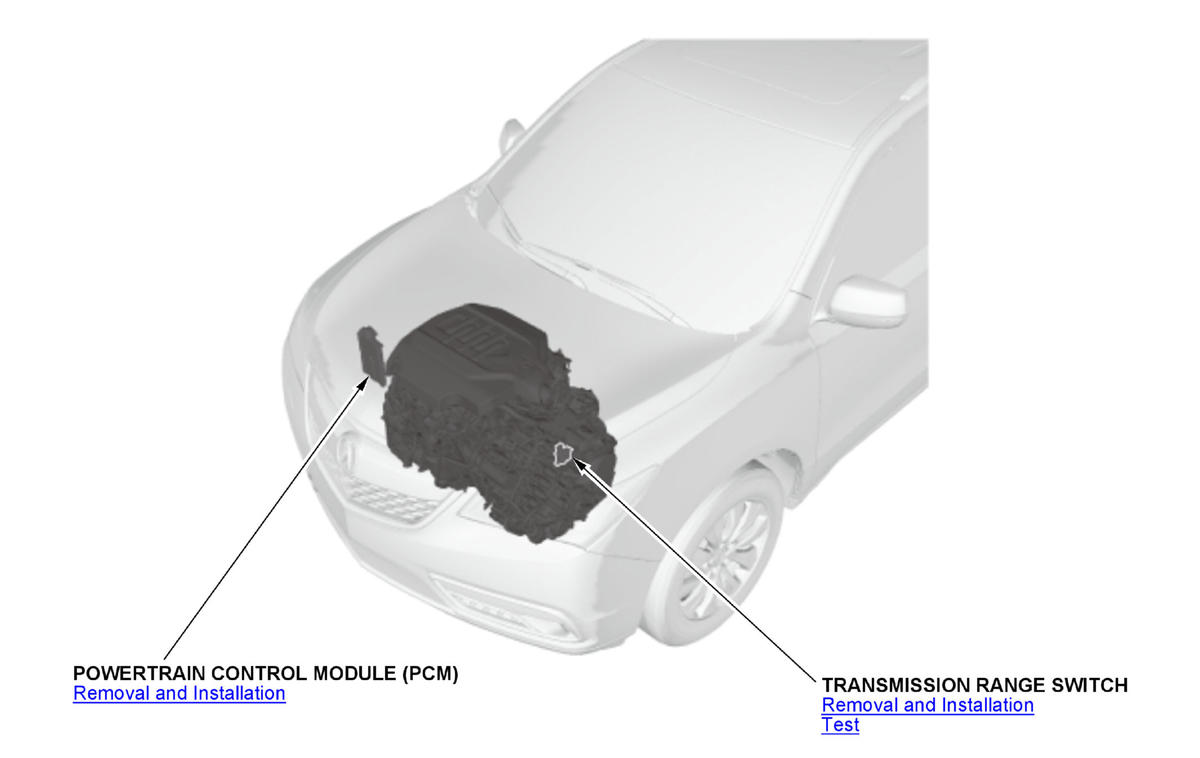

GHH326481

Courtesy of HONDA, U.S.A., INC.

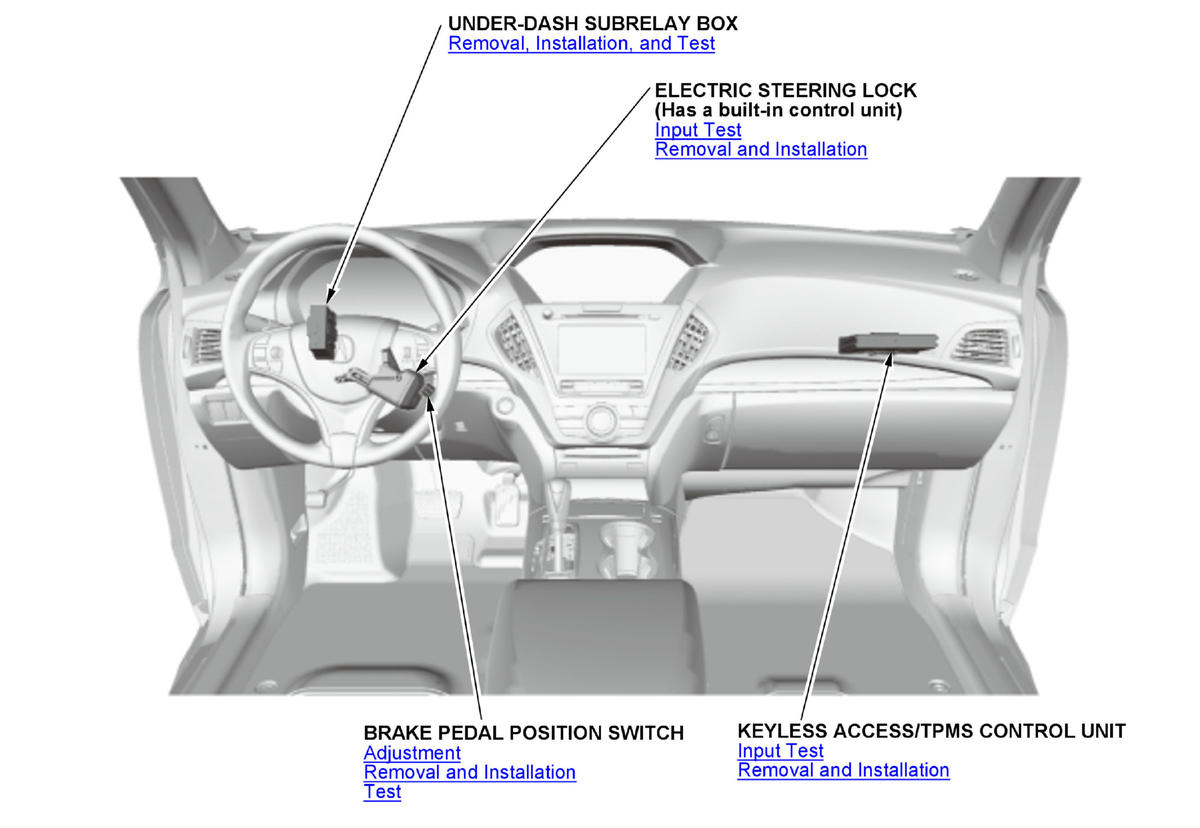

GHH326482

Courtesy of HONDA, U.S.A., INC.

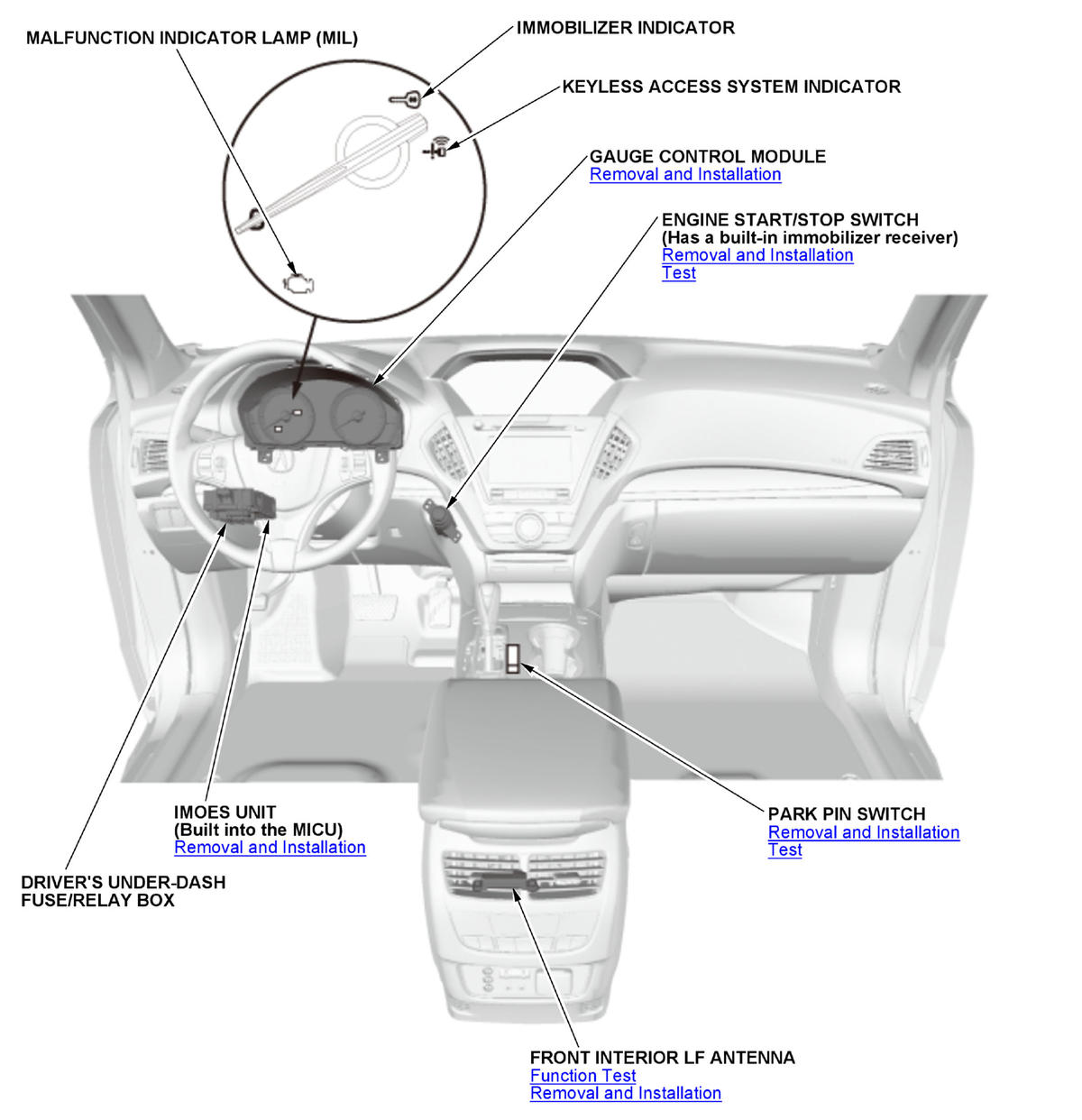

GHH326483

Courtesy of HONDA, U.S.A., INC.

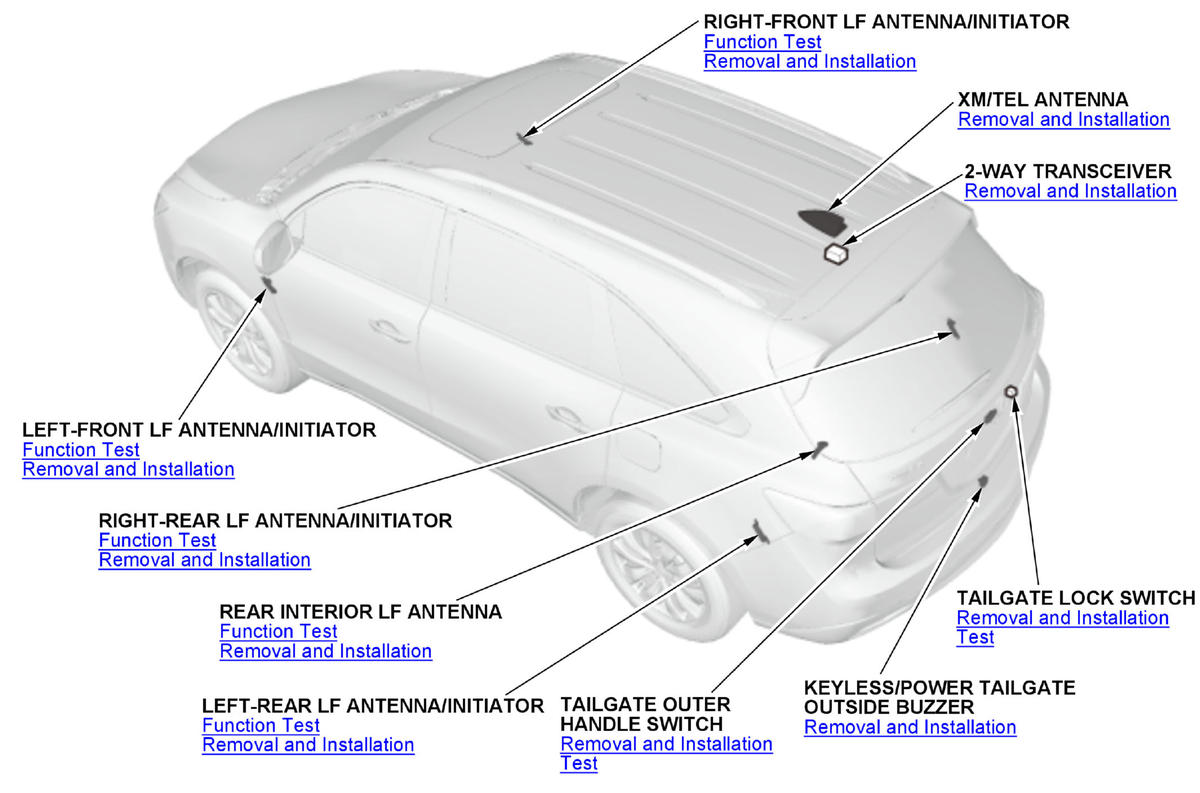

GHH326484

Courtesy of HONDA, U.S.A., INC.

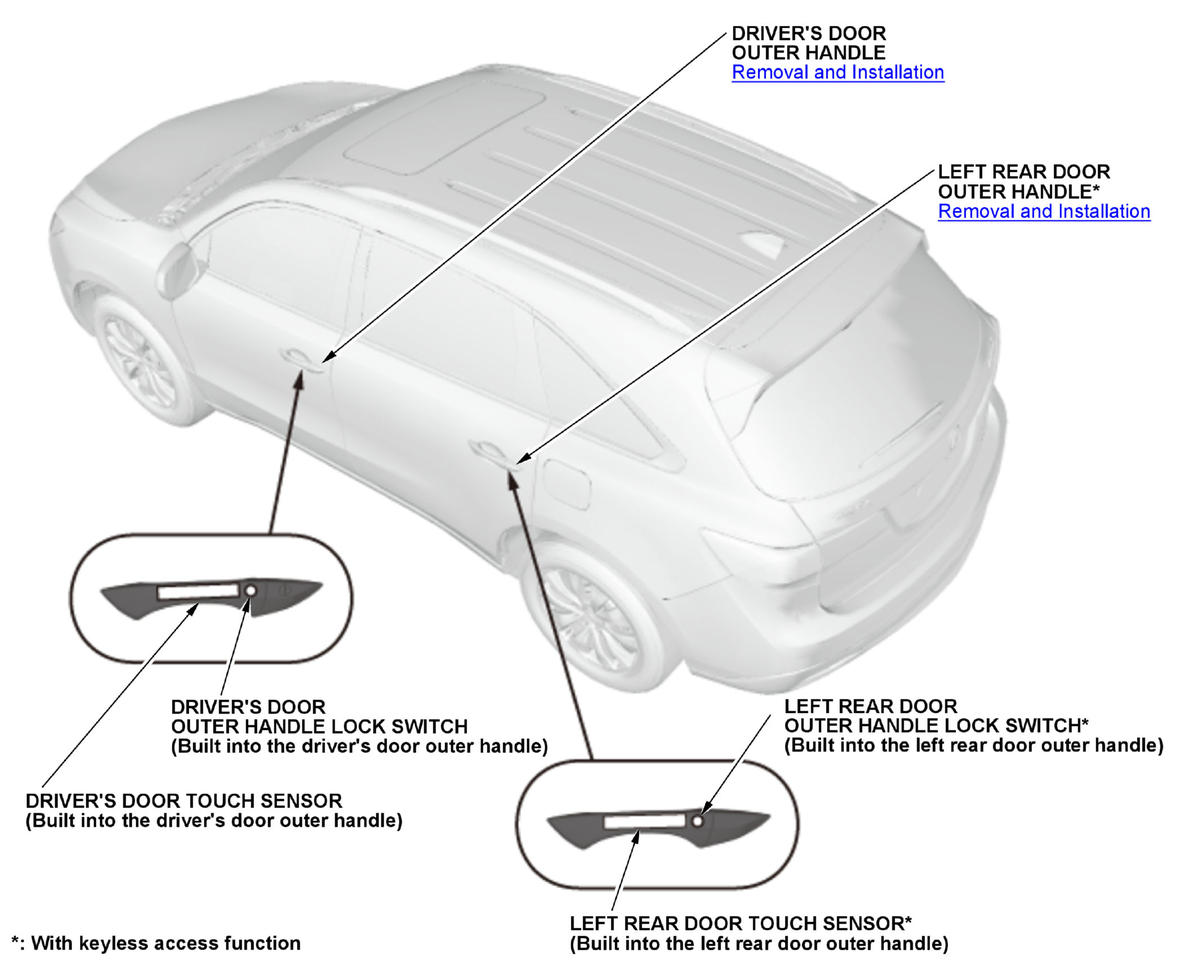

GHH326485

Courtesy of HONDA, U.S.A., INC.

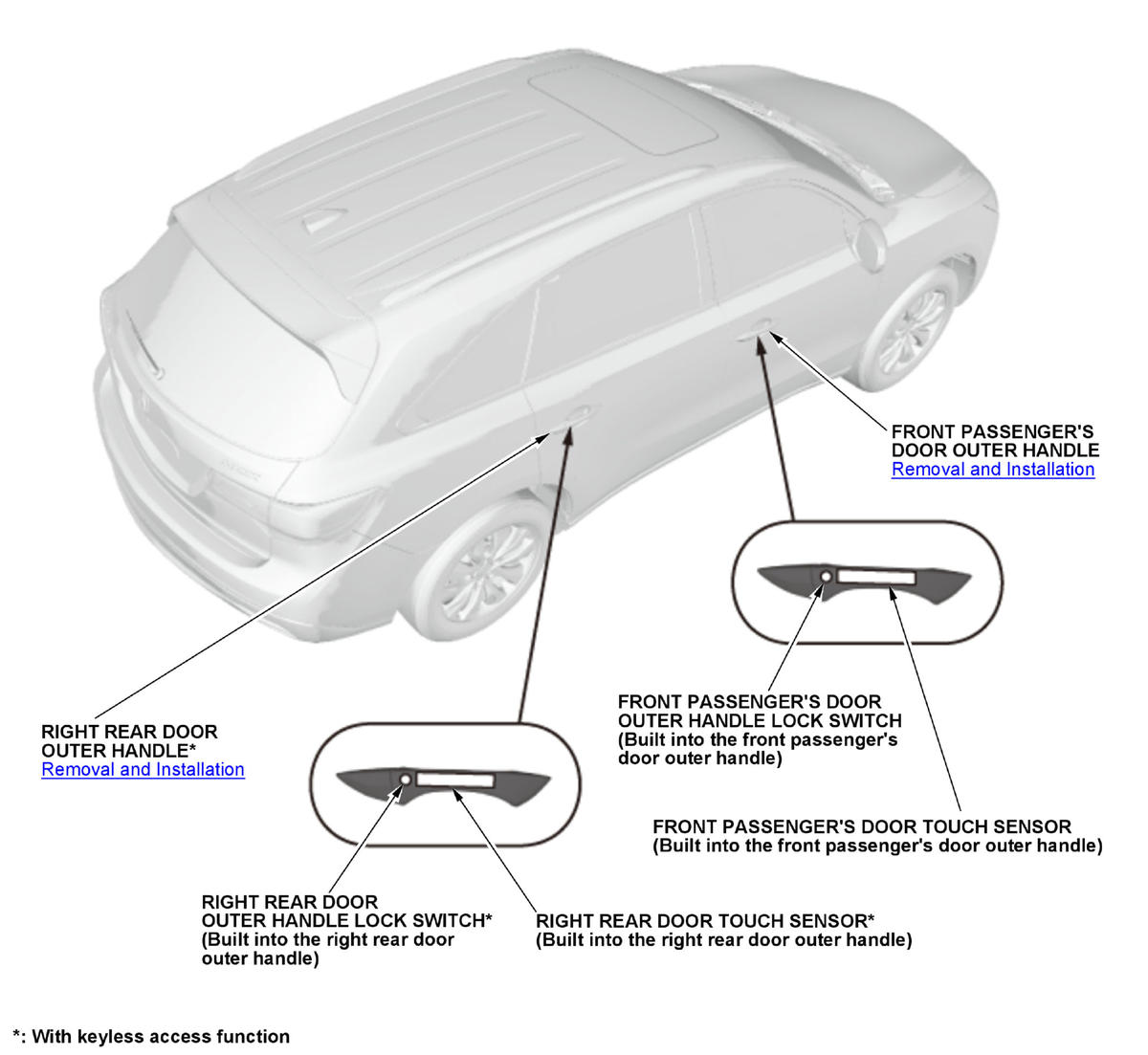

GHH326486

Courtesy of HONDA, U.S.A., INC.
