EVAP Control System Component Location Index

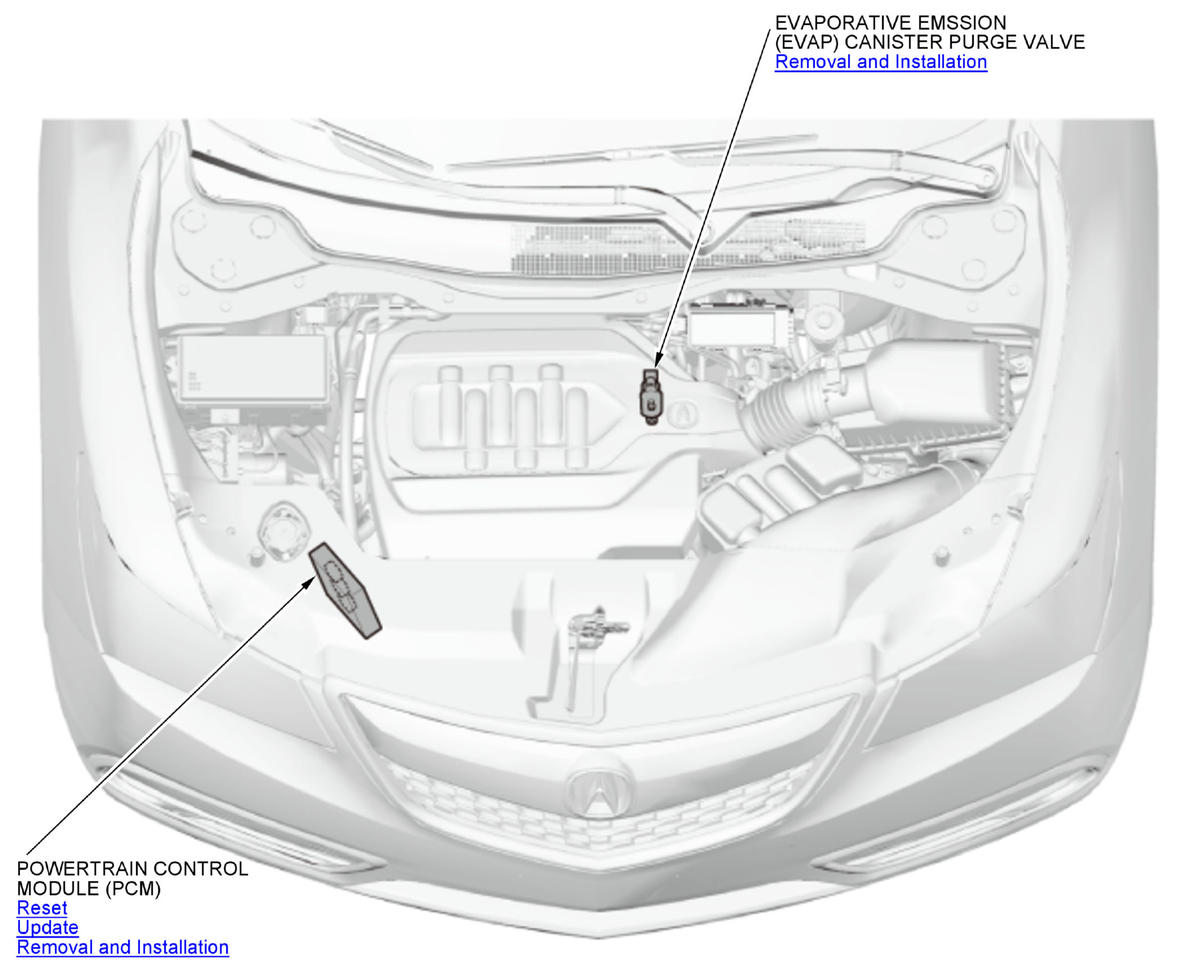

GHH319977

Courtesy of HONDA, U.S.A., INC.

USA and Canada models

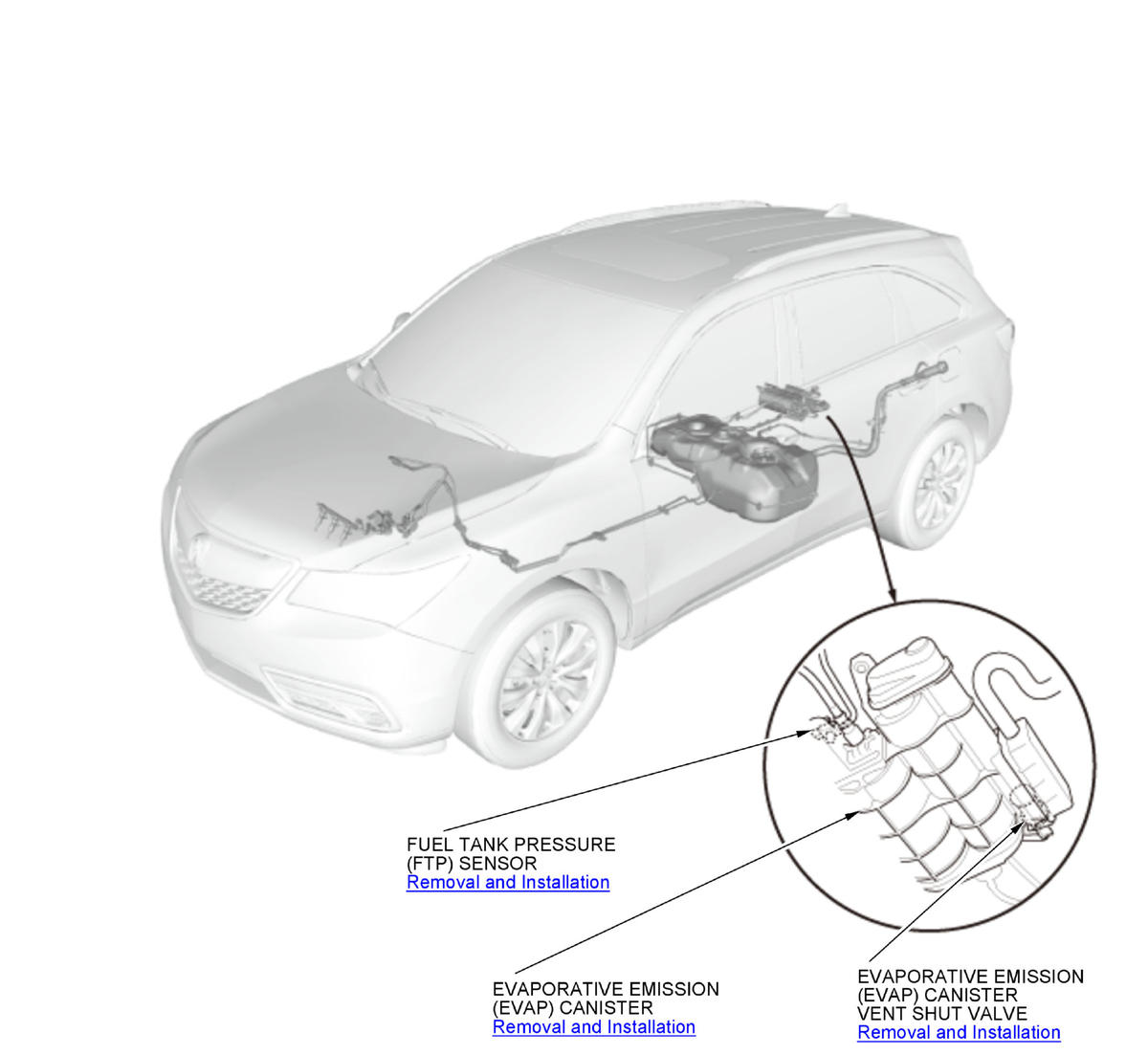

GHH319978

Courtesy of HONDA, U.S.A., INC.

Mexico models

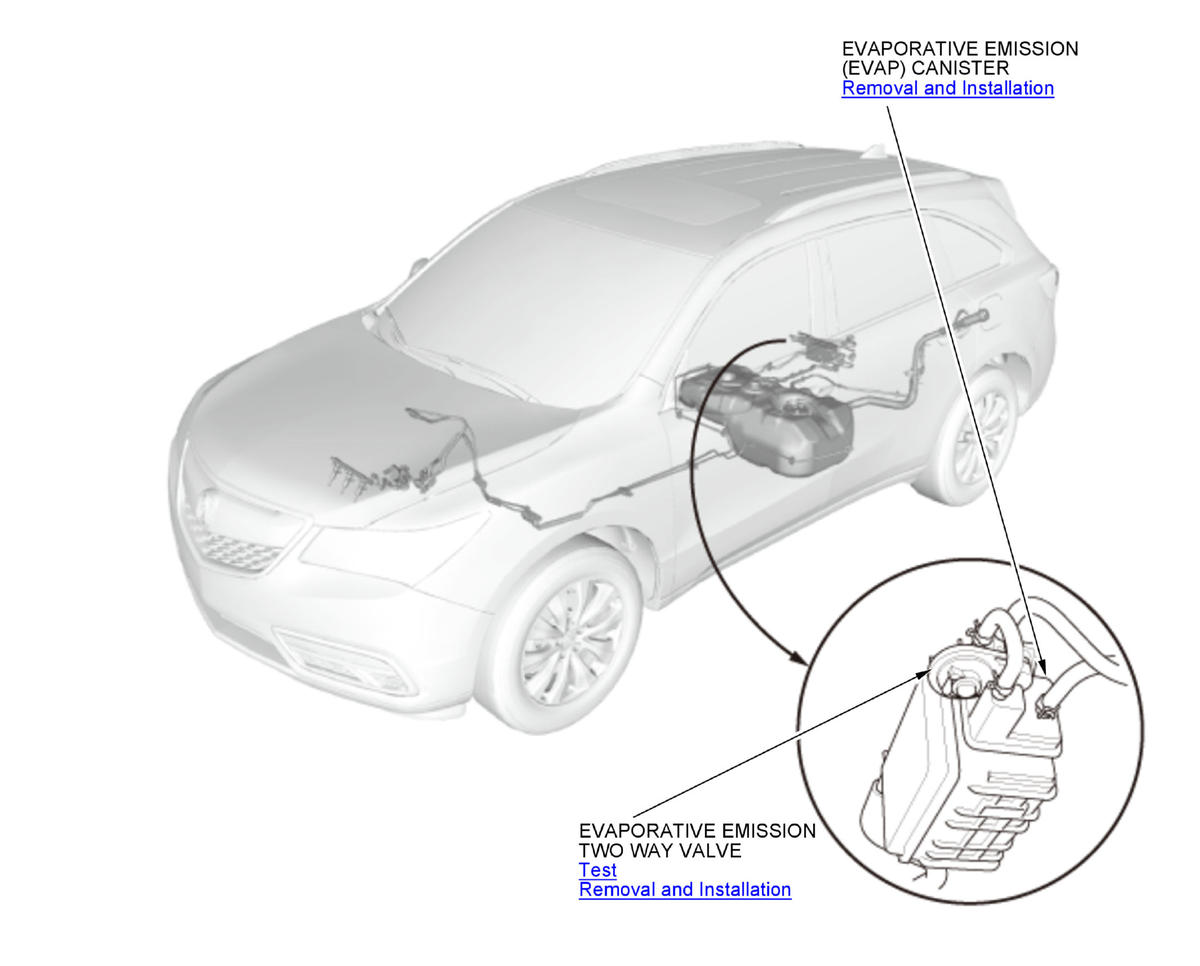

GHH319979

Courtesy of HONDA, U.S.A., INC.
