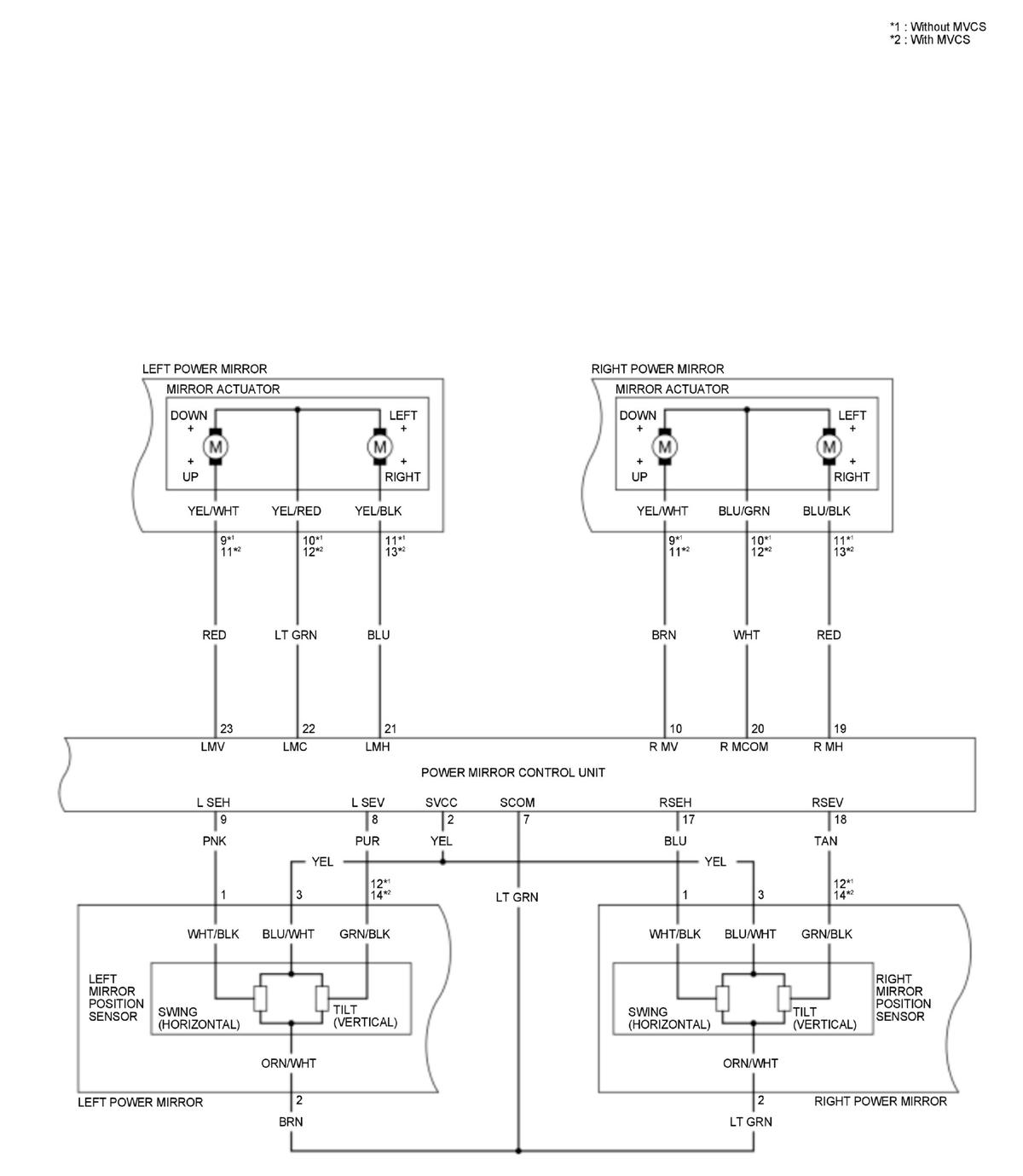

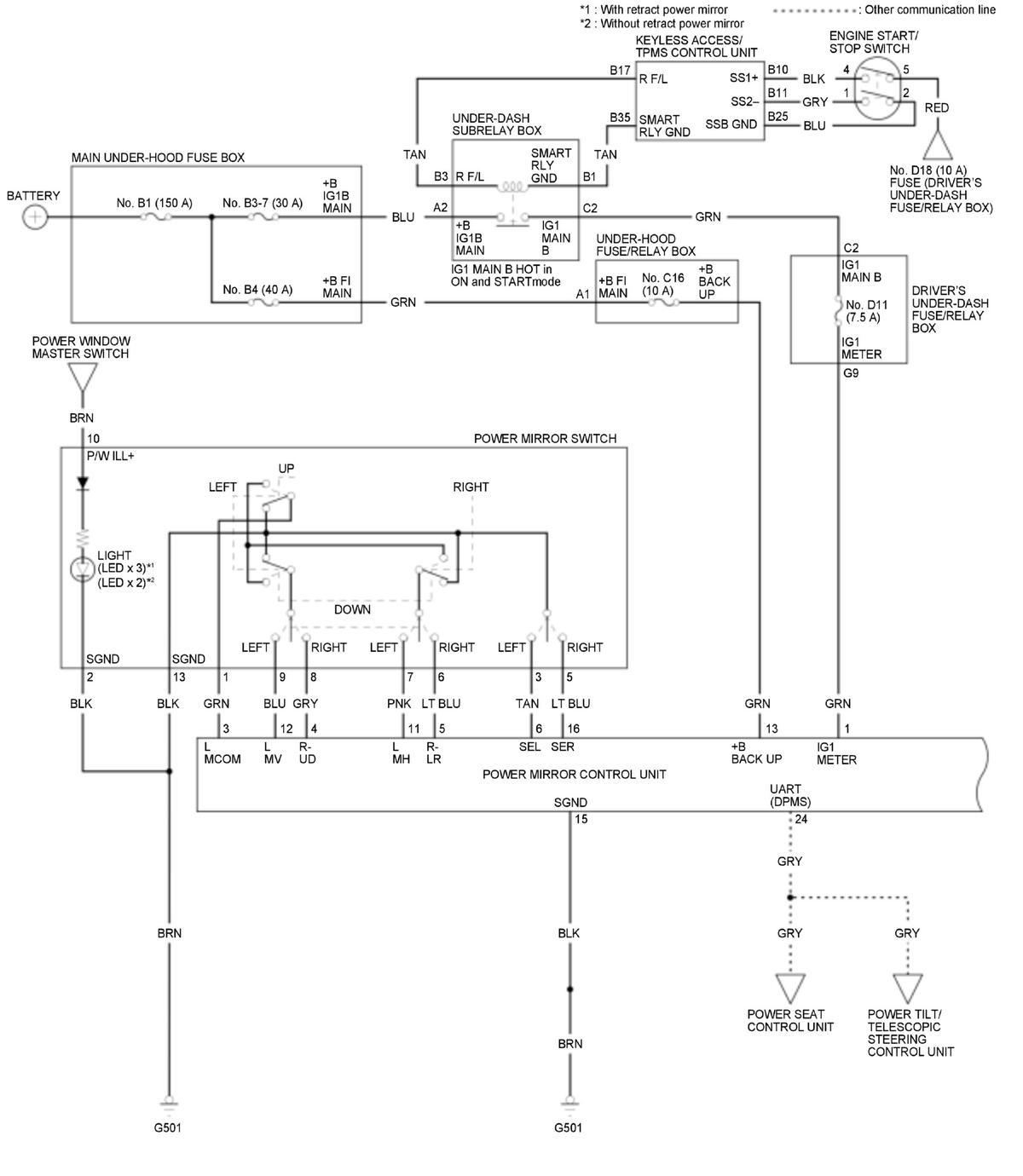

Driving Position Memory System (DPMS) Circuit Diagram - Power Mirror (2017 2018 2019 2020)
Driving Position Memory System (DPMS) Circuit Diagram - Power Mirror (2017 2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
