Keyless/Power Door Locks/Security System Circuit Diagram (2016)

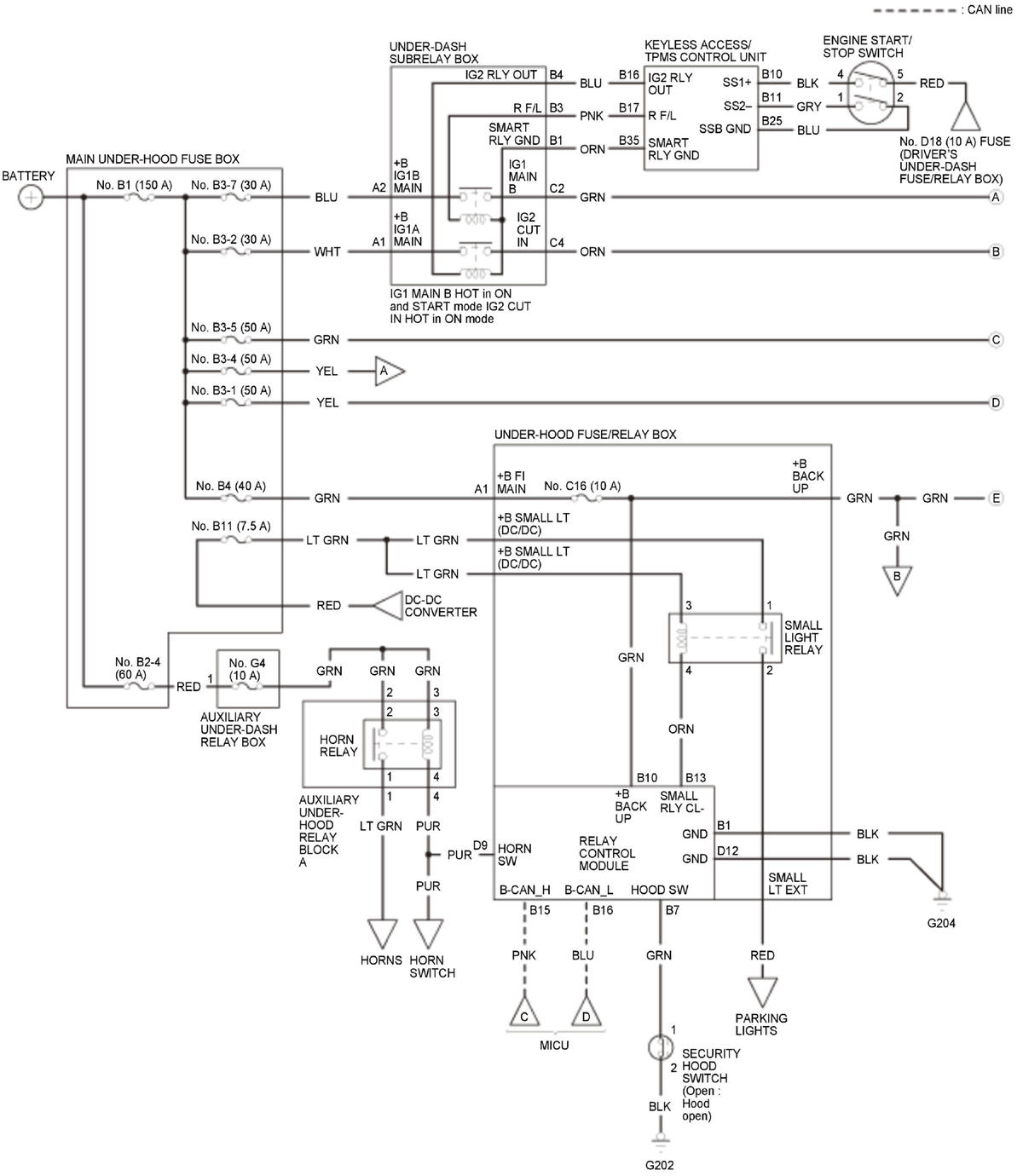

GHH326653

Courtesy of HONDA, U.S.A., INC.

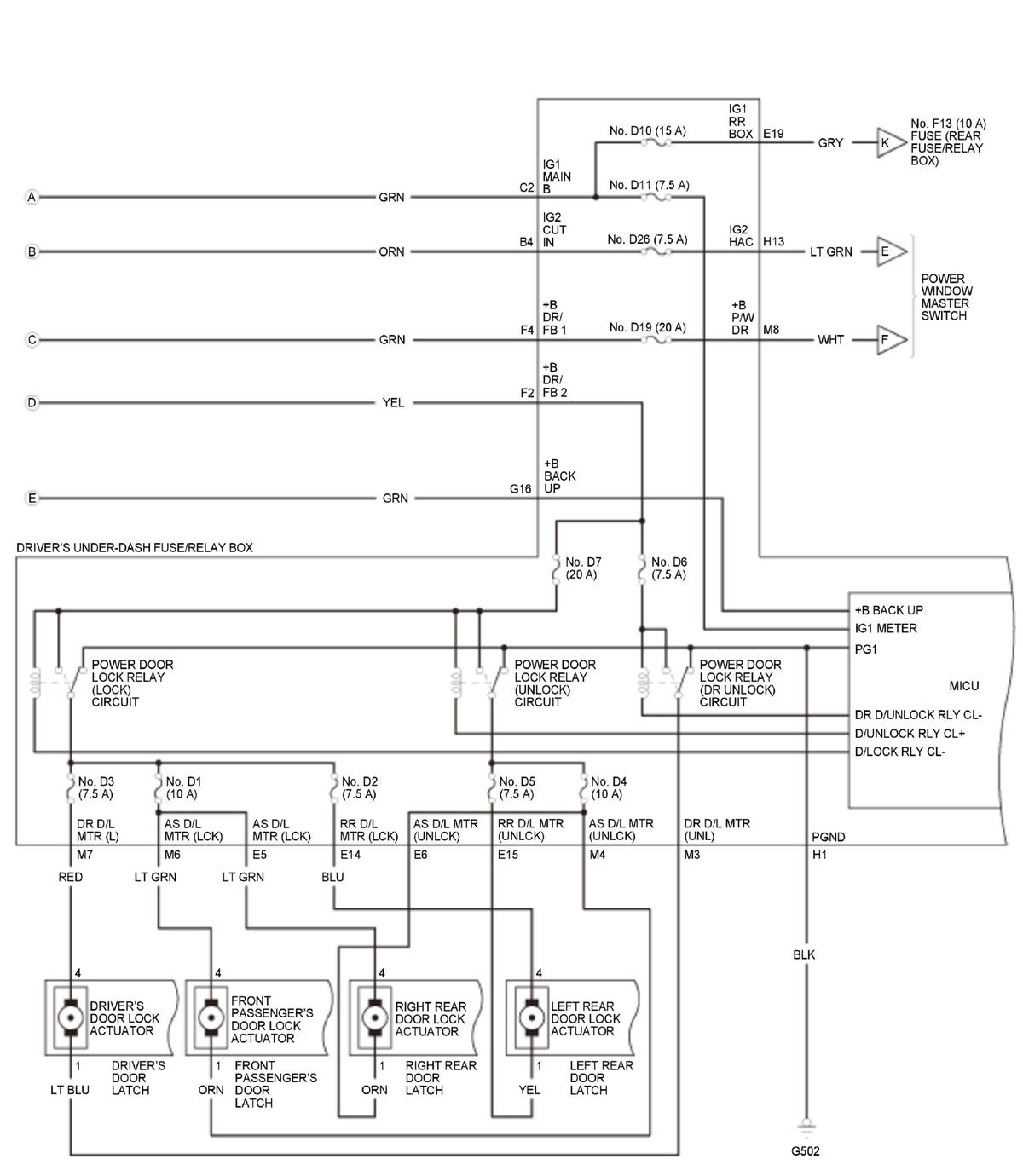

GHH326654

Courtesy of HONDA, U.S.A., INC.

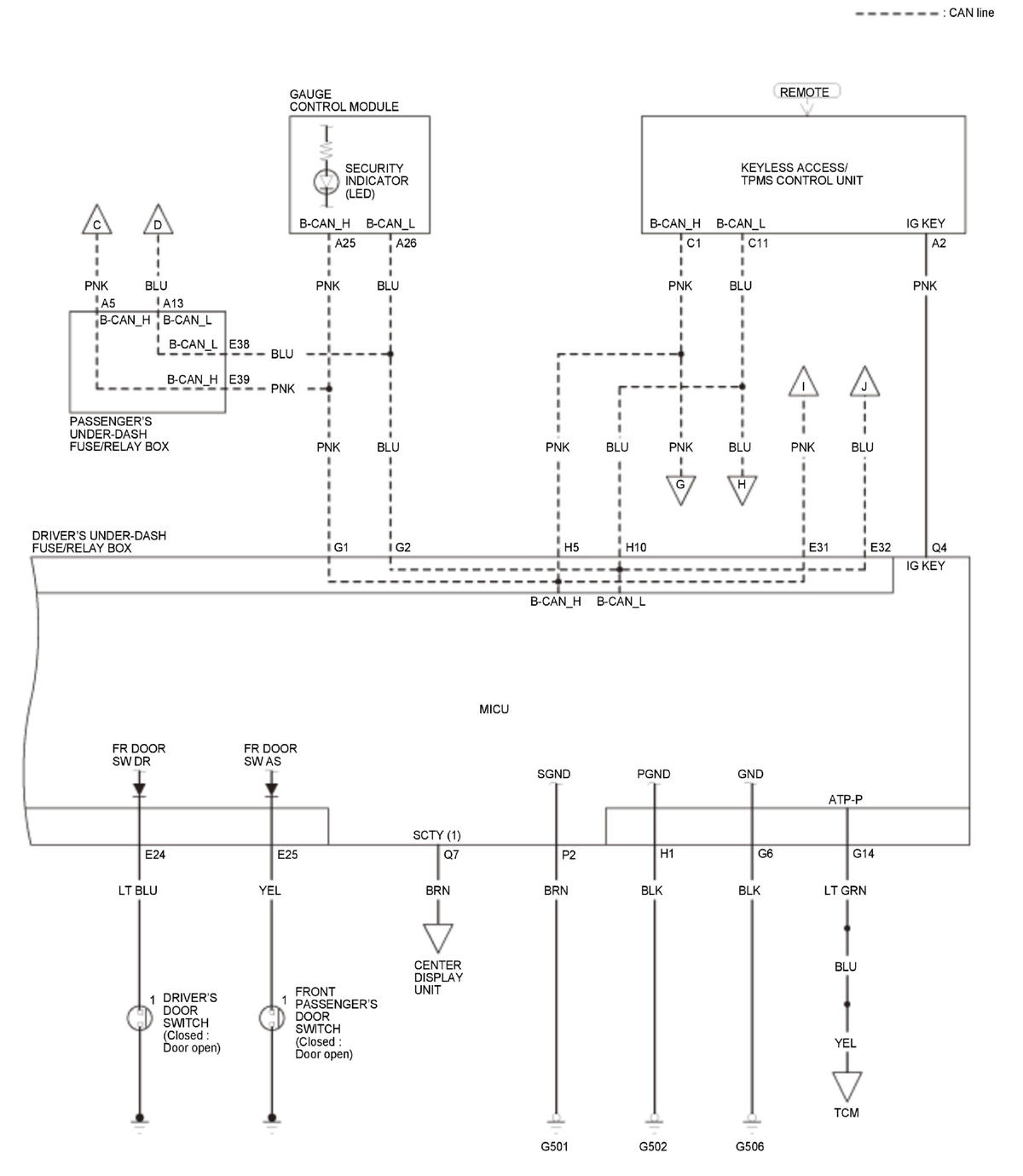

GHH326655

Courtesy of HONDA, U.S.A., INC.

GHH326656

Courtesy of HONDA, U.S.A., INC.

GHH326657

Courtesy of HONDA, U.S.A., INC.

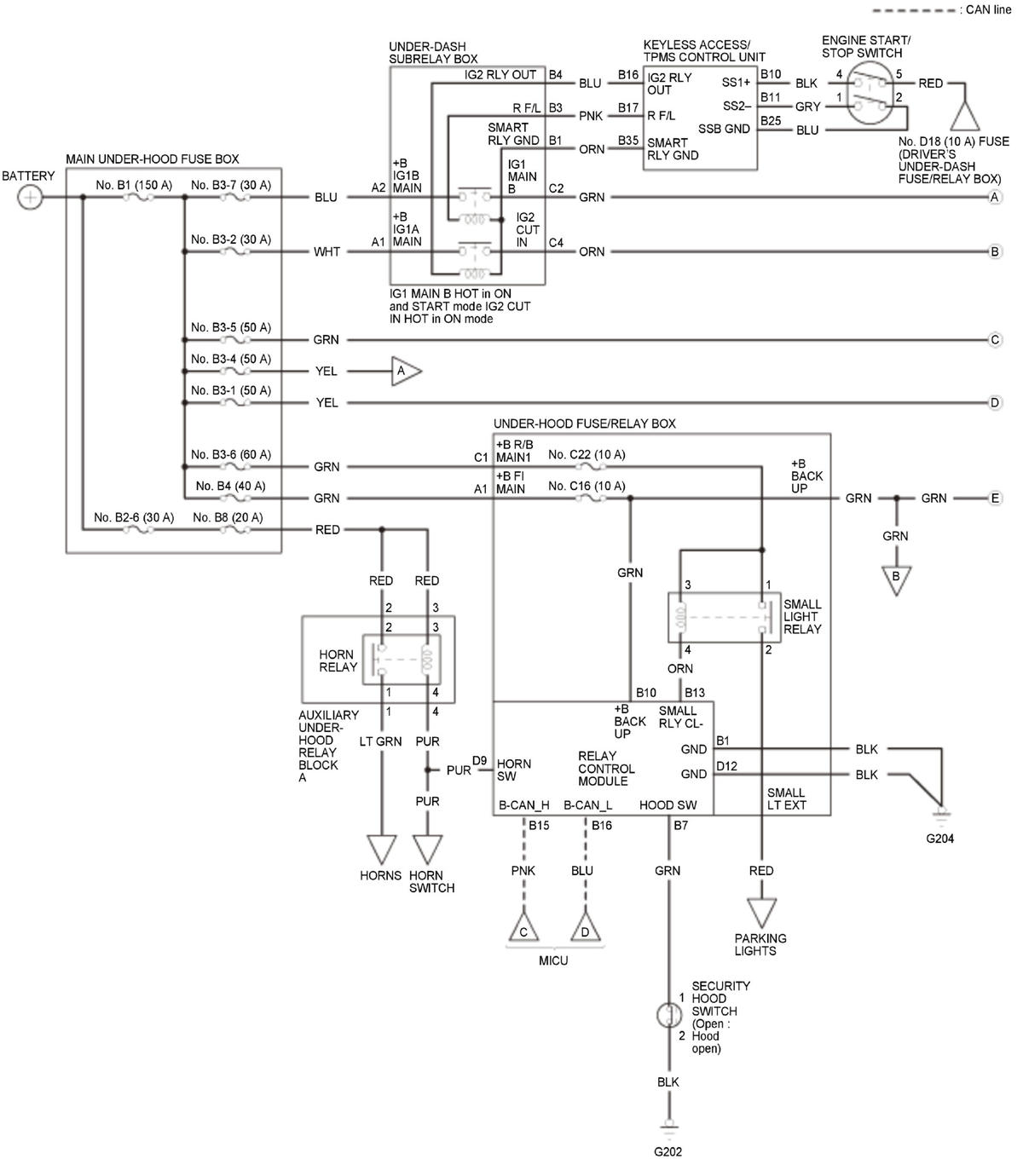

GHH326658

Courtesy of HONDA, U.S.A., INC.

GHH326659

Courtesy of HONDA, U.S.A., INC.

GHH326660

Courtesy of HONDA, U.S.A., INC.

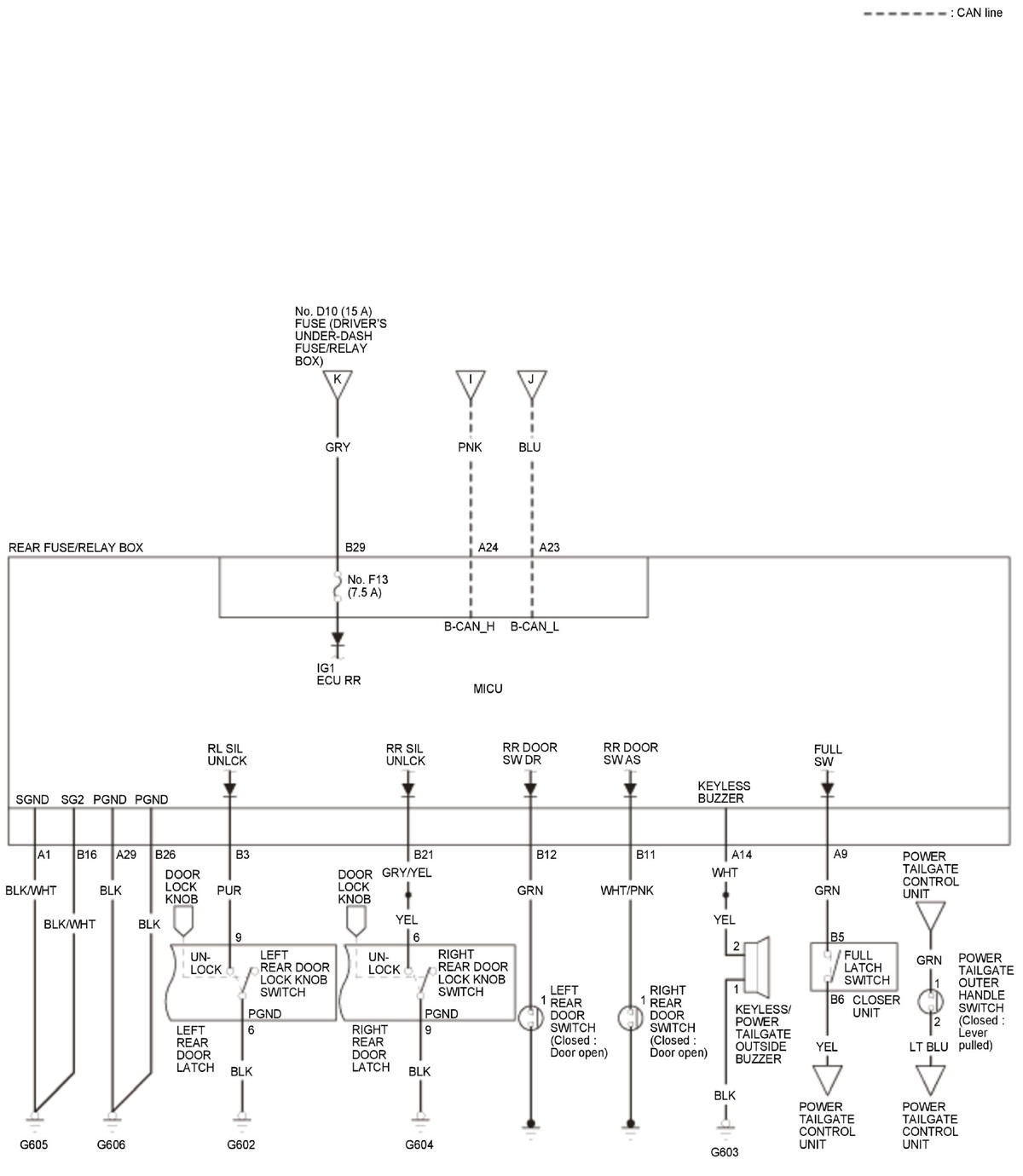

GHH326661

Courtesy of HONDA, U.S.A., INC.

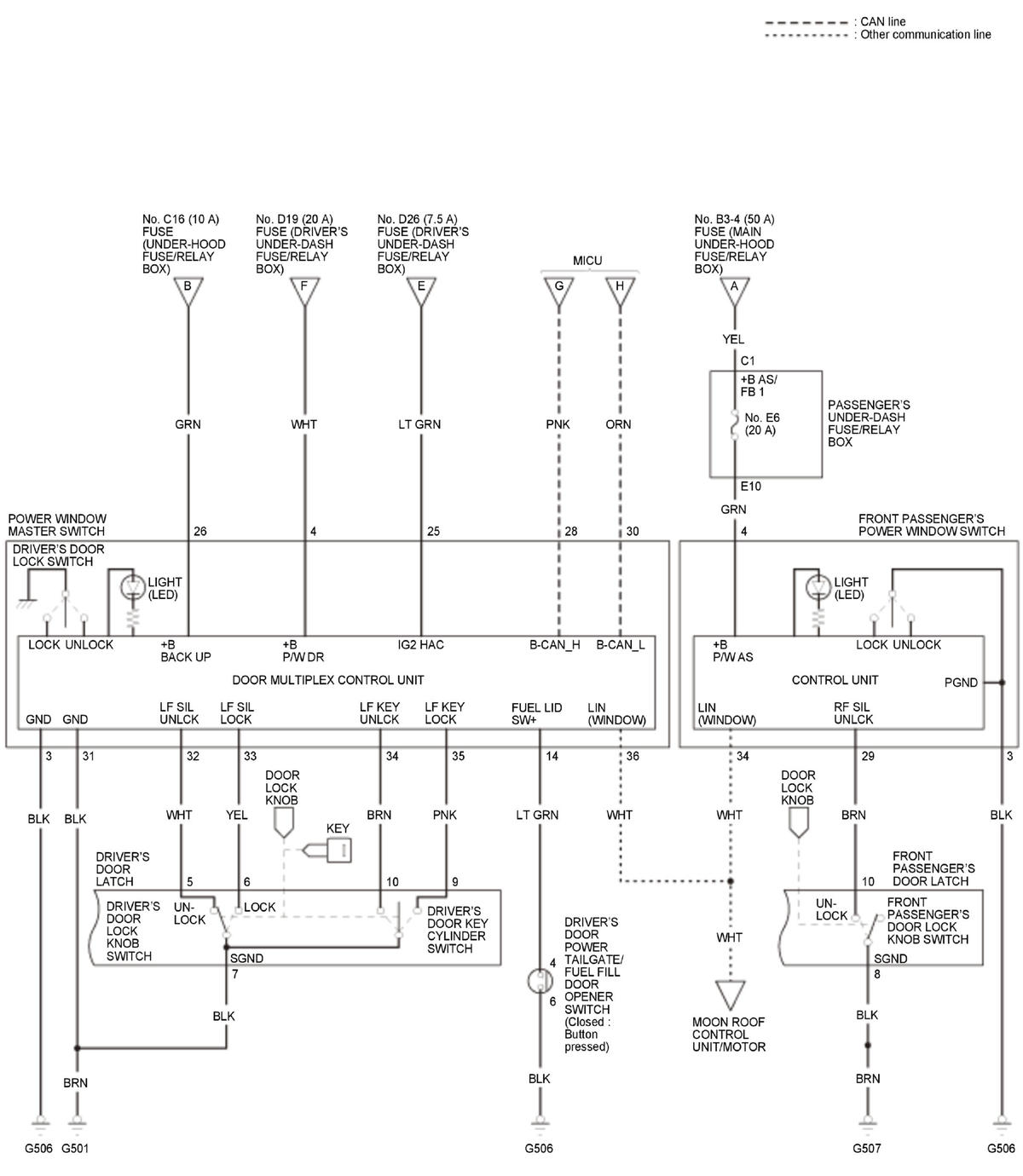

GHH326662

Courtesy of HONDA, U.S.A., INC.
