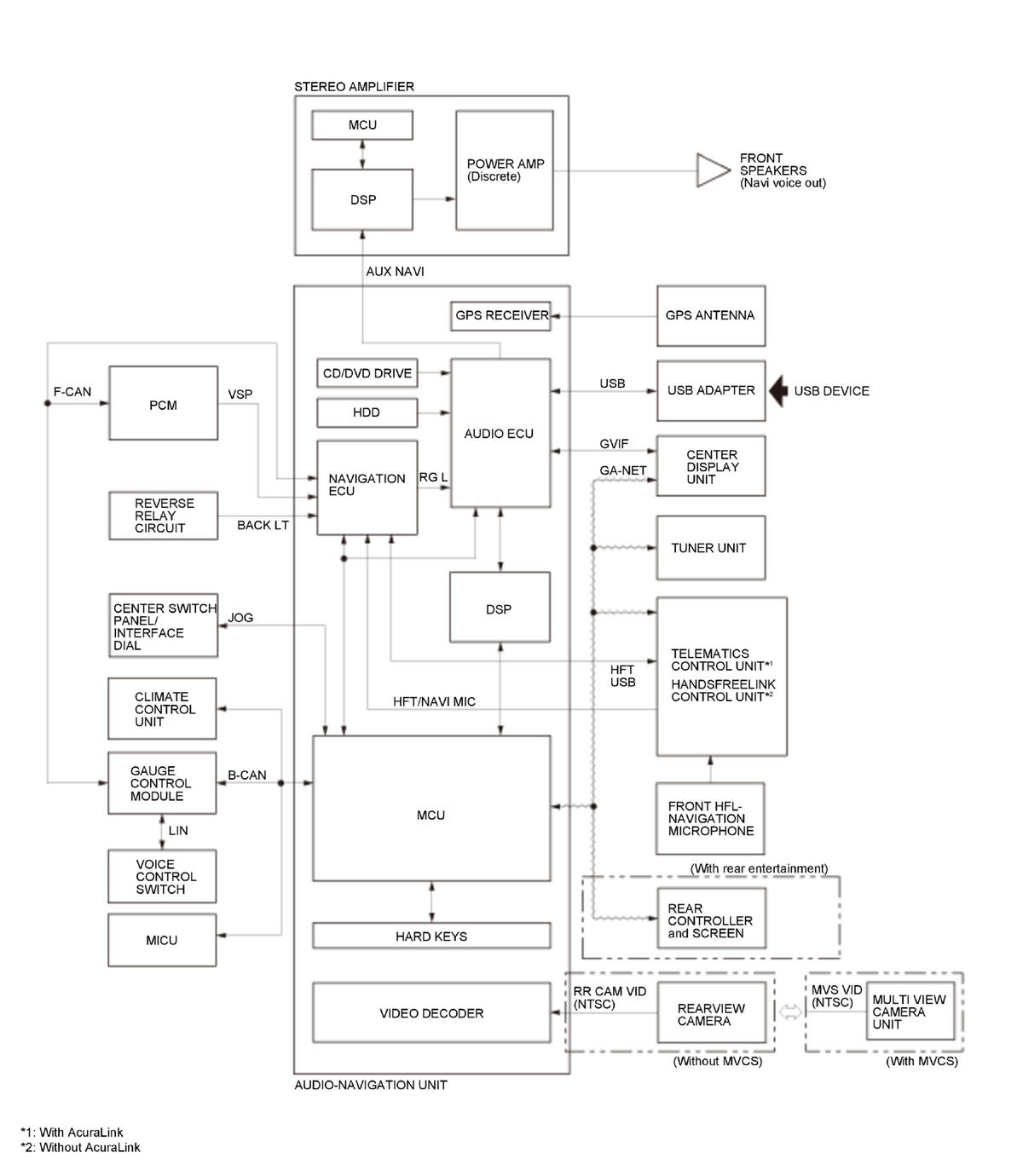

Navigation System Description - System Diagram (2014 2015 2016 2017)

GHH324569Courtesy of HONDA, U.S.A., INC.
