Audio System Component Location Index (With Navigation (2014 2015 2016))

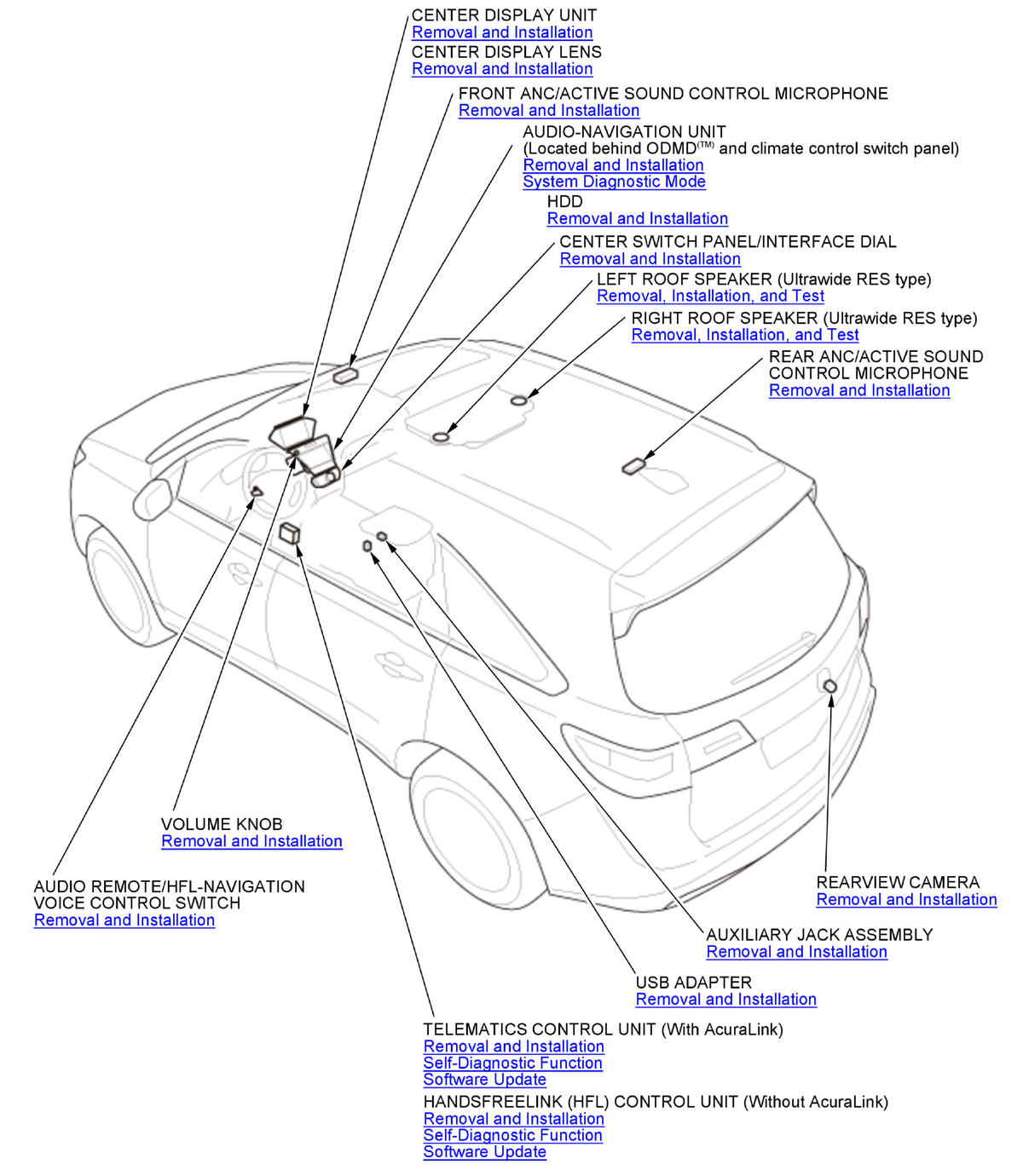

GHH314077

Courtesy of HONDA, U.S.A., INC.

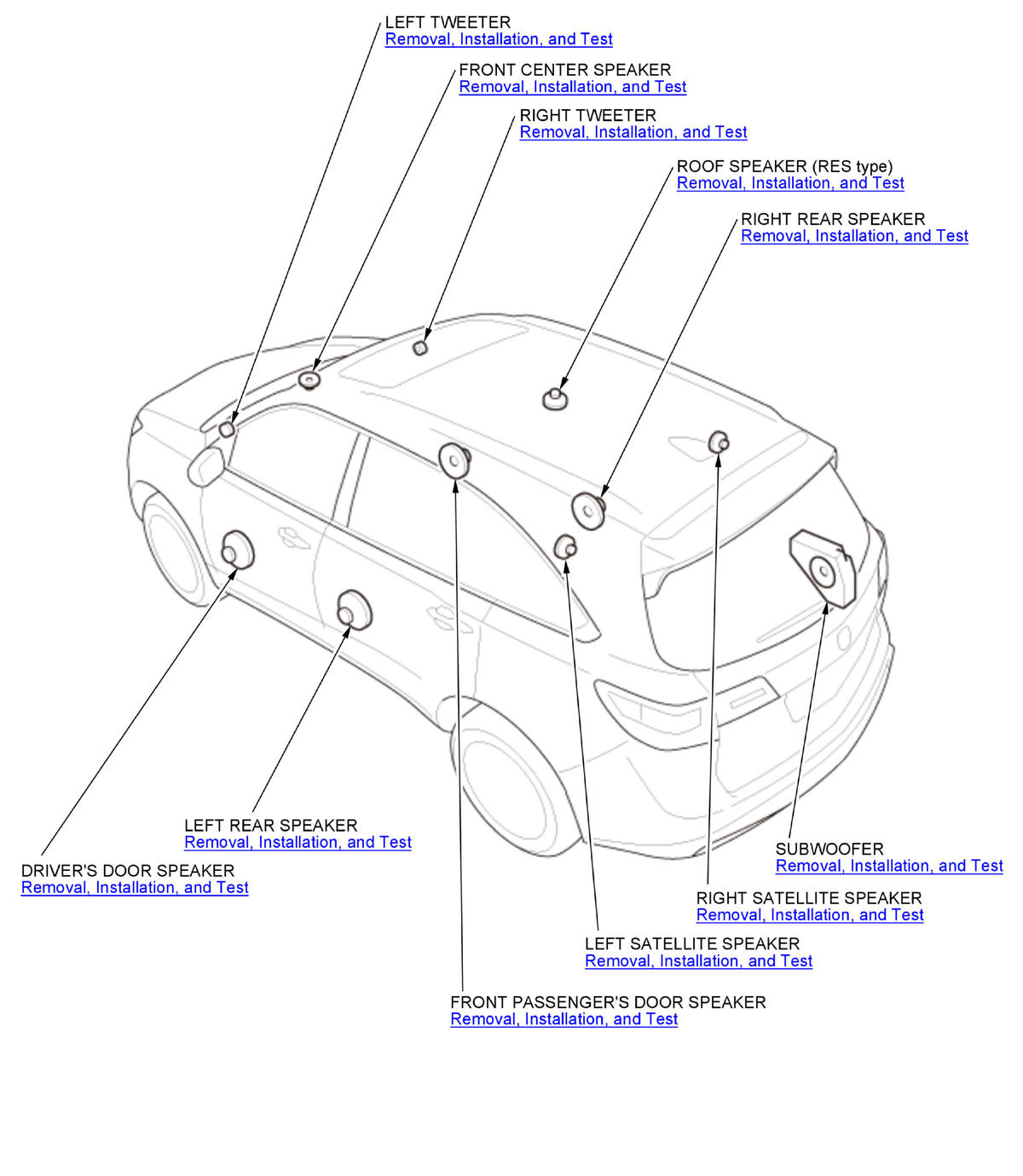

GHH314078

Courtesy of HONDA, U.S.A., INC.

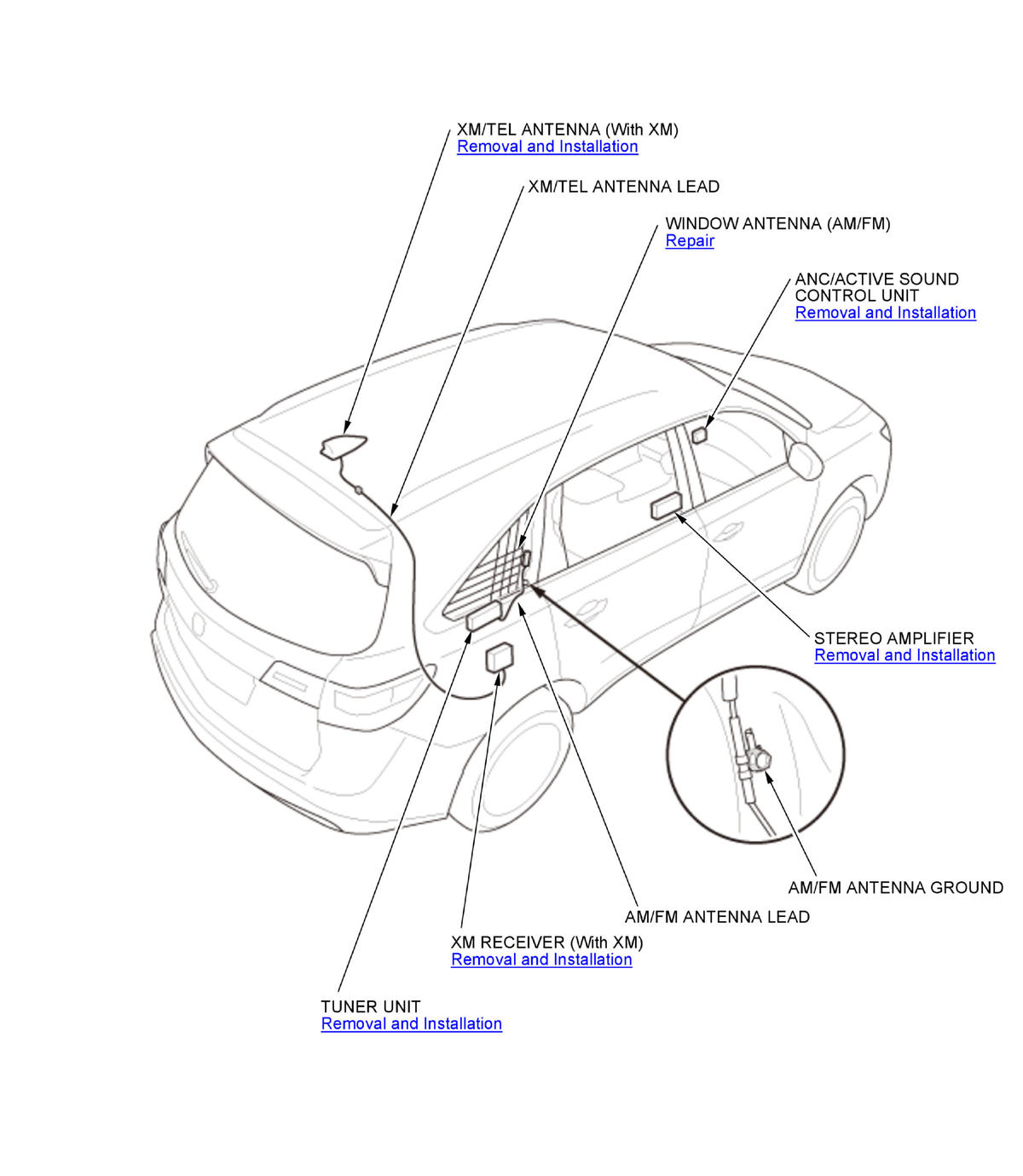

GHH314079

Courtesy of HONDA, U.S.A., INC.
