Audio System Component Location Index (2017)

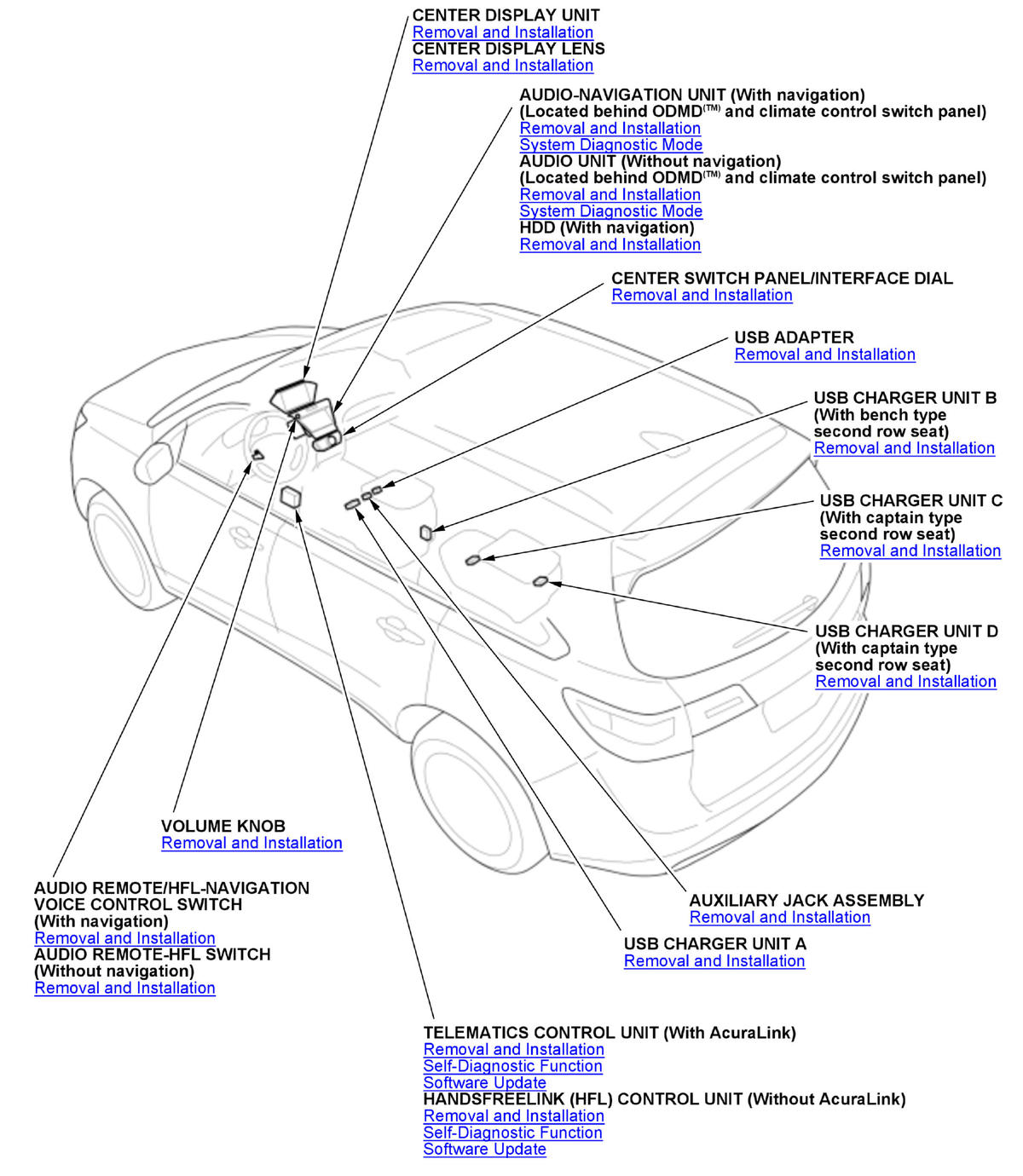

GHH314073

Courtesy of HONDA, U.S.A., INC.

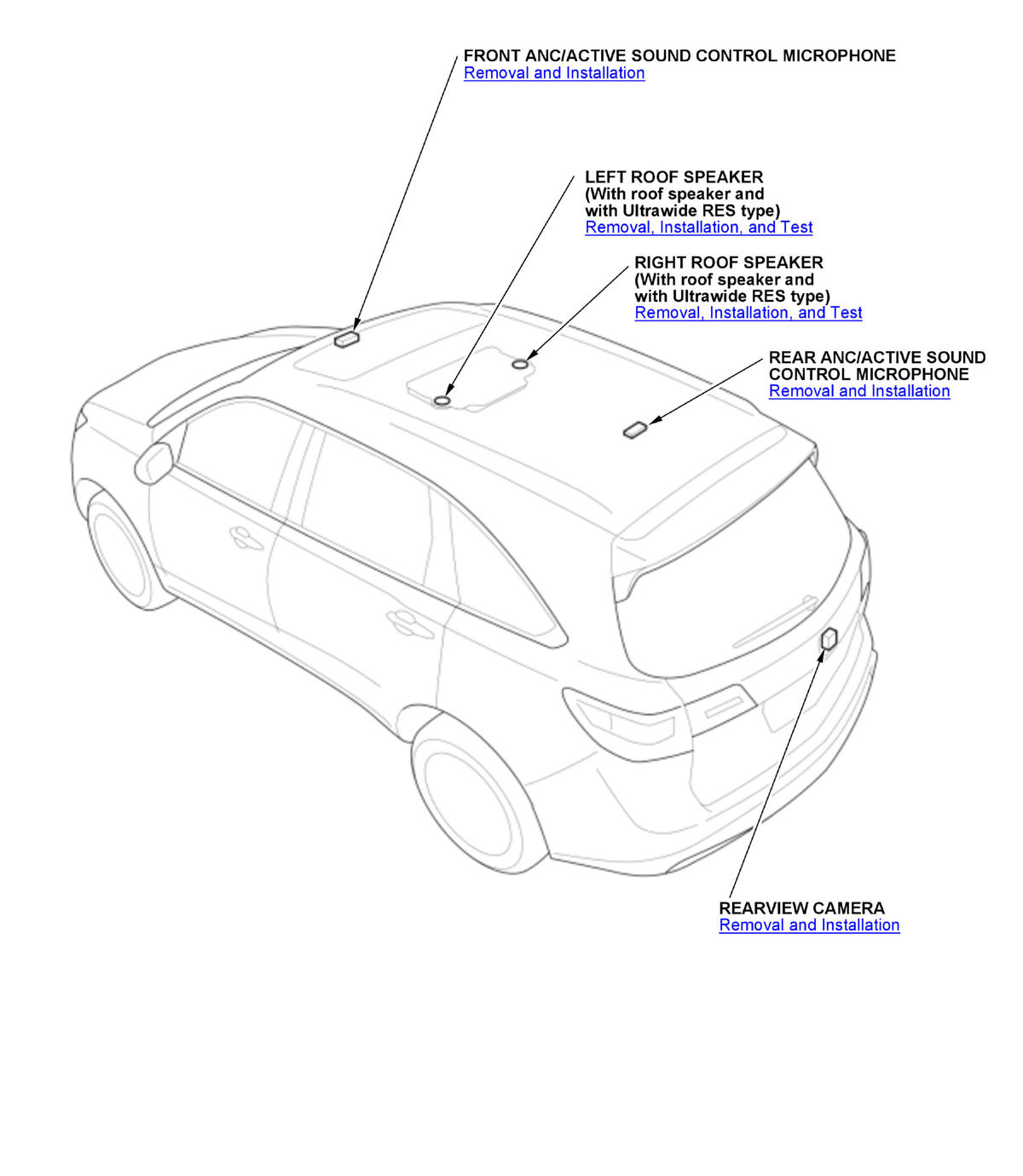

GHH314074

Courtesy of HONDA, U.S.A., INC.

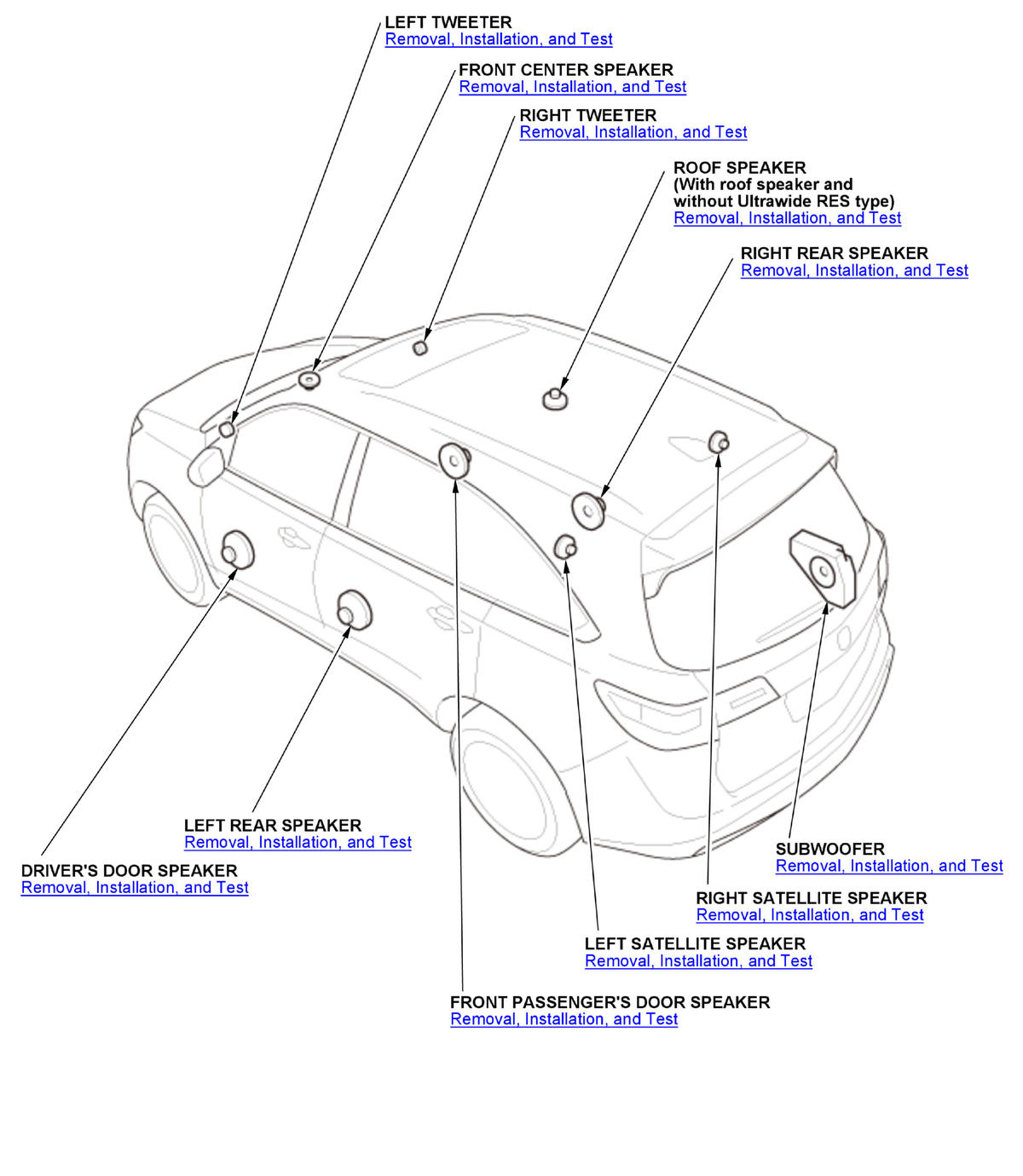

GHH314075

Courtesy of HONDA, U.S.A., INC.

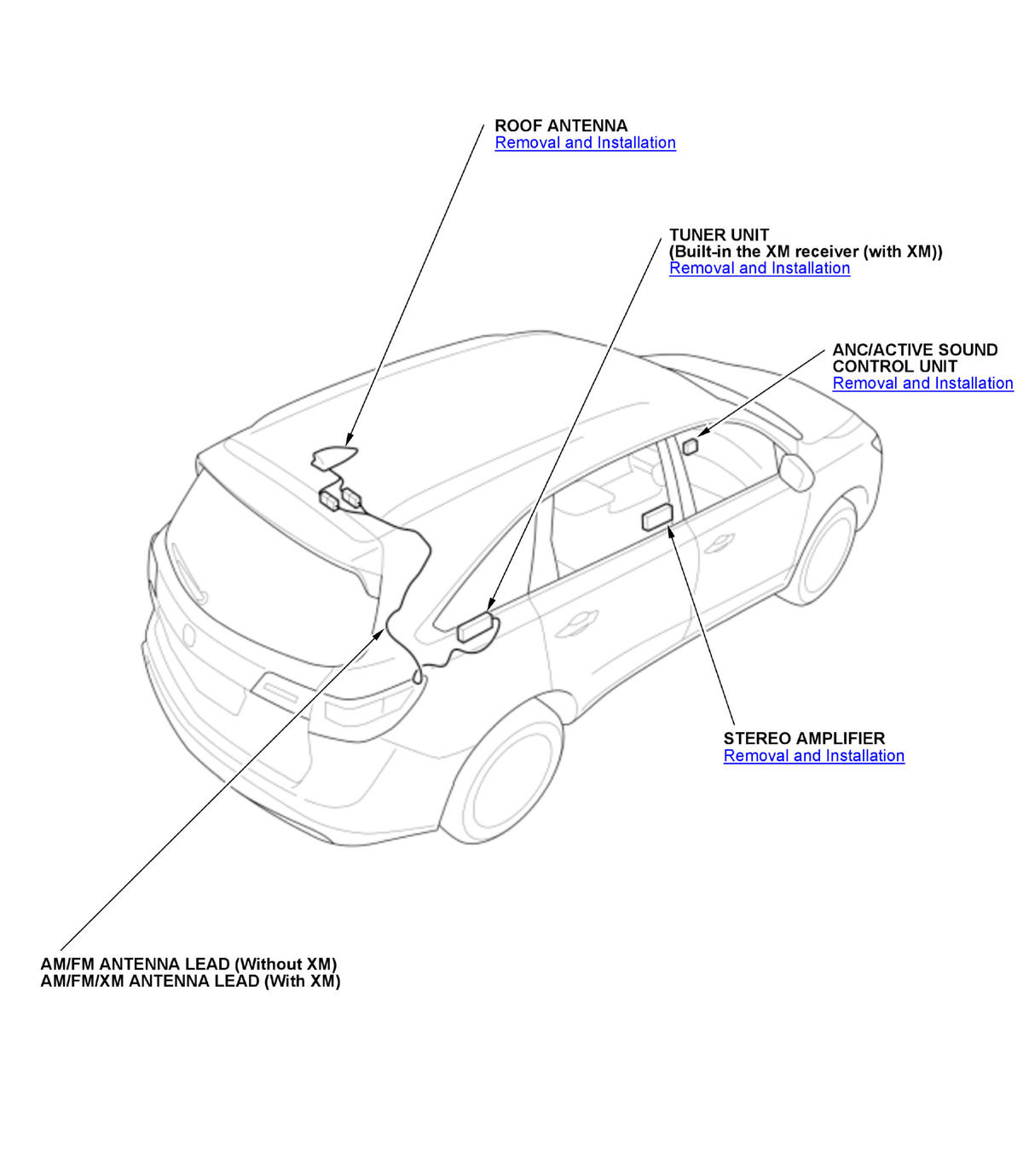

GHH314076

Courtesy of HONDA, U.S.A., INC.
