Interface Dial Connector for Inputs and Outputs (With Navigation) (2017 2018 2019 2020)

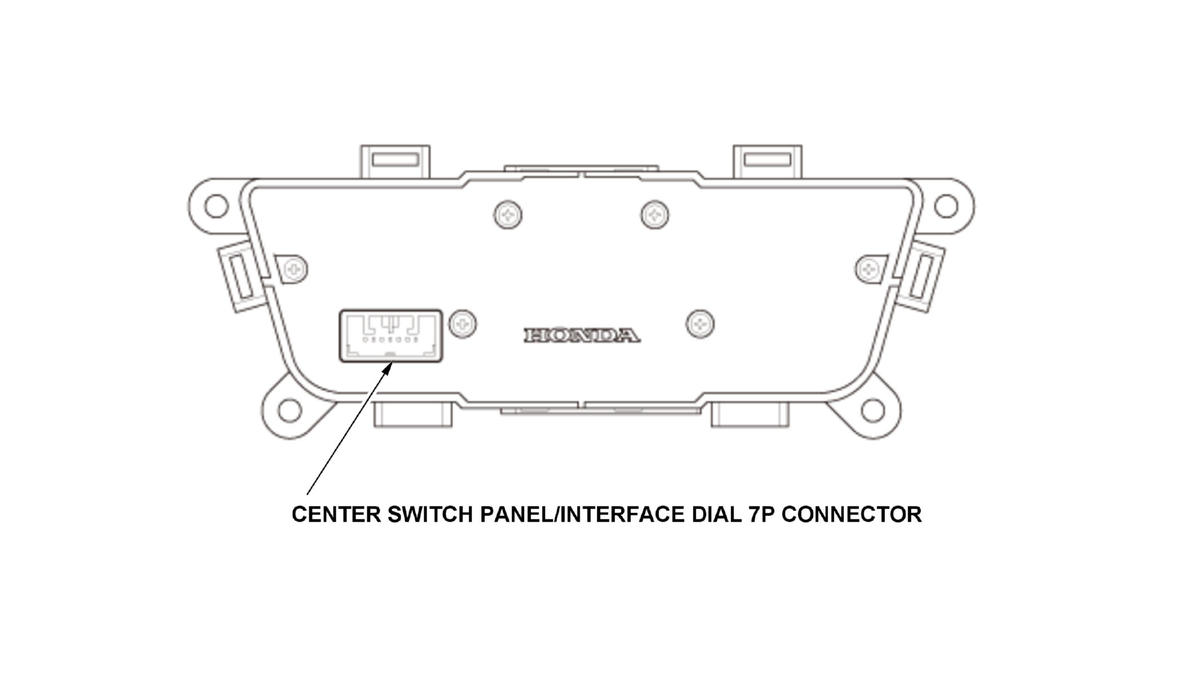

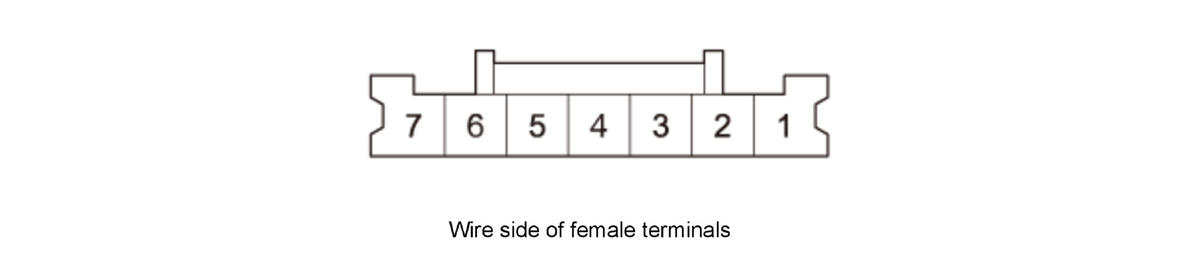

CENTER SWITCH PANEL/INTERFACE DIAL 7P CONNECTOR (female terminals)
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | PUR | ACC (DC/DC)* 1B ACC* 2 | Power source for accessories |
| 2 | GRY | ILL+ | Detects parking light on signal |
| 3* 3 | GRN | MVC SW | Mode select signal to multi-view camera unit |
| 4 | BLU | JOG | Outputs center switch panel/interface dial operation signal |
| 5 | GRY | JOG SH | Shield for terminal No. 4 |
| 6 | BLK | SGND | Ground for center switch panel/interface dial (G504) |
| 7 | RED | ILLUMI-(LED) | Detects illumination control signal |
*1: With auto idle stop system*2: Without auto idle stop system*3: With MVCS
