Audio System Component Location Index (2018 2019 2020)

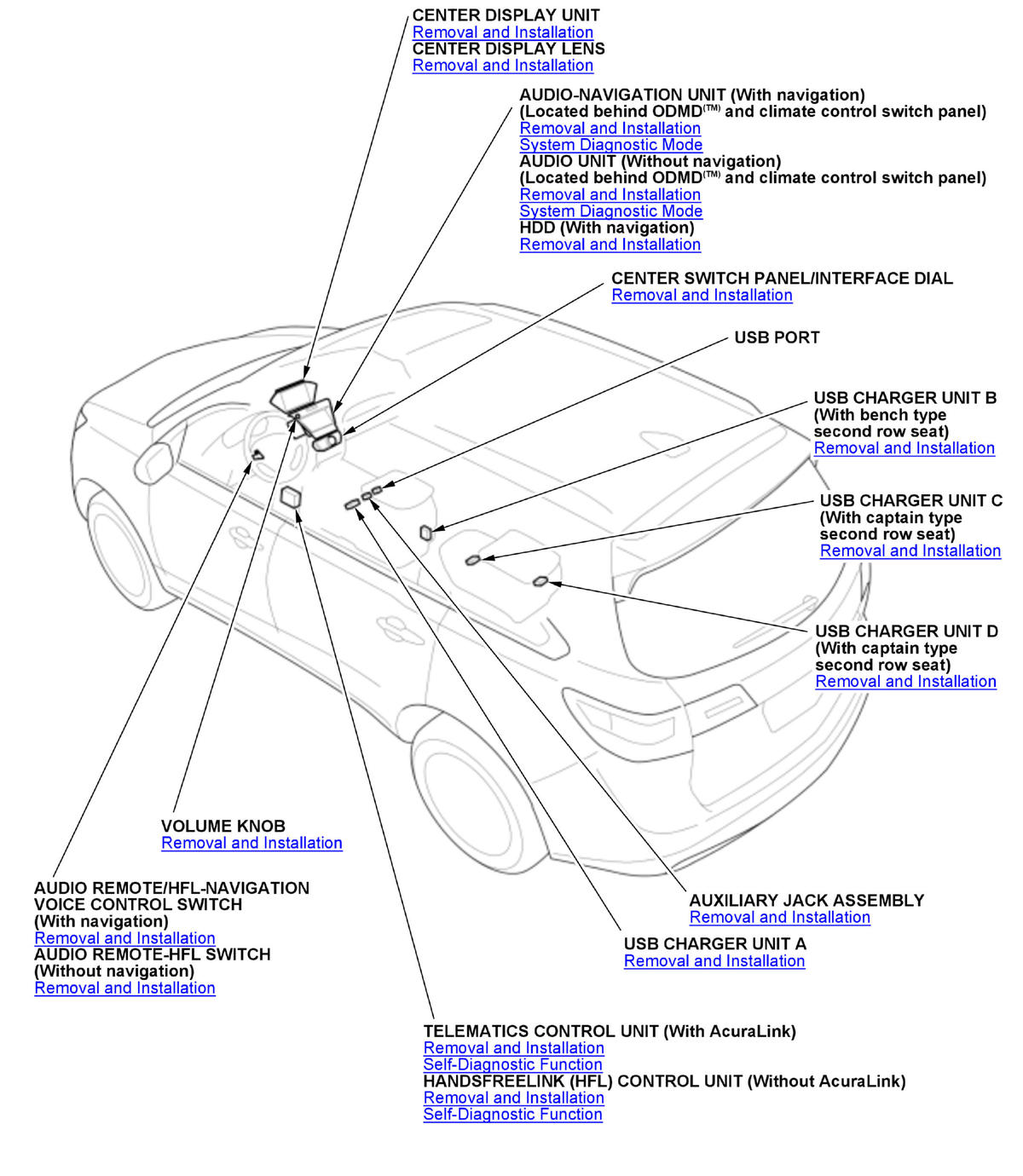

GHH314069

Courtesy of HONDA, U.S.A., INC.

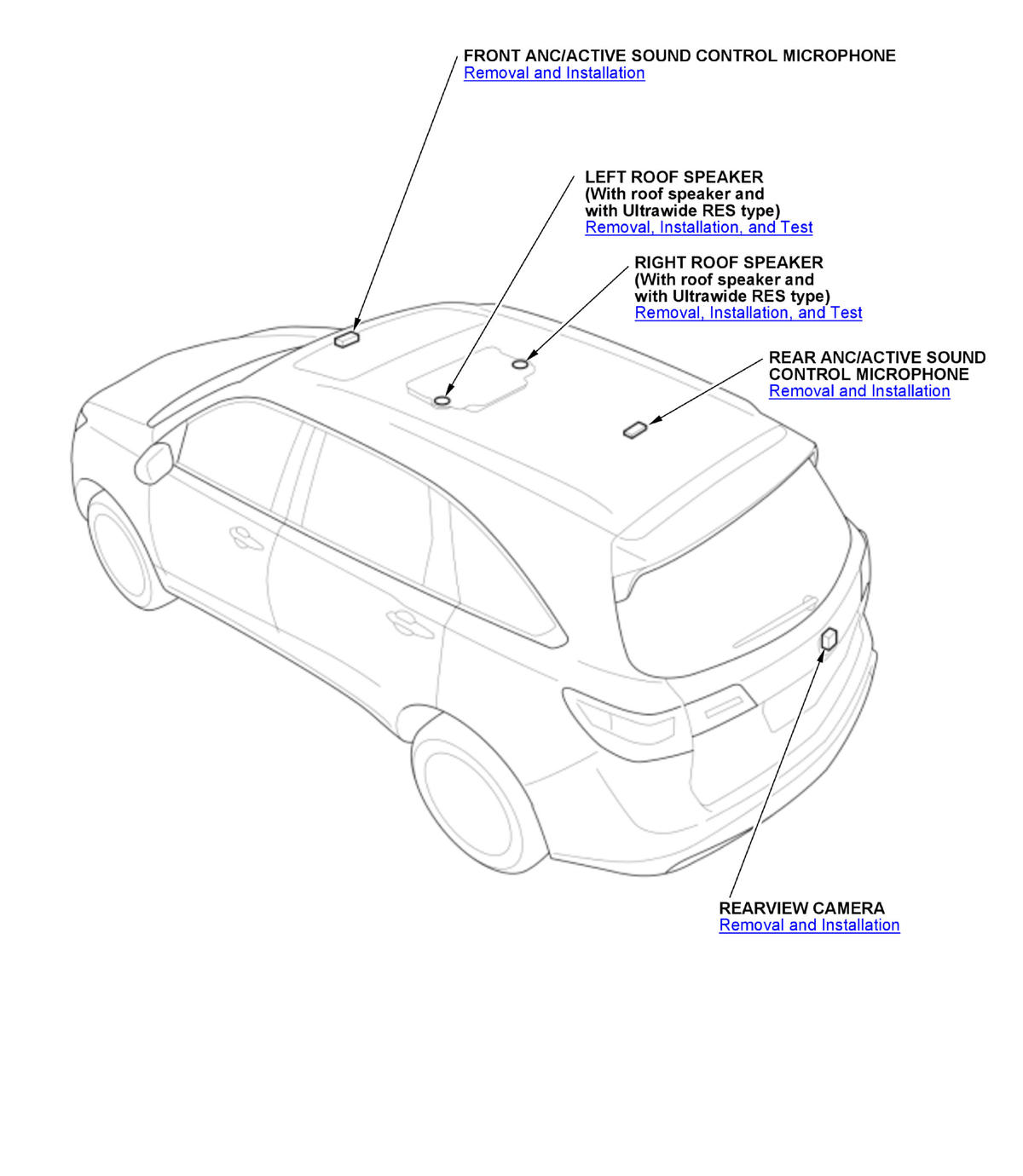

GHH314070

Courtesy of HONDA, U.S.A., INC.

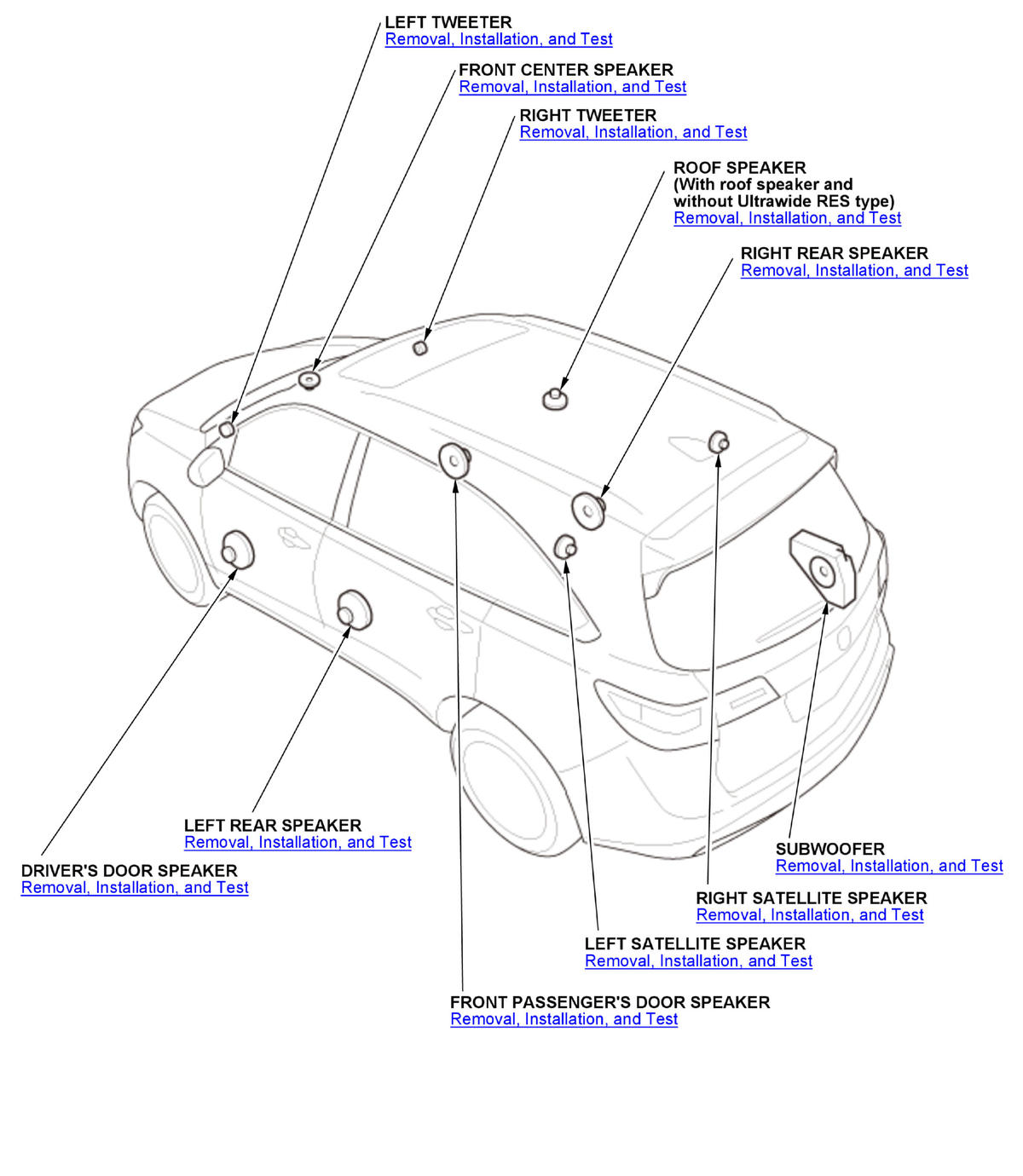

GHH314071

Courtesy of HONDA, U.S.A., INC.

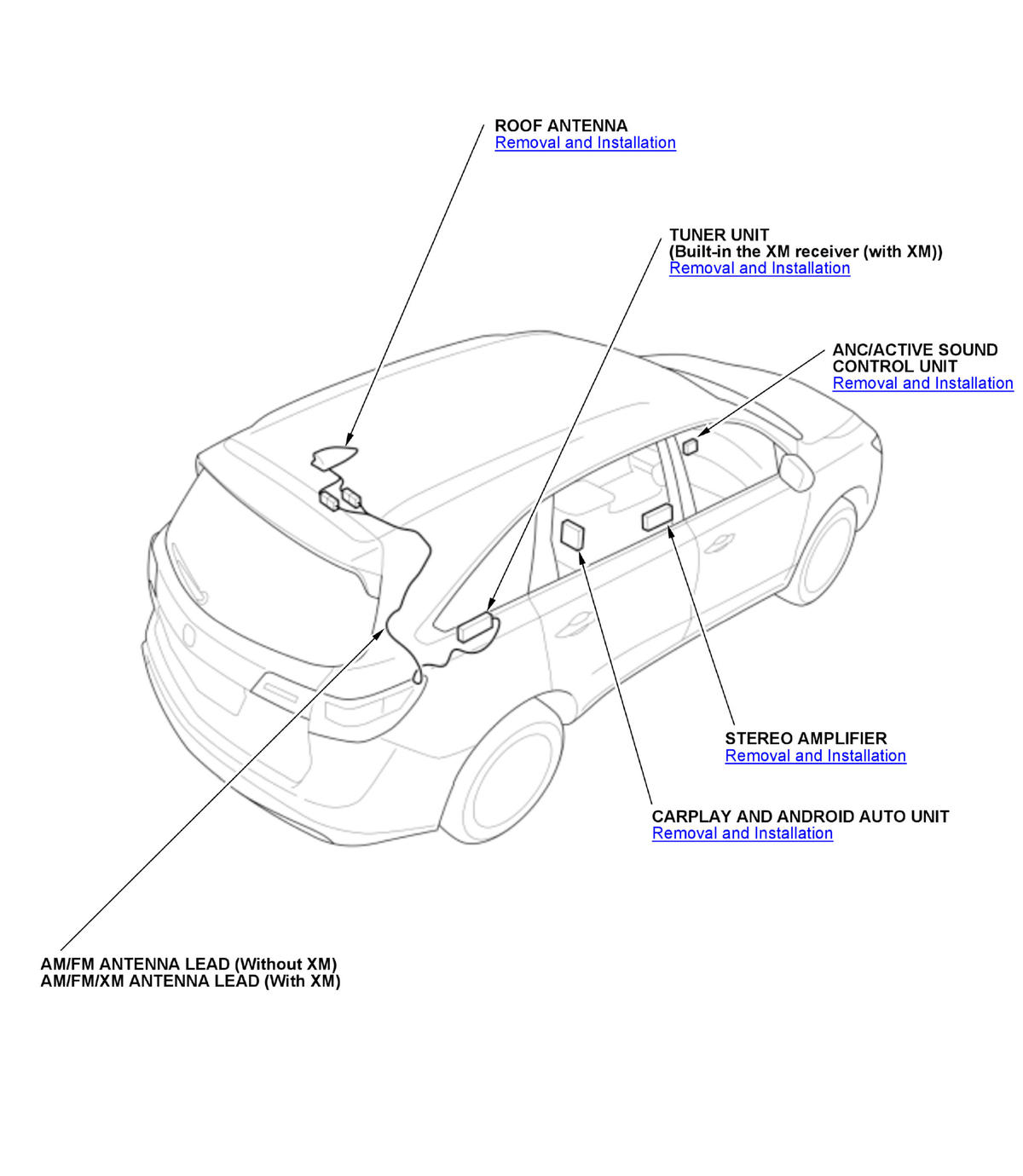

GHH314072

Courtesy of HONDA, U.S.A., INC.
