USB Adapter Connector for Inputs and Outputs

Courtesy of HONDA, U.S.A., INC.

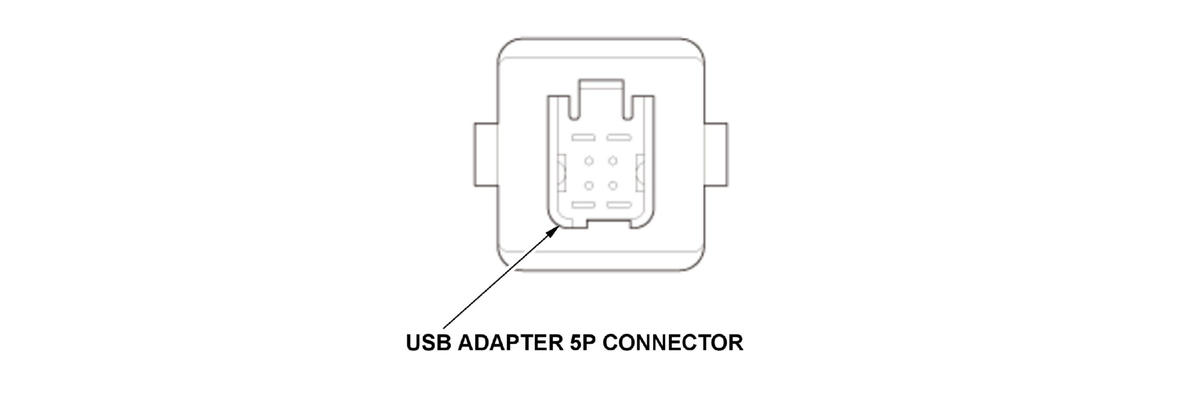

USB ADAPTER 5P CONNECTOR

Courtesy of HONDA, U.S.A., INC.

Cavity	Wire Color	Terminal Name	Description
1	- - -	USB GND	Ground for communication signal
2	- - -	USB VBUS	Inputs power source for USB device
3	- - -	USB DATA+	Communication signal
4	- - -	USB DATA-	Communication signal
5	- - -	USB SH	Shield for terminals No. 1, No. 2, No. 3, and No. 4
