Auxiliary Jack Assembly Connector for Inputs and Outputs

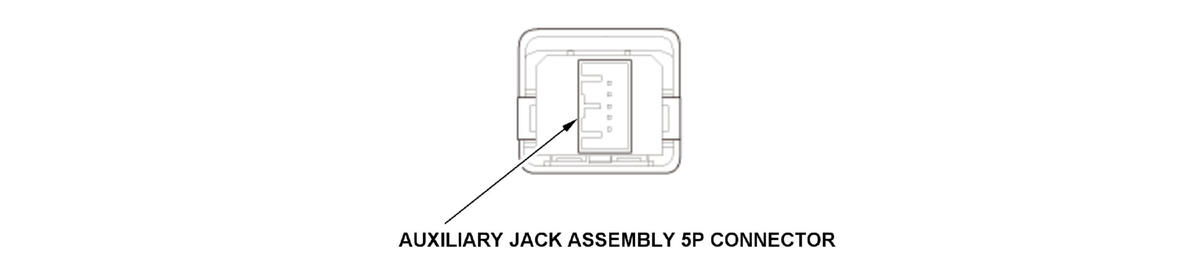

AUXILIARY JACK ASSEMBLY 5P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | WHT | AUX RCH | Outputs auxiliary sound signal |
| 2 | RED | AUX LCH | Outputs auxiliary sound signal |
| 3 | BLK | AUX SIG GND | Ground for auxiliary sound signal |
| 4 | YEL | AUX GND | Ground for auxiliary jack assembly connection signal |
| 5 | PUR | AUX DET | Inputs connection signal for auxiliary jack assembly |
