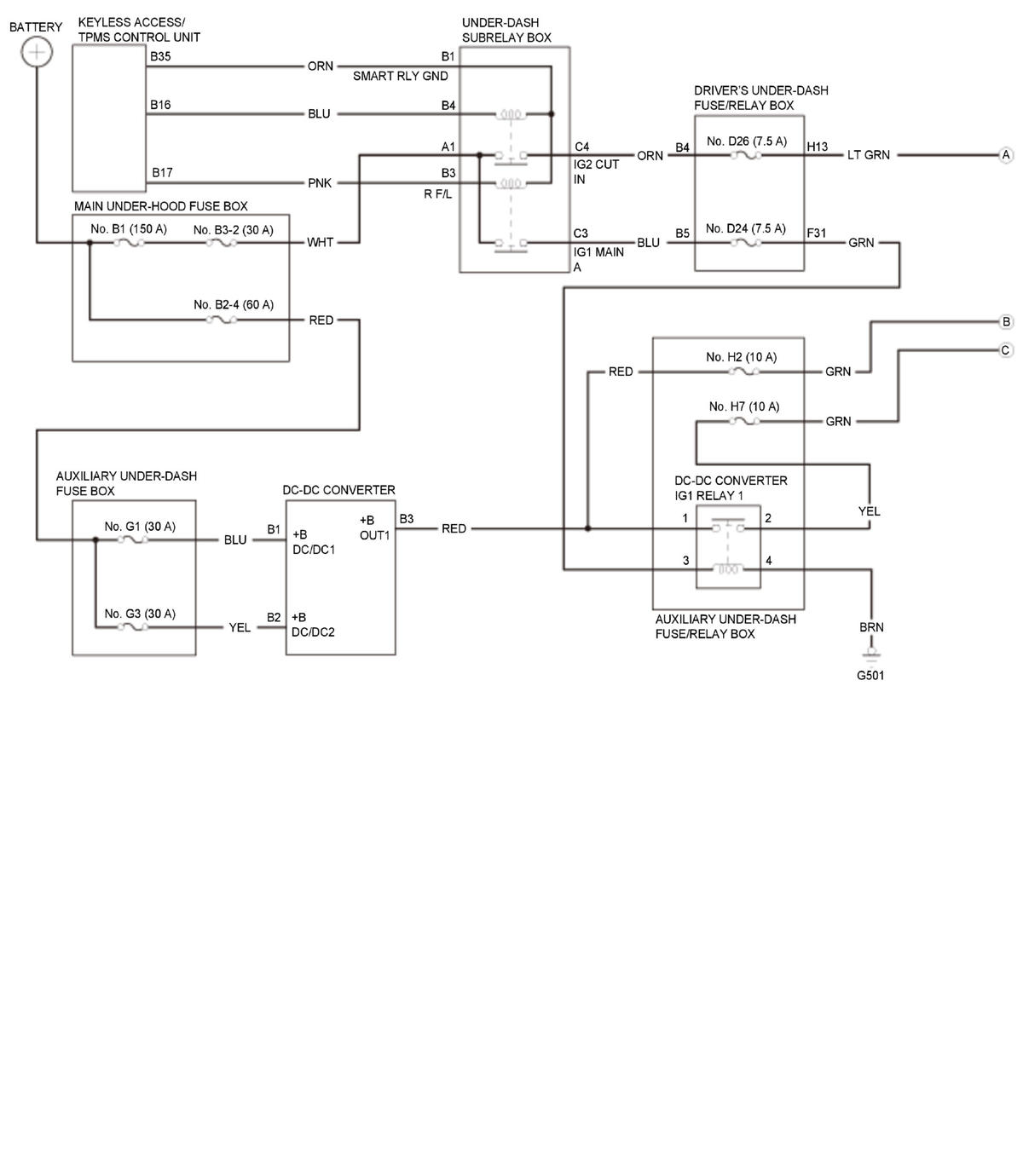

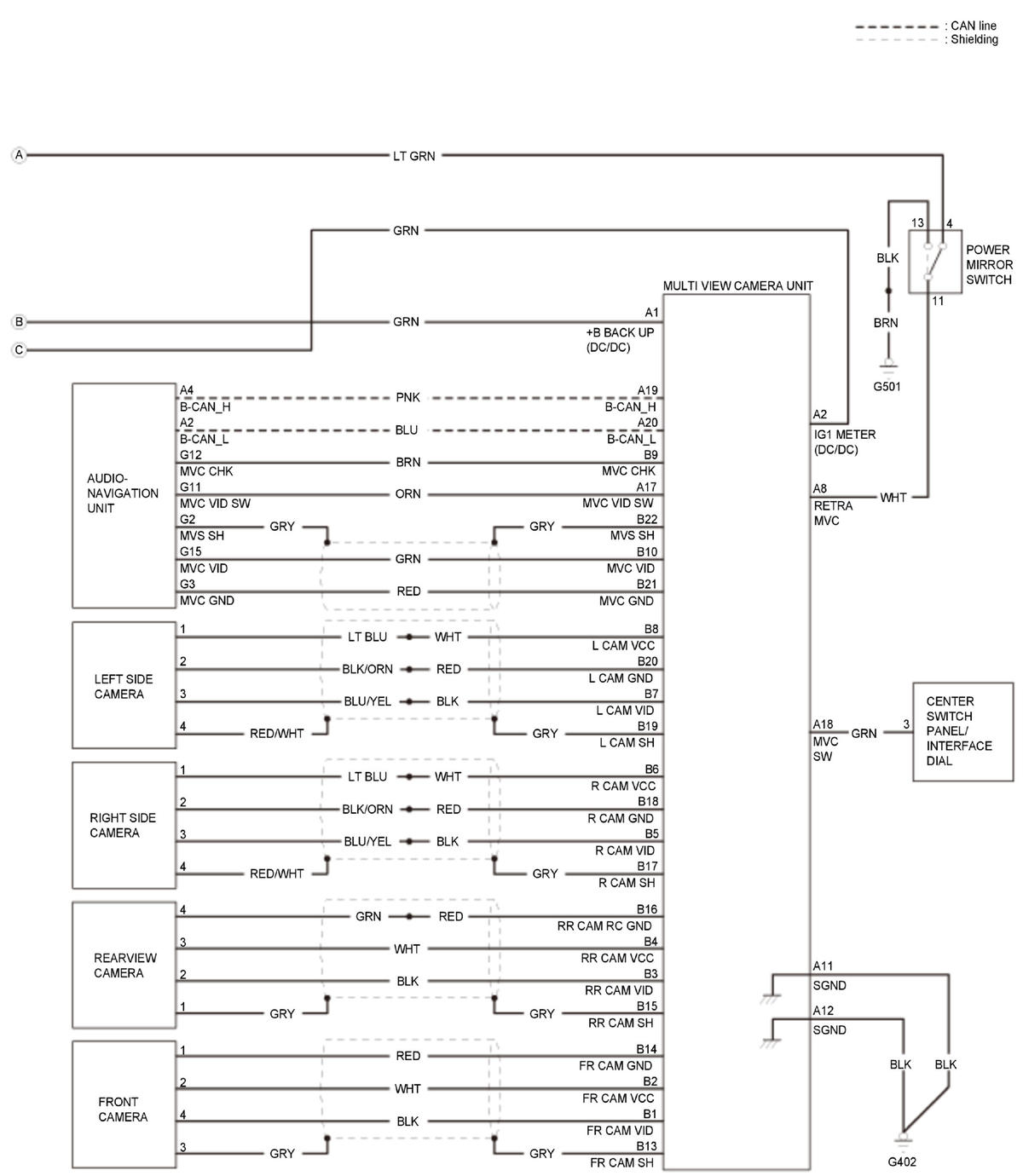

Multi View Camera System (MVCS) Circuit Diagram (With Auto Idle Stop System) (2016)
Multi View Camera System (MVCS) Circuit Diagram (With Auto Idle Stop System) (2016)
With Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
With Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
