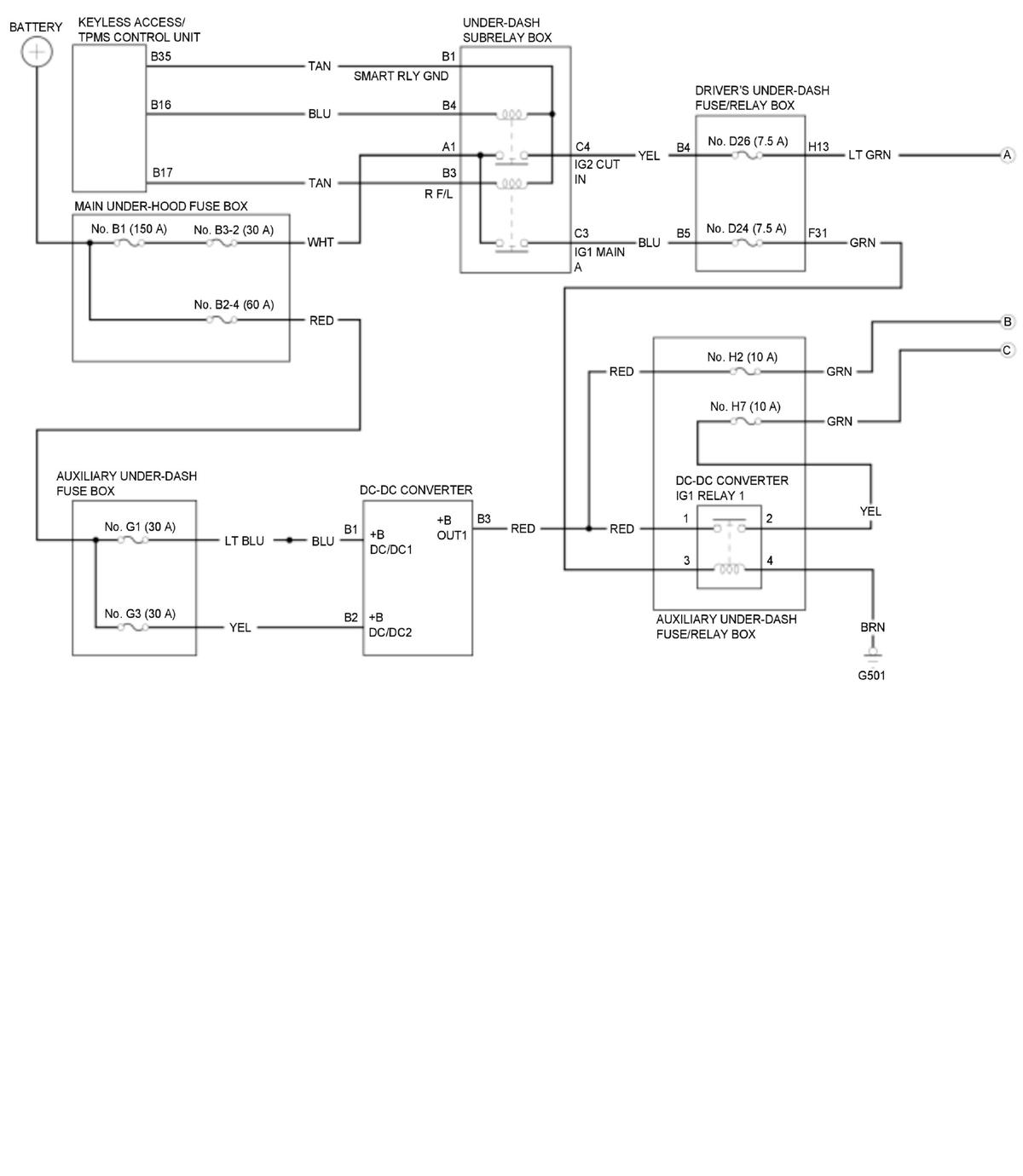

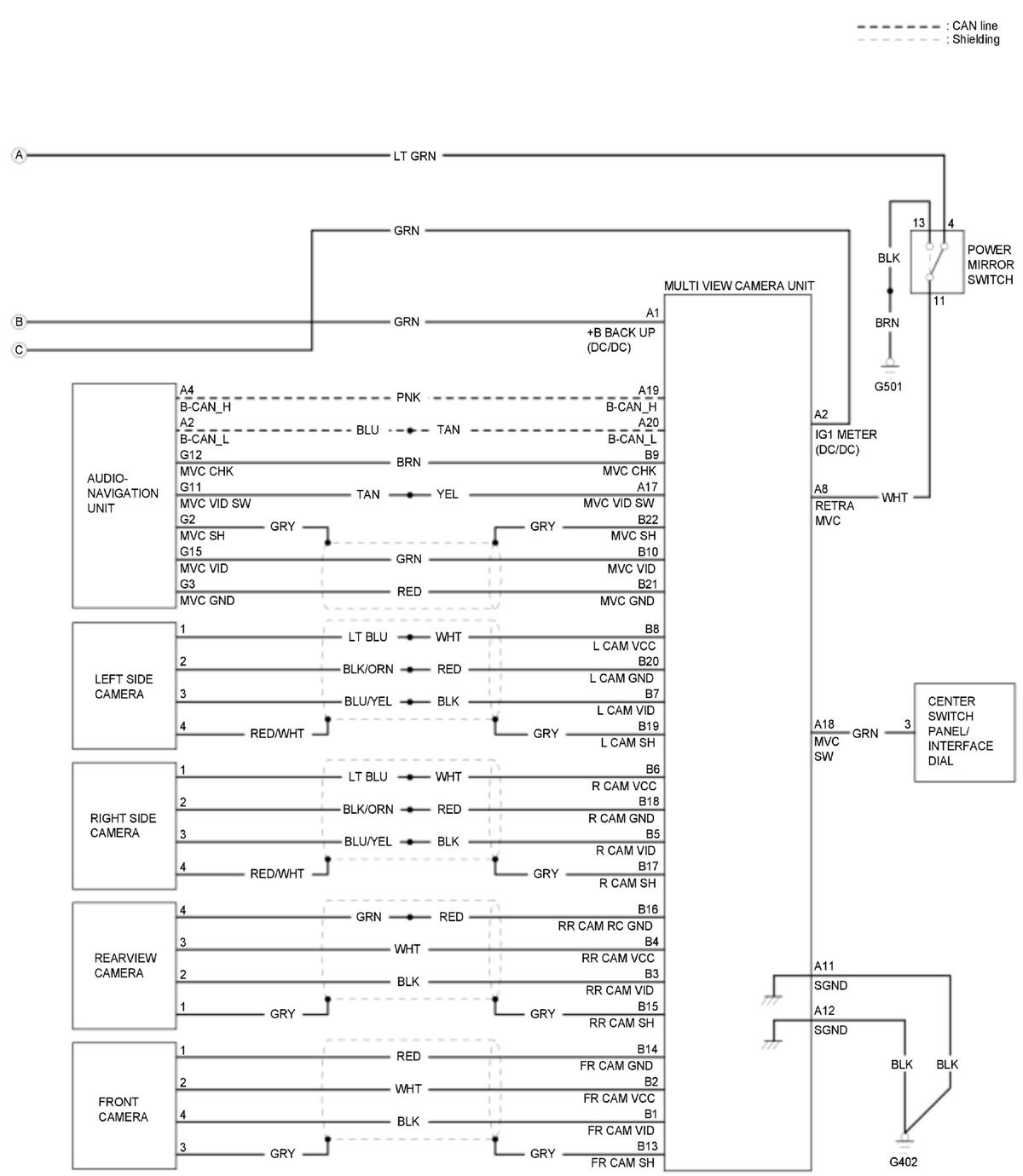

Multi View Camera System (MVCS) Circuit Diagram (2017 2018 2019 2020)
Multi View Camera System (MVCS) Circuit Diagram (2017 2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
