Multiplex Integrated Control System Component Location Index (2014 2015 2016)

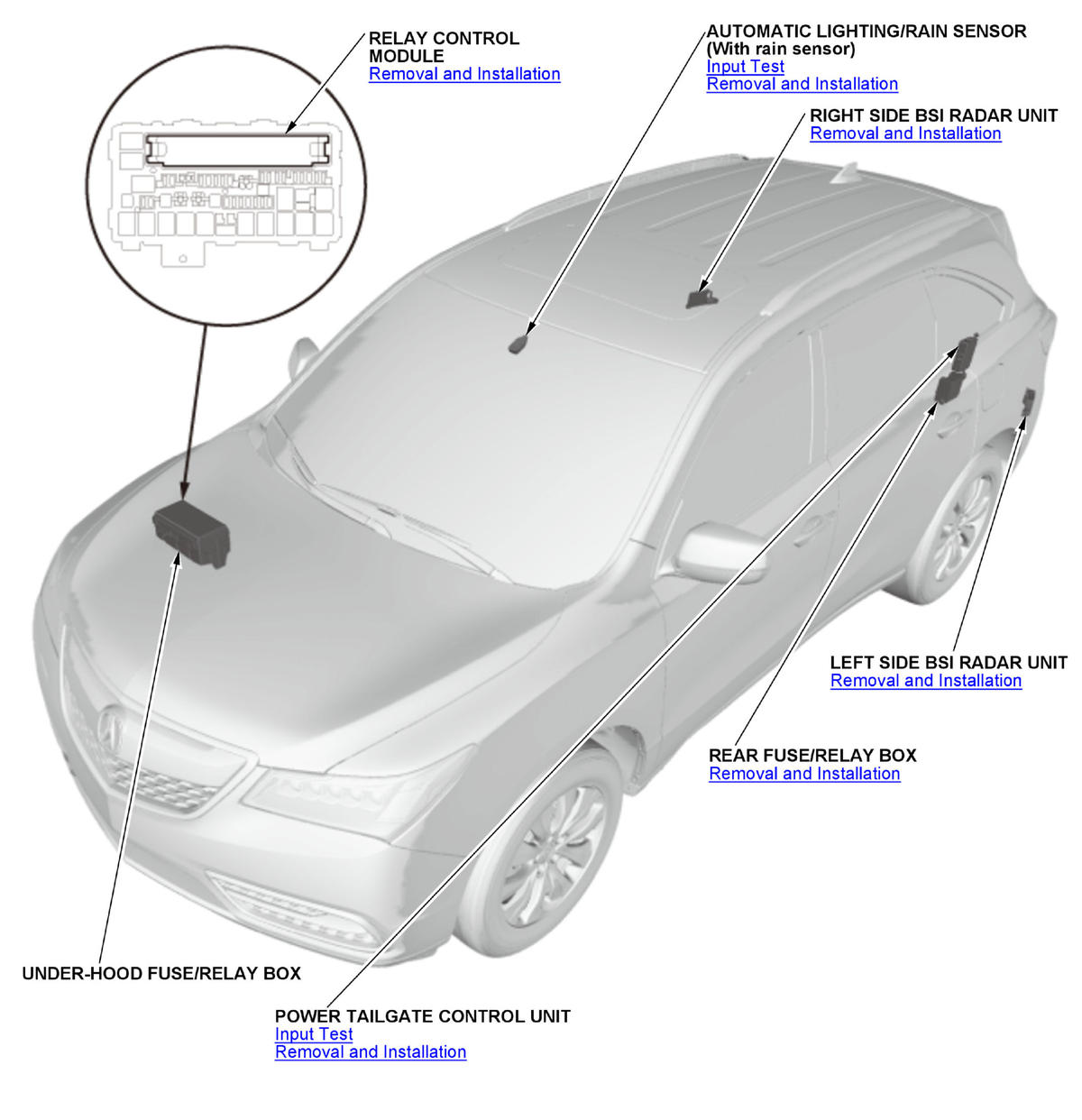

GHH322967Courtesy of HONDA, U.S.A., INC.

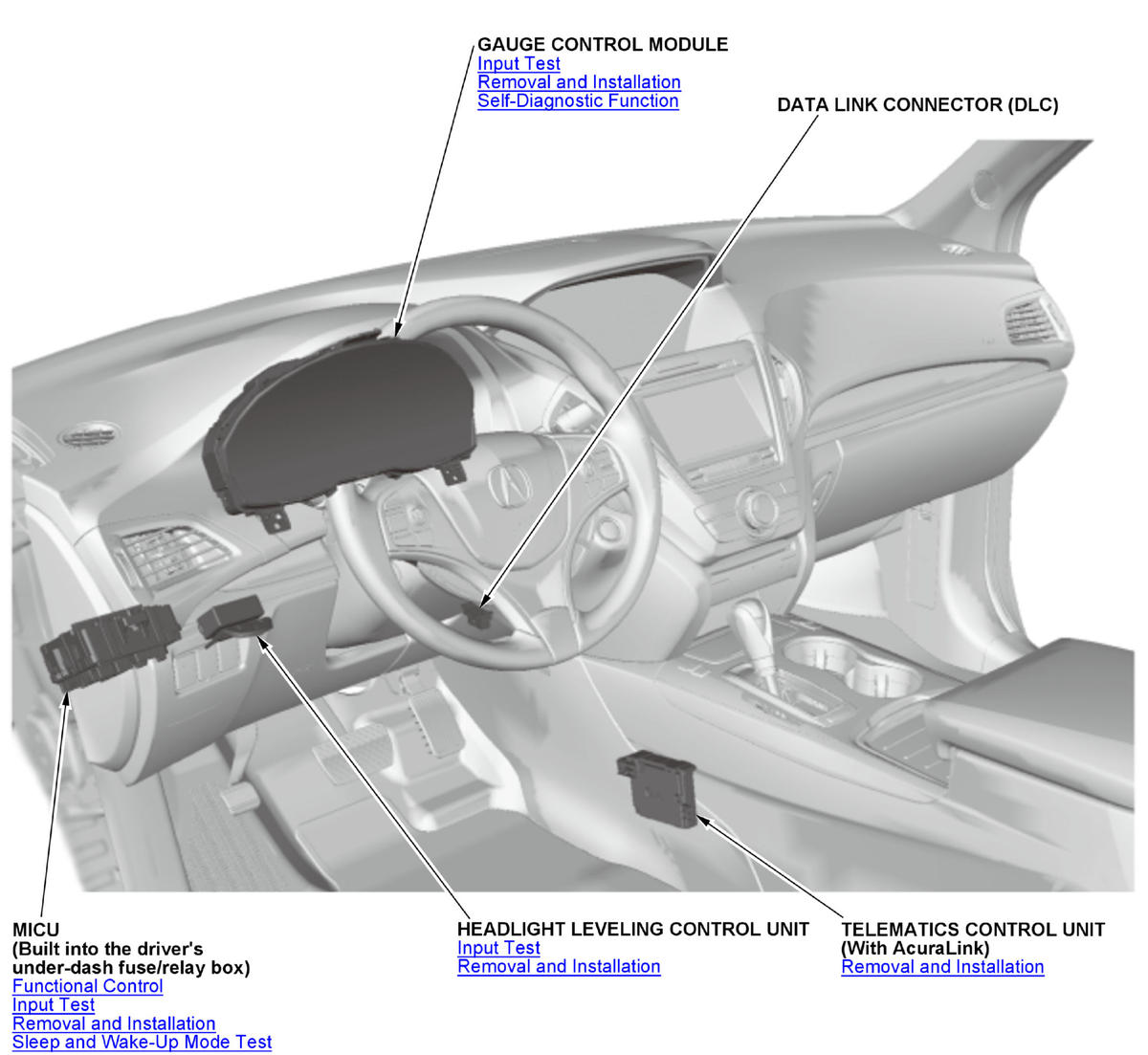

GHH322968Courtesy of HONDA, U.S.A., INC.

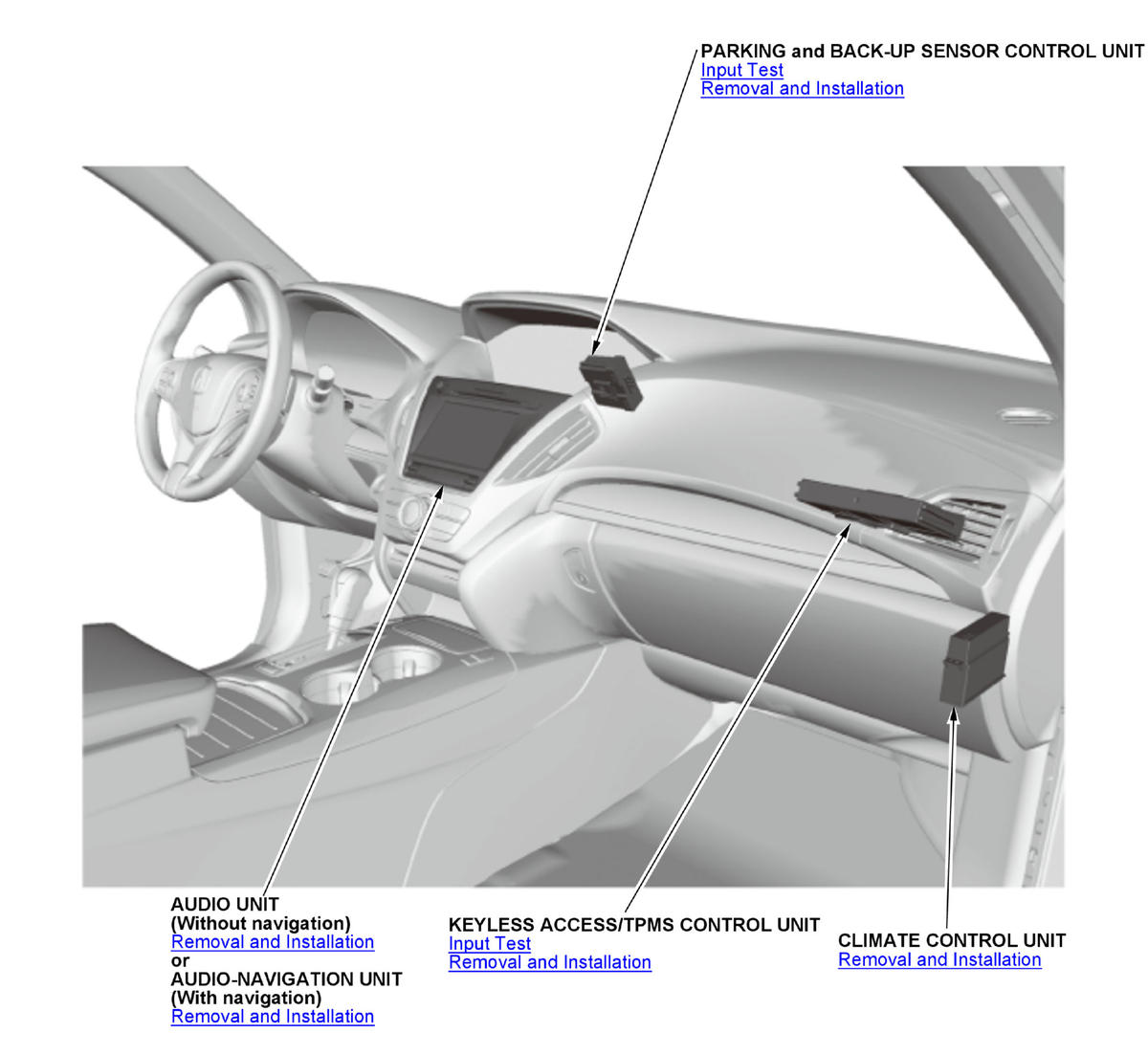

GHH322969Courtesy of HONDA, U.S.A., INC.

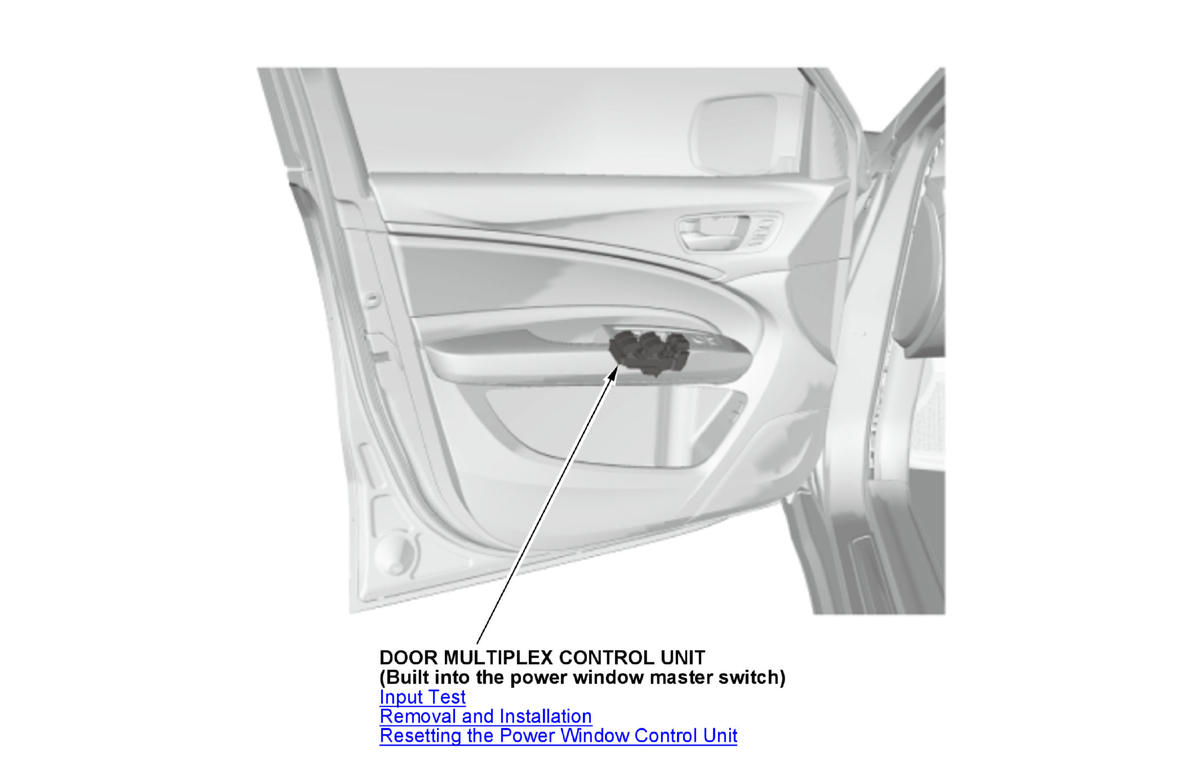

GHH322970Courtesy of HONDA, U.S.A., INC.

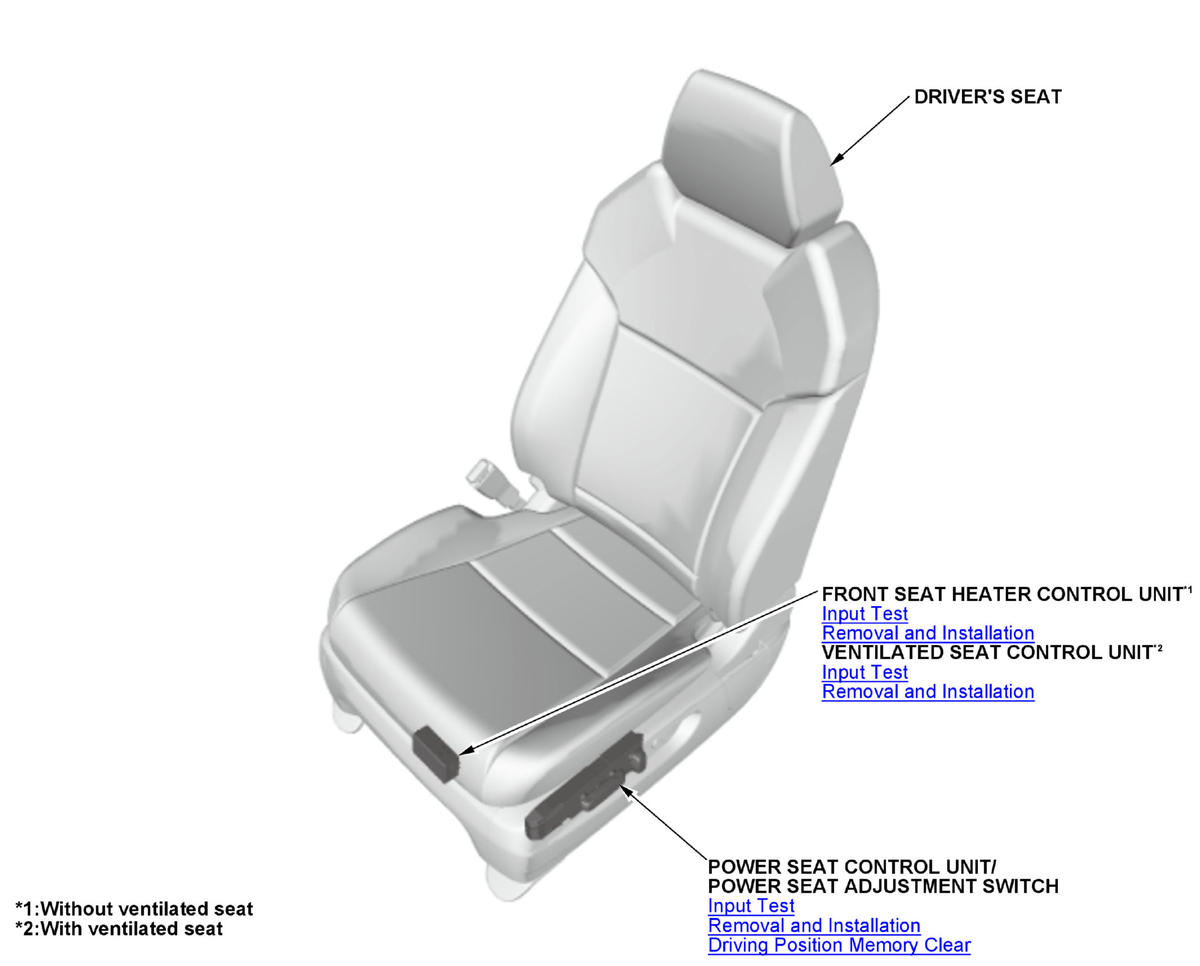

GHH322971Courtesy of HONDA, U.S.A., INC.

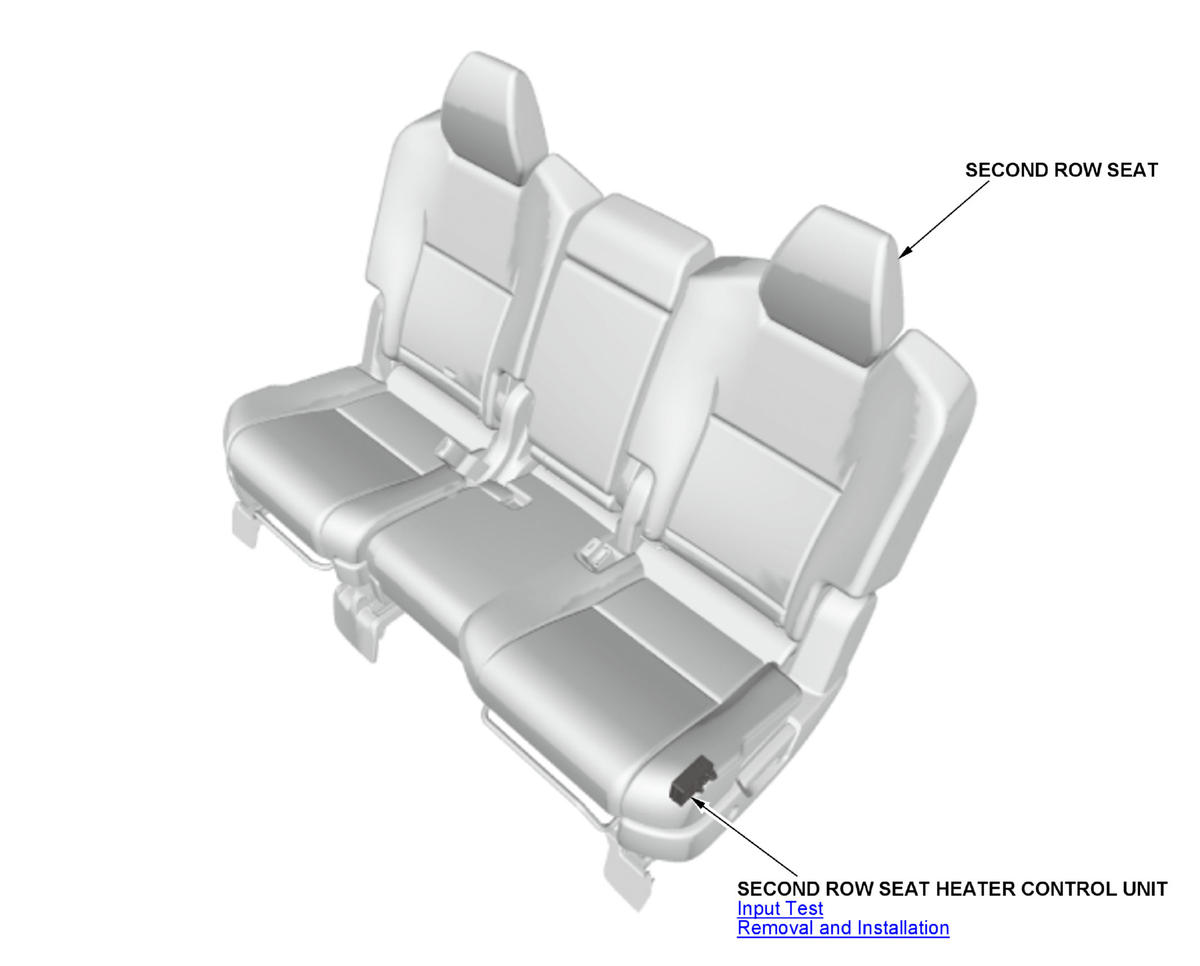

GHH322972Courtesy of HONDA, U.S.A., INC.
