Driving Position Memory System (DPMS) Component Location Index (2017 2018)

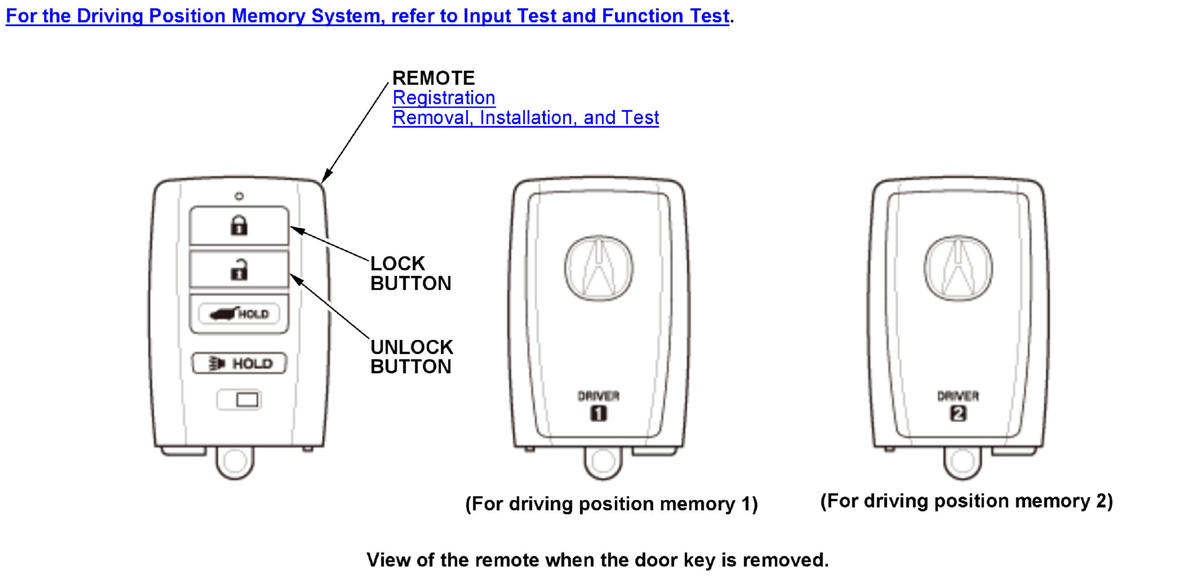

GHH322950Courtesy of HONDA, U.S.A., INC.

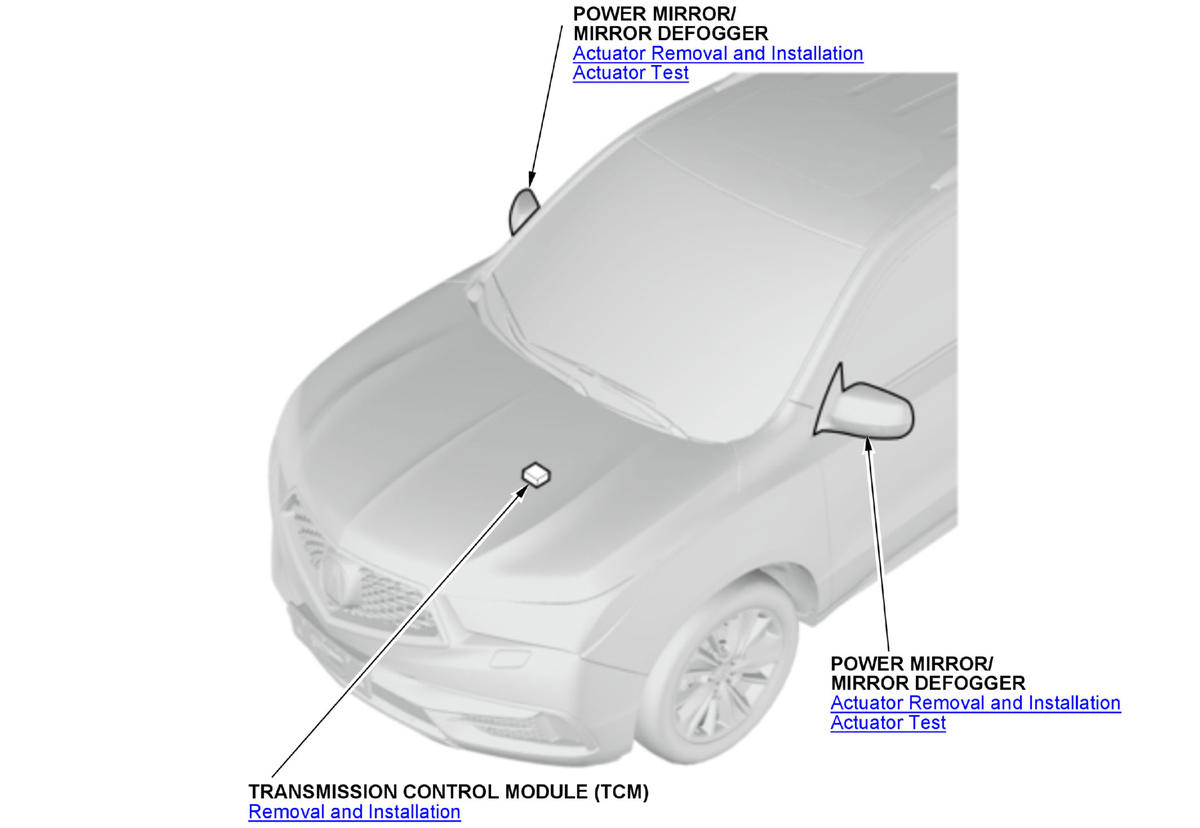

GHH322951Courtesy of HONDA, U.S.A., INC.

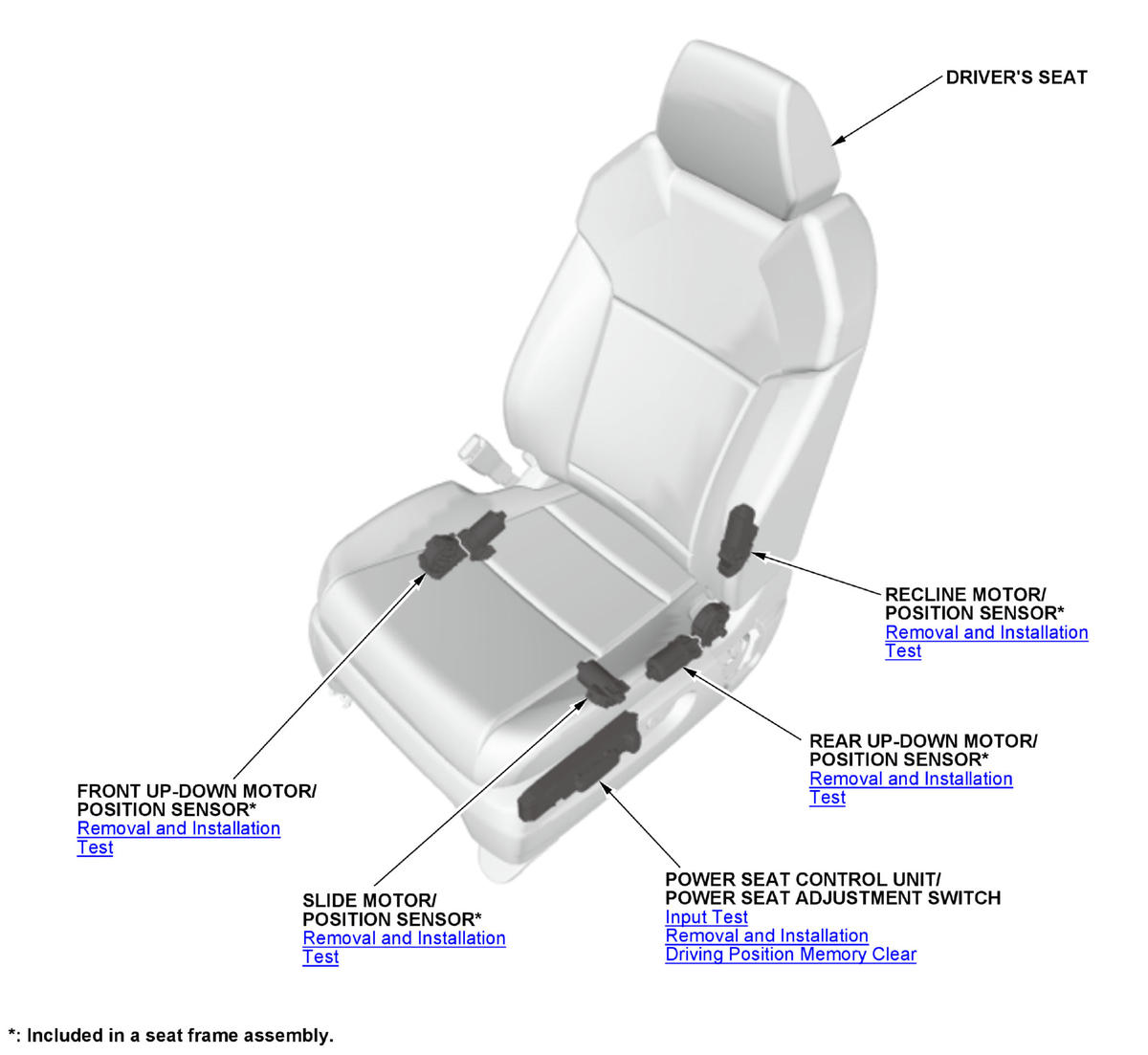

GHH322952Courtesy of HONDA, U.S.A., INC.

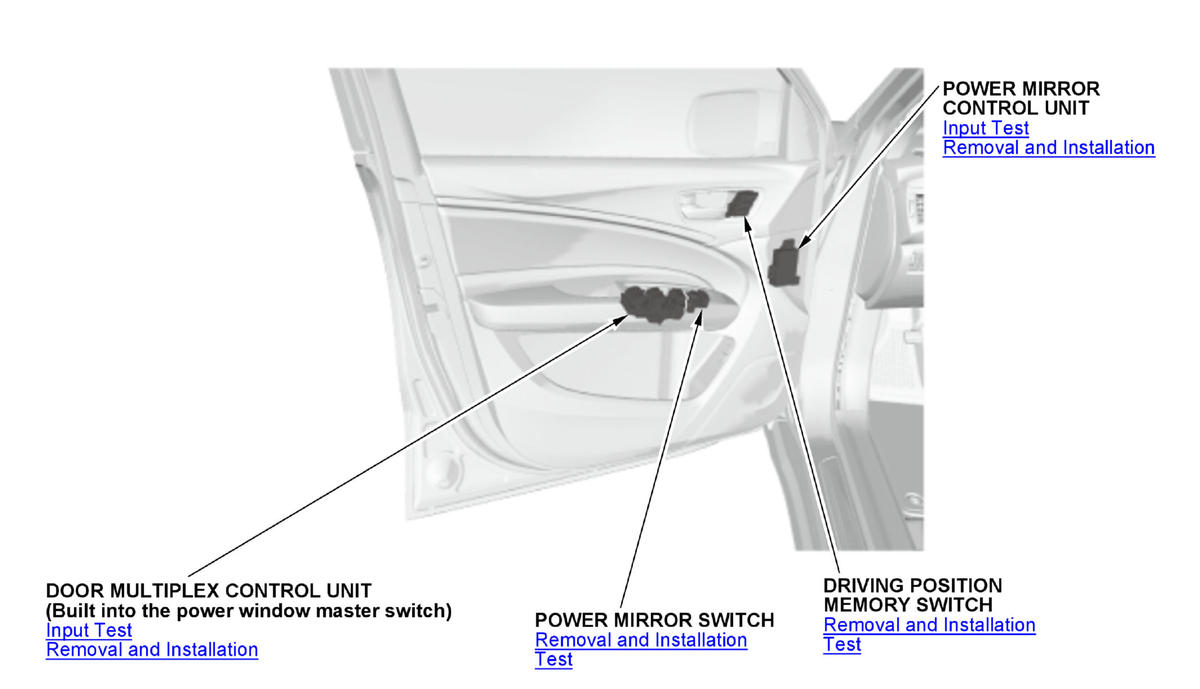

GHH322953Courtesy of HONDA, U.S.A., INC.

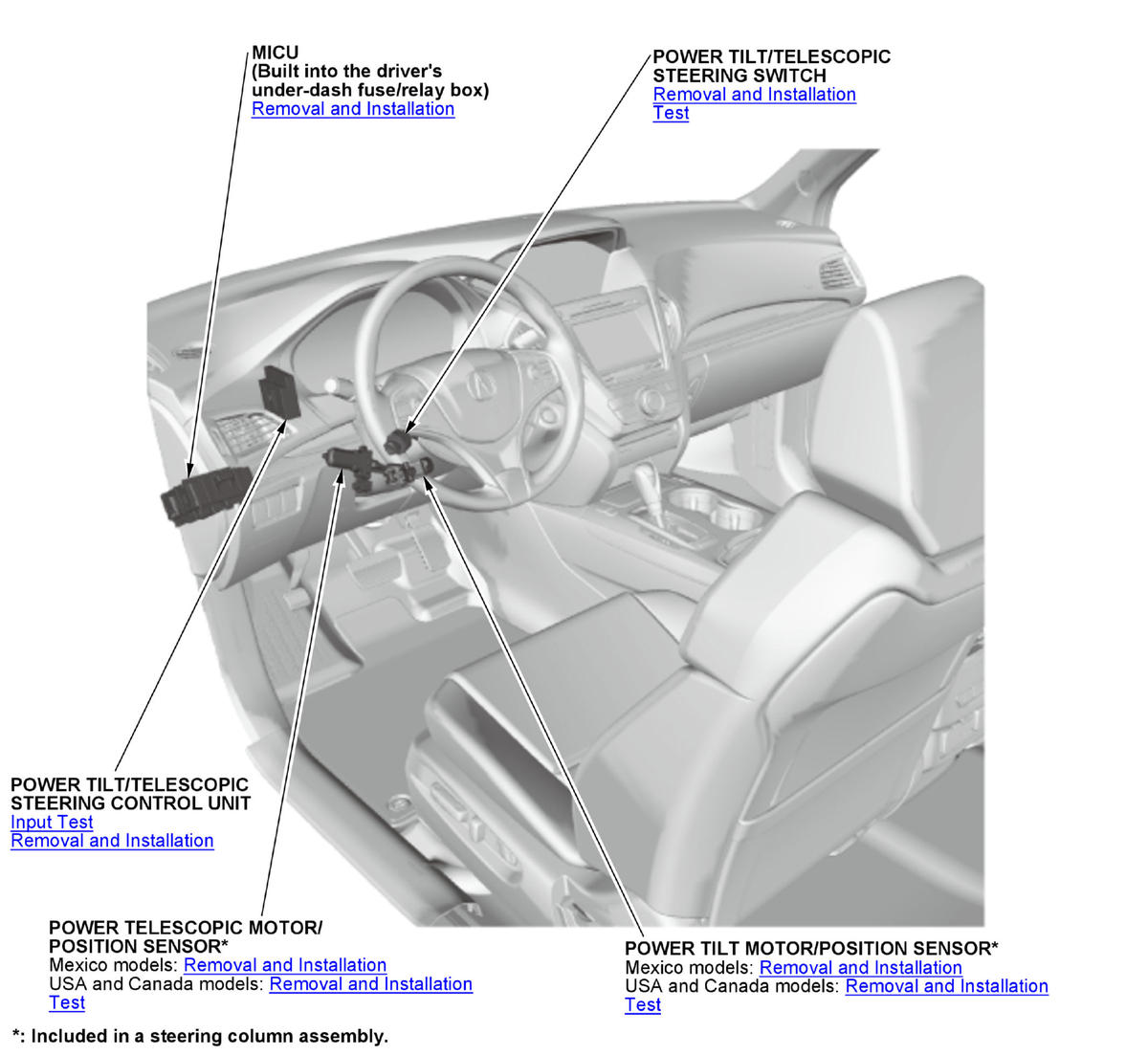

GHH322954Courtesy of HONDA, U.S.A., INC.
