Driving Position Memory System (DPMS) Component Location Index (2014 2015 2016)

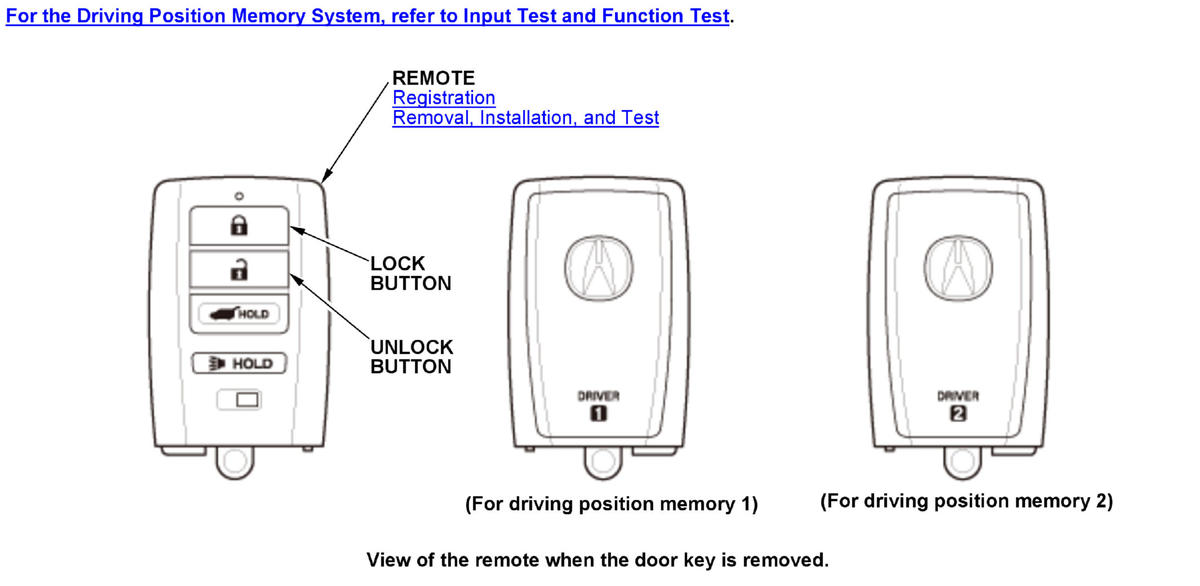

GHH322955Courtesy of HONDA, U.S.A., INC.

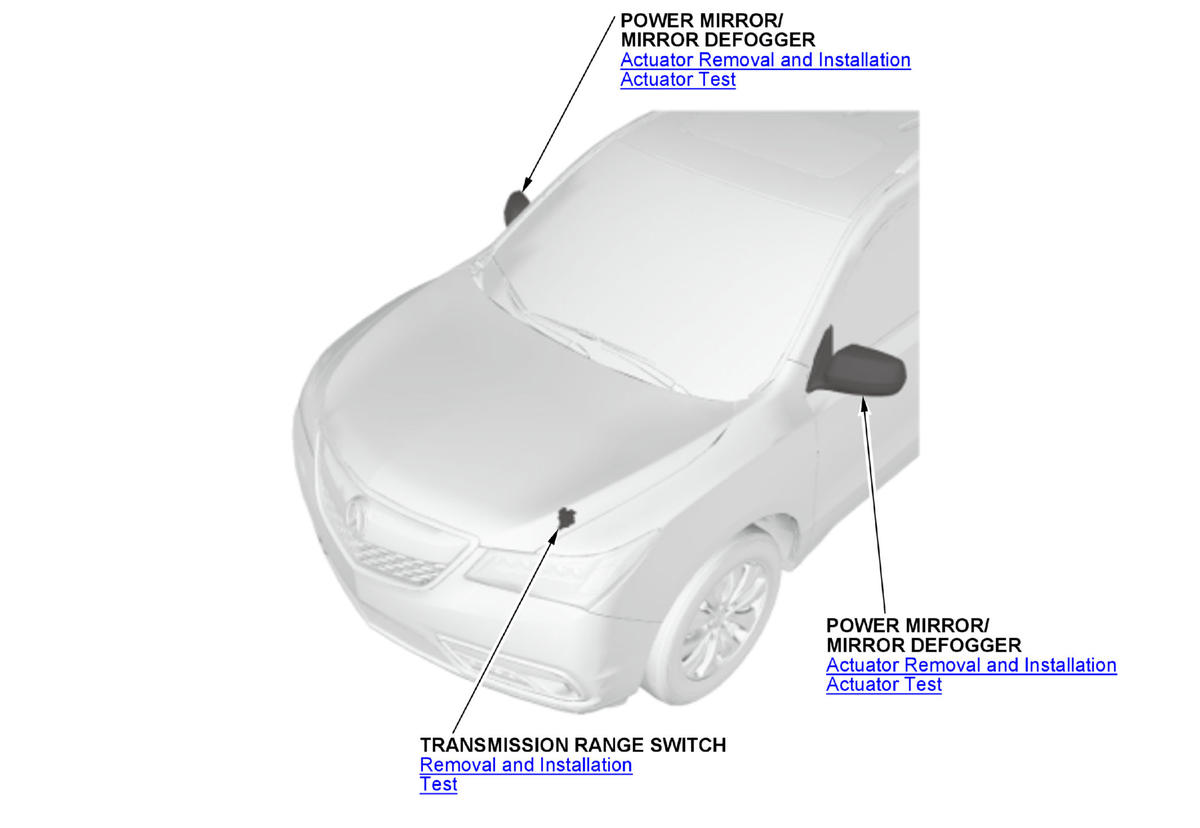

GHH322956Courtesy of HONDA, U.S.A., INC.

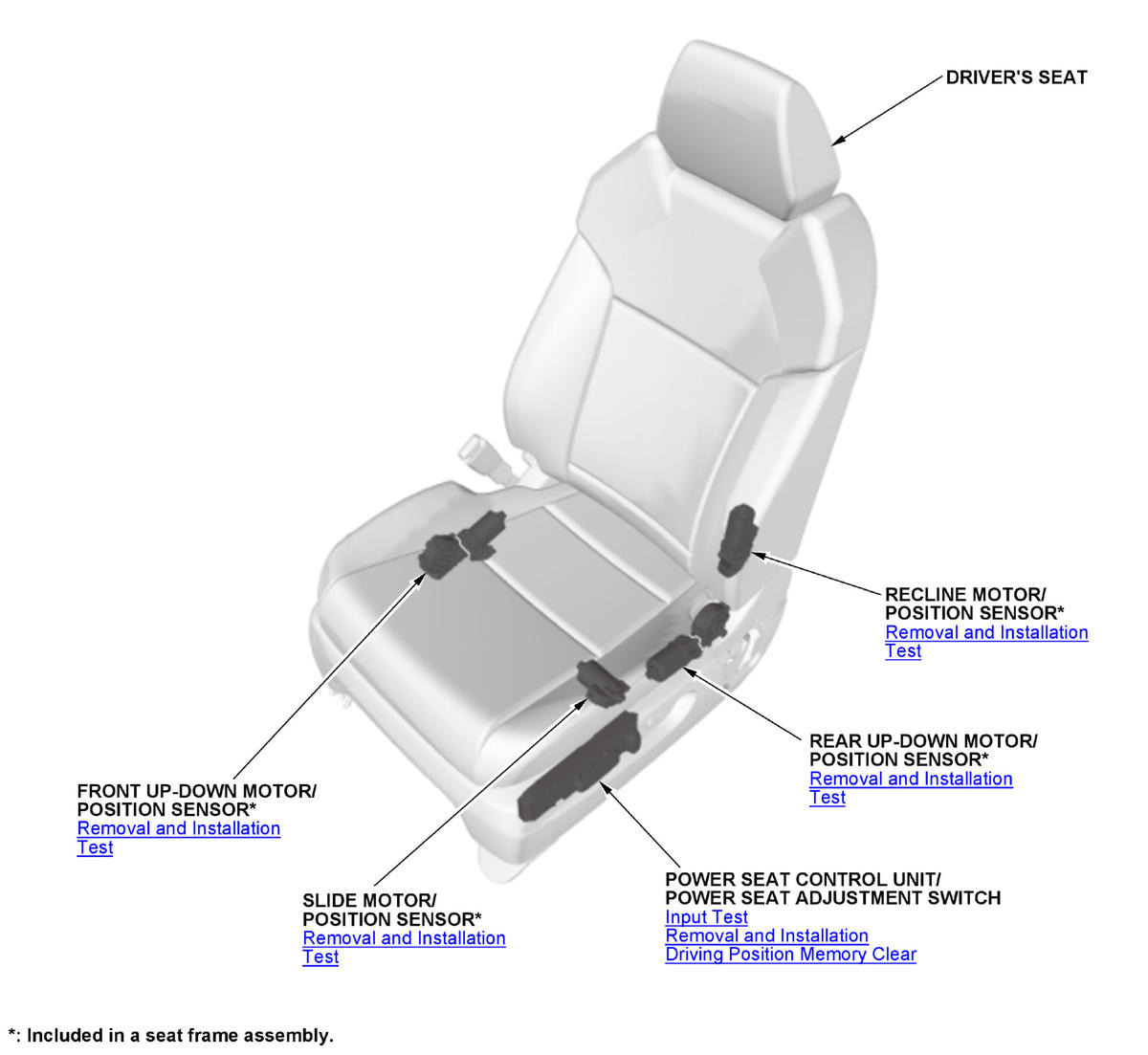

GHH322957Courtesy of HONDA, U.S.A., INC.

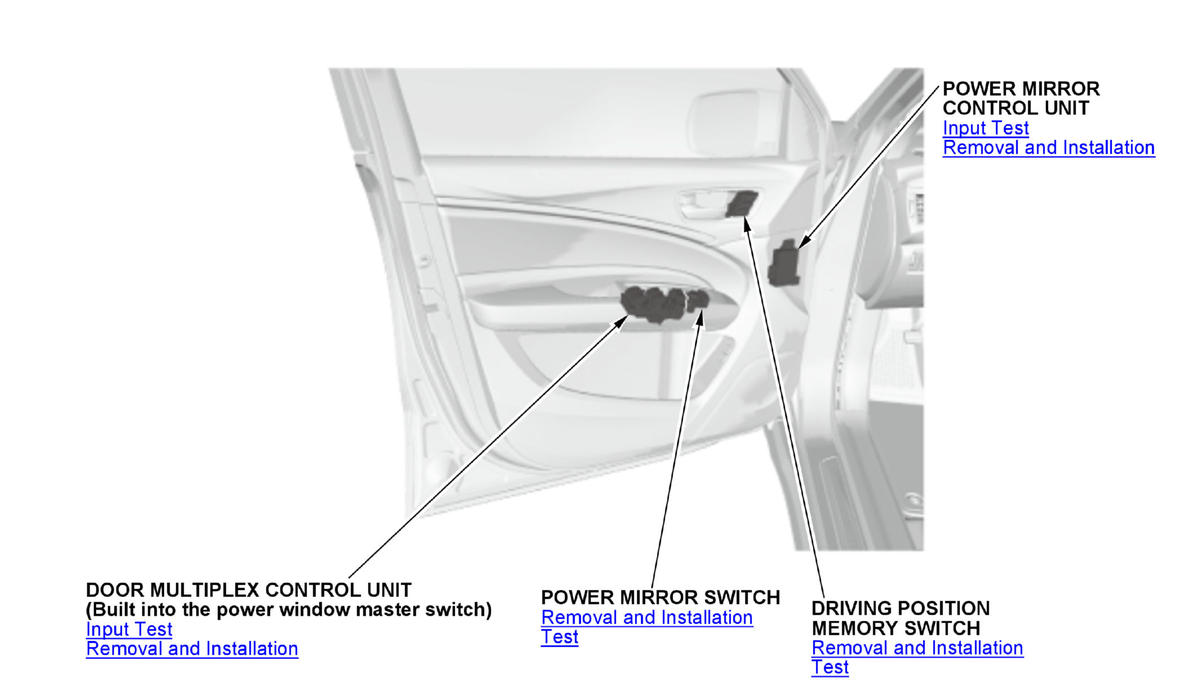

GHH322958Courtesy of HONDA, U.S.A., INC.

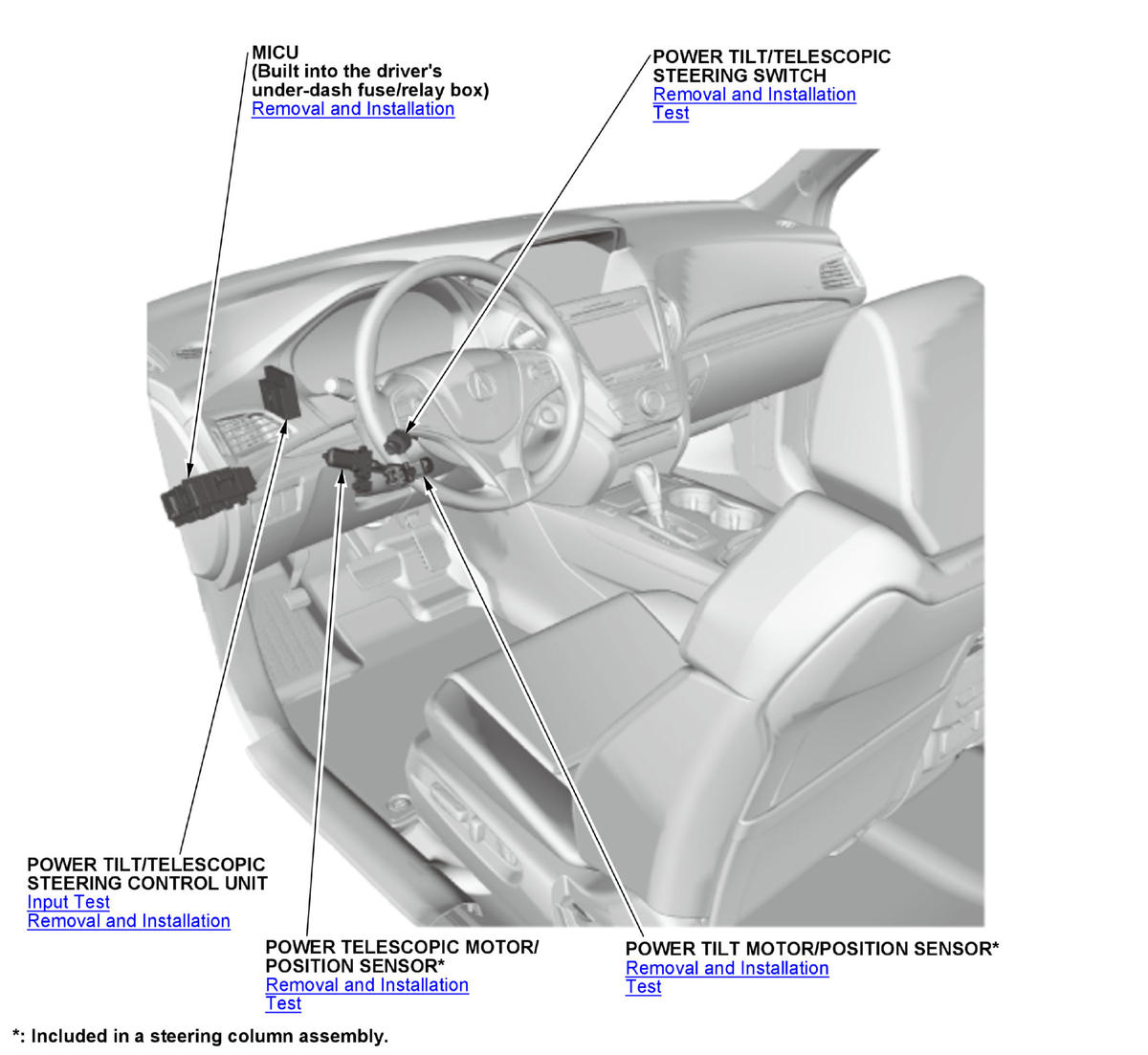

GHH322959Courtesy of HONDA, U.S.A., INC.
