Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

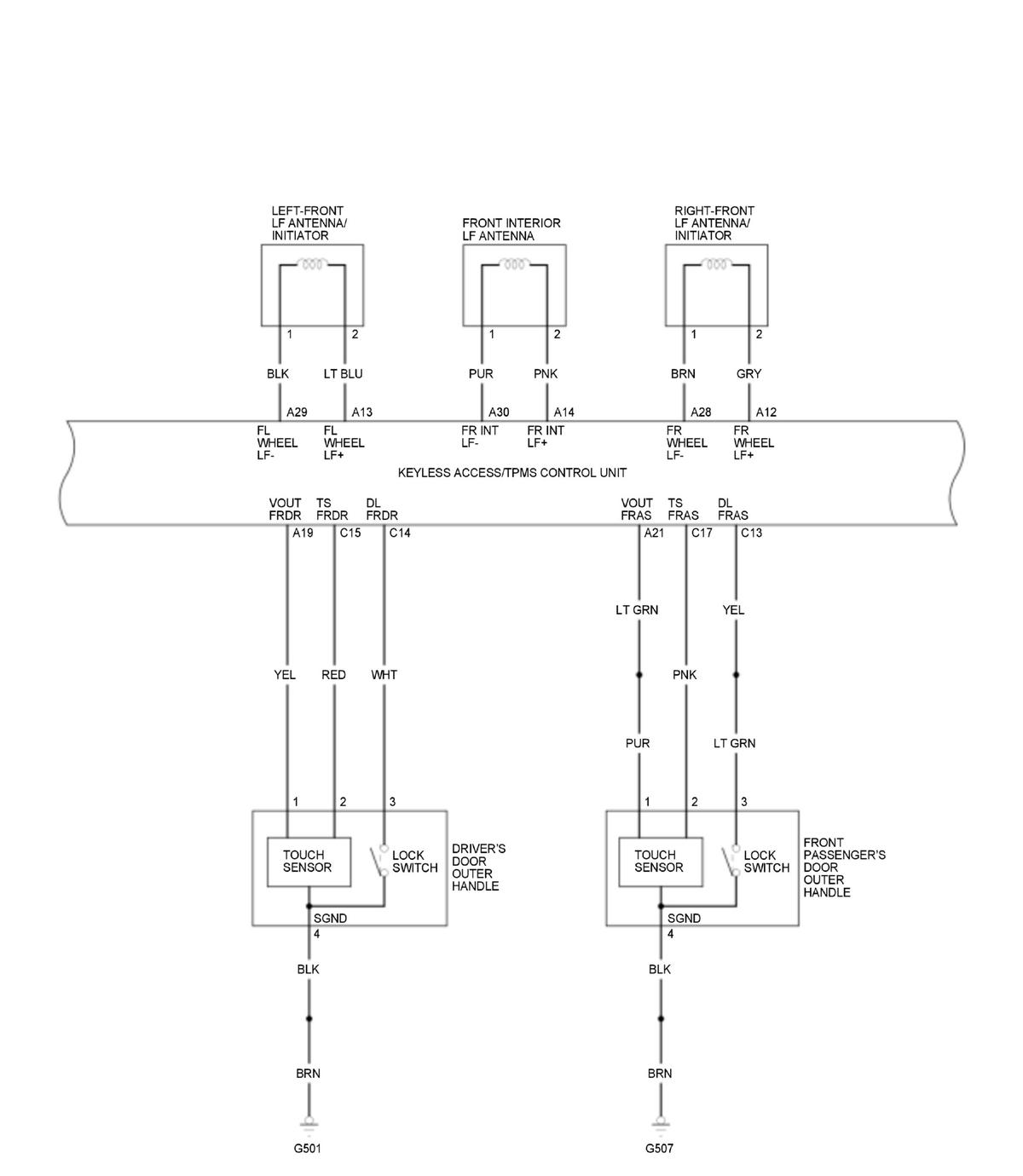

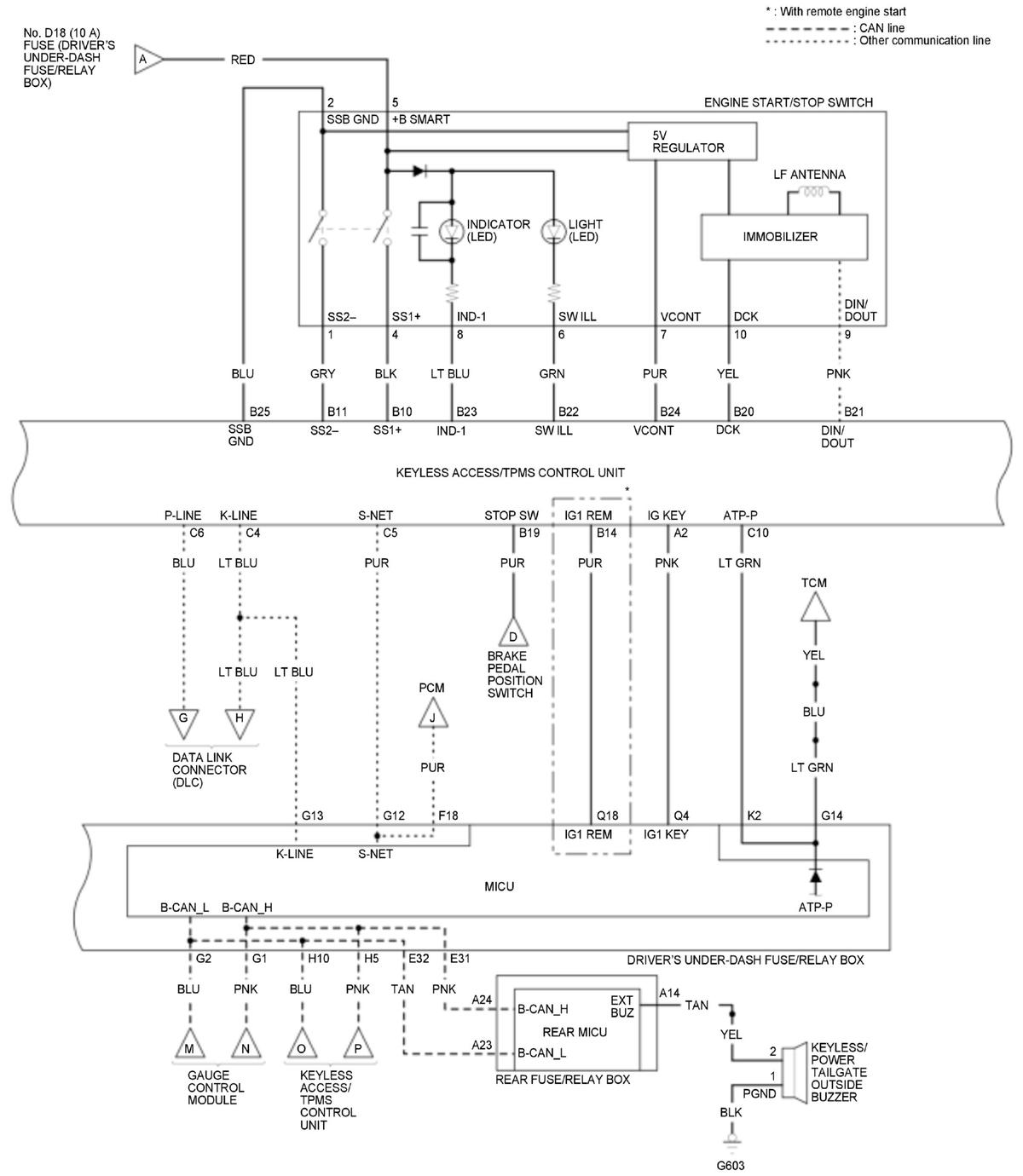

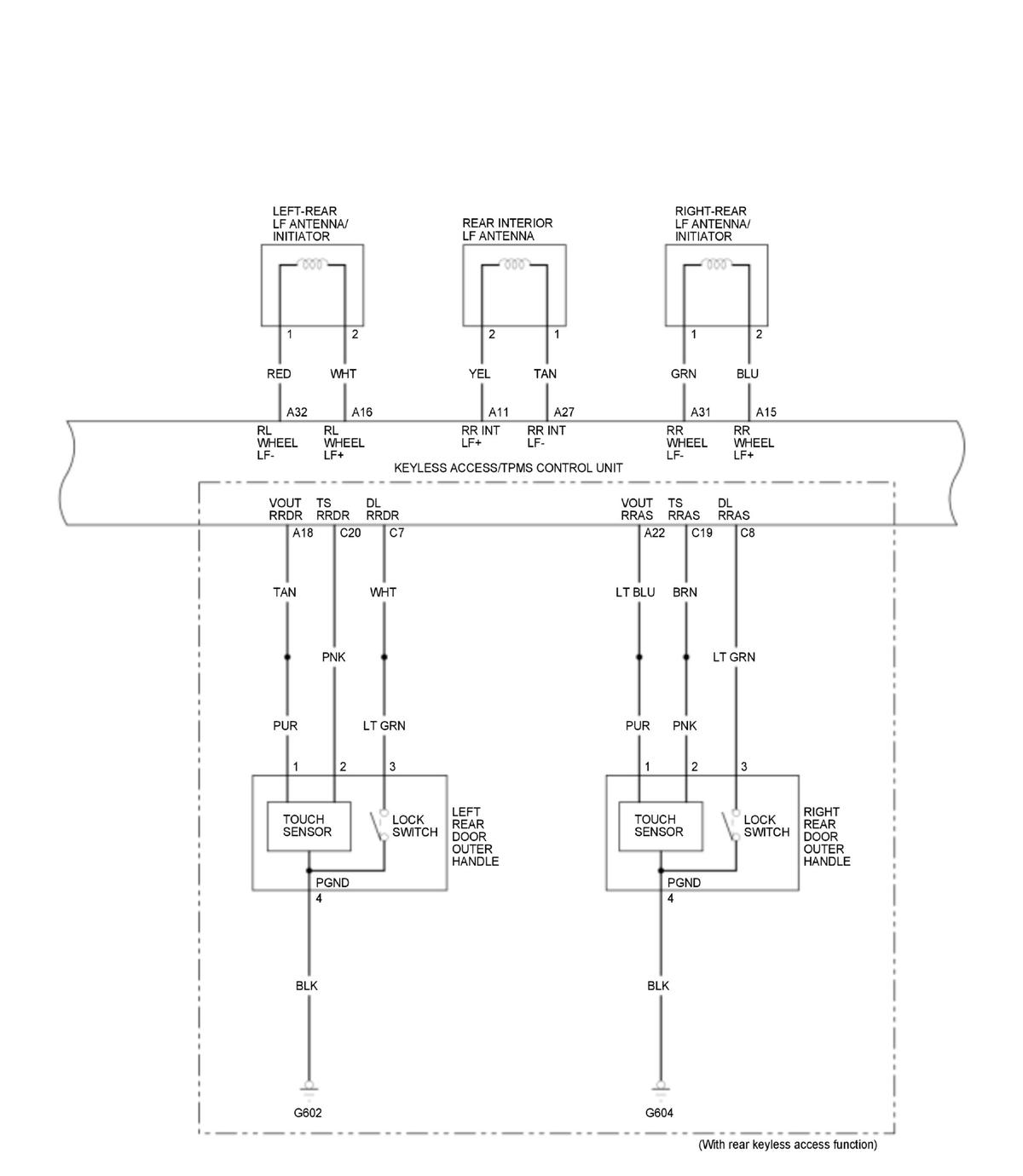

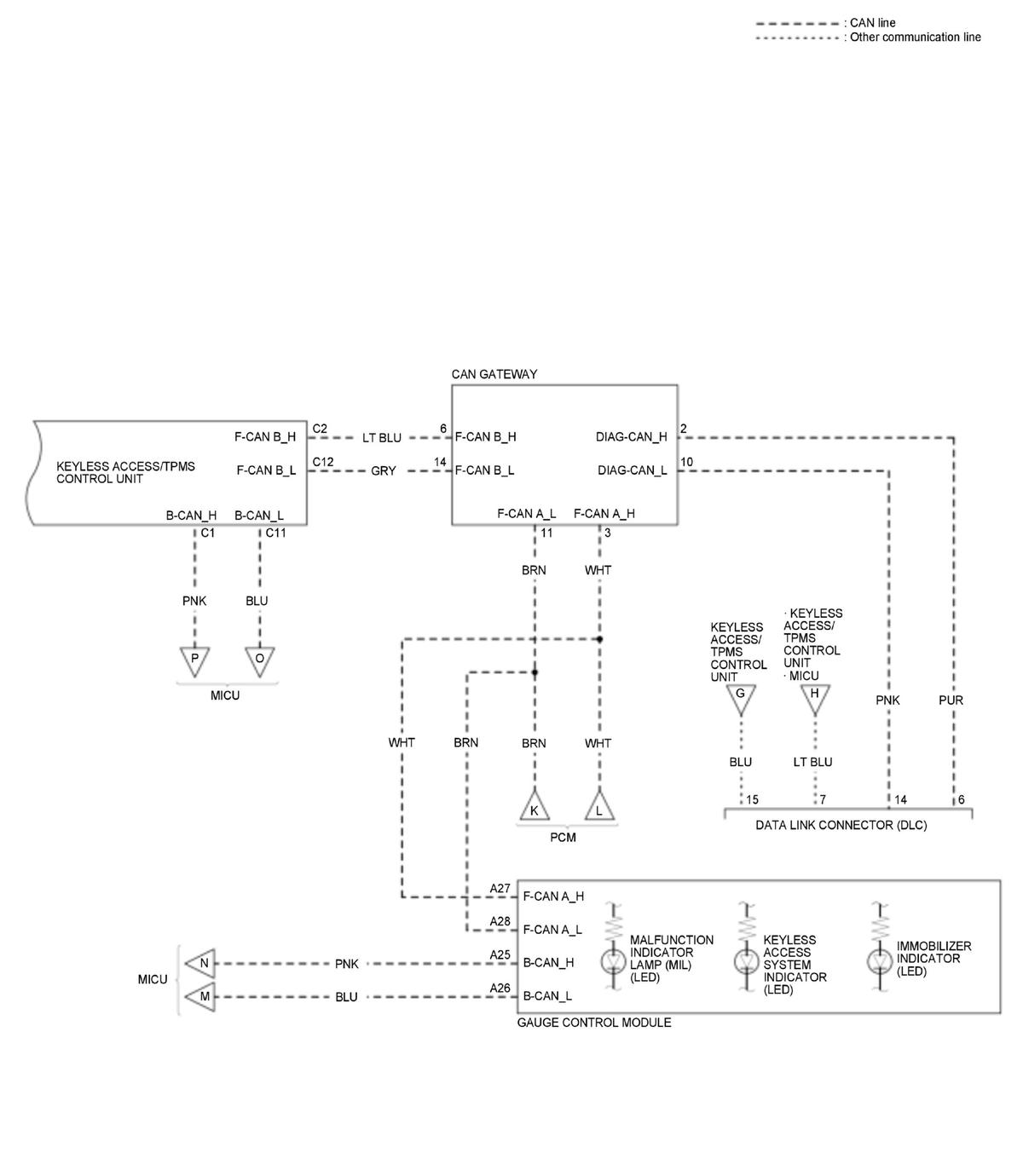

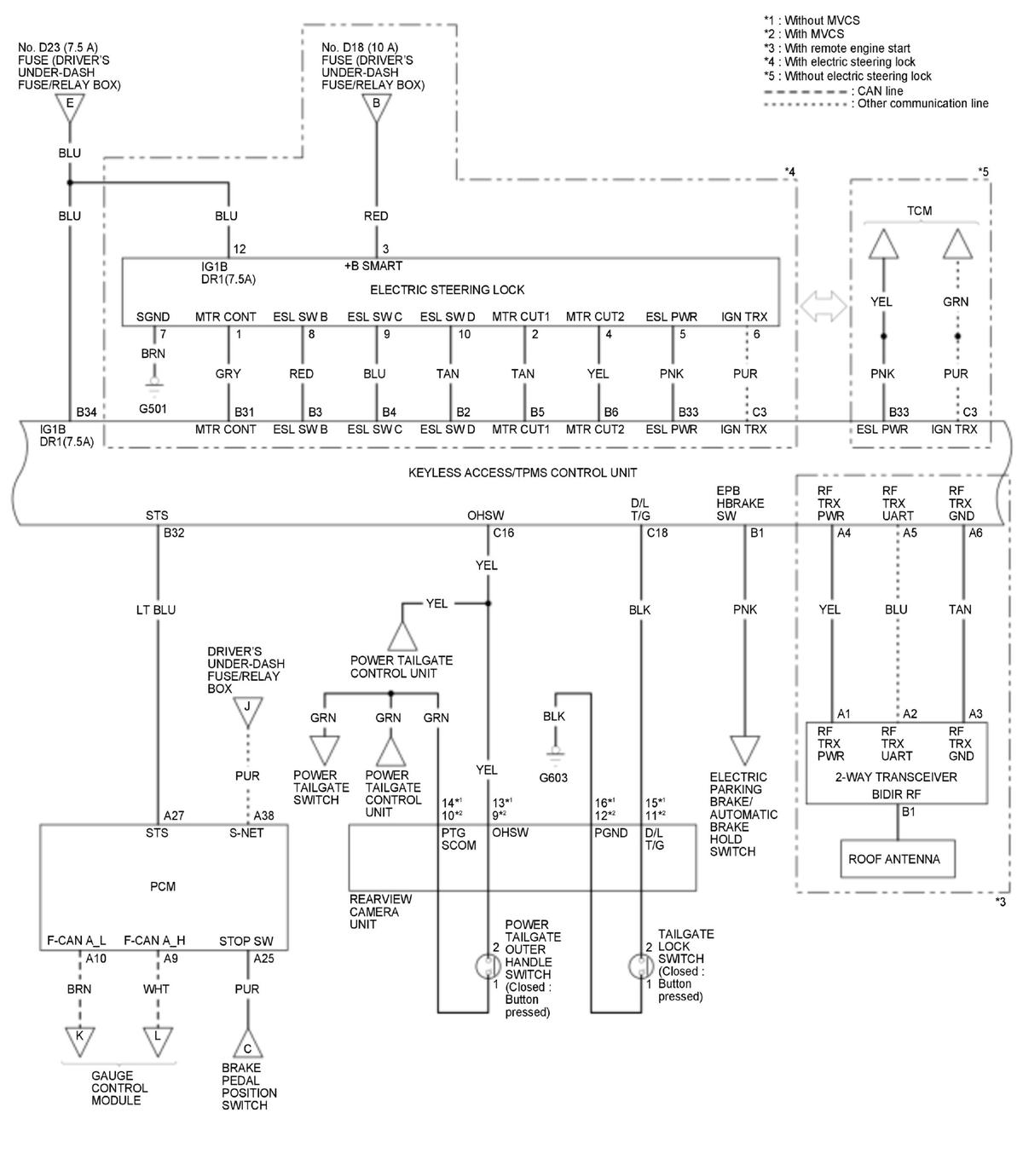

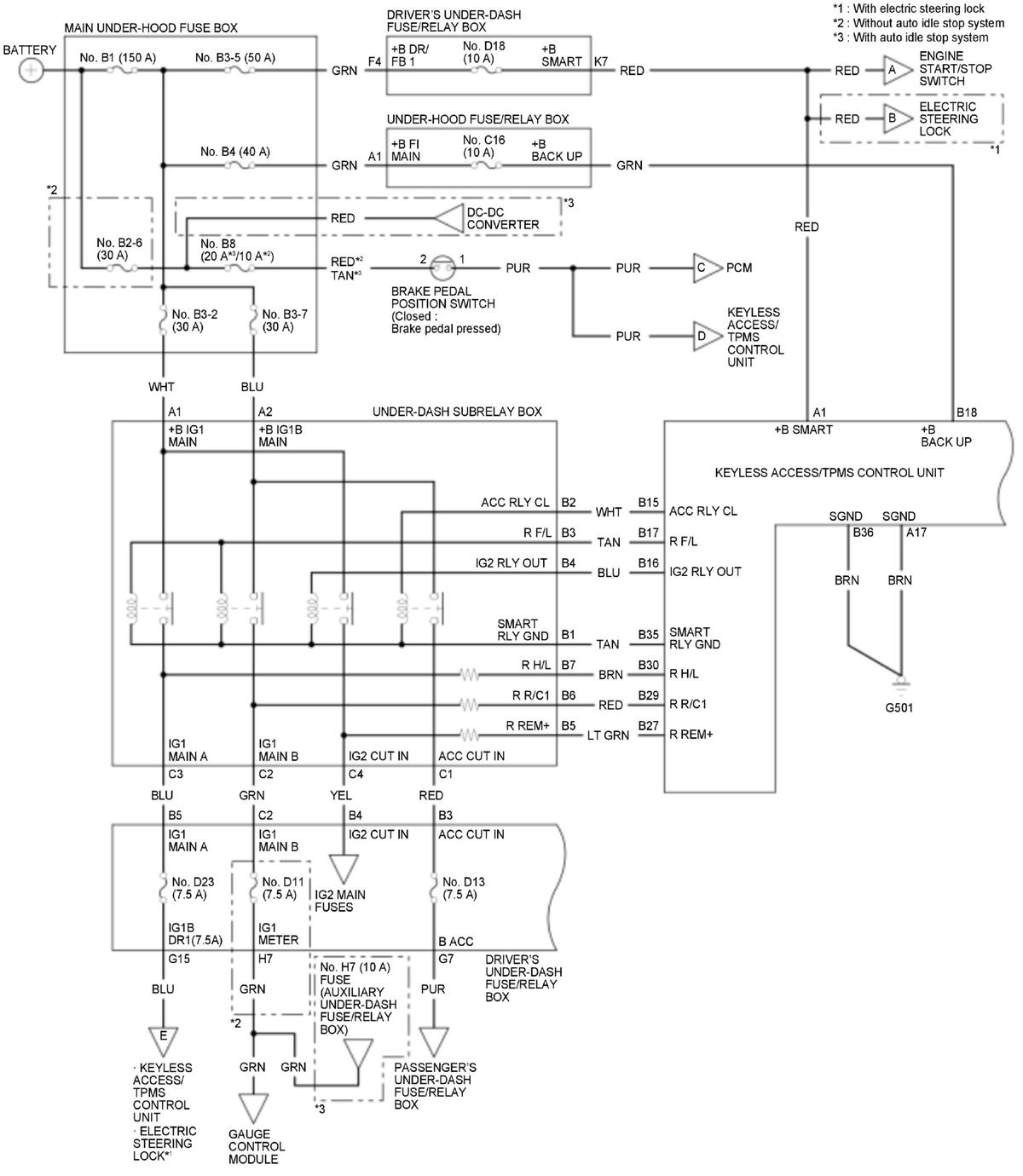

Keyless Access System Circuit Diagram (2019 2020)
Keyless Access System Circuit Diagram (2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
