Anti-Theft Systems
>>
Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

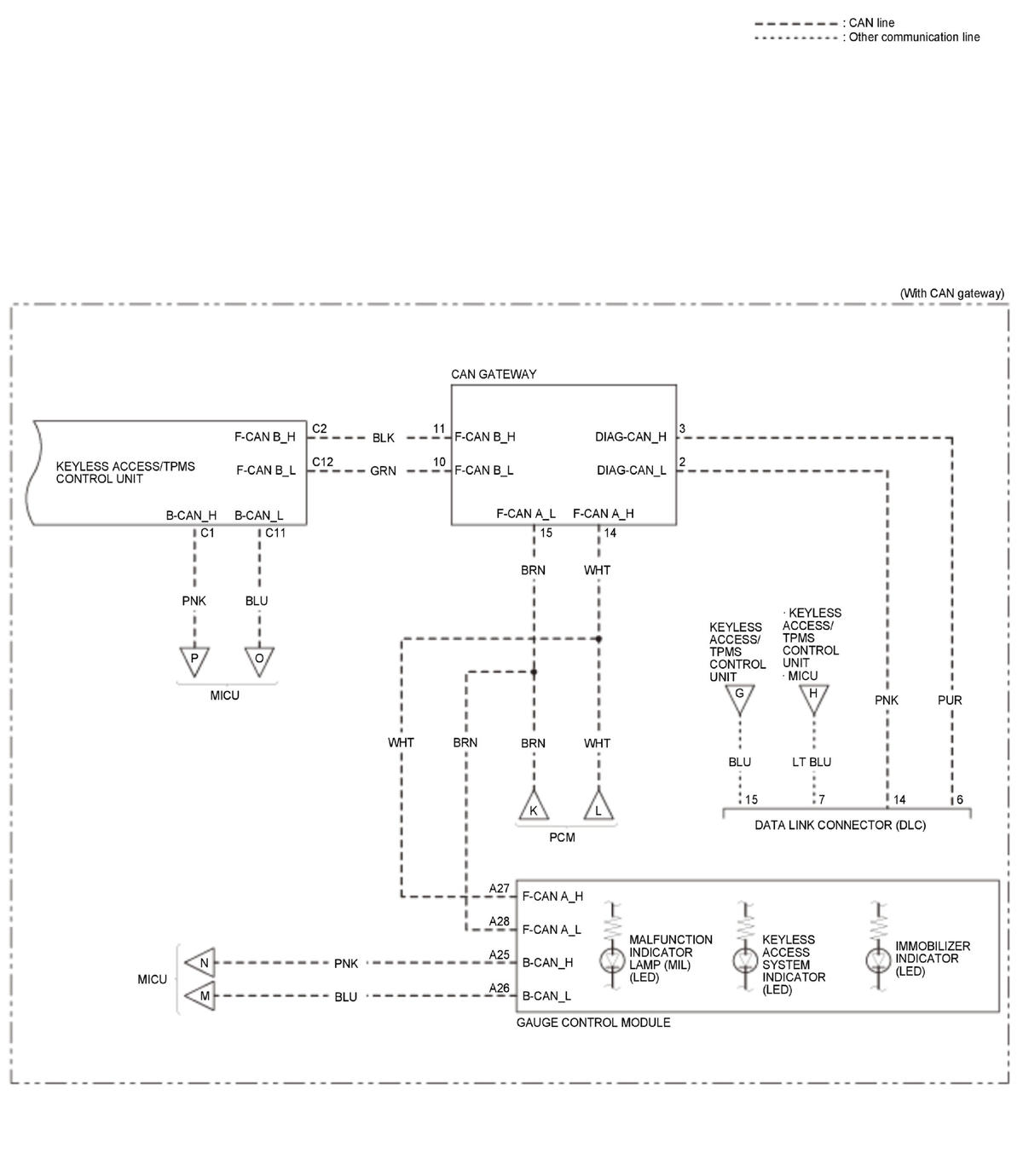

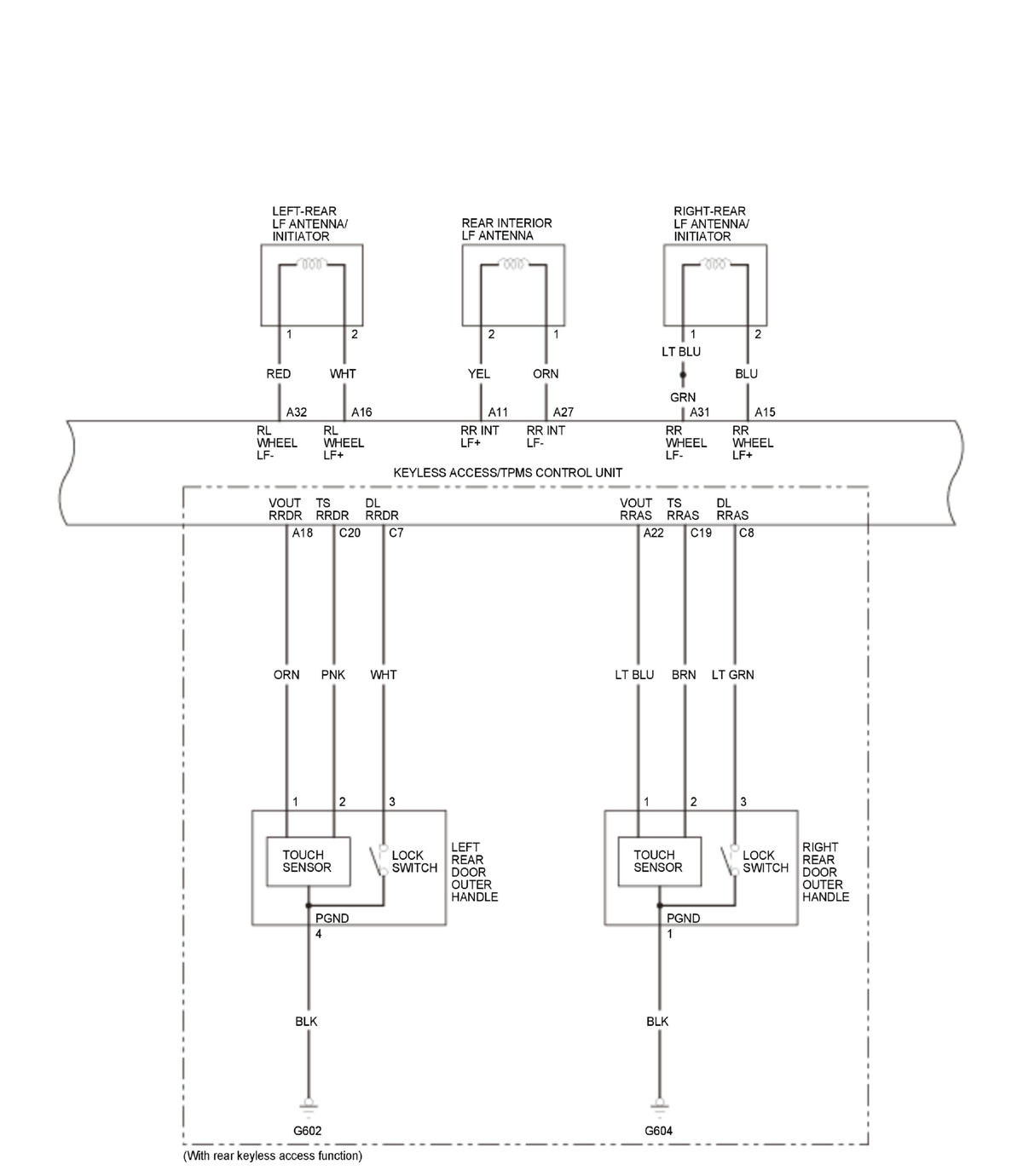

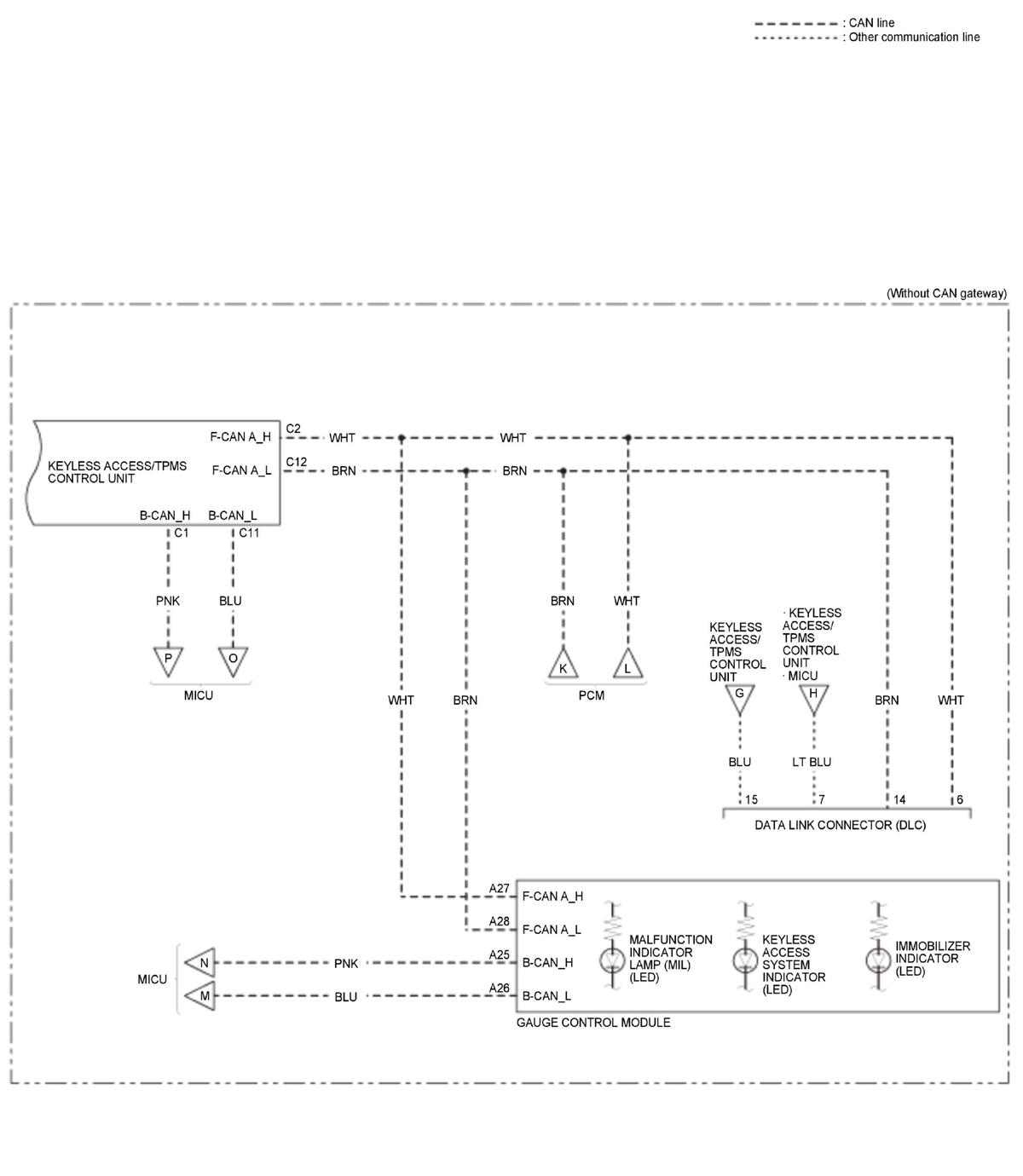

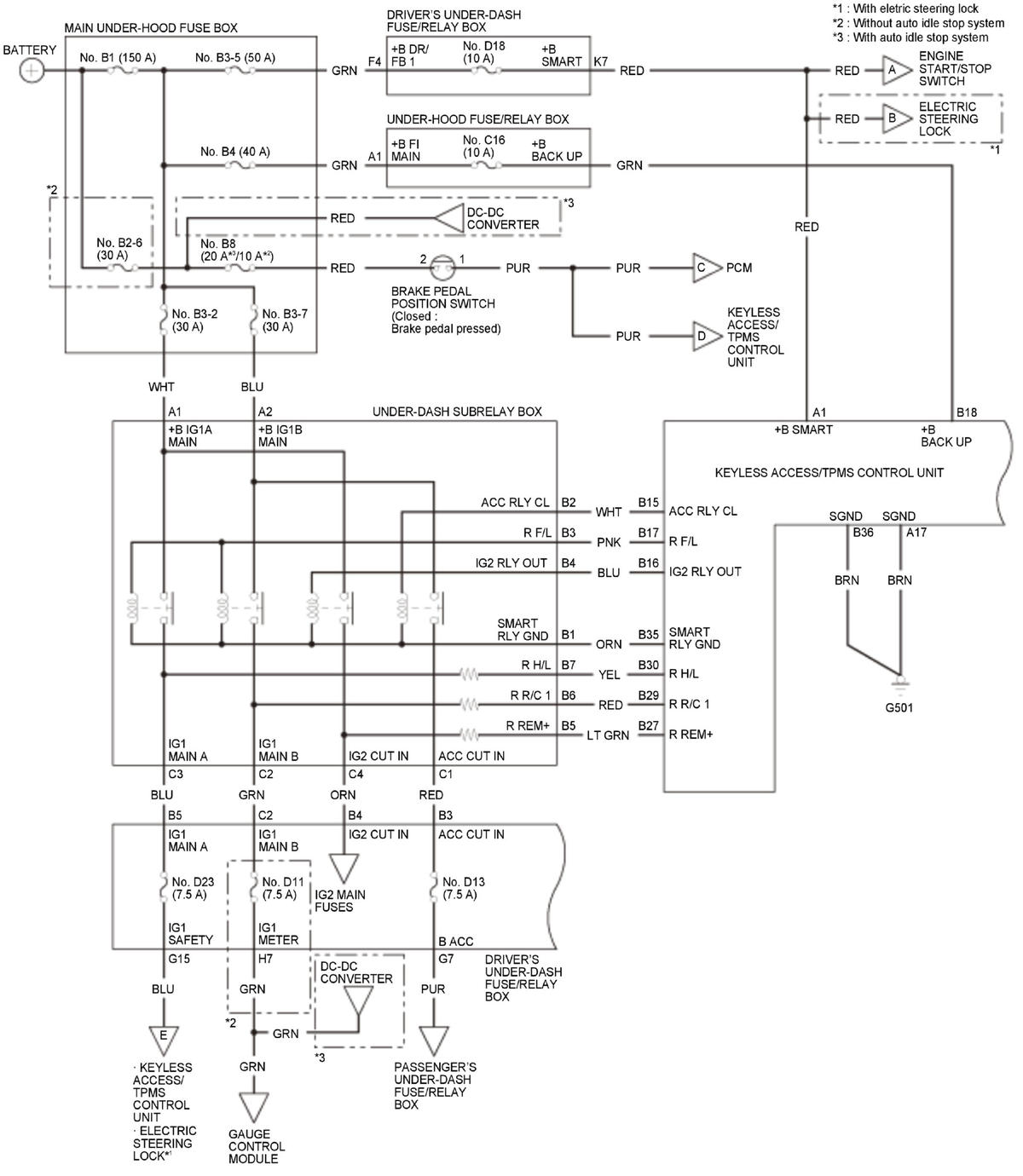

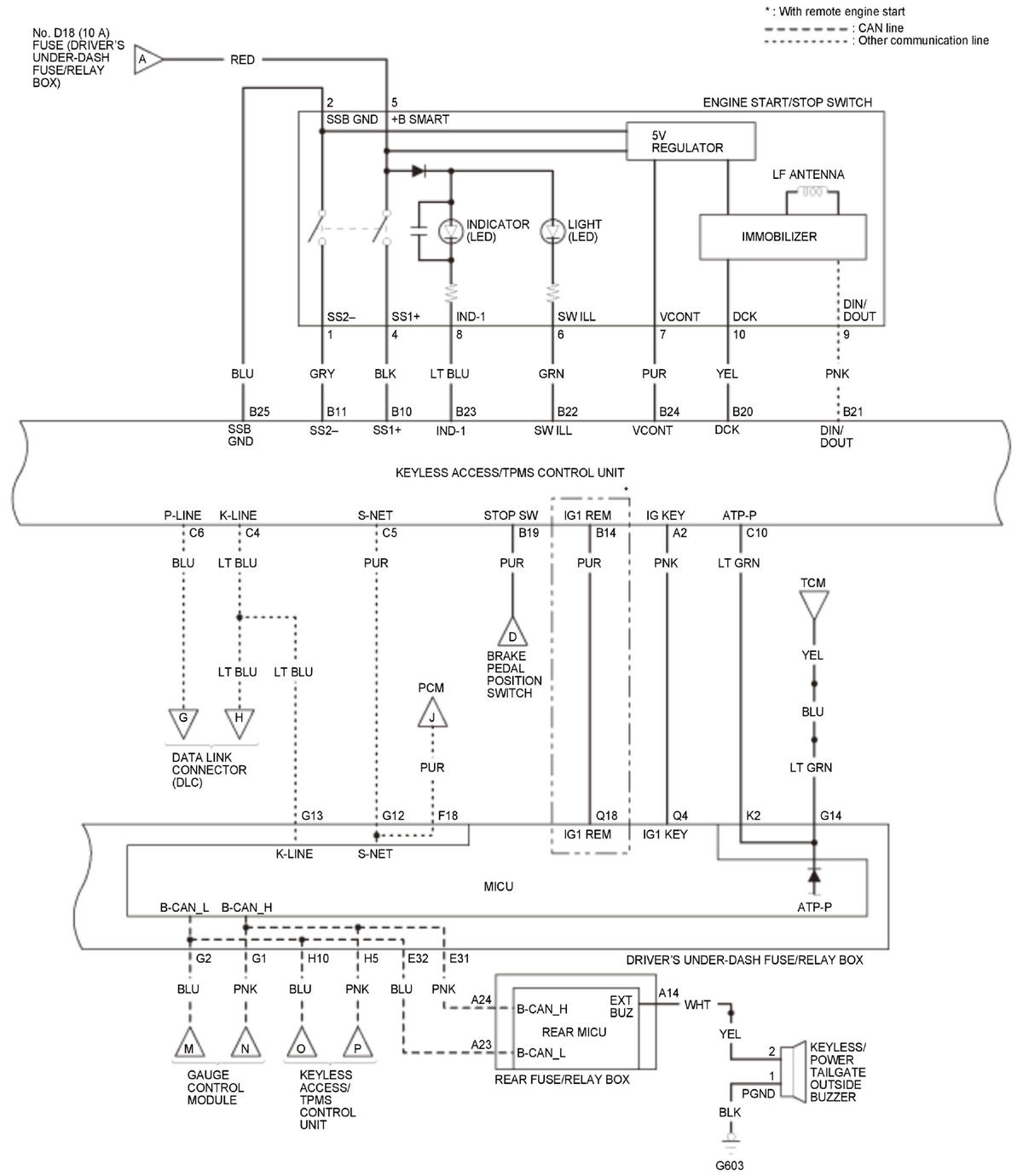

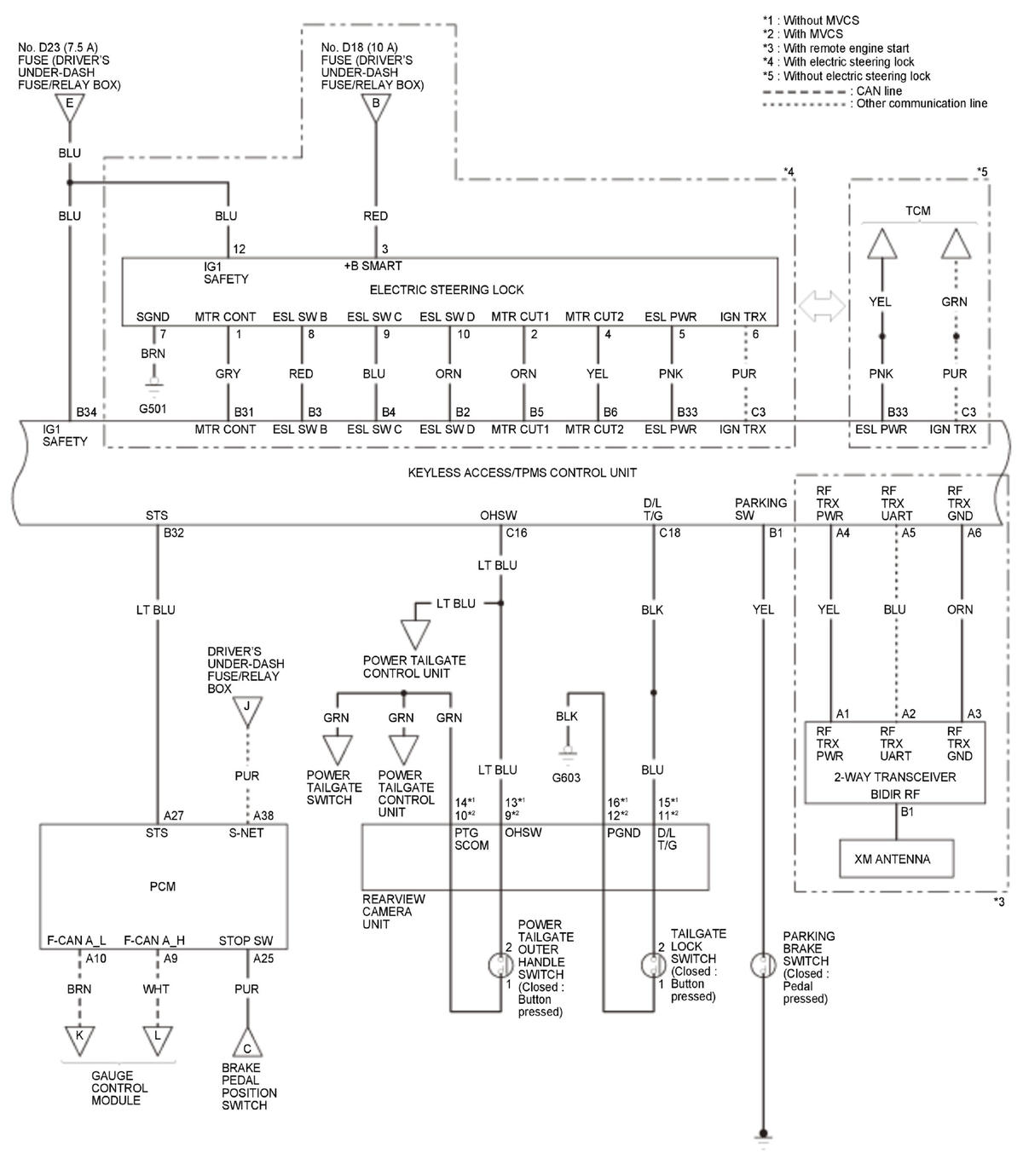

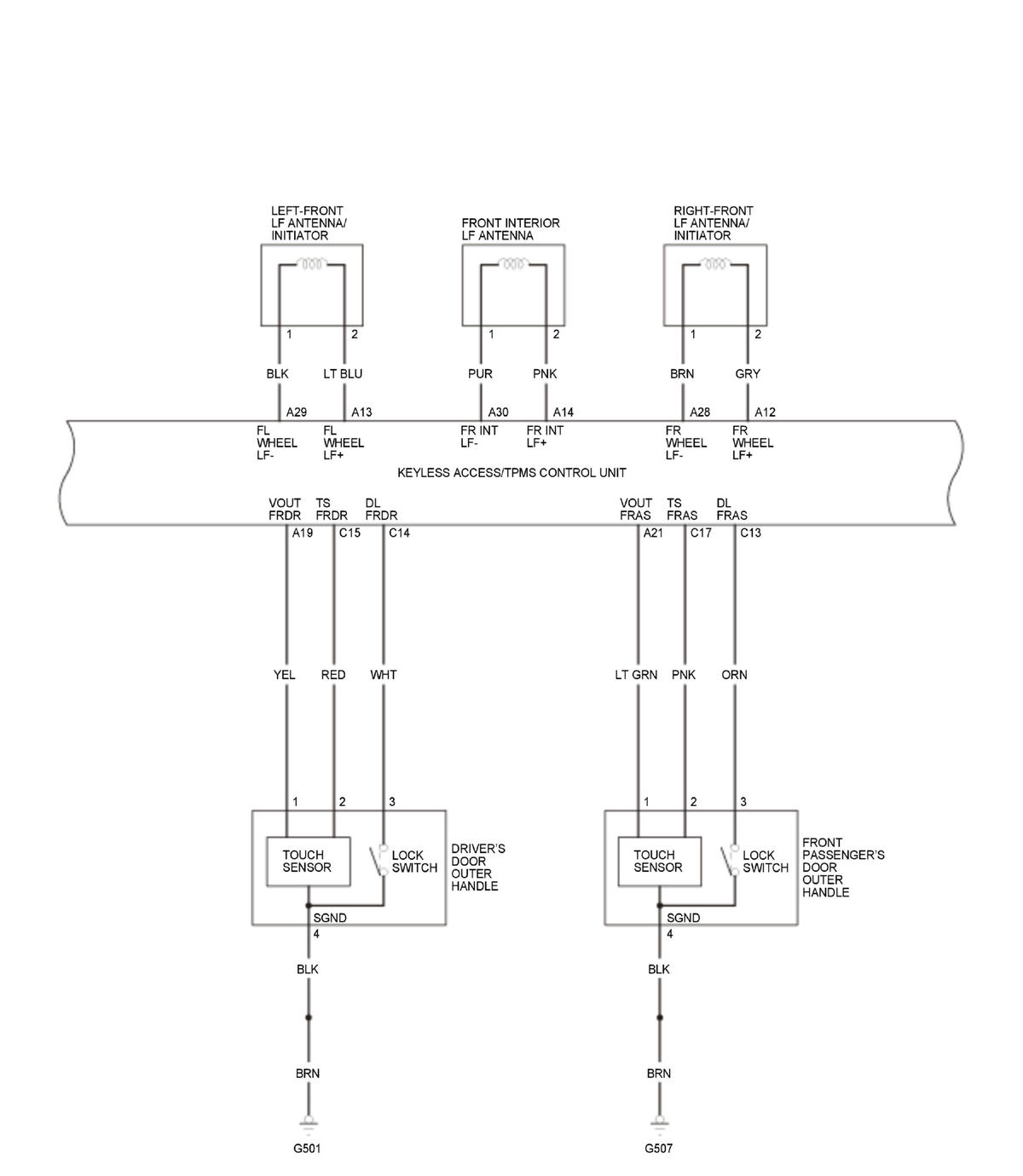

Keyless Access System Circuit Diagram (2016)
Keyless Access System Circuit Diagram (2016)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
