VTEC Rocker Arm (R20A5) (2013 2014 2015): Notes

Special Tools Required

Image Description/Tool Number
GHH89583Courtesy of HONDA, U.S.A., INC.
 Air Pressure Regulator 07AAJ-PNAA101

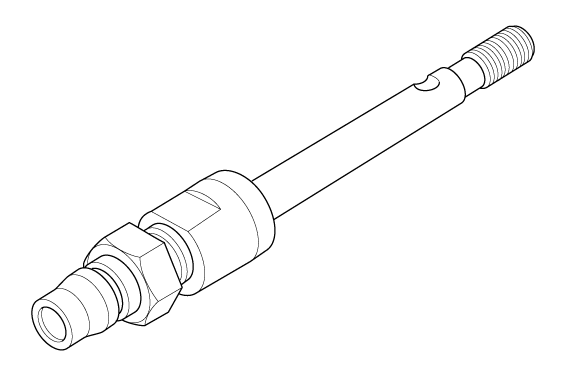

GHH89594Courtesy of HONDA, U.S.A., INC.
 VTEC Air Adapter 07ZAJ-PNAA101
