PGM-FI - Ignition Timing Control (2013 2014 2015)

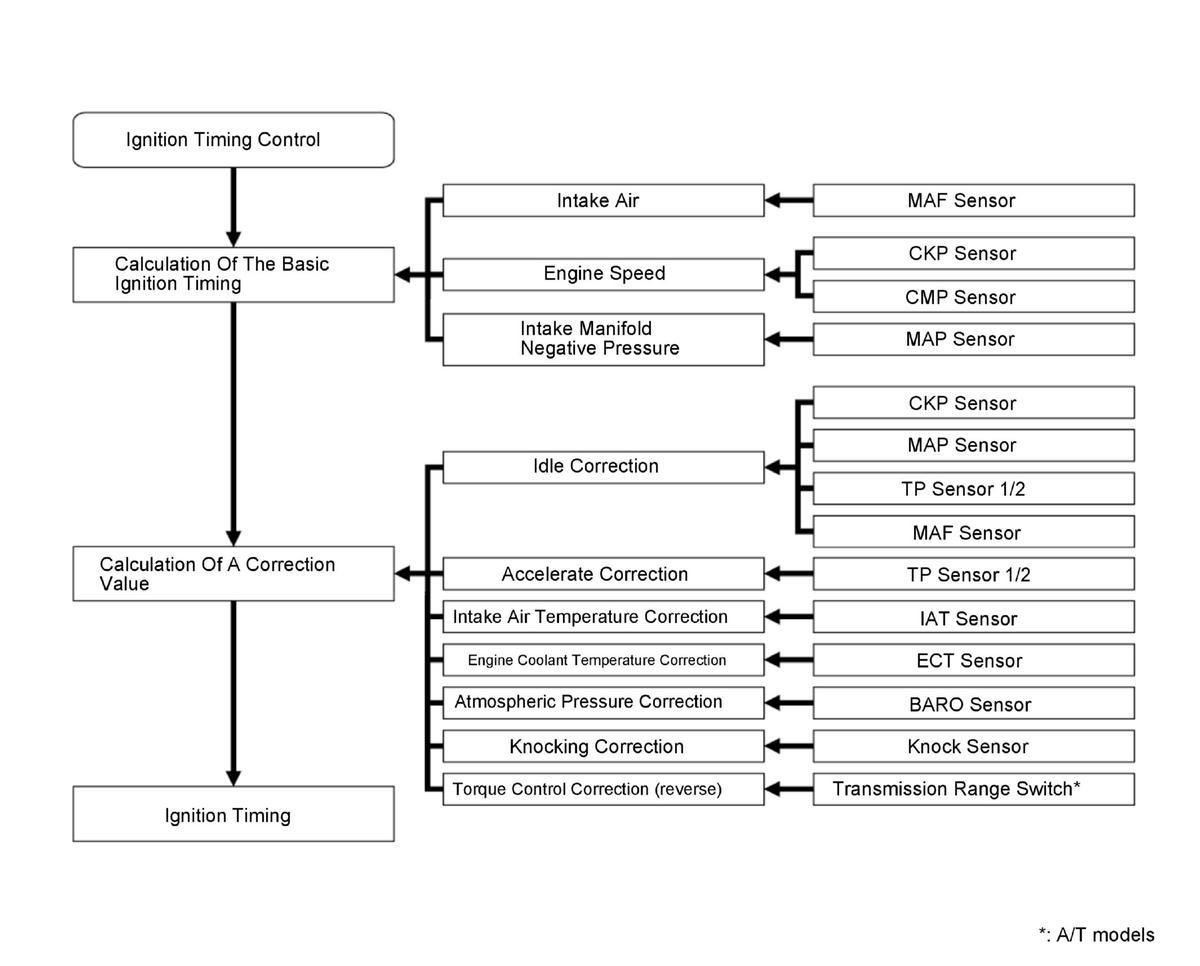

The PCM contains the memory for basic ignition timing at various engine speeds and manifold absolute pressures. It also adjusts the timing according to engine coolant temperature and intake air temperature.

Courtesy of HONDA, U.S.A., INC.
