PGM-FI System (R20A5) (2013 2014 2015)

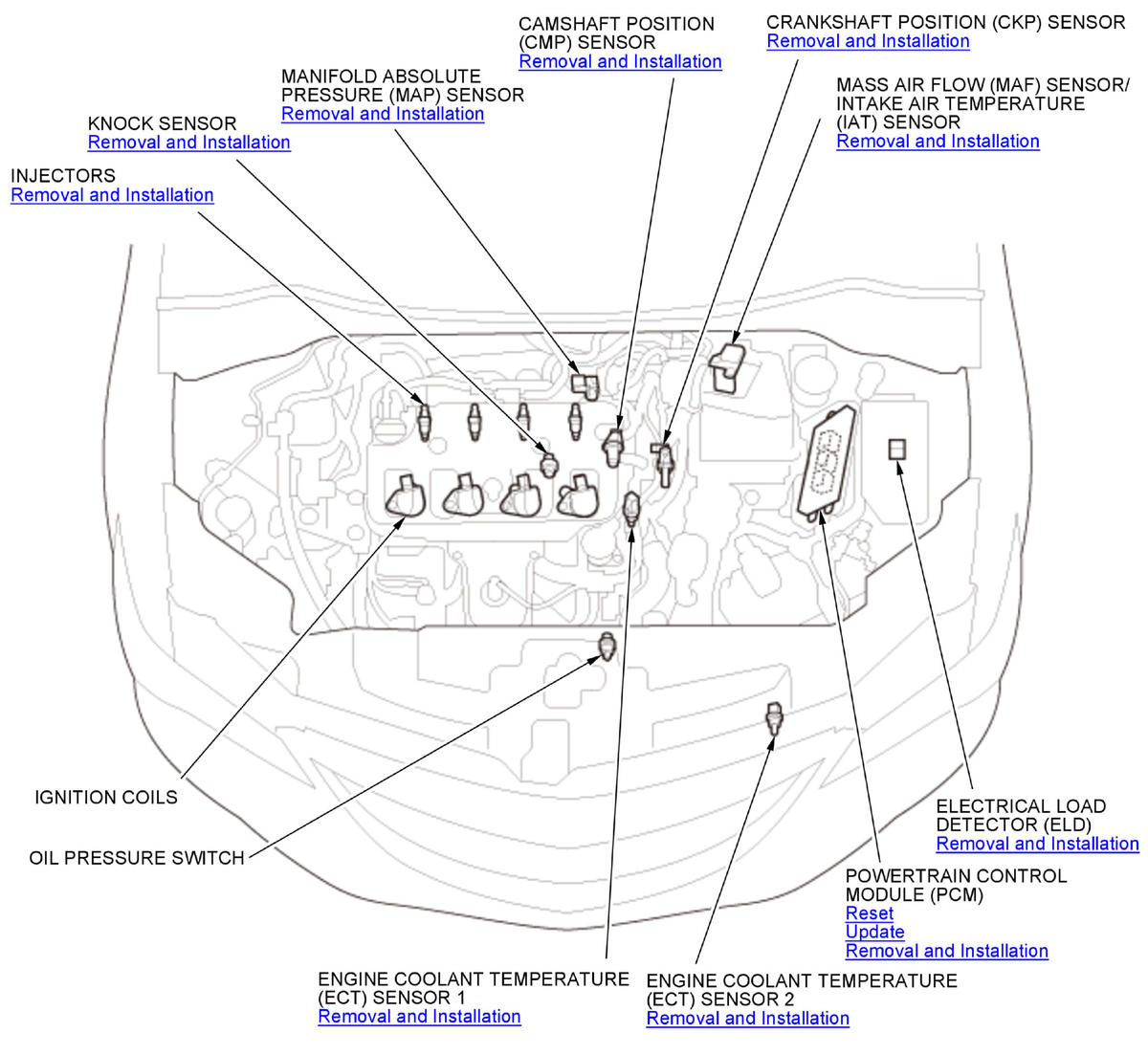

GHH468909

Courtesy of HONDA, U.S.A., INC.

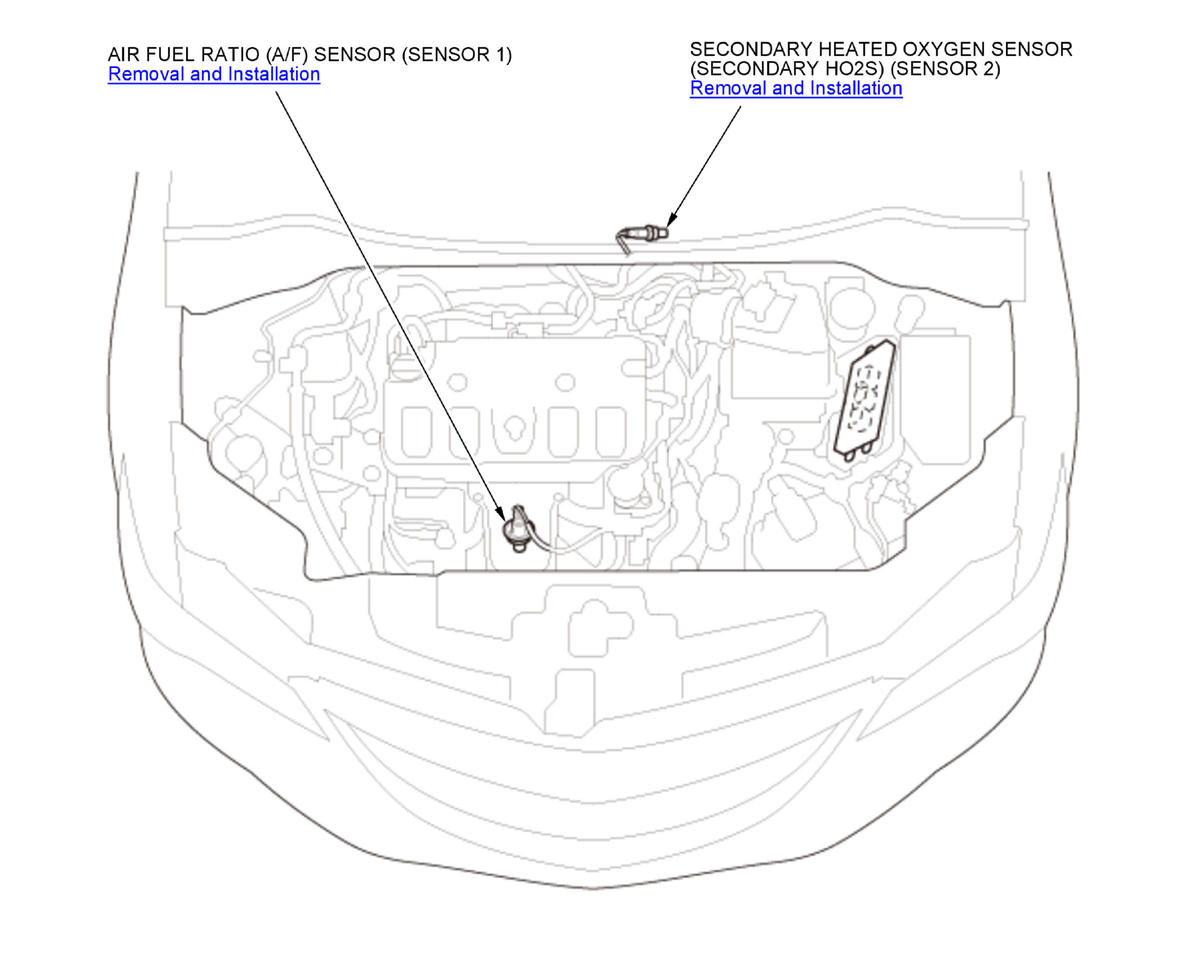

GHH468910

Courtesy of HONDA, U.S.A., INC.

GHH468911

Courtesy of HONDA, U.S.A., INC.

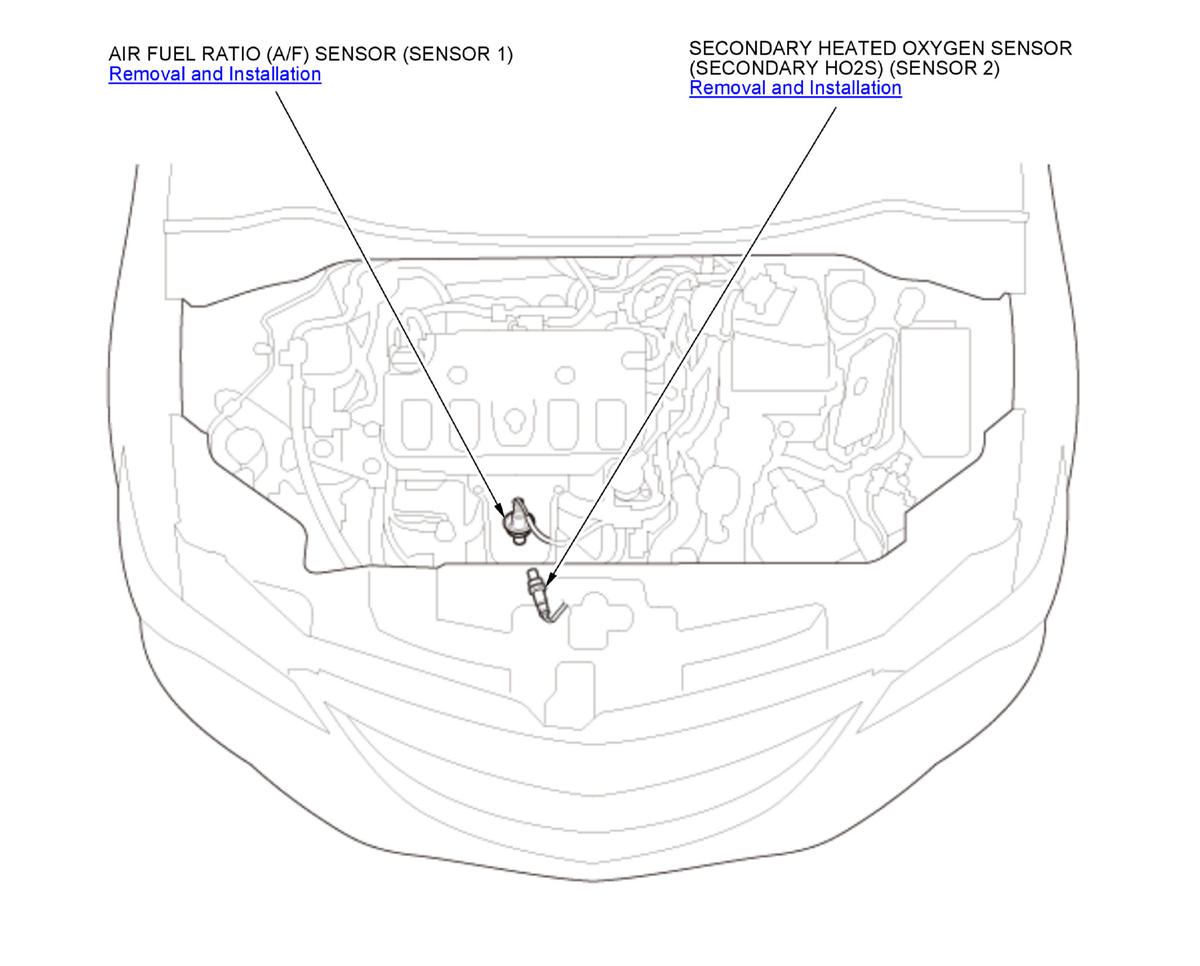

GHH468912

Courtesy of HONDA, U.S.A., INC.
